Lightmybricks 103035 Bedienungsanleitung

Light My Bricks: Market Street Lighting Kit

Here is the instructions document for the LEGO Market Street LED lighting kit. Please

read and follow the steps carefully to ensure this lighting kit is installed properly.

If you run into any issues, please refer to the troubleshooting guide.

Package contents:

 1x LEGO Lamp Post with White Bit Light Installed

 4x White 15cm Bit Lights

 6x White Strip Lights

 5x LEGO Plates 1×6

 2x 6 Port Expansion Boards

 7x 15cm Connecting Cables

 1x AA Battery Pack

 8x Adhesive Squares

Important things to note:

Laying cables in between and underneath bricks

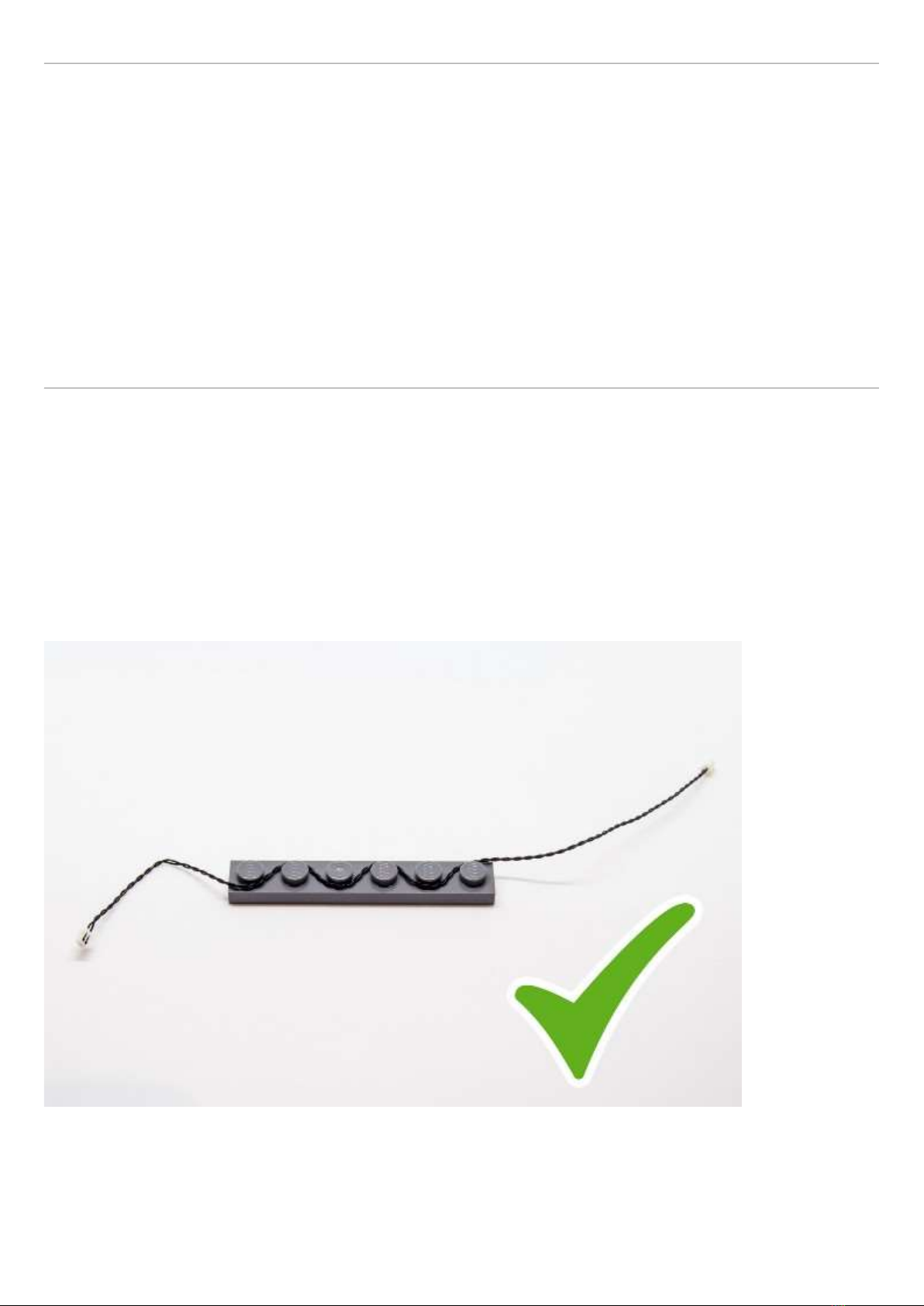

Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they

are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together

around cables; instead ensure they are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable

and light.

Connecting cable connectors to Strip Lights

Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be

inserted only one way. With the Strip Light facing up, ensure the side of the connector

with the wires exposed is facing down. If a plug won’t fit easily into a port connector, don’t

force it. Doing so will damage the plug and the connector.

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards. Connectors can

be inserted only one way. With the expansion board facing up, look for the soldered “=”

symbol on the left side of the port. The connector side with the wires exposed should be

facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily

into a port connector, do not force it.

Incorrectly inserting the connector can can result in bent pins inside the port or

possible overheating of the expansion board when connected.

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way

up (Yellow LED component exposed). You can either place them directly on top of

LEGO® studs or in between.

OK, Let’s Begin!

Instructions for installing this kit

1.) We will start installing lights to the right section of the building. First detach and

remove the upper levels from the ground floor, followed by the lamp post and floor tiles as

pictured below.
