Lightolier 12" PENDALYTE SERIES Bedienungsanleitung

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This ﬁxture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:40431

1198 Page 1 of 1

Note: This instruction sheet covers several ﬁxture styles.

Powerhead assembly, lamp type, and reﬂector may

vary slightly from that shown, although installation is

the same.

STEM INSTALLATION:

1. Rotate BALL so that side hole comes into view. Install end of

STEM into BALL, lining up holes. Install SPLIT PIN into holes and

allow BALL/STEM to swing into resting position, trapping the PIN

into place.

2. While supporting STEM ASSEMBLY make connections: black

stem lead to hot (black) supply lead; white stem lead to neutral

(white) supply lead. Green stem wiring wire is a ground wire and

must be connected to grounding terminal or ground lead inside

OUTLET BOX. Use WIRE NUTS (local hardware item). Push supply

wires and connections back into OUTLET BOX.

CAUTION: MAKE CERTAIN WIRES ARE NOT PINCHED

BETWEEN PARTS.

3. Secure STEM ASSEMBLY to OUTLET BOX using OUTLET BOX

SCREWS. Thread OUTLET BOX SCREWS into OUTLET BOX. Pass

OUTLET BOX SCREWS through SLOT in SWIVEL PLATE and twist

through KEYHOLE. Fully tighten screws.

4. Slide CANOPY up STEM and attach CANOPY to SWIVEL PLATE

using CANOPY SCREWS.

POWER HEAD INSTALLATION:

1. Slide STEM through opening in HANGER BRACKET. To secure

STEM, align holes and push PIN into holes. Push COTTER PIN

through hole at the end of PIN to secure PIN in place (as shown

in ﬁg .2).

2. Align KEYHOLE in MOUNTING PLATE with SCREWS in TOP

MOUNTING PLATE and twist into position. Fully tighten SCREWS.

3. Remove DOOR from POWERHEAD by loosening SCREW in TOP

MOUNTING PLATE (SCREW is located directly above PIN on

POWERHEAD DOOR which protrudes through BOTTOM PLATE).

Pull DOOR directly away from POWERHEAD.

4. Using WIRE NUTS (local hardware item) wire ﬁxture:

COMPACT FLUORESCENT and INCANDESCENT FIXTURES: Black

ﬁxture lead to hot (black) stem lead; white stem lead to neutral

(white) supply lead. Attach green ground wire from BOTTOM

PLATE to green ground wire from stem lead and BALLAST (if

supplied). METAL HALIDE FIXTURES: Refer to wiring diagram

illustration in ﬁg. 4.

5. Reinstall door and secure in place by tightening SCREW through

TOP MOUNTING PLATE.

6. Install recommended lamp(s).

Note: On metal halide ﬁxtures with auxiliary light option, install

halogen lamp (as shown in Fig. 3).

CAUTION: MAXIMUM WATTAGE AS MARKED ON

FIXTURE MUST NOT BE EXCEEDED.

REFLECTOR INSTALLATION:

1. Slide COLLAR up extruded NECK.

2. Tip REFLECTOR over REFLECTOR PLATE and allow REFLECTOR

to rest on TABS.

3. Slide COLLAR down over REFLECTOR and secure in place by

loosening two SET SCREWS in extruded NECK. allowing SET

SCREW to extend outward enough to hold COLLAR in position.

LENS INSTALLATION (when provided):

1. Place LENS up into lip of REFLECTOR. Secure in place by opening

RING around lip of REFLECTOR and allowing spring tension to

hold in place.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

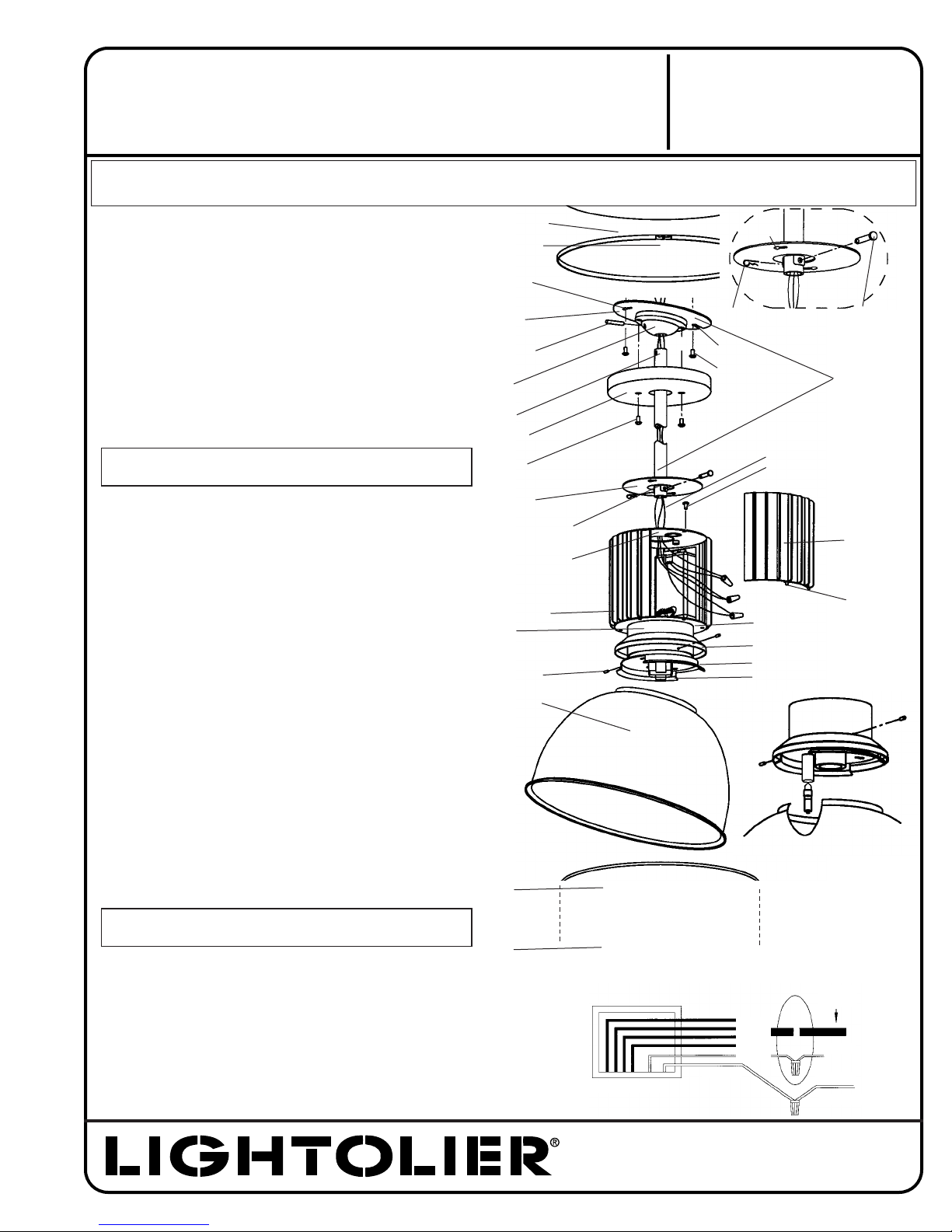

KEYHOLE

OUTLET BOX

POWERHEAD

SPLIT-PIN

MOUNTING

PLATE

STEM

ASSEMBLY

WIRE NUTS

TOP MOUNTING

PLATE

SWIVEL

PLATE

BALL

STEM

HANGER BRACKET

SET SCREW

REFLECTOR

LENS

RING

FIG. 2

DOOR

SCREW

FIG. 3

CANOPY

SCREW

NECK

SLOT

OUTLET BOX

SCREW

BOTTOM PLATE

COLLAR

REFLECTOR PLATE

FIG. 1

COTTER PIN PIN

277V

240V

208V

120V

COMMON

HID BALLAST

GROUND

POWERCORD

GROUND

WHT

BLK

FIG. 4

KEYHOLE

CONNECT TO

APPROPRIATE VOLTAGE

STEM

WIRING

INSTRUCTION SHEET FOR ASSEMBLY AND INSTALLATION

OF 12 & 16” PENDALYTE™SERIES WITH STEM

TAB
