GYMLYTE GM4B5SVI432

Page 1 of 2 SURFACE FLUORESCENT, 4' LENGTH, 16-5/16" WIDE WITH STEEL WIRE DOOR

3 OR 4 LAMP T8 OR T12

DIMENSIONS

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 6A/Folio P30-11

Features

• Excellent for gymnasiums and similar applications.

• Welded 20 gauge chassis for superior strength.

• Side mounted ballast for a low 4-1/8" deep profile.

• Wire guard welded to door frame.

• Door frame, hinged.

• Door, latch with screws.

• Steel wire guard to protect lens.

• Surface or stem mounted.

4-1/8"

(105mm)

13-3/8" (340mm)

16-15/16" (430mm)

24-3/32" (612mm)

7/8" DIa. K.O.

8 Places

3" (76mm)

(127mm)

(127mm) 3" (76mm)

3-1/16"

(78mm)

Double K.O.

2" Dia./7/8" Dia.

48-3/16" (1224mm)

4' FIXTURE

GYMLYTE GM4B5SVI432

Page 2 of 2 SURFACE FLUORESCENT, 4' LENGTH, 16-5/16" WIDE WITH STEEL WIRE DOOR

3 OR 4 LAMP T8 OR T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 6A/Folio P30-11

Job Information Type:

OPTIONS & ACCESSORIES

SPECIAL LENSES: Substitute KA for VI (standard.)

FUSING: Internal fast-blow fusing.

SUFFIX: GLR.

Internal slow-blow fusing.

SUFFIX: GMF.

RADIO INTERFERENCE FILTER 120 or 277 volt, 50 or 60 Hz. One per fixture

is standard. SUFFIX: RF.

STEM AND CANOPY SETS: Suspends fixture 6", 12", 18" or 24" from surface.

(Four per fixture is recommended.) Catalog Number: ASC6 CSP (6"), ASC12

CSP (12"), ASC18 CSP (18"), ASC24 CSP (24")

ELECTRICAL/WIRING OPTIONS Consult factory.

SPECIFICATIONS

PERFORMANCE: In an installation of 4 lamp 32W luminaires in a room cavity

ratio of 1, reflectance 80% ceiling, 50% wall, 20% floor, the C.U. shall not be

less than .73.

SPECIFICATIONS (continued)

MATERIALS: Chassis parts are die formed 20 gauge cold rolled steel, weld-

ed for rigidity with all seams finished smooth.

FINISH: Chassis exterior—white baked polyester powdercoat finish

Cavity—white baked polyester powdercoat, minimum reflectance 84%. LENS:

VI (standard). Pattern 12, .125" nominal thickness, extruded virgin acrylic lens

(average weight per square foot is 6.8 ounces). KA (optional) Extruded acrylic,

square based male conical prism, .156" overall thickness (similar to pattern 19).

ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non PCB.

If K.O. is within 3" of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W./UL and C-UL.

ORDERING INFORMATION

Explanation of Catalog Number. Example: GM4B5SVI432120SOGLR

GYMLYTE

HEAVY DUTY

SURFACE

LUMINAIRE

FIXTURE

LENGTH:

4=4' Length

BODY STYLE:

B=Surface

FIXTURE

WIDTH:

5=16-15/16"

CEILING

TYPE:

S=Surface

LENS/

SHIELDING TYPE:

VI=Pattern 12 lens .125"

polycarbonate

(standard)

KA=Pattern 19 lens .156"

nominal Prismatic lens

LAMP

QUANTITY:

3=3 Lamp

4=4 Lamp

LAMP TYPE/

FIXTURE LENGTH:

32=T8

34=T12

(Nominal 48")

VOLTAGE:

120 or 277

BALLAST TYPE:

1 & 2 Lamp Mag. T12 LE

<20THD <10THD

1 & 2 Lamp Elec. T8 SO* HI*

1-3 Lamp Elec. T8 O3* H3*

1-4 Lamp Elec. T8 O4* H4*

LOL T8 Dimming PS –

*Instant Start Standard

OPTIONS:

Add appropriate

suffix to catalog

no, ie: (GLR)

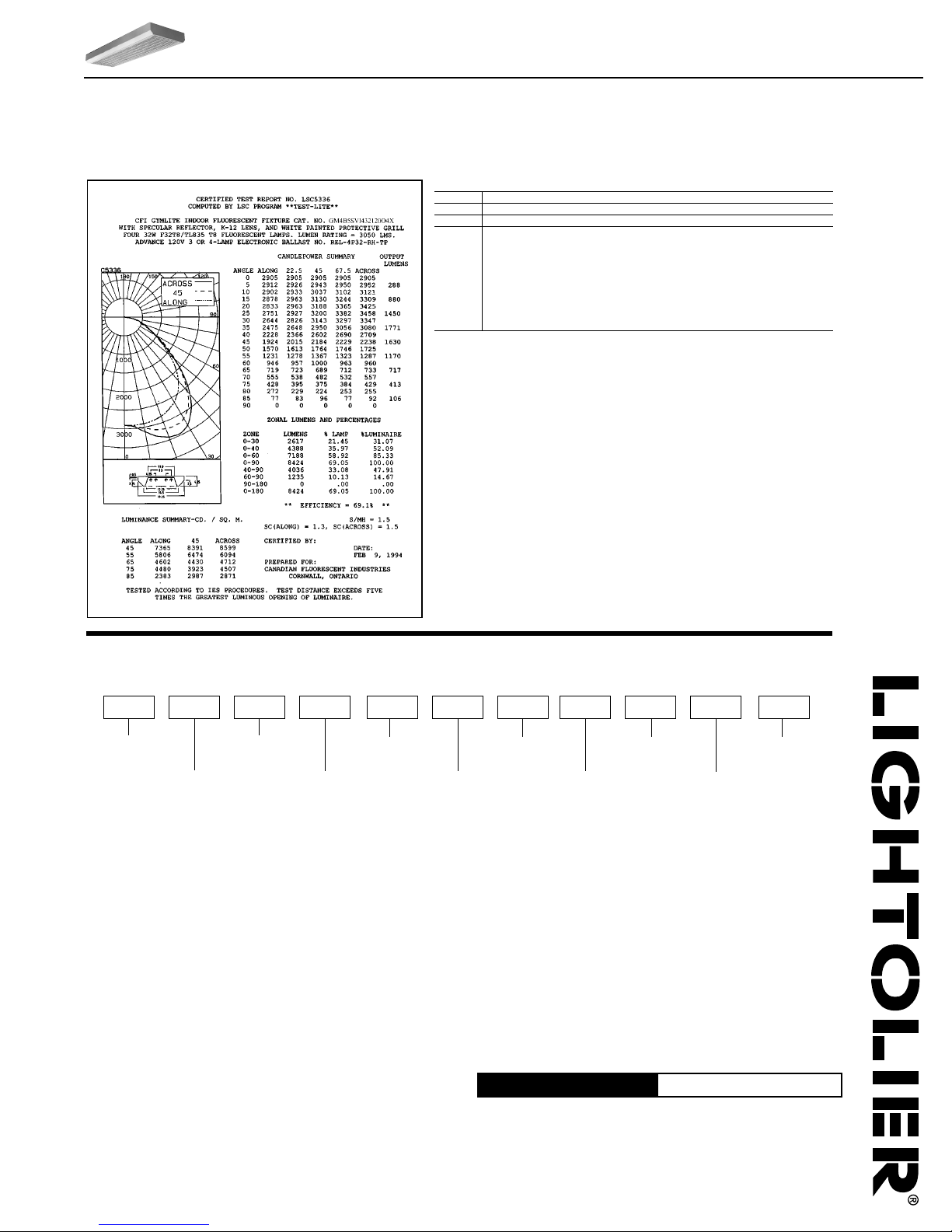

PHOTOMETRY MODEL NO. GM4B5SVI432120SO

coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1767371 696765 666563

2706662 625956 605755

3655854 565248 545048

4605347 504642 484542

5554741 454036 433936

6514237 403632 393532

7473832 363128 353128

8433429 332824 322724

9403125 292521 292421

10 37 28 22 27 22 19 26 22 19

room cavity ratio

LER = FL - 69 IW - 62 BF - 0.88

Comparative yearly lighting energy cost per 1000 lumens = $3.47
