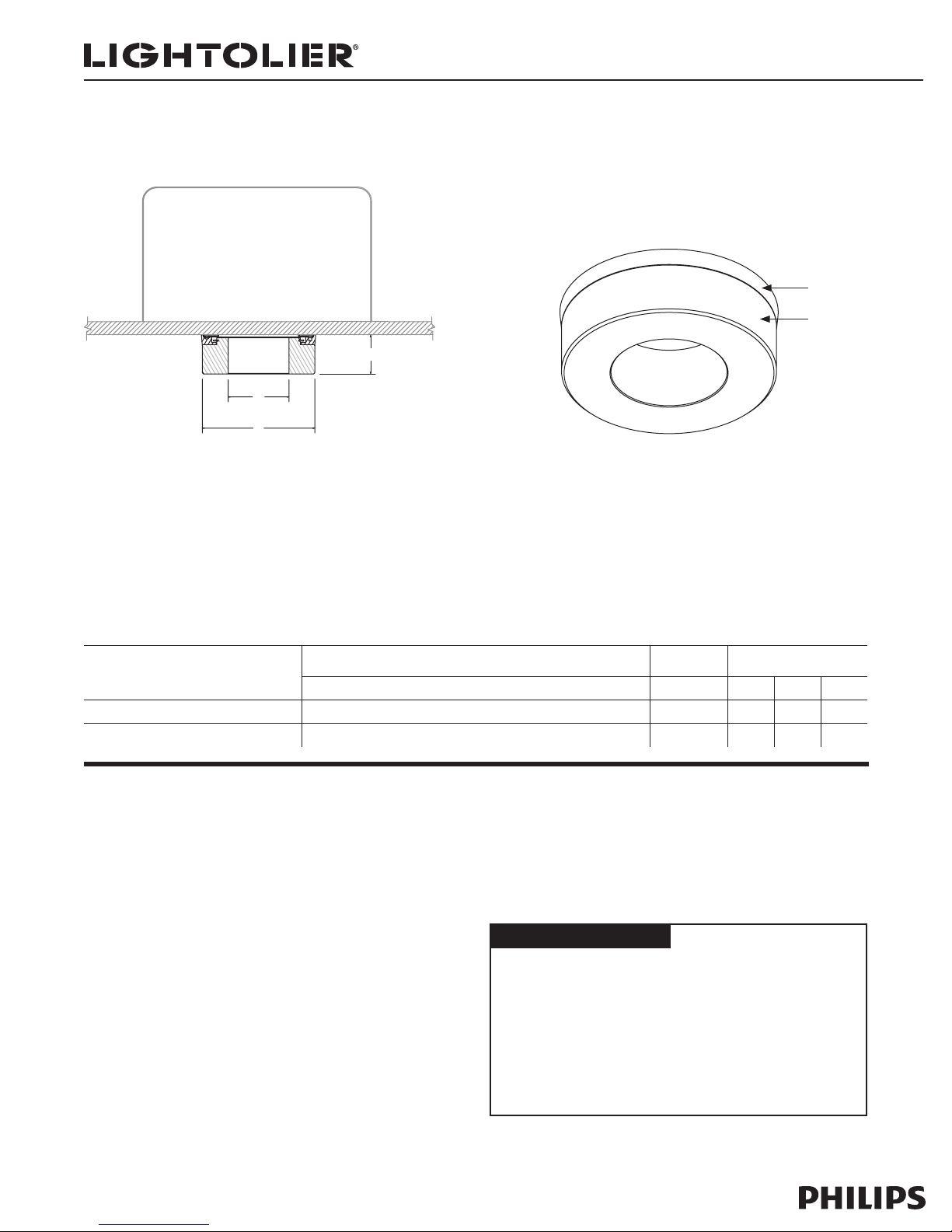

Architectural Decorative Vetro Downlight D02

Page 1 of 2 Evolution, Low Voltage

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Decorative Element: Solid high temp, UV resistant composite with open

aperture; frosted interior diameter, polished exterior and machined facet

along bottom edge.

2. Die Cast Construction Ring: Exterior edge of construction ring is visible,

satin aluminum finish matches diameter of decorative element for a

flangeless appearance.

3. Integral Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp

image. Decorative Element is mechanically attached to reflector via die cast

ring. Reflector is specular clear for best performance and aesthetics.

4. Cover Glass: 3" Evolution contains high temperature soft focus lens. 4"

Evolution contains high temperature perimeter frost.

5. Trim Kit: For 3" and 4" Evolution, trim kit, reflector and decorative element

ship complete.

6. Frame-In Kit: Specified separately. See Frame-In Kit Specification Sheet for

details.

Mechanical

Decorative element is mechanically secured to the die cast construction ring

and the integral reflector from the factory.

Labels

cULus (Damp Location)

Decorative Element/Trim Kit

Catalog No.

Frame-In Kit Lamping Dimensions

A B C

3" Evolution D3MR02 C3LV, C3AICLV, C3ALV, C3LVE1, C3LVE2, C3ALVE1, C3AICLVE1, C3ALVE2 50W MR16 2 1/4" 4 1/4" 1 1/2"

4" Evolution D4MR02 C4LV; C4ALV; C4AICLV 50W MR16 3" 5 5/8" 1 3/4"

Complete Fixture consists of Decorative Element/Trim-Kit + Frame-In Kit. Each sold seperately.

2 Piece Ordering System, Example: D3MR02 + C3LV

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative Vetro Downlight D02

Page 2 of 2 Evolution, Low Voltage

C3MRDCLW /D3MR02

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 337 42.14 73.32

0-40 365 45.70 79.51

0-60 416 52.10 90.65

0-90 459 57.47 100.00

40-90 94 11.78 20.49

60-90 43 5.38 9.35

90-180 0.00 .00

0-180 459 57.47 100.00

** Efciency = 57.5% **

Certified test report no. 3565FR

Computed by LSI program **TEST-LITE**

SC = .5

Prepared For:

Lightolier

Fall River, MA

Tested According to IES Procedures. Test Distance Exceeds Five

Times the Greatest Luminous Opening of Luminaire.

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0.68 .68 .68 .68 .67 .67 .67 .67 .64 .64 .64 .61 .61 .61 .59 .59 .59 .57

1.65 .64 .62 .61 .64 .62 .61 .60 .60 .59 .58 .58 .57 .56 .56 .55 .55 .54

2.62 .60 .57 .55 .61 .58 .56 .55 .57 .55 .54 .55 .54 .52 .53 .52 .51 .50

3.59 .56 .54 .51 .58 .55 .53 .51 .54 .52 .50 .53 .51 .49 .51 .50 .49 .48

4.57 .53 .51 .48 .56 .53 .50 .48 .52 .49 .48 .51 .49 .47 .49 .48 .47 .46

5.55 .51 .48 .46 .54 .50 .48 .46 .49 .47 .45 .48 .46 .45 .48 .46 .44 .44

6.53 .49 .46 .44 .52 .48 .46 .44 .48 .45 .43 .47 .45 .43 .46 .44 .43 .42

7.51 .47 .44 .42 .51 .47 .44 .42 .46 .43 .42 .45 .43 .41 .45 .43 .41 .41

8.50 .45 .42 .41 .49 .45 .42 .40 .44 .42 .40 .44 .42 .40 .43 .41 .40 .39

9.48 .44 .41 .39 .48 .43 .41 .39 .43 .41 .39 .43 .40 .39 .42 .40 .39 .38

10 .47 .42 .40 .38 .46 .42 .40 .38 .42 .39 .38 .41 .39 .38 .41 .39 .38 .37

Determined in Accordance with Current IES Published Procedures

Luminaire Input Watts = 52.0

1000

1500

0°

30°

60°

90°

500

Calculite 4” dia. Vetro Downlight,

Cat.# C3MRDCLW/D3MR02

50W G.E. Biax T/E Triple Tube. Lumen Rating = 1200 LMS.

Universal Ballast #C218UNVBES

Candlepower Summary

Angle Mean CP Lumens

01288

5119 3 110

0956

15 582 169

20 269

25 88 57

30 51

35 45 28

40 40

45 35 27

50 31

55 27 24

60 23

65 20 20

70 17

75 13 14

80 11

85 7 8

90 6

1000

1500

2000

0°

30°

60°

90°

500

C4MR02

Calculite 4” Dia. Vetro Recessed Downlight,

Cat.# D4MR02

50W G.E. Mr16 NFL (25 deg.) Lamp.

Lumen Rating = 800 LMS. Lightech XFMR LET-75

Candlepower Summary

Angle Mean CP Lumens

02021

51786 165

10 1305

15 870 245

20 418

25 109 80

30 54

35 45 29

40 38

45 33 26

50 29

55 25 23

60 23

65 19 19

70 16

75 13 14

80 10

85 7 8

90 6

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 489 61.24 80.47

0-40 518 64.81 85.16

0-60 566 70.87 93.12

0-90 608 76 .11 100.00

40-90 90 11.29 14.84

60-90 41 5.24 6.88

90-180 0.00 .00

0-180 608 76.11 100.00

** Efﬁciency = 76.1% **

Certified test report no. 3601FR

Computed by LSI program **TEST-LITE**

SC = .4

Prepared For:

Lightolier

Fall River, MA

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0.91 .91 .91 .91 .88 .88 .88 .88 .85 .85 .85 .81 .81 .81 .78 .78 .78 .76

1.87 .85 .83 .82 .85 .83 .82 .80 .80 .79 .78 .77 .76 .76 .75 .74 .73 .72

2.83 .80 .78 .75 .82 .79 .76 .74 .76 .74 .73 .74 .73 .71 .72 .71 .70 .69

3.80 .76 .73 .71 .79 .75 .72 .70 .73 .71 .69 .72 .70 .68 .70 .68 .67 .66

4.78 .73 .70 .67 .77 .72 .69 .67 .71 .68 .66 .69 .67 .65 .68 .66 .65 .64

5.75 .70 .67 .64 .74 .70 .66 .64 .68 .65 .63 .67 .65 .63 .66 .64 .62 .61

6.73 .68 .64 .62 .72 .67 .64 .62 .66 .63 .61 .65 .63 .61 .64 .62 .60 .60

7.71 .65 .62 .60 .70 .65 .62 .59 .64 .61 .59 .63 .61 .59 .63 .60 .59 .58

8.69 .63 .60 .58 .68 .63 .60 .58 .62 .59 .57 .62 .59 .57 .61 .59 .57 .56

9.67 .62 .59 .56 .66 .61 .58 .56 .61 .58 .56 .60 .58 .56 .60 .57 .56 .55

10 .65 .60 .57 .55 .65 .60 .57 .55 .59 .56 .54 .59 .56 .54 .58 .56 .54 .53

Determined in Accordance with Current IES Published Procedures

Luminaire Input Watts = 52.0

Tested According to IES Procedures. Test Distance Exceeds Five

Times the Greatest Luminous Opening of Luminaire.
