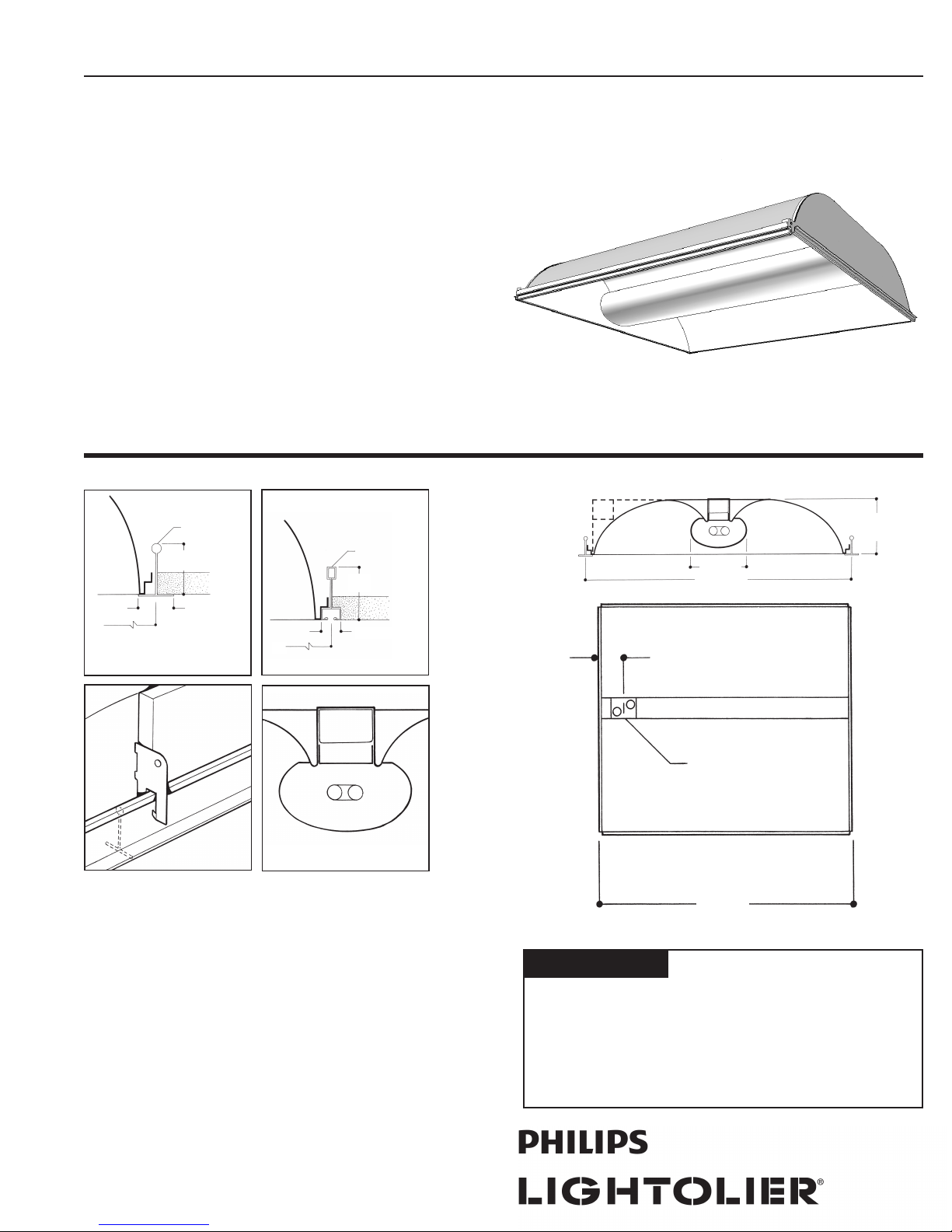

Lightolier H9S2GLR1FT Bedienungsanleitung

Features

• 72.9% efficient.

• Direct/indirect appearance with soft contoured interior.

•Lens encloses lamp compartment.

• Translucent DR acrylic high light transmission linear prismatic lens.

• Tension screws secure ends to body.

•

Same fixture fits both G and T ceiling types.

• Fits flush to face of slot grid (T) ceiling types.

• Lamp shield opens from either side.

• 95% reflective specular aluminum reflector.

• Ballast accessible from room side.

• Built-in earthquake clips.

•Can be continuous row mounted.

• Wiring access plate standard.

• Optional DALI ballast i GEN TECHNOLOGY accepts digital dimming

controllers, scene controllers and automatic control devices.

• Construction to meet NYC Code or Chicago Plenum available.

Mounting Methods Dimensions

HP90 Recessed Fluorescent H9S2GLR1FT

Page 1 of 2 Direct/Indirect – 2' x 2' with Acrylic Linear Prismatic Lens

Static, 1 Lamp TT5

exposed slot t-grid ceiling

Acoustical

material

by others

1-7/8"

max.

Exposed T-bar

by others

9/16"

24"

built-in earthquake clips

24" (610mm)

(127mm)

5" (127mm)

2-1/2"

(64mm)

2" x 2-1/2" Access Plate

with (2) 7/8" dia. K.O.

24" (610mm)

fully enclosed lamp compartment

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595 12/10

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com © Philips Group Section 5/Folio M32-16 Rev. A

exposed t-grid ceiling

Exposed T-bar

by others

1-1/2"

max.

Acoustical

material

by others

15/16" *

24"

* For flush mounting when using 9/16" Exposed T-Grid

ceiling system consult factory

* If emergency pack or 2nd ballast are used access is gained through the

adjacent ceiling tile.

HP90 Recessed Fluorescent H9S2GLR1FT

Page 2 of 2 Direct/Indirect – 2' x 2' with Acrylic Linear Prismatic Lens

Static, 1 Lamp TT5

Ordering Information

Explanation of Catalog Number. Example: H9S2GLR1FTUNVPR

Options/Accessories

Fusing: Internal fast blow fusing: SUFFIX: A.

Internal slow blow fusing: SUFFIX: C.

Drywall Kit: Order Catalog Number: FK92X2.

Electrical Wiring Options: Consult factory.

For motion or light sensor: See Folio OA20-10.

Specifications

Performance: In an installation of 1 lamp 40W luminaires in a room cavity ratio of 1,

with reflectance 80% ceiling, 50% wall, 20% floor, the C.U. shall not be less than .96.

To reduce glare the average brightness at 65° shall not exceed 2617 candelas per square

meter. To control veiling reflections, luminaire output in the 30°-90° zone shall not be

less than 69.5%.

Materials: Chassis parts are die-formed code gauge steel.

Lamp Shield: Linear prismatic translucent DR acrylic lens.

Finish: Chassis exterior – baked white acrylic enamel. Cavity – baked flat white

acrylic enamel. Rust preventative undercoating. Reflector – low iridescence specular

aluminum 95% reflectance.

Specifications (Continued)

Electrical: Thermally protected class “P’ ballast C.B.M. approved, non PCB. If K.O. is

within 3" of ballast, use wire suitable for at least 90°.

UL Listed for damp locations.

Labels: I.B.E.W./UL and ULc Listed.

This product may have a mercury containing lamp. Manage in accord with Disposal

Laws. See: www.lamprecycle.org

Options:

Add appropriate suffix

to catalog no., ie: (A)

HP90

Direct/Indirect

Recessed

Body Style:

S= Static

Fixture

Width

Ceiling Type:

Fits both

Standard Grid

and

Slot Grid

Acrylic Lens

Lamp:

(By Others)

Reflector:

Specular

Aluminum

Lamp

Quantity

1=1 Lamp

Ballast Type:

<10THD

1 Lamp Elec. TT5 IB**

(40 Watt)

1 Lamp Elec. TT5 PR†

(40 Watt)

1 Lamp Elec. TT5 BP

(50 Watt)

1 Lamp Elec. TT5 BF*

(55 Watt)

LOL Dimming TT5 PB

*Instant Start Standard.

Other dimming options. Consult factory.

NOTE:

For TT5 40W UNV, you must use PR Ballast Code.

†Program Rapid Start

0.0 45.0 90.0 FLUX

0 876 876 876

5 868 872 876 83

15 836 841 845 238

25 776 776 772 357

35 685 665 646 416

45 560 518 528 410

55 400 373 413 348

65 230 248 318 260

75 97 149 195 155

85 19 24 19 31

90 222

Model No. H9S2GLR1FTUNVPR

LER = FP - 61.2 IW - 37.55 BF - 1.0

Comparative yearly lighting energy cost per

1000 lumens = $3.92

Report Number: G2006149

Catalog Number: H9S2GLR1FTUNVPR

Lamps: F40BX/SPX30/IS

Luminaire: HP90 2' x 2' with linear

prismatic lens.

Ballast: C240PUNVHP-B/UNV

Report is based on 3150 Lumens per lamp.

Efficiency: 72.9%

CIE Type-Direct-Indirect

Plane: 0-Deg 90-Deg

Spacing Criteria: 1.2 1.2

Shielding Angles: 90 90

Plane: 0-Deg 90-Deg

Luminous Length: 22.800 22.800

CANDELA DISTRIBUTION0

AVERAGE AVERAGE AVERAGE AVERAGE

IN DEG. 0-DEG. 45-DEG. 90-DEG.

45 2174. 2011. 2049.

55 1914. 1789. 1976.

65 1494. 1611. 2065.

75 1029. 1580. 2068.

85 598. 765. 598.

LUMINANCE DATA IN CANDELA/SQ. METER

COEFFICIENTS OF UTILIZATION –

ZONAL CAVITY METHOD. EFFECTIVE

FLOOR CAVITY REFLECTANCE 0.200

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

01 80 76 73 71 69 67 69 67 65

02 73 67 62 63 59 56 60 57 54

03 66 59 53 55 51 47 53 49 46

04 61 52 46 49 44 40 48 43 40

05 56 47 40 44 39 35 43 38 40

06 52 42 36 40 35 31 39 34 30

07 48 38 32 37 31 27 36 31 27

08 45 35 29 34 28 24 33 28 24

09 42 32 26 31 26 22 30 25 22

10 39 30 24 29 24 20 28 23 20

ZONE LUMENS % LAMP % FIXT

00-030 678 21.5 29.5

00-040 1093 34.7 47.6

00-060 1851 58.8 80.6

00-090 2296 72.9 100.0

90-180 0000 0.0 000.0

00-180 2296 72.9 100.0

ZONAL LUMEN SUMMARY

Voltage:

120, 277 or

UNV=120-277

H9 Standard HP90

HY For NYC Code – I.B.E.W. Manufactured

Job Information Type:

For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595 12/10

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com © Philips Group Section 5/Folio M32-16 Rev. A
