Lightolier Luminosities 40886 Bedienungsanleitung

Complete Fixture consists of Lightshield and Backplate Assembly. Order each separately.

Lightshield Backplate

Catalog No. Description Lamp Catalog No. Ballast Volts

408865 Pick-Up Sticks 1 X 60W, A-19 Incandescent 40885 Not Applicable 120V

408867 Grid 2 X 13W Quad Tube CFL (4-Pin) 40885U Universal Electronic 120/277V

408869 Wood 2 X 13W Quad Tube CFL (2-Pin) 40885H1 Magnetic HPF 120V

4088610 Parchment 2 X 13W Quad Tube CFL (2-Pin) 40885H2 Magnetic HPF 277V

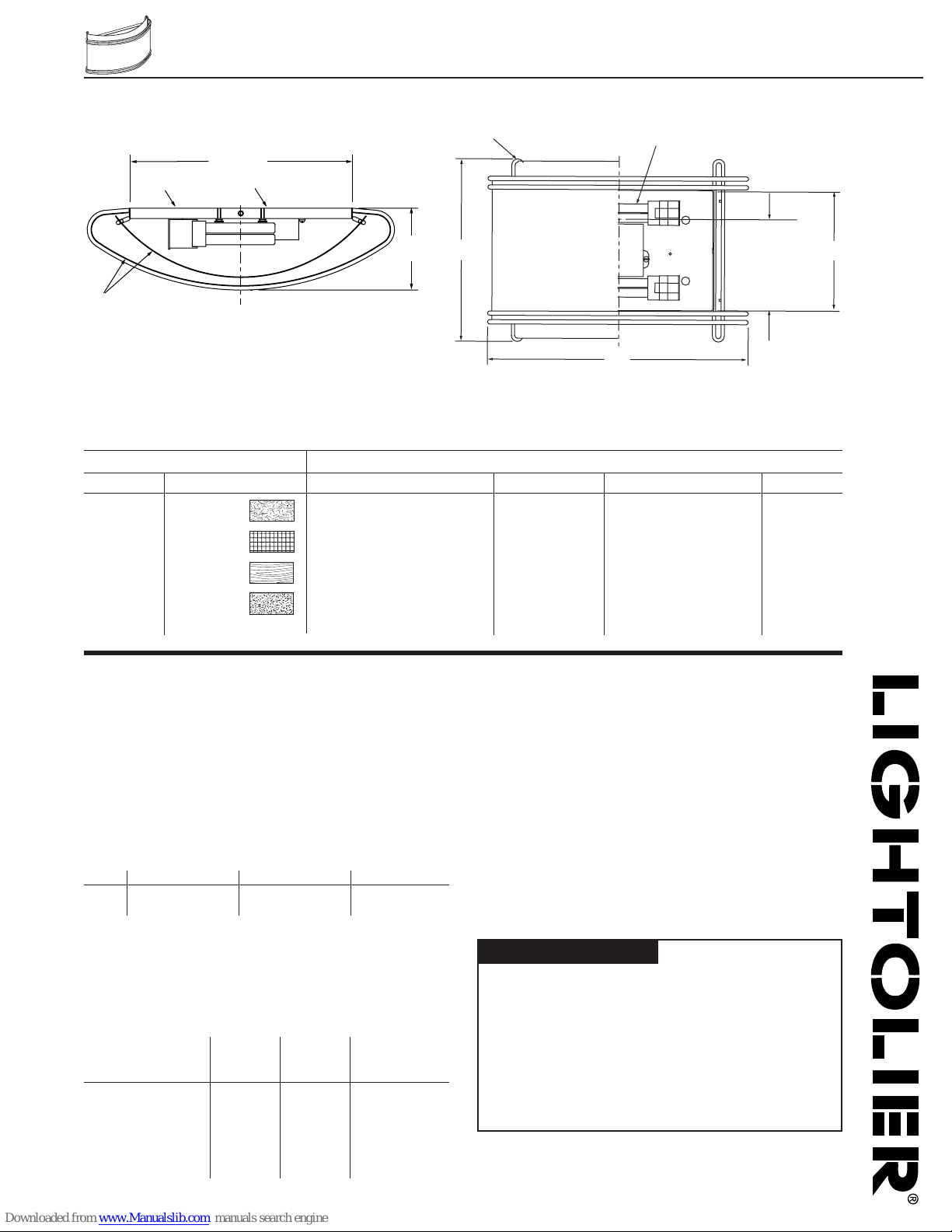

Specification Decorative Luminosities™40886

Page 1 of 2 Wall Mounted Incandescent/Compact Fluorescent ADA Compliant

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Lightshield: Organic composite consisting of fibers, papers or veneers lami-

nated between sheets of light-stable polymer. Washable, virtually tear-proof

and puncture-resistant.

2. Lightshield Frame: Welded drawn steel wire, 1/8” dia. Nickel powder-coat

finish.

3. Backplate: Die-formed 20 ga. steel. Baked white enamel finish.

4. Mounting: Directly to 4” octagonal Outlet Box

5. Lamps: Incandescent or Compact Fluorescent, by others.

Lamping

Incandescent: 60W A-19, medium base

Compact Fluorescent: 13W Quad Tube

General Electric Osram/Sylvania Philips

4-Pin F13DBX/*/4P CF13DD/E PL-C13W/*/A/4P

2-Pin F13DBX23T4/* CF13DD PL-C13W/*/USA

* Manufacturers’ color temperature designation.

Electrical

Lampholders:

Incandescent: Medium base, porcelain, nickel-plate screw shell

Compact fluorescent: 4-pin, G24q-1 base

2-pin, GX23-2 base

Ballasts: Electronic

Dimmable Electronic Magnetic

120V 120/277V 120V 277V

Total Input Watts 24 29 31 26

Max. Line Current (Amps) 0.20 0.24/0.11 .27 .10

Power Factor .98 .98 High

Ballast Factor 1.00 1.00 .95 .85

THD <10% <10% N/A N/A

Min. Starting Temps. 50°F 0°F 32°F 32°F

Labels

UL listed suitable for damp locations.

10 15/16"

Backplate

10 1/2"

15"

6 15/16"

Backplate

5" from bottom

of backplate

to outlet

box center

;;

;;yy

;;

Vestibule / Cocktail Lounge

Reflectances

80% ceiling / 50% wall / 20% floor

Footcandles are on floor.

Multiplier Factors

Data shown is based on “Grid” Lightshield #408867 with 2 x 13W Quad lamps

CFL Incandescent

Pick-Up Sticks 0.60 0.30

Parchment 0.45 0.25

Wood 0.45 0.25

Hallway

5’-6”

12’

5’

7’ 7’

5’-6”

14’

10’

21’

14’

8.5’

8’

5’-6”

Application Data/Footcandles

8’

Specification Decorative Luminosities™40886

Page 2 of 2 Wall Mounted Incandescent/Compact Fluorescent ADA Compliant

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
