Lytecaster®Recessed Downlighting 1000LVR

Page 1 of 1 5" Aperture Standard Low Voltage MR16 Non-IC Remodeler Frame-in Kit

Features

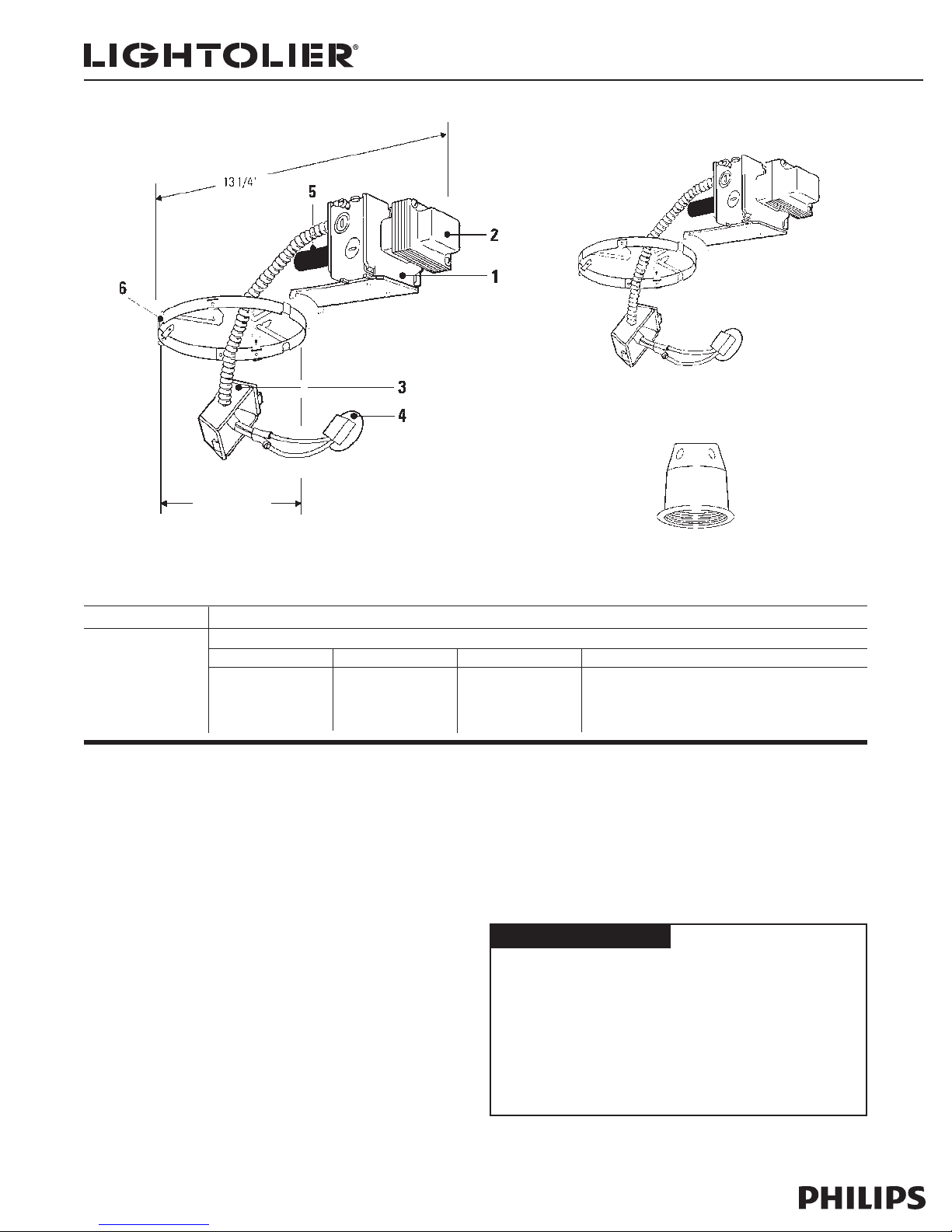

1. Junction Box: 4" x 3 1/2" x 2"; .063" (#14 ga.) galvanized steel. UL listed for

90° C supply wire. Integral cable clamps permit attachment of nonmetallic

Romex® or armored cable without need of additional connectors.

2. Transformer: Outboard mounted, magnetic, 120V. primary, nominal 12V.

secondary. Removable from below.

3. Socket Housing: .036" (#20 ga.) galvanized steel.

4. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to

junction box.

5. Thermal Protector: Meets NEC and UL requirements. Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing

ceilings up to 2" thick. Attaches securely to any type of ceiling material

without tools using (3) mounting straps provided. Push-in/twist out clips hold

reflector flush to ceiling. Includes adhesive backed aperture template.

Dimming

Dimming Controls: Use only dimmers specifically designed for use with

transformers, like Lightolier Onset®, Sunrise® series LV or VA dimmers, or any

Lightolier Controls dimming system. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically criti-

cal areas.

Options & Accessories

MR16 Socket Replacement: 1975A

277V Remote Step 7997 - 277V down to 120V

Down Transformer: 300W max. load.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

5 1/2”

Frame-In Kit

Reflector Trim

Ceiling Opening

Romex® is a registered Trademark of General Cable Industries Inc.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Adjustable

1000LVR Baffles Aperture Cone Pinhole Elbow

1055LV 1056LV 1064WDLV 1052LV 1062LV

1055WHLV 1063LV 1064WDPLV

1064LV

1064CDLV
