Lightolier Lytespan 7515 Bedienungsanleitung

Multiple Power Feeds

Catalog No. Description

7515 4’ Housing

7516 8’ Housing

7517 End Housing/Splice Box

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Features

1. Housing: extruded aluminum .062” wall, matte white. Will resist alkali in

concrete for 48 hours while setting.

2. End Housing/Splice Box: extruded aluminum. 062” wall, matte white

(2)7/8” dia. K.O.’s provided for multiple feeds.

3. Lathing Tab: 20 ga. plated steel. Slides to desired position.

4. Mounting Clip: secures track to housing (includes allen wrench).

5. Hanger Chain

6. Splice Box Cover: 26 ga. steel, matte white. Snaps in without tools.

7. Spline

8. End Cap: (2) Supplied with End Housing/Splice Box.

Mechanical

Housings and Splice Boxes are locked securely together with metal

Splines and Screw Fasteners.

Mounting

Lathing Tabs and holes in Recessed Housings are provided for mounting in a

variety of ceilings. Recessed Housings may be installed in concrete.

Finish

Baked Enamel Paint, Matte White.

Labels

UL; I.B.E.W.

Patterns with Recessed Track

“L”, “T”, and “X” Housing/Splice Boxes are used to form patterns with recessed track. 7/8” dia. K.O.’s are provided on top for attaching circuit wiring for power feed.

Auxiliary Electrical Connectors are required with “L”, “T” and “X” Housing/Splice Boxes for power feed or power continuity through these Housing/Splice Boxes. Extra End

Caps are provided with Housing/Splice Boxes.

“L” Housing/Splice Box “T” Housing/Splice Box “X” Housing/Splice Box Auxiliary Electrical

Connector Kits

6464WH (Basic)

6467WH (Advent)

Set of 2 for “L”

Housing/Splice Box

6462WH (Basic)

6465WH (Advent)

Set of 4 for “T” or

“X” Housing/Splice Box

NOTE: “L”, “T” and “X” Connectors (See Speciﬁcation Sheet 6000) are not used with recessed track.

For Basic or Advent Lytespan Track

Suspended Tile

Tile or Plaster Board

7690 7691 7692

Housing has Holes for

Mounting Screws. Individual Track Unit

(sold separately)

Carrying

Channel

Kerfed Tile

Ceiling Runner

Shim as Required

Lathing Tab

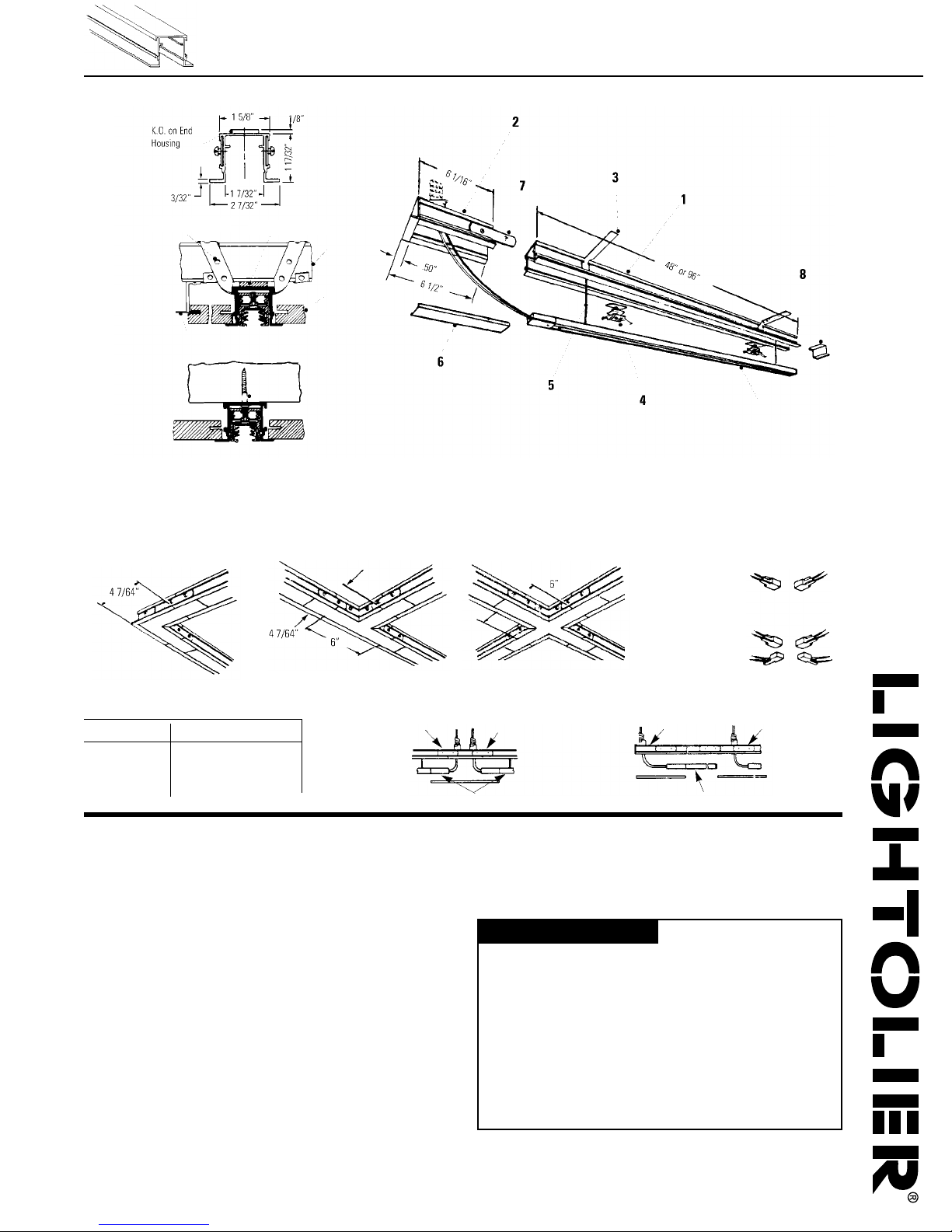

Lytespan®Track Lighting System 7515

Page 1 of 1 Recessed Housing

End Housing/

Splice Box

End Housing/

Splice BoxHousing

Individual Track Individual Track

Housing
