Lightolier 4K42 Bedienungsanleitung

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Architectural Decorative 4K42

Page 1 of 2 Pendalux Contemporary 42" Diameter Body 8-26/32/42 Triple Tube

Single Swivel Stem Multiple to Short Swivel Stem 3 Cables to Short Swivel Suspension Ext. Kits

Cat. No. Nominal OAL Cat. No. Nominal OAL Cat. No. Nominal OAL Cat. No. Nominal OAL

Specify Finish as Suffix: Specify Finish as Suffix: Specify Finish as Suffix: Specify Finish as Suffix:

SB, SN or WH SB, SN or WH SB, SN or WH SB, SN or WH

4SB115 18 1/4” 4SB224 27 1/4” 4SB342 42” 4SXT48 48”

4SB118 19 11/16” 4SB228 31 1/16” See Specification Sheet 4SB324 4SXT96 96”

4SB121 21” (close-to-ceiling) 4SB235 36 11/16”

4SB124 27 1/4” 4SB242 42”

4SB128 31 1/16” See Specification sheet 4SB224

4SB135 36 11/16”

4SB142 42”

See Specification

Sheet(s) 4SB115, 4SB124

Complete Luminaire Consists of Body and Suspension: Order Each Separately.

Body Cat. No. Finish Lamps Options

4K42842ASBU Satin Brass 8-26 Triple Tube Compact Fluorescent MX1 (26W, 120V only), E3 (347V), or EM

4K42842ASNU Satin Nickel or 8-32 Triple Tube Compact Fluorescent Add Suffix to Cat. No.

4K42842AWHU White or 8-42 Triple Tube Compact Fluorescent

45°

Max.

7”

1 3/8”

Nominal OAL

9 3/8”

42”

Note: Drawing illustrates only one of the suspension types

available for this luminaire. For other drawings, consult indi-

vidual Suspension Specification Sheet numbers as noted in

Suspension chart(s) below.

Specifications

• Suspension Size: For optimum performance testing recommends OAL (overall

length) in proportion to the Body diameter or for close-to-ceiling proportion

length (see shaded cells).OAL is defined from bottom of diffuser to ceiling

plane.

• Stem Wires: Equipped with 120” of leads with keyed connectors for quick con-

nection to Body wiring.

Options & Accessories

MX1 = Dimming Electronic Ballast, 26 Watt, 120V, only.

Replace Body Cat No. Suffix “U” with Suffix “MX1”.

E3 = 347V (Canada)

Replace Body Suffix “U” with Suffix “E3”.

EM = Emergency Battery Pack

Add Suffix “EM” to Body Cat. No.

Multi-Level Switching: Prewired, consult wiring diagram.

Fusing: Consult Factory.

Finishes: SB = Satin Brass, SN = Satin Nickel, WH = White

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative 4K42

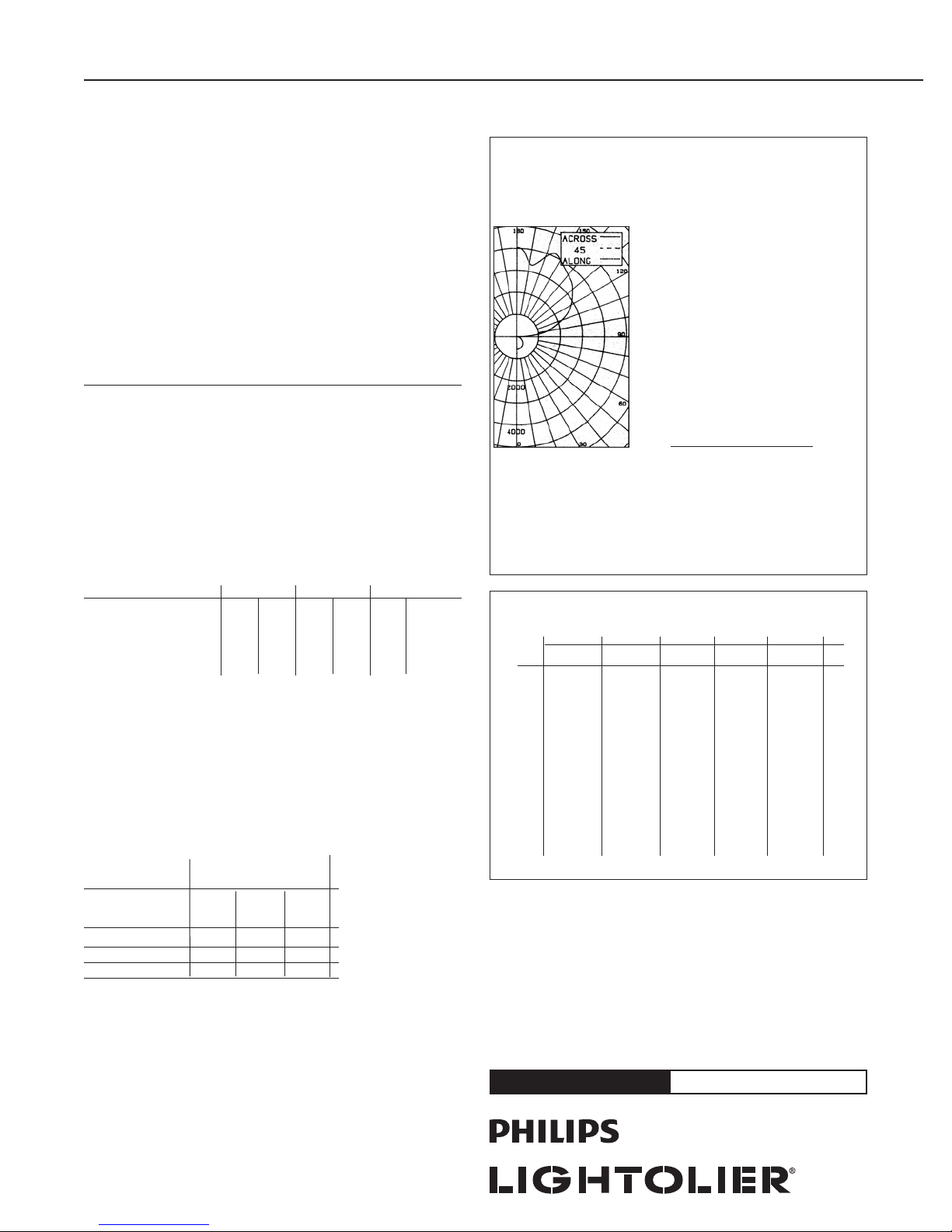

Page 2 of 2 Pendalux Contemporary 42" Diameter Body 8-26/32/42 Triple Tube

ANGLE MEAN CP LUMENS

0 551

5 581 55

10 573

15 560 158

20 543

25 521 241

30 497

35 469 293

40 433

45 393 303

50 349

55 303 272

60 258

65 215 214

70 173

75 122 140

80 93

85 60 99

90 152

CERTIFIED TEST REPORT NO. 4K42842A

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER INDIRECT/DIRECT PENDANT FIXTURE

CAT. #4K42442ASBU, 42” STANDARD DIFFUSER

8-42W T/E SYLVANIA LAMPS, LUMEN RATING = 3200 LMS.

4-ADVANCE BALLAST, #ICF-2S42-M2-LD, 120 VAC

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

ZONE LUMENS % LAMP %LUMINAIRE

0-30 493 1.93 2.72

0-40 811 3.17 4.46

0-60 1437 5.61 7.90

0-90 1929 7.53 10.60

40-90 1116 4.36 6.14

60-90 491 1.92 2.70

90-180 17843 64.70 98.00

0-180 19772 77.23 100.00

** EFFICIENCY = 77.2% **

ANGLE MEAN CP LUMENS

90 152

95 823 877

100 1416

105 1801 1908

110 2197

115 2598 2545

120 2882

125 3112 2789

130 3329

135 3524 2713

140 3636

145 3788 2385

150 3978

155 4139 1961

160 3626

165 3415 993

170 3357

175 3633 359

180 4032

CANDLEPOWER SUMMARY

ZONAL LUMENS AND PERCENTAGES

DATE: MAR. 16, 2001

PREPARED FOR:

LIGHTOLIER, FALL RIVER, MA

ROOM CAVITY RATIO

COEFFICIENTS OF UTILIZATION ZONAL CAVITY METHOD

%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50 30 10

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .58 .56 .53 .51 .49 .46 .38 .36 .35 .25 .25 .24 .14 .14 .13 .08

2 .51 .47 .41 .44 .41 .38 .33 .31 .28 .22 .21 .20 .12 .12 .11 .07

3 .49 .40 .36 .39 .35 .32 .29 .27 .24 .20 .18 .17 .11 .10 .10 .06

4 .39 .34 .31 .35 .30 .27 .26 .23 .21 .16 .16 .14 .10 .09 .08 .05

5 .34 .30 .26 .31 .26 .23 .23 .20 .18 .16 .14 .12 .09 .08 .07 .04

6 .31 .26 .22 .27 .23 .20 .20 .17 .15 .14 .12 .11 .08 .07 .06 .04

7 .28 .23 .19 .24 .20 .17 .18 .15 .13 .13 .11 .09 .07 .06 .05 .03

8 .25 .20 .17 .22 .18 .15 .17 .14 .11 .11 .09 .08 .06 .05 .05 .03

9 .23 .18 .14 .20 .16 .13 .15 .12 .10 .10 .08 .07 .06 .05 .04 .02

10 .20 .16 .13 .18 .14 .11 .14 .11 .09 .09 .08 .06 .05 .04 .04 .02

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

Features

1. Diffusing Reflector: White translucent acrylic, 3/16” thick.

2. Inner Dirt Shield: White translucent acrylic, 1/8” thick.

3. Chassis: Steel 20 gauge, semi-gloss white powder-coat finish.

4. Suspension: Swivel (central) stem, 5/8” steel tube. Canopy, steel, 7” Dia. fas-

tened internally, no exposed hardware. Permits installation on ceilings with

slope of up to 45°. Complies with California Code.

5. Cables: Reflector Bowl is suspended from a central point on three 1/16” stain-

less steel cables.

6. Lampholder: Multi-wattage, 4-pin, will accept either GX24q-3 or GX24q-4

lamp base.

7. Flange Trim: Steel 20 gauge, Plated or Painted finish.

Lamping (by others)

Compact Fluorescent: Triple Tube, 26, 32, or 42 Watts.

General Electric Osram/Sylvania Philips

26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P

32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P

42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F42QBK/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P

*Manufacturers’ color temperature designation.

Electrical

Ballast: Electronic, 2-Lamp HPF, Class P, Programmed Start. Universal Voltage

120/277V, Multi-Wattage 26/32/42W.

8 Lamp 26 Watt 32Watt 42Watt

Voltage 120V 277V 120V 277V 120V 277V

Total Input Watts 224 224 276 276 364 364

Max. Line Current (amps) 1.84 0.8 2.32 1.04 3.04 1.28

Power Factor >.98 >.98 >.98 >.98 >.98 >.98

Ballast Factor 1.02 1.02 1.00 1.00 0.98 0.98

THD<10% Minimum Starting Temperature: 0˚F/-18˚C

Mounting

Mounts directly to 4” outlet box, using crossbar hanger, supplied.

Labels

cULus Suitable for Damp Locations.

Application Data

42 Inch Diameter

45’ x 45’ x 12’ Space

Luminaire Spacing: 15’ x 15’

Susp. Dist. 42”

8 Lamps 26W 32W 42W

TTT TTT TTT

Illum. (FC) Maint. 25 34 45

Lum. Ratio 11/1 11/1 12/1

Watts/Sq. Ft. 0.98 1.21 1.65

Reflectancies: 80% Ceiling, 50% Walls, 20% Floor.

Light Loss Factor = .75(.88 BF x .85)

FC (footcandles) at 30” work plane.
