ProSpec™Track Lighting 26230

Page 1 of 2 Ring PAR30

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710

We reserve the right to change details of design, materials and finish.

Features

1. Track attach ent fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuit.

2. Ste : 5/8" O.D. .0 9" wall, stainless steel.

3. Horizontal Locking feature: Machined knob mechanisms permit the lock-

ing of horizontal aiming position. Adjustment range is: horizontal 0-350°.

Indicator guide with 5° intervals allows precise fixture aiming.

4. Vertical Locking feature: Machined knob mechanisms permit the locking

of vertical aiming position. Adjustment range is: vertical 0° (nadir) - 90°.

Indicator guide with 15° intervals allows precise fixture aiming.

5. La pholder: porcelain, medium base, nickel plated screw shell, #18 ga.

braided SF-1 leads.

6. Housing: 20 ga. (.036) steel, hemmed front edge for stiffness, prevents chip-

ping and enhances appearance.

7. La p and accessory support: .032 steel, flared for easy entry of accesso-

ry cartridge, matte black finish.

8. Lens retaining ring: .125" spring steel.

9. Accessory cartridge: formed aluminum, installs and removescwith a twist

and lock action. Holds three accessories max. plusccross blade baffle; black

matte finish.

10. Cross blade baffle: .070" extruded aluminum, black matte finish. 1" deep,

removable.

11. Lever: energizes fixture by 90° rotation.

12. Cla ping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Ordering Infor ation

Catalog No. Finishes Mountings La ps

26230 WH Matte White ProSpec™Track System PAR30 75W Max. (Short Neck)

26230 BK Matte Black

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 3 3/" dia. series. Filters, lenses, screens and louvers.

Holds three accessories maximum.

Electrical

Electrical components: High temperature polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL; I.B.E.W.

4-7/8"

9-5/8"

Accessories

Ordered

Separately

ProSpec Track System

5-3/4"

7-1/4"

Pivot

ProSpec™Track Lighting 26230

Page 2 of 2 Ring PAR30

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710

We reserve the right to change details of design, materials and finish.

9200 2000

50W PAR30

NSP (T-H) 8°

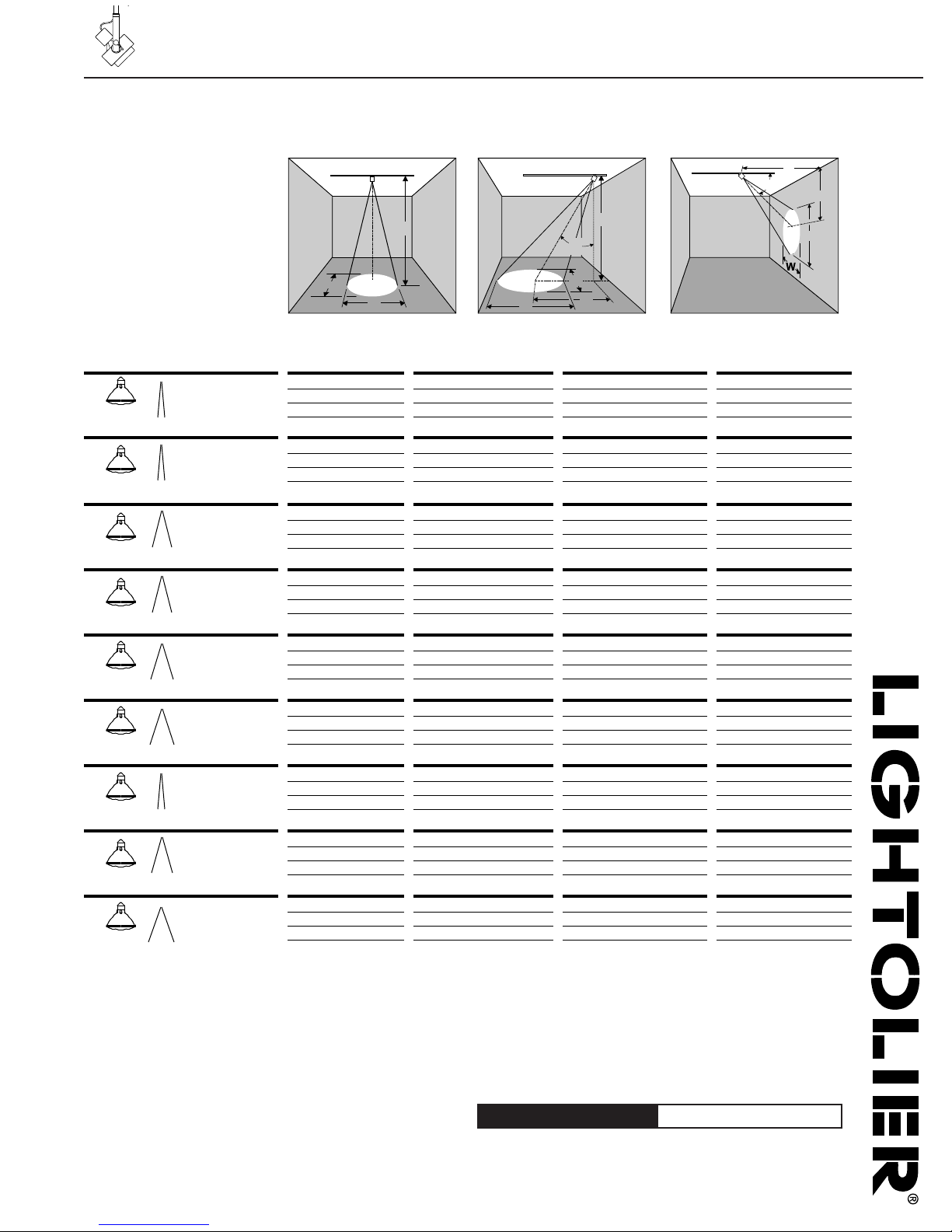

Lighting Data

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land W are the outer points where

the candlepower drops to 50% of the

maximum. FC are the initial foot-

candles at the center of the beam.

FCL

Aiming Angle: 0°30°45°or 60°Horizontal 30°45°or 60°Vertical

LAMP 0°AIMING ANGLE A=30°AIMING ANGLE A=45°AIMING ANGLE A=60°AIMING ANGLE

7' 188 1.0' 1.0'

10' 92 1.4' 1.4'

13' 54 1.8' 1.8'

16' 36 2.2' 2.2'

DFCL W D C FCL W D CFCL W D CFCLW

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 166 1.1' 1.0'

9' 5.2' 74 1.7' 1.5'

12' 6.9' 41 2.2' 1.9'

15' 8.7' 27 2.8' 2.4'

4' 4.0' 203 1.1' 0.8'

6' 6.0' 90 1.7' 1.2'

8' 8.0' 51 2.2' 1.6'

10' 10.0' 33 2.8' 2.0'

2' 3.5' 288 1.1' 0.6'

3' 5.2' 128 1.7' 0.8'

4' 6.9' 72 2.3' 1.1'

5' 8.7' 46 2.6' 1.4'

17000 3000

50W PAR30

NSP (T-H IR) 8°

8'2661.1'1.1'

12' 118 1.7' 1.7'

16' 66 2.2' 2.2'

20' 43 2.8' 2.8'

7' 4.0' 225 1.3' 1.1'

10' 5.8' 110 1.9' 1.6'

13' 7.5' 65 2.4' 2.1'

16' 9.2' 43 3.0' 2.6'

5' 5.0' 240 1.4' 1.0'

7' 7.0' 123 2.0' 1.4'

9' 9.0' 74 2.5' 1.8'

11' 11.0' 50 3.1' 2.2'

3' 5.2' 236 1.7' 0.8'

4' 6.9' 133 2.3' 1.1'

5' 8.7' 85 2.8' 1.4'

6' 10.4' 59 3.4' 1.7'

2000 2000

50W PAR30

NFL (T-H) 25°

4' 125 1.8' 1.8'

6' 56 2.7' 2.7'

8' 31 3.5' 3.5'

10' 20 4.4' 4.4'

3' 1.7' 144 1.8' 1.5'

5' 2.9' 52 3.0' 2.6'

7' 4.0' 27 4.2' 3.6'

9' 5.2' 16 5.4' 4.6'

3' 3.0' 79 2.8' 1.9'

4' 4.0' 44 3.7' 2.5'

5' 5.0' 28 4.7' 3.1'

6' 6.0' 20 5.6' 3.8'

1' 1.7' 250 2.1' 0.9'

2'3.5634.2'1.8'

3' 5.2' 28 6.2' 2.7'

4' 6.9' 16 8.3' 3.5'

3000 3000

50W PAR30

NFL (T-H IR) 25°

6' 83 2.7' 2.7'

8' 47 3.5' 3.5'

10' 30 4.4' 4.4'

12' 21 5.3' 5.3'

5' 2.9' 78 3.0' 2.6'

7' 4.0' 40 4.2' 3.6'

9' 5.2' 24 5.4' 4.6'

11' 6.4' 16 6.6' 5.6'

3' 3.0' 118 2.8' 1.9'

5' 5.0' 42 4.7' 3.1'

7' 7.0' 22 6.5' 4.4'

9' 9.0' 13 8.4' 5.6'

2' 3.5' 94 4.2' 1.8'

3' 5.2 42 6.2' 2.7'

4' 6.9' 23 8.3' 3.5'

5' 8.7' 15 10.4' 4.4'

1400 2500

50W PAR30

FL (T-H) 35°

3' 156 1.9' 1.9'

5' 56 3.2' 3.2'

7' 29 4.4' 4.4'

9' 17 5.7' 5.7'

3' 1.7' 101 2.6' 2.2'

5' 2.9' 36 4.3' 3.8'

7' 4.0' 19 6.1' 5.1'

9' 5.2' 11 7.8' 6.6'

2' 2.0' 124 2.8' 1.8'

3' 3.0' 55 4.2' 2.7'

4' 4.0' 31 5.6' 3.6'

5' 5.0' 20 7.0' 4.5'

1' 1.7' 175 3.6' 1.3'

2' 3.5 44 7.2' 2.5'

3' 5.2' 19 10.8' 3.6'

4' 6.9' 11 14.4' 5.0'

1600 3000

50W PAR30

FL (T-H IR) 37°

3' 178 2.0' 2.0'

5' 64 3.3' 3.3'

7' 33 4.7' 4.7'

9' 20 6.0' 6.0'

3' 1.7' 115 2.8' 2.3'

5' 2.9' 42 4.6' 3.9'

7' 4.0' 21 6.5' 5.4'

9' 5.2' 13 8.3' 7.0'

2' 2.0' 141 3.0' 1.9'

3' 3.0' 63 4.5' 2.8'

4' 4.0' 35 6.0' 3.6'

5' 5.0' 29 7.5' 4.7'

1' 1.7' 200 4.0' 1.3'

2' 3.5 50 8.1' 2.7'

3' 5.2' 22 12.1' 4.0'

4' 6.9' 13 16.1' 5.4'

14000 2500

75W PAR30

NSP (T-H) 9°

8' 219 1.3' 1.3'

12' 97 1.9' 1.9'

16' 55 2.5' 2.5'

20' 35 3.1' 3.1'

7' 4.0' 186 1.5' 1.3'

10' 5.8' 91 2.1' 1.8'

13' 7.5' 54 2.7' 2.4'

16' 9.2' 36 3.4' 2.9'

5' 5.0' 196 1.6' 1.1'

7' 7.0' 101 2.2' 1.6'

9' 9.0' 61 2.9' 2.0'

11' 11.0' 41 3.5' 2.4'

3' 5.2' 194 1.9' 0.9'

4' 6.9' 109 2.6' 1.3'

5' 8.7' 70 3.2' 1.6'

6' 10.4' 49 3.6' 1.9'

3200 2500

75W PAR30

NFL (T-H) 30°

6' 89 3.2' 3.2'

8' 50 4.3' 4.3'

10' 32 5.4' 5.4'

12' 22 6.4' 6.4'

5' 2.9' 63 3.7' 3.1'

7' 4.0' 42 5.1' 4.3'

9' 5.2' 26 6.6' 5.6'

11' 6.4' 17 8.1' 6.6'

3' 3.0' 126 3.5' 2.3'

5' 5.0' 45 5.8' 3.8'

7' 7.0' 23 8.1' 5.3'

9' 9.0' 14 10.4' 6.6'

2' 3.5' 100 5.5' 2.1'

3' 5.2 44 8.2' 3.2'

4' 6.9' 25 10.9' 4.3'

5' 8.7' 16 13.7' 5.4'

2000 2500

75W PAR30

FL (T-H) 40°

4' 125 2.9' 2.9'

6' 56 4.4' 4.4'

8' 31 5.8' 5.8'

10' 20 7.3' 7.3'

3' 1.7' 144 3.0' 2.5'

5' 2.9' 52 5.1' 4.2'

7' 4.0' 27 7.1' 5.9'

9' 5.2' 16 9.1' 7.6'

3' 3.0' 79 5.0' 3.1'

4' 4.0' 44 6.7' 4.1'

5' 5.0' 28 8.4' 5.1'

6' 6.0' 20 10.0' 6.2'

1' 1.7' 250 4.8' 1.5'

2' 3.5 53 9.7' 2.9'

3' 5.2' 28 14.5' 4.4'

4' 6.9' 18 19.3' 8.5'
