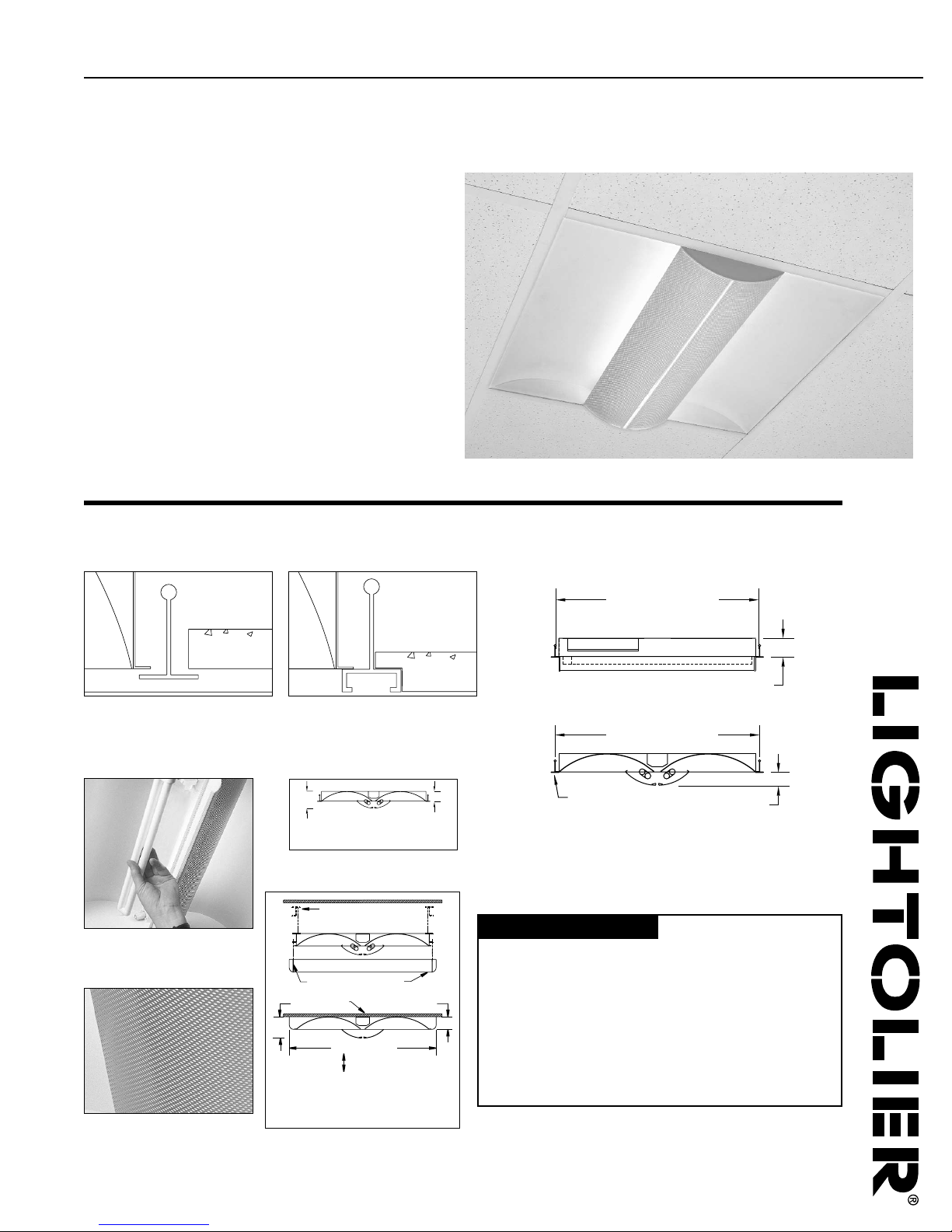

Lightolier QVH2GPFOS2FT Bedienungsanleitung

Mounting Methods / Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L85-10

Features

• Efficiency 52.6%.

• Shallow plenum depth.

• Swing down microperforated lamp shields for easy relamping and

maintenance.

• Alter soft white film on inside of mesh conceals lamp image and

provide balance between reflected light and direct light.

• 95% Reflective Alter soft white paint finish.

• Specular interior reflector.

• One piece body for easy installation.

• Easy access to ballast through lamp compartment.

• Fits standard T-Grid ceilings.

• Optional acrylic drop-down visual element

• Slim Semi-Recess and Slim Surface luminaires have the same

photometric performance data.

T-BAR

(43mm)

1-11/16"

2-1/4"

(57mm)

23-13/16"(605mm)

ALTER SOFT LIGHTS QVH2GPFOS2FT

Page 1 of 2 2

x2' SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP, TT5 BI-TUBE, 2 1/4’’ RECESSED CEILING DEPTH

MICROPERFORATED MESH LAMP SHIELD, STATIC

Microperforated mesh

lamp shields

Ceiling compatibility

Swing down optical system for

easy relamping and maintenance

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

(57mm)

2-1/4"

(100mm)

3-15/16"

(57mm)

2-1/4"

(100mm)

3-15/16"

25-9/16"(650mm) Width

24"(610mm) Length

CEILING

CONTOURED

SURFACE FRAME

SPRING

BRACKET

MOUNTING

Shallow plenum depth

Slim Surface

qvf2spfos2FT

Slim Surface and Slim Semi-Recessed

have the same photometric performance

data.

Photometry*

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L85-10

Job Information Type:

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold rolled

steel. Reflectors - 95% reflectance baked white acrylic matte paint finish. Soft

white acrylic film on inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P”ballast (Bi-tube type).

If K.Os are within 3”of ballast use wire suitable for at least 90C.

LABELS: Listed by

Ordering Information

Explanation of Catalog Number. Example: QVH2GPFOS2FT120SB

QUALITY

VISUAL

STATIC

QVH- Slim Semi-Recessed

QVF-Slim Surface

direct indirect

soft light

optical system

FIXTURE

WIDTH:

2’

CEILING TYPE:

G=Standard exposed

T-grid ceilings (for QVH)

S=Surface (for QVF)

LAMP SHIELD:

PF = Microperforated

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 24”)

FT = TT5

Bi-tube

VOLTAGE:

120V

277V

347V

BALLAST:

BE = 50W Electronic TT5 RS

BR = 40W Electronic TT5 RS

BX = 40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

OPTIONS:

R = Radio Interference Filter

O = Emergency Lighting System

(for Canada)

N =Emergency Lighting System

(for U.S.)

2PF 2FT

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS = Open slot (no acrylic)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

*Slim Semi-Recessed and Slim Surface luminaires have the same photometric performance data.

ALTER SOFT LIGHTS QVH2GPFOS2FT

Page 2 of 2 2

x2' SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP, TT5 BI-TUBE, 2 1/4’’ RECESSED CEILING DEPTH

MICROPERFORATED MESH LAMP SHIELD, STATIC
