Lightolier Lytecaster 402MRIC9X Bedienungsanleitung

03-03

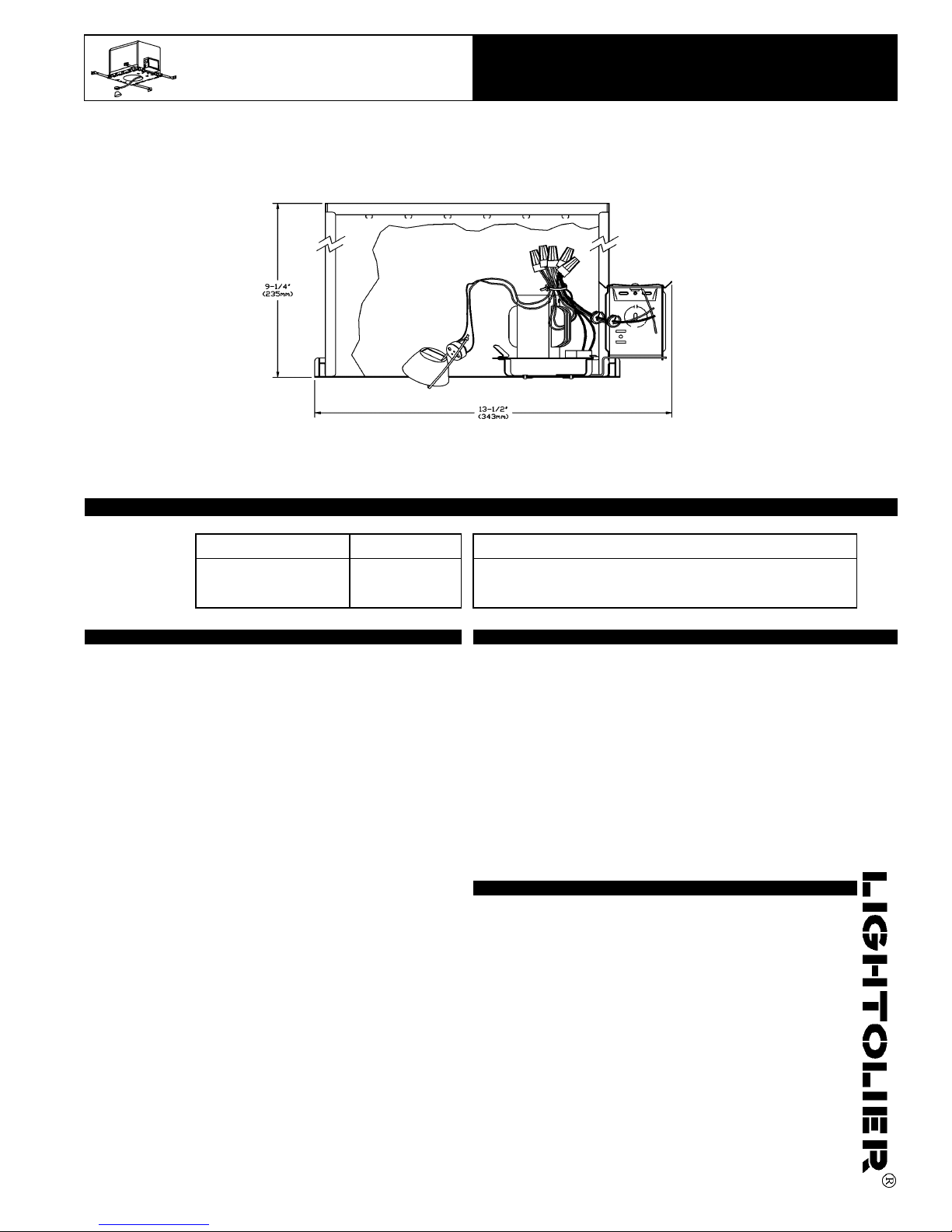

4 3/4" (121mm) aperture Lytecaster

Low Voltage MR16 12V Recessed Downlight

IC Frame-In-Kit

Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately

POWER PACK CUT-OUT

402MRIC9X 4 3/4" (121mm) Accepts all 4 3/4" (121mm) Low Voltage MR16 trims 400 series: see

Reflector Trim specification sheets.

Features Accessories

Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º Mounting Bars Extenders : 1964

apart to simplify alignment. 20" (508mm) long. Set of 2

Insulated Ceiling Housing : 26ga. galvanized steel. CSA certified and UL listed for

direct contact with thermal insulation. Mounting Bar Locking Clips : 0098

Internal thermal cut-out : insures against overheating due to incorrect lamping. To lock mounting bars in place after installation. Set of 12.

Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to

27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail Vapor Barrier Extender : VBE300

eliminates the need of additional nailing. Polyvinyl Air Vapour Barrier ; to comply with provincial legislation. For all

Mounting Bars Locking Clip : (1) locks mounting bars in place. non Air-Seal frame-In-Kits.

Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon

250º leads to junction box.

Transformer : 75VA Magnetic, 120 volt primary, nominal 12 volt secondary,

class "H".

Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel .

CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit

conductors. Integral cable clamp permit attachment of non metallic Loomex Labels : CSA , UL

without need of additional connectors. Pry-out knock-outs accept BX cable.

Easy access from both sides with snap-on covers. Damp or Wet location rated depending on trim used.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY

THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4

REFLECTOR TRIM

402MRIC9X
