Calculite®Compact Fluorescent Lensed Downlight 8098

Page 1 of 2 8 3/4” Aperture (2) 26/32/42W Triple Tube Vandal / Wet Location

Features

1. Rotolock Ring: Die-cast aluminum; matte white ﬁnish. Sealed o-ring con-

struction provides the wet location seal. Single allen-head set screw locks

the ring in place to prevent vandalism.

2. Lens: High impact acrylic, semi-transparent diffuser. Available in Flush lens

(8098VWH) and Drop Lens (8098DVWH).

3. Reﬂector: 16 Ga. Die-formed aluminum, clear anodized ﬁnish.

4. Socket Bracket: Die-formed steel. Attaches to reﬂector without tools,

assures proper optical alignment of lamps.

5. Mounting Frame: Die-cast aluminum suitable for dry or plaster ceilings.

6. Retaining Springs: Rust resistant springs simplify reﬂector/housing

removal for inspection and maintenance.

7. Mounting Brackets: 16 ga. steel. Adjustable from inside of ﬁxture. Use

3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional 27" mounting bars (see

separate speciﬁcation sheet “MBA”).

8. Junction Box: 14 ga. steel, 4" (102 mm) x 3 1/2" (89 mm) x 2" (51 mm) box,

allows inspection from below. UL certiﬁed for through branch circuit wiring

with maximum of 8 no. 12, 90° C conductors.

9. Electronic Ballast: High Power Factor, thermally protected class “P”, no

visible ﬂicker on starting, internally fused and protection circuit for lamp end-

of-life. Sound rated “A”. Designed for removal without tools from inside of

ﬁxture. Separate Switching Frame-in Kit is equipped with two separate ballasts.

10.Emergency Battery Pack Frame-In Kit: Electronic, fully encased and

prewired nickel cadmium long life battery replaceable from below. Test

switch and charge light included in easy to install recessed switch box with

4 1/2" dia. matte white cover plate; switch box and charge light can be

installed up to 50 feet from ﬁxture. One lamp is illuminated at initial lumens

of 450 (26W), 575 (32W) and 750 (42W) light output for 90 minutes when

power fails.

Options and Accessories

Mounting Bars: See speciﬁcation sheet “MBA”

T-Bar Anchor Clips: See speciﬁcation sheet “MBA”

Fuse (Slow Blow): Add sufﬁx “F”

Emergency Ltg. Kit: FAEM3E, FAEM4E (see “FAEM” speciﬁcation sheet)

Electrical

For ballast electrical data, latest lamp / ballast compatibility, refer to

“Ballast” speciﬁcation sheet.

Labels

UL listed for Wet Locations

I.B.E.W. Union Made

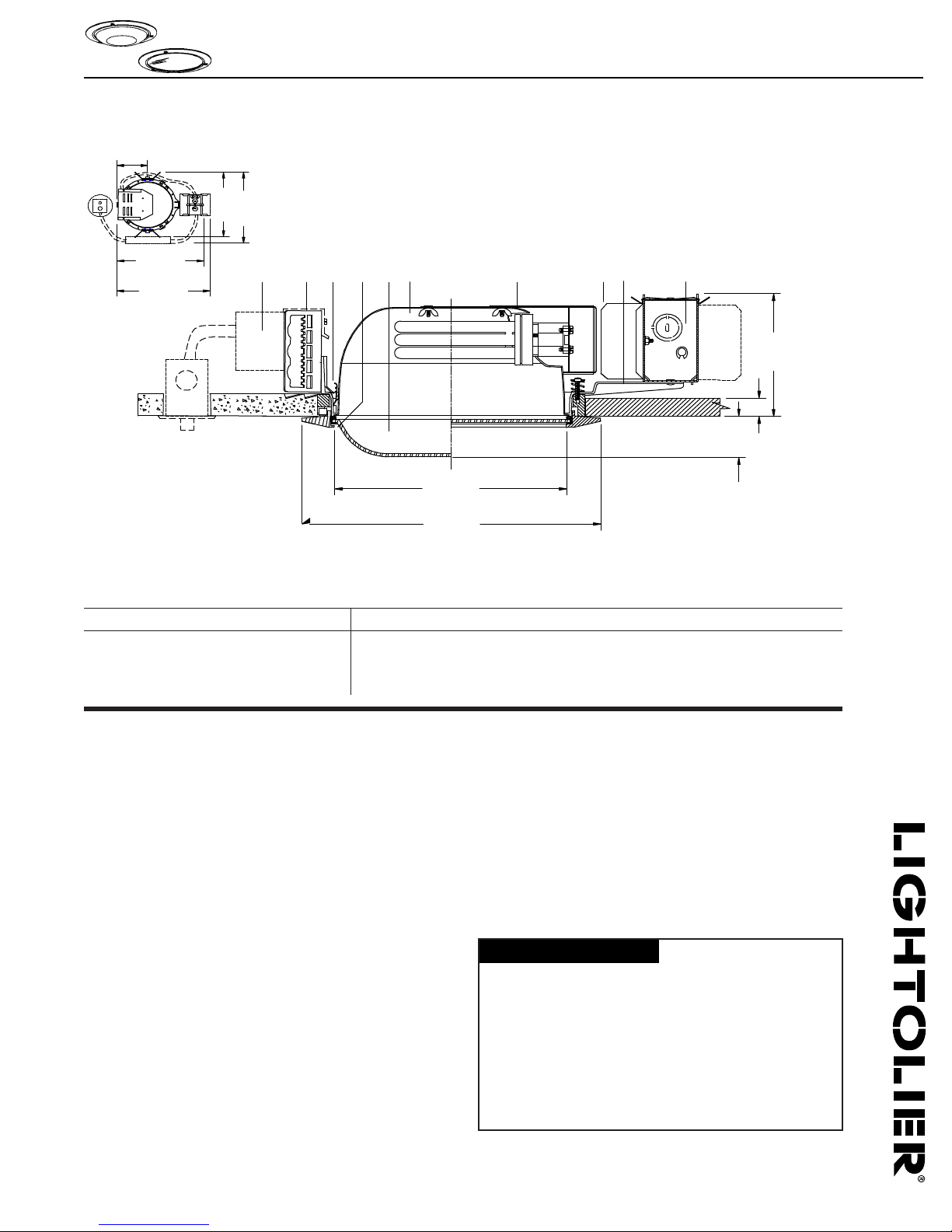

10 7612 495 8

51/8"

(130mm)

11/8" MAX

(29mm)

1 3/4"

(45mm)

9" Dia.

(229mm)

11 1/2" Dia.

(292mm)

51/4"

(133mm)

14"

(356mm)

15 1/4"

(387mm)

(8242HUVEM)

19 1/8"

(486mm)

(8242HUVSS)

17 7/8"

(454mm)

(8242HUV) 3

Ceiling Cutout: 10 1/4” (257 mm) Dia.

Reﬂector Trim Frame-In Kit Lamp

8098VWH Flush Lens / White Flange 8242HUV 120/277V Universal (2) 26/32/42W Triple Tube

8098DVWH Drop Open Lens / White Flange 8242HCUV3 120/277V Universal Dimming 4-Pin

8242HUVSS 120/277V Universal Separate Switch

8242HUVEM 120/277V Universal Emergency

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Calculite®Compact Fluorescent Lensed Downlight 8098

Page 2 of 2 8 3/4” Aperture (2) 26/32/42W Triple Tube Vandal / Wet Location

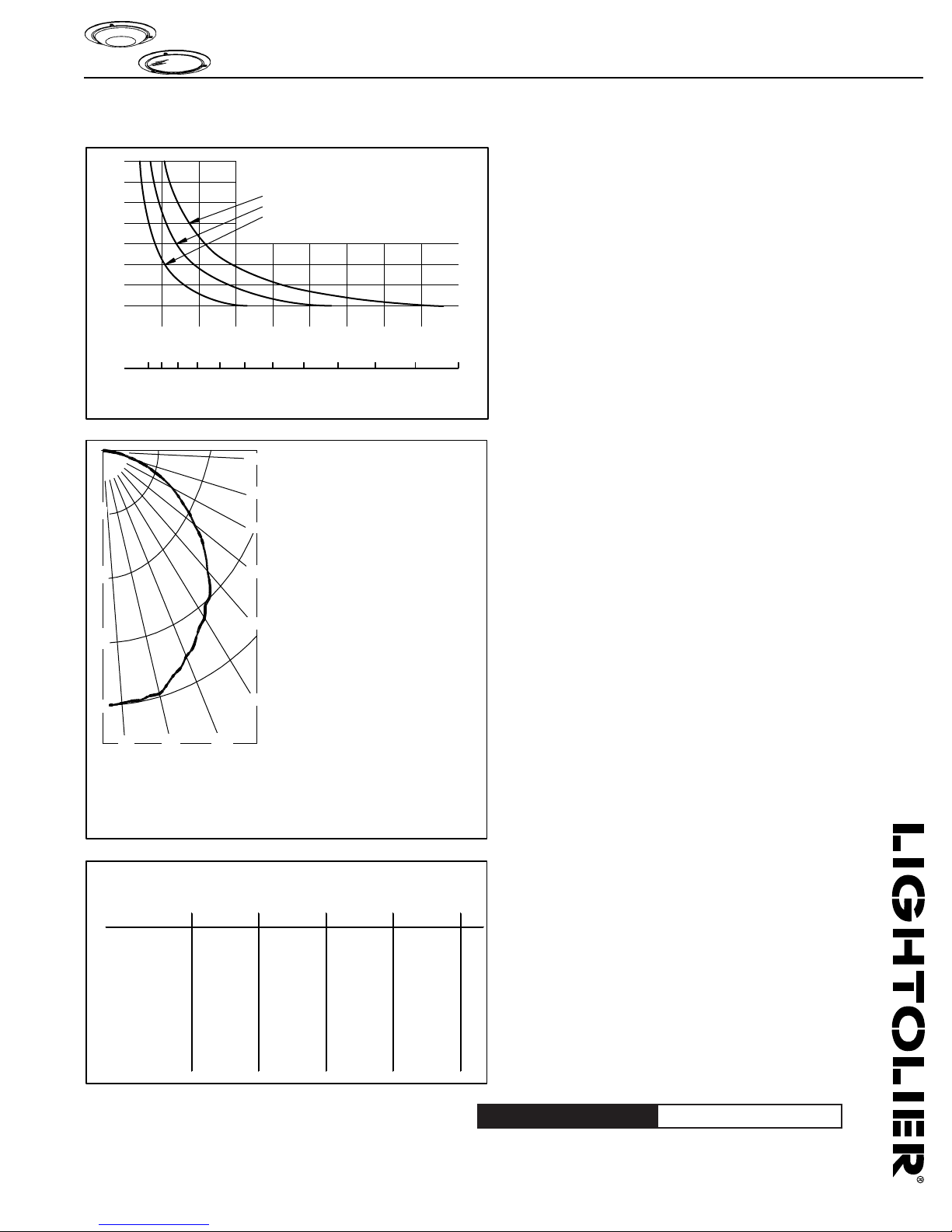

Quick Calculator

Spacing Ratio = 1.3

Coefficients Of Utilization

Flush Lens 2-32W Triple Tube

Ceiling Cavity Reflectance

80 70 50 30 10 0

Wall Reflectance

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .45 .44 .42 .45 .43 .42 .43 .41 .40 .41 .40 .39 .39 .39 .38 .37

2 .40 .38 .35 .39 .37 .35 .38 .36 .34 .37 .35 .33 .35 .34 .33 .32

3 .36 .32 .30 .35 .32 .30 .34 .31 .29 .33 .30 .29 .32 .30 .28 .27

4 .32 .28 .26 .31 .28 .26 .30 .27 .25 .29 .27 .25 .28 .26 .25 .24

5 .29 .25 .22 .28 .25 .22 .27 .24 .22 .26 .24 .22 .26 .23 .21 .21

6 .26 .22 .19 .25 .22 .19 .24 .21 .19 .24 .21 .19 .23 .21 .19 .18

7 .23 .19 .17 .23 .19 .17 .22 .19 .17 .21 .18 .16 .21 .18 .16 .15

8 .21 .17 .15 .20 .17 .15 .20 .17 .15 .19 .17 .14 .19 .16 .14 .14

9 .19 .15 .13 .19 .15 .13 .18 .15 .13 .18 .15 .13 .17 .15 .13 .12

10 .17 .14 .12 .17 .14 .11 .17 .14 .11 .16 .13 .11 .16 .13 .11 .11

ROOM CAVITY RATION

ZONAL LUMENS AND PERCENTAGES

Zone Lumens % Lamp % Luminaire

0-30 577 12.04 27.97

0-40 945 19.70 45.76

0-60 1662 34.63 80.44

0-90 2066 43.04 100.00

40-90 1120 23.35 54.24

60-90 404 8.42 19.56

90-180 0 0.00 0.00

0-180 2066 43.04 100.00

Angle Along 22.5 45 67.5 Across

Lumens

0 736 736 736 736 736

5 734 740 743 739 732 71

10 731 433 727 724 731

15 716 413 716 715 727 202

20 687 694 687 691 690

25 661 666 665 668 656 305

30 625 629 637 629 622

35 589 594 590 597 590 367

40 544 544 539 537 552

45 496 489 489 488 492 378

50 443 434 440 437 439

55 381 384 374 371 371 338

60 321 319 312 320 310

65 254 264 249 248 253 250

70 186 198 191 192 186

75 126 129 126 117 125 133

80 68 56 54 59 63

85 9 17 19 12 20 21

9000000

CANDLEPOWER SUMMARY

25 50 75 100 125 150 175 200

4 5 6 7 8 9 101112131415

ROOM SURFACE REFLECTANCES:

2400 Lumens Per Lamp

RCR = 1

RCR = 5

RCR = 10

80% Ceiling; 50% Wall; 20% Floor

(Rm. width = 10 x Mtg. Ht. above work plane)

(Rm. width = 2 x Mtg. Ht. above work plane)

(Rm. width = Mtg. Ht. above work plane)

Certified Test Report Number: LSC8203

Computed By: Lighting Sciences Canada ltd.

Prepared For Lightolier CFI

Aperture: 8 3/4" Dia.

Reflector: Specular Clear Alzak

Lamps: 2 x 32W TTT Rated at 2400 Lumens

Efficiency: 43.0%

For 26W and 42W lamps, multiply C.U.'s X 1.0.

185

370

555

740

85°

75°

65°

55°

45°

35°

25°

15°

5°

This quick calculator chart determines the number and spacing of 2 lt. - 32W TTT units with CLEAR reflector, 

for any level of illumination. Lighting Conversion Factors = 26W, F.C. X 0.8; 42W, F.C. X 1.3)

Center to Center Distance of Fixtures in Feet

Area Per Fixture in Square Feet

Initial Footcandles

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:
