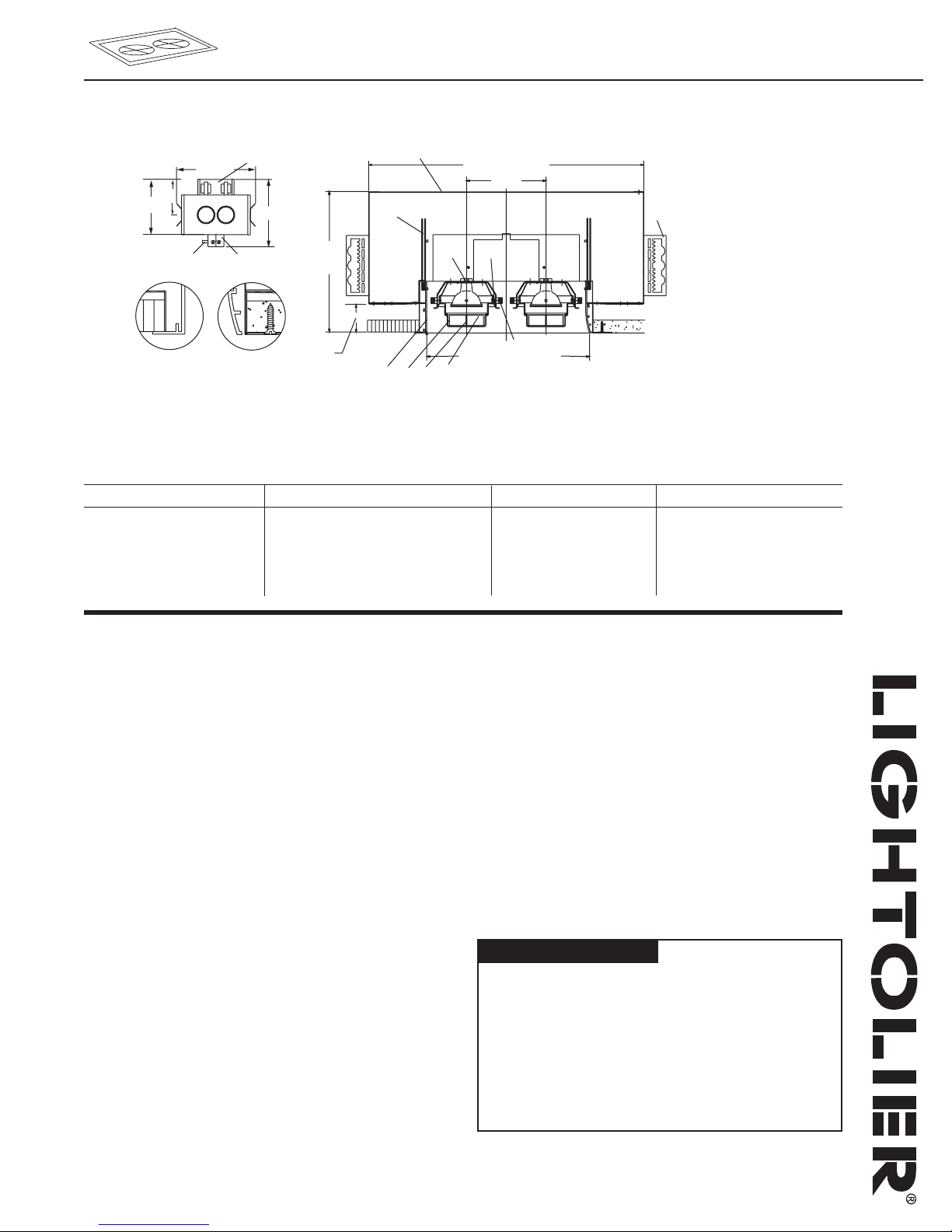

Lightolier Calculite ProSpec PA2M1675 Bedienungsanleitung

Ceiling Cutout: 11 1/16" L x 6 3/16" W

Ordering Information: MR 16 Series A

Cat. No. Lamp Ceiling Trim Aperture Finish

PA2M167EBL (2) 75W MR 16* Overlap Black with White Flange

PA2M167EWL (2) 75W MR 16* Overlap White with White Flange

PA2M167EBTL (2) 75W MR 16* Trimless Black

PA2M167EWTL (2) 75W MR 16* Trimless White

Add a “1” for 120v or “2” for 277v at the *50W max. lamping when using accessories

end of the catalog number for voltage

PA2M167EBL = (Flanged) Black/White

PA2M167EWL = (Flanged) White

PA2M167EBTL = (Trimless) Black

PA2M167EWTL = (Trimless) White

810

20 1/8"

14" 9"

Flanged Trimless

17 3/8" L X 10" W

5" OC

911

12, 13

10" L X 5" W Opening

1 3/4"

8 3/4

Depth

17" 7

Top View

Calculite®ProSpec®Linear Downlight PA2M1675

Page 1 of 2 2 Light MR 16 Series A

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of up to two

accessories (including lamp cover glass; lamp cover glass may be replaced

with solid glass accessory). Easily installed and removed for lamping with a

simple twisting motion. Constructed of die cast aluminum.

3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional

shielding and can be easily removed.

4. Adjustable Ring: Allows 360° horizontal and 35° (on width) and

45° (on length) vertical adjustment.

5. Tortiontite Spring: For easy installation of aperture frame.

6. Housing: Die formed 22 ga. steel. Finish: Black.

7. Mounting Brackets: Adjustable vertically from outside of housing.

8. Thermal Protector: Meets NEC and UL & CSA requirements.

9. Lampholder: Steatite for GX/GY 5.3 Bi-Pin lamps. 250° C Teflon®leads.

10. Junction Box: 14 ga. steel, 4 x 3 1/2 x 2" box. Allows inspection

from below.

11. Lamp and Accessory Support: .032" steel, flared for easy entry of

Media Cartridge.

12. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

13. Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.

14. Transformer Housing: Die formed 18 ga. steel.

Electrical

Electric Transformers: Offer reliable operation and are accessible from below

for servicing. 12V. Secondary 75 VA. each lamp.

Electronic Controls: Use only dimmers specifically designed for use with

magnetic transformers. Low Voltage fixtures may produce audible sound when

used with dimmers, which may be objectionable in acoustically critical areas.

UL/cUL listed for through branch circuit wiring with maximum of

(8) no. 12 AWG, 90°C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 2 1/2" dia. series, filters, lenses, screens, and louvers, (2)

accessories maximum, including lamp cover glass. Lamp guard glass may be

replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I B E W

Teflon®is a registered trademark of E. I. DuPont.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

Data are based on bare lamp photometrics.

Dashed lines in beam spreads indicate narrow

axes of oval shaped beams.

FC is initial footcandles at center of beam.

Land Ware to the point that the candlepower

drops 50% of maximum.

Calculite®ProSpec®Linear Downlight PA2M1675

Page 2 of 2 2 Light MR 16 Series A

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

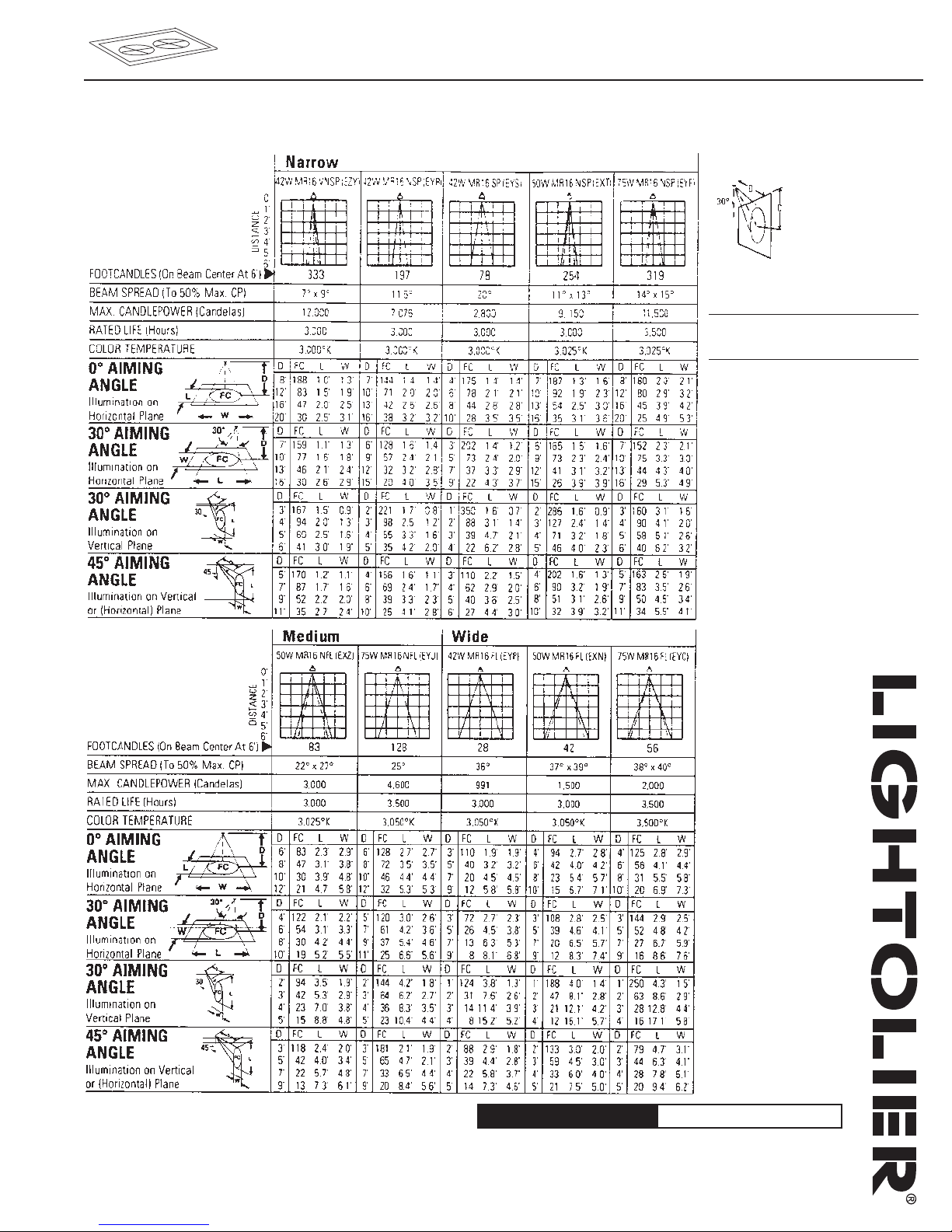

Lighting Performance Data

Beam Center Location

Distance D (ft.) 1 2 3 4 5

Distance C (ft.) 1.7 3.5 5.2 6.9 8.7

Distance D (ft.) 6 7 8 9 10

Distance C (ft.) 10.4 12.1 13.8 15.6 17.3

This chart locates the distance (C) to the

center of the light beam for various distances

(D) when the lamp is aimed 30° from vertical,

the preferred aiming angle for lighting pictures

on a wall.
