Lightolier Calculite ProSpec PB4M1675 Bedienungsanleitung

811

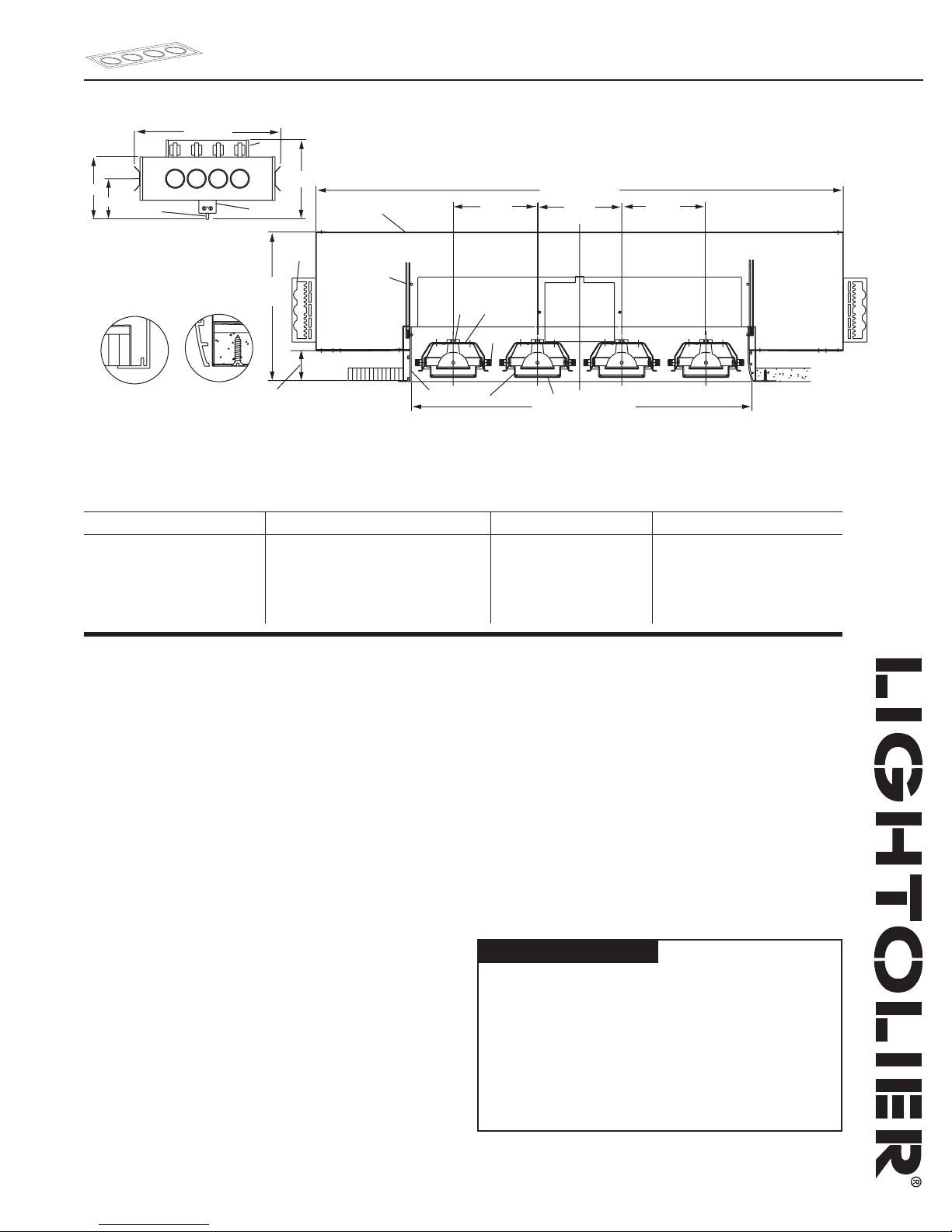

Flanged Trimless

Top View

8 3/4"

Depth

5" OC

31 3/8" L X 10" W

20" L X 5" W Opening

1 3/4"

5" OC 5" OC

14 3/8" 18 3/8"

34 1/8"

9 3/8"

PB4M167EBL = (Flanged) Black/White

PB4M167EWL = (Flanged) White

PB4M167EBTL = (Trimless) Black

PB4M167EWTL = (Trimless) White

Calculite®ProSpec®Linear Downlight PB4M1675

Page 1 of 2 4 Light MR 16 Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of one accessory.

Easily installed and removed for lamping with a simple twisting motion.

Constructed of die formed aluminum.

3. Adjustable Ring: Allows 360° horizontal and 45° (on width) and 45° (on

length) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Steatite for GX/GY 5.3 Bi-Pin lamps. 250°C Teflon®leads.

9. Junction Box: 14 ga. steel, 4” x 3 1/2” x 2” box. Allows inspection from

below.

10. Transformer Housing: Die-formed 18 ga. steel.

11. Lamp and Accessory Support: .032" steel, flared for easy entry of

Media Cartridge.

12. Lamp Guard: Heat-resistant clear glass. Lamp manufacturers’ requirement.

Electrical

Electronic Transformer: Individual for each lamp. Offers reliable operation

and is accessible from below for servicing. 12V Secondary 75VA ea. lamps.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound when

used with dimmers, which may be objectionable in acoustically critical areas.

Ceiling Cutout: 21 1/16" L x 6 3/16" W

Ordering Information: MR 16 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB4M167EBL (4) 75W MR 16* Overlap Black with White Flange

PB4M167EWL (4) 75W MR 16* Overlap White with White Flange

PB4M167EBTL (4) 75W MR 16* Trimless Black

PB4M167EWTL (4) 75W MR 16* Trimless White

Add a “1” for 120v or “2” for 277v at the *50W max.lamping when using accessories

end of the catalog number for voltage

Electrical (continued)

UL /cUL listed for through branch circuit wiring with maximum of

(8) no. 12 AWG, 90°C.

Finish

All painted finishes are powder coated, baked enamel.

Options & Accessories

Accessories: 2 1/2” dia. series, filters, lenses, screens, and louver (1)

accessories maximum, including lamp cover glass. Lamp cover glass may be

replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

Teflon®is a registered trademark of E.I. DuPont.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

Data are based on bare lamp

photometrics. Dashed lines in beam

spreads indicate narrow axes of

oval shaped beams.

FC is initial footcandles at center

of beam. L and W are to the point

that the candlepower drops to 50%

of maximum.

Calculite®ProSpec®Linear Downlight PB4M1675

Page 2 of 2 4 Light MR 16 Series B

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

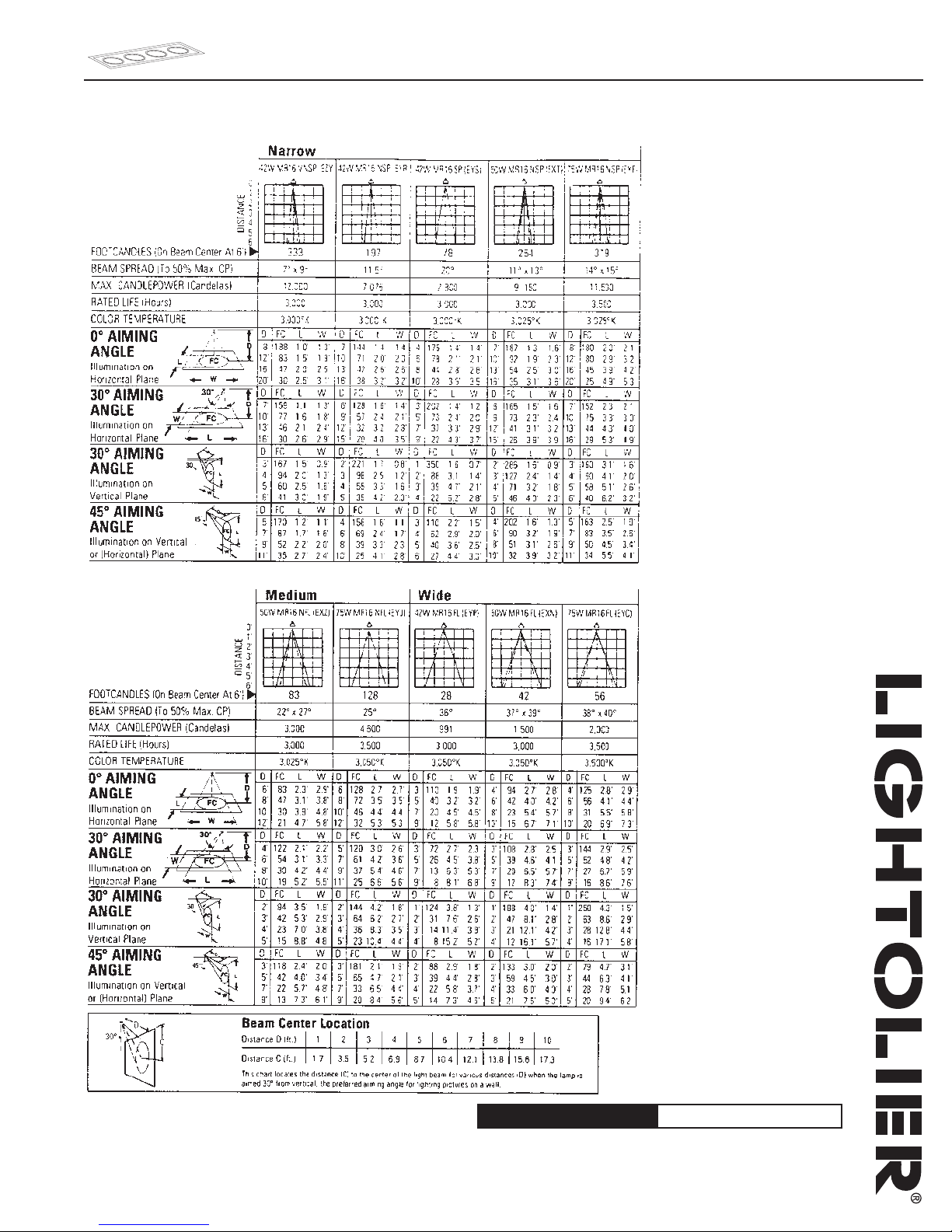

Lighting Performance Data
