Lighting Systems Baselyte-BSL19

Page 1 of 5 2 Light T8 Wall Mount Semi-Indirect

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Ordering Information

Family

T= T8

8 = Wall Mount

02 LN

BSL

02 = 2 Light 04 = 4’

08 = 8’

12 = 12’

C= Custom Color

W= Standard

White

Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish

Weight = 3.0 lb./ft

LN = Perforated 1= 120V

2= 277V E = Standard

<20% THD

F = Standard

<20% THD

w/fusing

G = <10% THD,

Instant Start

H = <10% THD,

Instant Start

w/fusing

J = <10% THD,

Program Start

K = <10% THD,

Program Start

w/fusing

1= 1cct.

2= 2cct.

3 = 1cct. w/EC/NL

4 = 2cct. w/EC/NL

5= 1cct. w/EM Battery

6= 2cct. w/EM Battery

7= 1cct. w/Dimming

8 = 1cct. w/1cct.

Thru wire

9= 2cct. w/1cct.

Thru wire

Note: Please consult

wiring section of spec

sheets for more

wiring options.

Specifications

Features

1. Housing: die-formed 20ga. cold rolled steel

2. End Set: die-cast metal with baked powder coat finish

3. Lamping: two T8 lamps

4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows

5. Ballasts: electronic 120V or 277V

Finish

High-quality white powder coat with textured matte finish.

Custom colors available. Consult factory.

Mounting

Flexible mounting locations.

Electrical

All luminaires are factory pre-wired to module ends with quick-wire

connectors.

Joints & Intersections

Self-aligning joining system with hands-free pre-joining wire access.

Labels

UL, CSA standards.

Individual Fixtures

1. Determine the number of individual modules required

2. Order one end set per module

3. Order one non-power mount per module

4. Order one power mount per module

Continuous Rows*

1. Determine run length

2. Order the appropriate number and length of modules for complete run

3. Order one end set for each run

4. Order one non-power mount for each module

5. Order one power mount per run

6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)

*Note: Some runs may require additional power mounts. Please see the

‘Run Configuration’ table on the next page for more details.

Ordering Instructions





Lighting Systems Baselyte-BSL19

Page 2 of 5 2 Light T8 Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Performance

Candlepower Curve Candlepower Summary Coefficients of Utilization

Report No: 9900043

Lamps: F32T8

Lumens per Lamp: 2950

Efficiency: 69.8%

Up: 95.6% Down: 4.4%

Zonal Lumen Summary

ZONE LUMENS %BARE LAMP %LUMINAIRE

CANDLEPOWER SUMMARY

ZONE CANDLEPOWER

DEG. 0 45 90 135 180

180 889 889 889 889 889

175 928 915 884 880 879

165 1023 965 856 851 854

155 1113 1004 798 800 807

145 1188 1017 719 728 758

135 1245 1002 613 651 714

125 1314 993 488 577 688

115 1196 974 343 522 636

105 761 700 194 413 457

95 276 231 47 115 110

90 38 20 2 4 3

85 42 23 4 4 3

75 56 35 8 4 3

65 68 47 11 5 4

55 77 57 19 8 6

45 82 63 27 11 8

35 82 66 36 19 14

25 77 66 43 29 24

15 68 61 48 39 35

5 57 55 51 47 46

0 51 51 51 51 51

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 67 67 67 58 58 58 40 40 40

1 58 56 53 50 48 46 35 34 32

2 51 47 43 44 40 38 30 28 27

3 44 40 36 38 34 31 27 24 22

4 39 34 30 34 29 26 23 21 19

5 34 29 25 30 25 22 21 18 16

6 31 25 22 26 22 19 18 16 13

7 27 22 19 24 19 16 17 14 12

8 25 20 16 21 17 14 15 12 10

9 22 17 14 19 15 12 13 11 9

10 20 15 12 17 13 11 12 10 8

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 4138

3955.5

182.5 4.4

95.6

100.0

3.1

67.0

70.1

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 67 67 67 58 58 58 40 40 40

1 58 56 53 50 48 46 35 34 32

2 51 47 43 44 40 38 30 28 27

3 44 40 36 38 34 31 27 24 22

4 39 34 30 34 29 26 23 21 19

5 34 29 25 30 25 22 21 18 16

6 31 25 22 26 22 19 18 16 13

7 27 22 19 24 19 16 17 14 12

8 25 20 16 21 17 14 15 12 10

9 22 17 14 19 15 12 13 11 9

10 20 15 12 17 13 11 12 10 8

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 4138

3955.5

182.5 4.4

95.6

100.0

3.1

67.0

70.1

















































































Module Lengths & Mounting Distances Run Configuration

Run

Length

4’

Module

8’

Module

12’

Module Joiner End Set Mount Power

Mount*

4’ run 1 1 1 1

8’ run 1 1 1 1

12’ run 1 1 1 1

16’ run 2 1 1 2 1

20’ run 1 1 1 1 2 1

24’ run 2 1 1 2 1

28’ run 2 1 2 1 3 1

32’ run 1 2 2 1 3 1

-ODULE,ENGTH

-OUNTING$ISTANCE

-ODULE,ENGTH-OUNTING$ISTANCE

@

@

@

Note: Shaded area indicates locations of emergency sections (emergency wiring

controls all lamps or optional battery pack controls one or two lamps).

*Note: Additional power mounts may be required for some runs with T5 HO

lamping options, longer runs, and runs with wiring options that are more complex.

Please consult factory for assistance.

Joiner

BSLEWW = wall mount standard white

Dust Cover

End Set

BSLJW = wall mount joiner

BSLDCW = 4’ wall mount dust cover

System Components & Accessories

Non-Power Wall Mount Power Wall Mount

BSLWP1 = 1-power mount

BSLWP2 = 2-power mount

BSLWN = non-power wall mount

Lighting Systems Baselyte-BSL19

Page 3 of 5 2 Light T8 Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

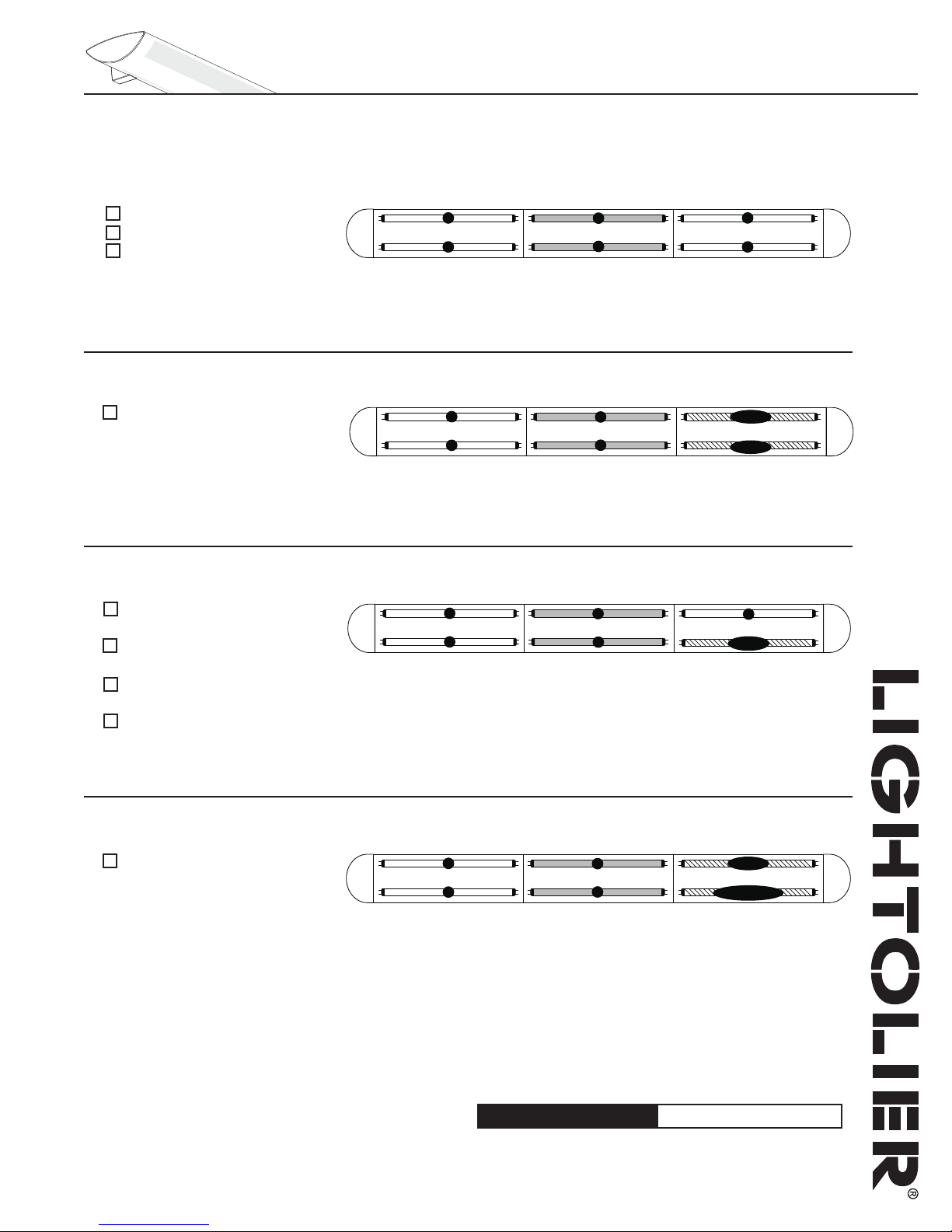

Wiring Options: 1 Circuit

1 Circuit with Emergency Circuit/Night Light (EC/NL)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal

circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.

Type 3: 1cct. w/EC/NL

All lamps wired on one circuit.

1 Circuit

Type 5: Chloride standard

C700A

Type M: Bodine standard

B70A

Type E: Chloride high performance

C1400

Type P: Bodine high performance

B50

All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected

to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by

installer. Leads for both normal circuit and battery pack are wired to fixture ends.

1 Circuit with Emergency Battery Pack (EM)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery

pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together

or wire separately if controlled independently. Leads for normal circuit, EC/NL and EM wired to

fixture ends. All lamps in EC/NL section to be wired together.

1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack

Type J: Chloride standard

C700A



%#.,

� �

� ��

%-



%#.,

%#.,%-

Type 1: 1cct.

Type 8: 1cct. w/1cct. thru wire

Type H: 1cct. w/2cct. thru wire

Type 7: 1cct. w/dimming

*Note: Multi-lamp battery packs are also available.

Lighting Systems Baselyte-BSL19

Page 4 of 5 2 Light T8 Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

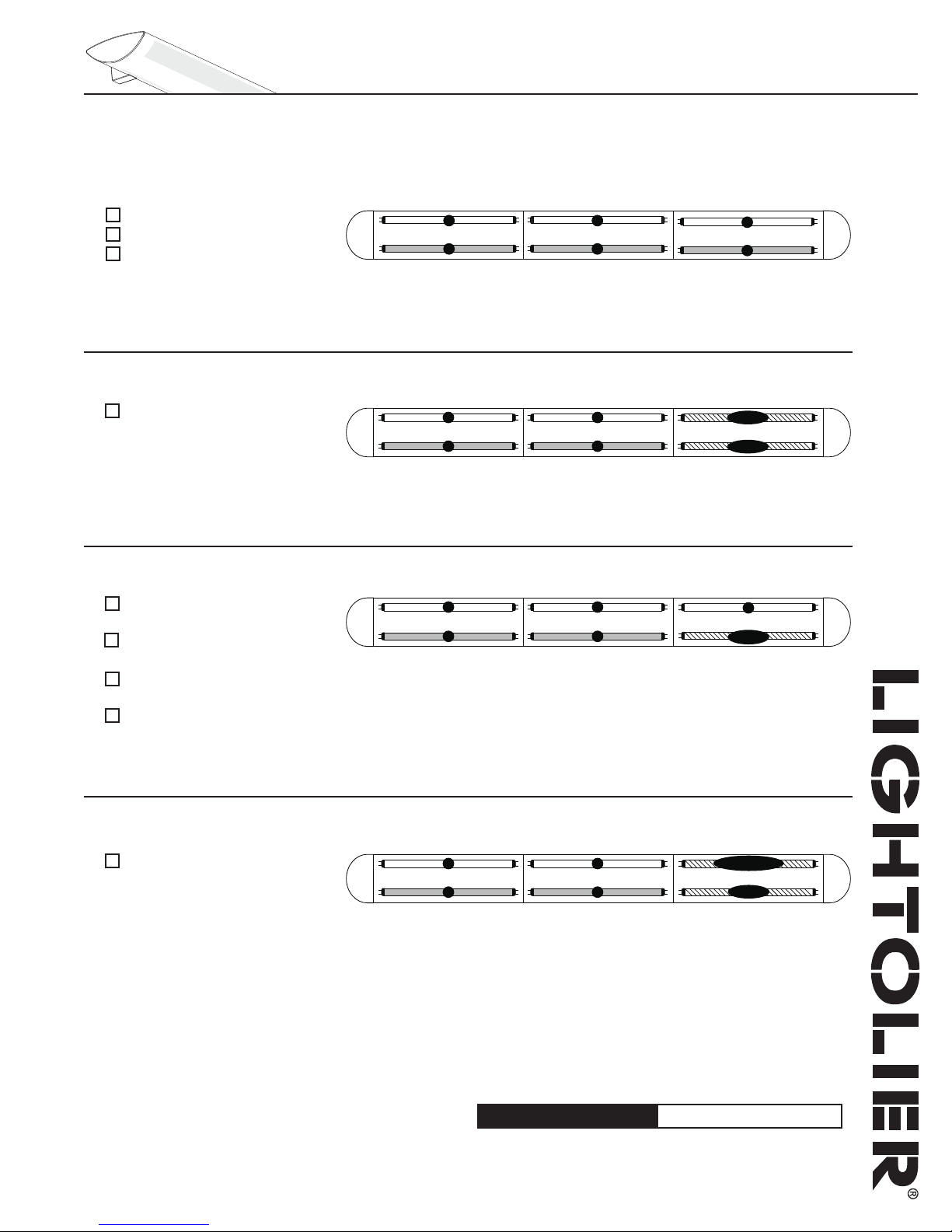

Wiring Options: 2 Circuit Left/Right Switching
