Lightolier FBP50 Bedienungsanleitung

FBP50

1,400 LUMEN LINEAR FLUORESCENT EM. BALLAST

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: The FBP50

provides 90 minutes of

emergency illumination by

utilizing existing fluorescent

lighting, and produces 1,100-

1,400 lumens initial emergency

light output. The FBP50 can be

used with most 17 W through

215 W (2’-8’) T8, T9, T10, or

T12 fluorescent lamps without

integral starters, including

U-shaped, HO, VHO, circline,

energy saving, and 4-pin twin,

quad, and triple twin-tube

compacts. One or two lamp

operation may be selected.

The FBP50 is also compatible

with most 1-, 2-, 3-, and 4-lamp

electronic, standard, energy

saving and dimming AC ballasts.

See lamp operation for specific

lamp types.

Housing: Housing is

constructed of 20 gauge steel

with a high temperature

powder coat paint finish. Slim

housing allows for wireway

channel mounting on most

recessed luminaires.

Operating Temperature

Range:

Standard and Damp Location

32°F (0°C) to 131°F (55°C)

Electronics: 120/277 VAC

dual voltage input with surge

protection, solid-state charging

circuitry provides for a reliable

charging system. Charging

system is complete with AC

indicator lamp and test switch.

Electrical Specifications:

Input Power: 4 W max.

Battery

Maintenance free, sealed nickel

cadmium battery. Supplies 90

minutes of emergency power.

Estimated service life of 10

years.

Lamp Operation1: Operates

the following lamp types2:

T8 linear fluorescent

T12 linear fluorescent

T9 circline

T12 U-bent fluorescent

T5 long compact fluorescent

Compact 4-pin fluorescent

Notes:

1) Consult factory for compatibility,

operation and performance of product

with lamp types not listed.

2) See table 1 on back for specific lamp

performance and operation.

Code Compliance

UL 924 and optional UL damp

location listed. NFPA 70, NFPA

101, NEC, BOCA, OSHA and

IBC illumination standards.

Suitable for use in sealed and

gasketed luminaires.

Warranty

Five year full electronics

warranty. Five year full battery

warranty.

FBP50

13.25"

(33.65 cm)

1.5"

(3.8 cm)

2.4"

(6.1 cm)

FBP50

1,400 LUMEN LINEAR FLUORESCENT EM. BALLAST

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

FBP50 August 28, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

FBP50 = 1,400 Lumen Max. Output

Fluorescent Emergency Ballast for One

or Two Lamp Operation

FBP50

LAMP

TYPE

F20T12

F30T12

F40T12

F40T12/U

F48T12

F60T12

F72T12

F96T12

F24T12HO

F36T12HO

F48T12HO

F60T12HO

F72T12HO

F96T12HO

F48T12

F17T8

F25T8

F32T8

F32T8/U

F40T8

F96T8

F27BX

F282D

F382D

F39/36BX

F40/30BX

F50BX/FT55

F96T12HO

F96T12VHO

WATT.

110

50-55

BASE TYPE

G13/Med Bi-Pin

FA8/Single-Pin

R17D/Recessed

G13/Med Bi-Pin

FA8/Single-Pin

2G11/4-Pin

GR10Q-4/4-Pin

2G11/4-Pin

R17D/Recessed

NON-EMERGENCY

MAX. LUMEN OUTPUT

1275

2350

2650

3100

2875

3600

4500

5500

1620

2800

5150

4050

6350

8000

6200

1325

2080

2850

2700

3600

5800

1800

2050

2850

3150

4300-4800

8000

NOTES

1) Maximum non-emergency lumen output can vary based on lamp manufacturer, ambient operating temperature,

and ballast manufacturer.

2) Maximum emergency lumen output is based on total output of one or two lamps, and can vary based on lamp

manufacturer and ambient operating temperature.

3) Consult factory for compatibility, operation and performance of lamp types not listed.

ptions

EX1= Special Input Transformer

(specify voltage and frequency)

DL = Damp Location Listing

Lamp Operation and Performance

Table 1

Accessories (order as a separate item)

CCAPS = Wire Cover Kit for External Mounting

RTS = Remote Test Plate

RTS2 = Remote Test Switch & Pilot Light Kit (includes plate)

EMERGENCY OP.

MAX. LUMEN OUTPUT

1100-1400

1000

1100

1000

1100

1100-1400

EMERGENCY

LAMP OPERATION

One or Two

One

One or Two

One

Two

One or Two

One

One or Two

One

Note

1) Some option combinations may impact UL listing. Consult factory for specifics.

Andere Lightolier Beleuchtungsausrüstung Handbücher

Lightolier

Lightolier LYTEDROP FIXTURE Leitfaden

Lightolier

Lightolier PTS7-4 Bedienungsanleitung

Lightolier

Lightolier Lighting Systems Baselyte-BSL6 Bedienungsanleitung

Lightolier

Lightolier CD7-3 Bedienungsanleitung

Lightolier

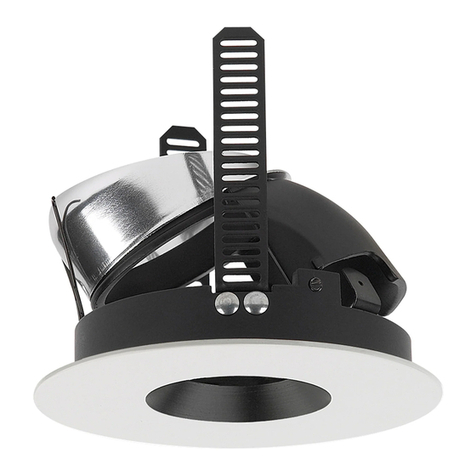

Lightolier CALCULITE EVOLUTION TRIMS Bedienungsanleitung

Lightolier

Lightolier Lytespan 23SN20 Bedienungsanleitung

Lightolier

Lightolier Calculite T7032 Bedienungsanleitung

Lightolier

Lightolier Surface LED Colorwash Luminaire Bedienungsanleitung

Lightolier

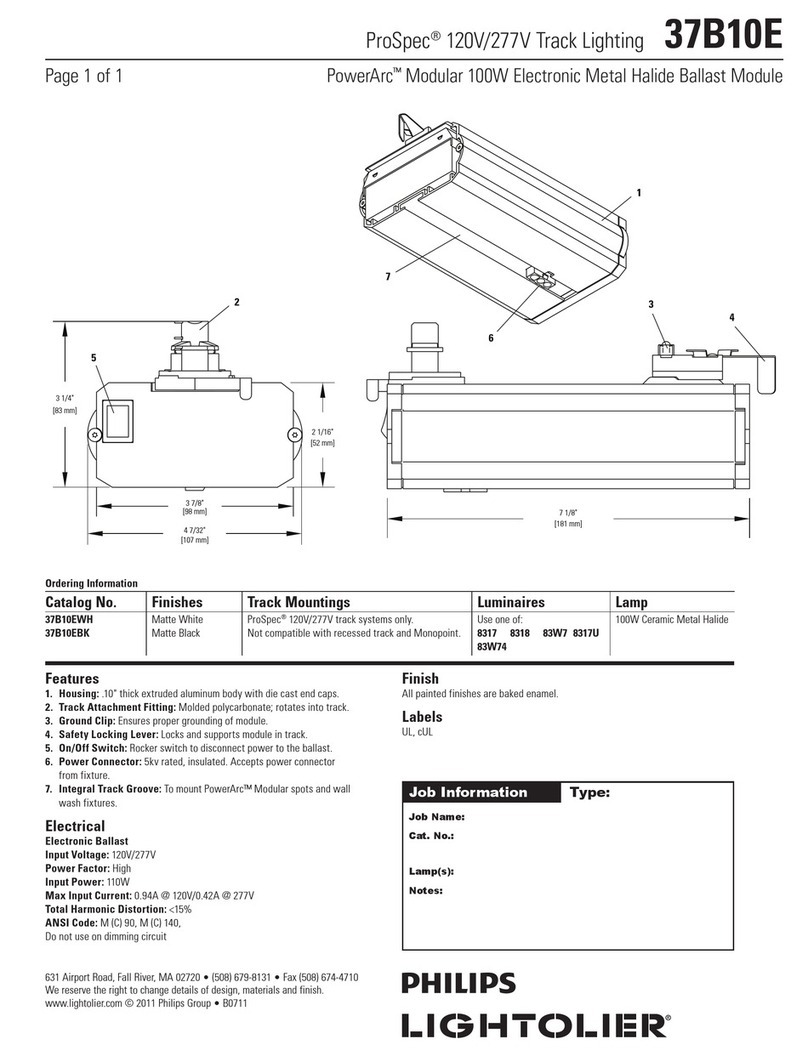

Lightolier ProSpec 37B10E Bedienungsanleitung
