E1 Series

6 V, 12 TO 25 W COMMERCIAL EMERGENCY LIGHTING

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

is provided by two high

performance lamp reflector

systems integral to the housing.

Each lamp reflector system

can be adjusted 180° vertically,

and 180° horizontally. A high-

impact polycarbonate diffuser

utilizes linear frosted sections

to control sight-line glare, and

maximize reflector efficiency.

Lamp wattages range from 6

to 9 W.

Housing: Constructed

of impact-resistant, UL 94

V-0, 5 VA thermoplastic.

Thermoplastic backplate

is provided with matching

knockouts for easy installation

to standard junction boxes.

Installation is further

simplified by the use of a

snap-together backplate and

housing. A modular plug-

in wiring harness will allow

line voltage connections in

either the junction box or

product housing. Utility supply

connection is completed by

snapping the housing and

backplate together forming

a secure mechanical and

electrical connection.

Operating Temperature

Range: Standard Location

65°F (19°C) to 85°F (30°C)

Diagnostics: 120/277 VAC

dual voltage input with surge-

protected, solid-state fully-

automatic, voltage regulated

charger. Charging system is

complete with low voltage

Disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Electrical Specifications:

12 W unit:

0.112 A (120 VAC)

0.062 A (277 VAC)

14-18 W unit:

0.077 A (120 VAC)

0.034 A (277 VAC)

Code Compliance

UL 924 listed. NFPA 101,

NEC, BOCA, OSHA and IBC

illumination standards. Meets

ADA specifications for wall

mounted lighting fixtures.

Warranty

Three year full electronics

warranty. One year full plus

four year prorated lead calcium

battery warranty. Five year full

plus five year prorated nickel

cadmium battery warranty.

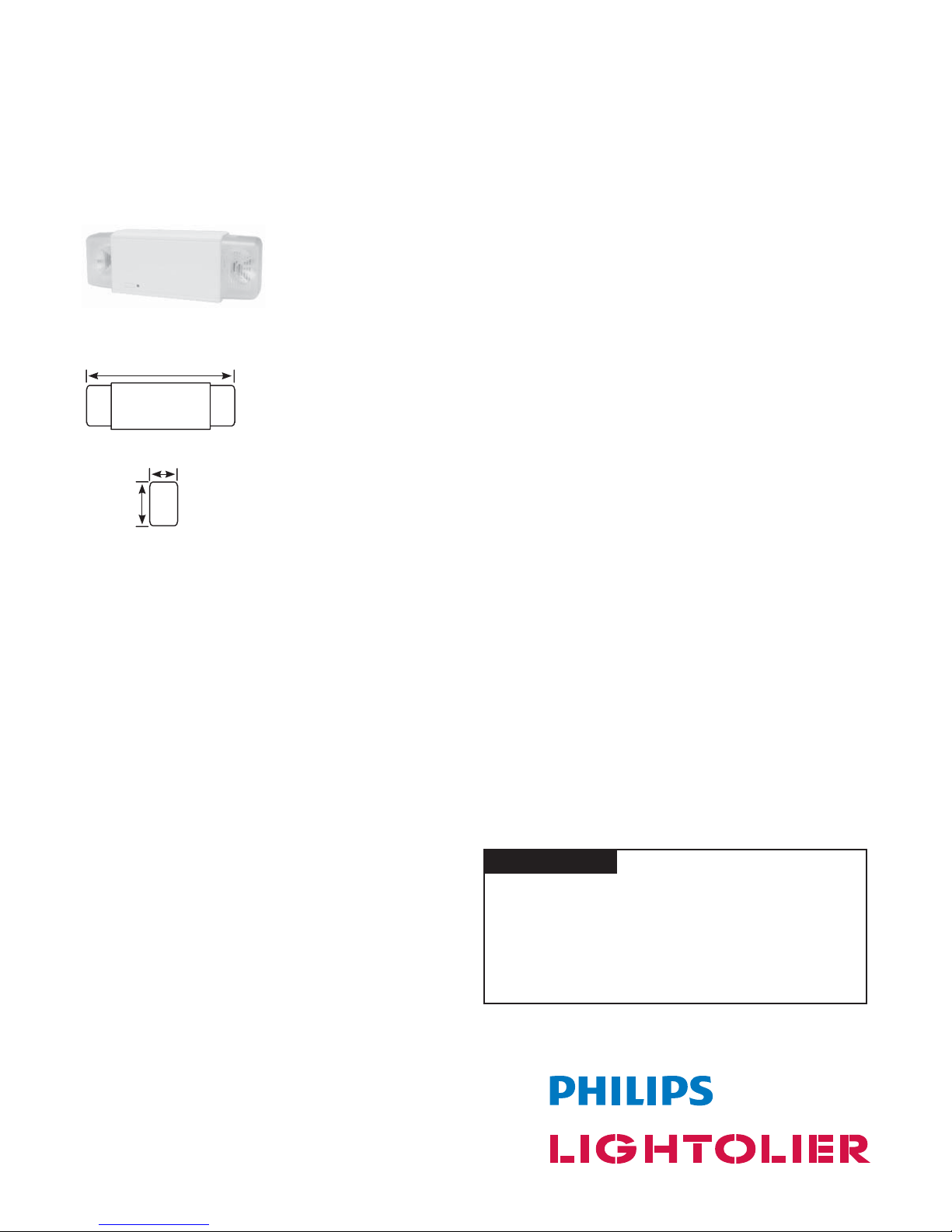

E112LT7W

15.5"

(39.4 cm)

3.8"

(9.6 cm)

5.5"

(14.0 cm)

E1 Series

6 V, 12 TO 25 W COMMERCIAL EMERGENCY LIGHTING

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

E1 Series September 12, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

E1 = 6 V

Thermoplastic

Emergency Unit

Lead Calcium

12L = 12 Watt Unit

18L = 18 Watt Unit

25L = 25 Watt Unit

Nickel Calcium

12N = 12 Watt Unit

14N = 14 Watt Unit

18N = 18 Watt Unit

Battery/Wattage Lamp Type

T6 = Tungsten 6 W

T7 = Tungsten 7 W

T9 = Tungsten 9 W

H7 = Halogen 7 W

H12 = Halogen 12 W Note

1) Selected lamp wattage cannot exceed unit output rating.

Accessories (order as a separate item)

SCKTW = White Canopy Kit for Ceiling Mount

SCKTB = Black Canopy Kit for Ceiling Mount

WG5 = Wire Guard

PCS1 = Polycarbonate Vandal Shield

W= White

B= Black

Housing Color

Optics

Wall mounted 7.5' AFF, ‘H7’ 6 Volt 7 Watt Halogen Lamps Represented

1 FC Average

7.5 ft.

25 ft.

6 ft.

Average initial footcandles at floor = 1.33

Maximum initial footcandles at floor = 5.1

Minimum initial footcandles at floor = 0.2

Maximum to minimum ratio = 25.50

* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that

may alter the results.

0.2

0.7

0.6

0.3

2.6

2.1

0.6

4.5

3.3

0.9

2.7

1.9

0.6

1.0

0.8

0.5

0.9

0.7

0.5

2.3

1.5

0.6

4.5

3.3

0.9

3.2

2.8

0.9

0.5

0.3

0.2

0.4

0.3

1.4

1.2

0.5

4.0

3.1

0.5

4.0

2.9

0.8

1.6

1.1

0.5

0.9

0.7

0.5

1.3

0.9

0.5

3.6

2.5

0.7

4.4

3.9

0.9

1.9

1.7

0.6

0.4

0.5

0.3

0.2
