Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-8

1BHFPG -JOFBS1FSG-ZUFÜDN1FSGX-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Bottom View

9” (22.86cm)

3.25” (8.26cm)

3”

(7.62cm)

Perf

98” (248.92cm)

2” (5.08cm) 2” (5.08cm)2” (5.08cm)

Complete ordering instructions below.

Features

1. Housing: 18 gauge perforated steel with 41% open hole pattern. Holes are

1/16” (0.16cm) diameter on 3/32” (0.24cm) centers. Die-formed steel end cap

with concealed access holes for through wiring. No exposed fasteners or

hardware.

provided by others.

match housing. Blades on 1-1/2” (3.81cm) centers.

2. Lamping: Two T8 32 watt fluorescent lamps per 4-foot section. Lamps

3. Reflector: Precision die-formed CRS painted high reflectance white.

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection for

joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting. Overlap connector to provided 46” (116.84cm) of

perforated and 2” (5.08cm) solid sections contiguously without the presence of

hairline connections (see BottomView drawing above).

4. Diffuser: Opal acrylic diffuser.

CABLE & CORD FEEDS.

Module Ordering Information

Style Series Type Lamps

2T8 = 2-F32T8

LP 1 D 2T8

Options

4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot

12 = 12-Foot

E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

Length Ballast

5. Louver: 3-1/4” (8.26cm) wide by 1” (2.54cm) straight blade louver finished to

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP1EC36X4) when using 4 Wire Modules.

Emergency Circuiting: Special circuiting - consult factory.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems LP-8

1BHFPG -JOFBS1FSG-ZUFÜDN1FSGX-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

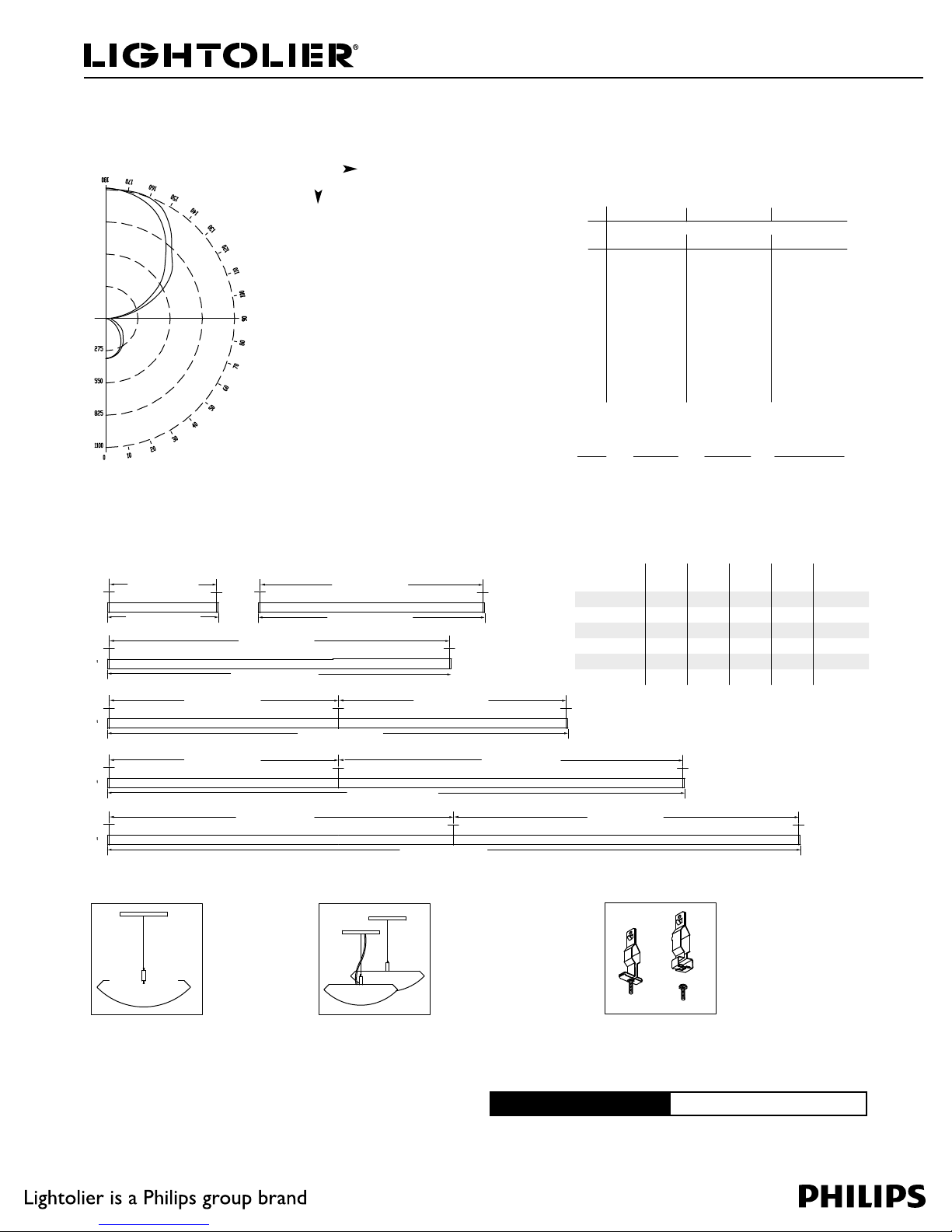

Mounting Accessories

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP1EC36 4 Wire Cord*: LP1EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP1C36

Single Cable & Cord: LP1CC36

Single Cable & 4 Wire Cord: LP1CC36X4

Fixture Lengths & Mounting Locations

Ceiling Grid Kit CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

* use for dimming and/or emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

16’

20’

24’

144” (366.62cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

144” (366.62cm)

96” (243.84cm)

20’ 2” (614.68cm)

144” (366.62cm) 144” (366.62cm)

24’ 2” (736.60cm)

Performance

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1018 1018 1018 1018 1018

175 1014 1012 1016 1013 1014

165 983 985 991 988 978

155 916 917 914 920 922

145 803 803 811 829 833

135 657 652 671 709 718

125 535 523 566 641 629

115 366 365 438 514 536

105 200 233 309 336 341

95 40 88 107 121 126

90 6 22 32 41 45

85 16 25 32 41 42

75 54 59 70 84 86

65 96 103 125 199 251

55 173 173 218 314 383

45 248 246 285 361 411

35 343 340 365 420 451

25 424 421 433 461 474

15 484 489 491 492 495

5 521 522 525 526 527

0 525 525 525 525 525

REPORT NO: LRL 300-1D

CAT NO: LP1D2T84U

LAMPS: 2 F32T8

LUMENS: 2900

EFFICIENCY: 78.6%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0808080727272575757

1737067666361504846

2676257605652444139

3615549554945393633

4564842504439353128

5524337463934312725

6473832423530282421

7443529393126252119

8403125362823231916

9382823342621211715

10 35 25 20 31 23 18 19 15 13

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

CANDLEPOWER CURVE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 1348 23.3 29.6

90-180 3210 55.3 70.4

0-180 4557 78.6 100.0

4-Foot

Module

8-Foot

Module

12-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11

16-Foot Run 211

20'-Foot Run 111 1

24'-Foot Run 21 1
