Lightolier LYTEDROP FIXTURE Leitfaden

●

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE INSTRUCTION SHEET NO,

“his fixture is intended for installation in accordance with the National Electrical Code and local

emulations. To assure full compliance with local codes and regulations, check with your local electrical

mpector before installation. To prevent electrical shock, turnoff electricity at fuse box before proceeding. IS:8629

Retain these instructions for maintenance reference. R0992 Page 1of 2

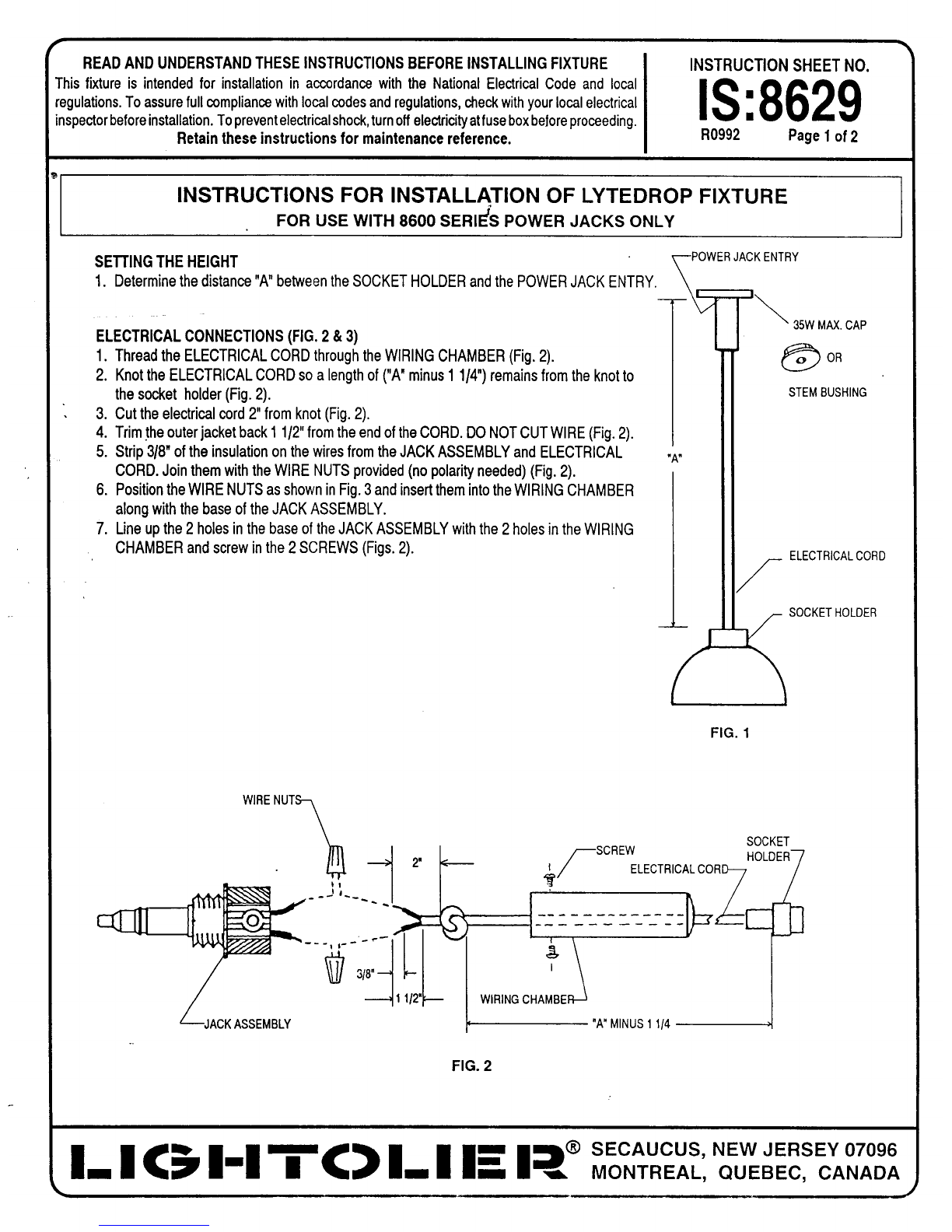

INSTRUCTIONS FOR INSTALLATION OF LYTEDROP FIXTURE

FOR USE WITH 8600 SERl~S POWER JACKS ONLY

SETTING THE HEIGHT POWER JACK ENTRY

1. Determine the distance “A” between the SOCKET HOLDER and the POWER JACK ENTRY.

ELECTRICAL CONNECTIONS (FIG. 2&3)

1. Thread the ELECTRICAL CORD through the WIRING CHAMBER (Fig. 2).

2. Knot the ELECTRICAL CORD so alength of (“A” minus 11/4”) remains from the knot to

the socket holder (Fig. 2). STEM BUSHING

3. Cut the electrical cord 2“ from knot (Fig. 2).

4. Trim the outer jacket back 11/2” from the end of the CORD. DO NOT CUT WIRE (Fig. 2).

5. Strip 3/8” of the insulation on the wires from the JACK ASSEMBLY and ELECTRICAL .~

CORD. Join them with the WIRE NUTS provided (no polarity needed) (Fig. 2).

6. Position the WIRE NUTS as shown in Fig. 3 and insert them into the WIRING CHAMBER

along with the base of the JACK ASSEMBLY.

7. Lineup the 2holes in the base of the JACK ASSEMBLY with the 2holes in the WIRING

CHAMBER and screw in the 2SCREWS (Figs. 2). ELECTRICAL CORD

SOCKET HOLDER

FIG. 1

WIRE NUT

I!!

1‘

SCREW SOCKET

-ti-;jl~~ ~

HOLDER

ELECTRICAL COR

--::~-

----- —----- --

--- ---—- --- 2

“WIRINGCHAMBE

“A” MINUS11/4

FIG. 2

1-B c> 1“1 T<> LIE la ER’AHN!WR%IU’::

INSTRUCTION SHEET NO,

1S:8629

R0992 Page 2of 2

JACK ASSEMBLY BEFORE CLOSING

FIG. 3

MOUNTINGAND ADJUSTMENTS (FIG. 1)

1. lfusedwith POINTPOWER JACK#8605, usethecap marked "35WMN.'' (See fig.l.) lfusedwith other POWER JACKS,

make certain that the STEM BUSHING is removed from the POWER JACK.

2. Screw the JACK ASSEMBLY fully into the POWER JACK.

INSTRUCTIONSFOR LAMPING

CAUTION: MAKE CERTAIN THAT THE LYTEDROP FIXTURE IS COOL BEFORE HANDLING. SINCE THE LAMP

HEATS QUICKLY, MAKE SURE THAT THE POWER IS DISCONNECTED BEFORE INSERTING LAMP INTO

THE LAMP SOCKET.

SEPARATE

Lift the GLOBE ASSEMBLY (with STYLE JACK SHADE) while rotating to the LE~ until it is released from the SOCKET

HOLDER (Fig. 4).

INSTALL LAMP

CAUTION: DO NOT TOUCH THE LAMP WITH BARE HANDS.

OIls from the hands could reduce LAMP life. Use tissue paper or soft cloth. Inserl the LAMP into the SOCKET holes as far

as it will go. Pins will be exposed approximately 1/16“ outside of the SOCKET when fully engaged. No polarity of pins is

required.

REASSEMBLE (Fig. 5).

FIG. 4

SOCKET HOLDER

L4MP (SEE NOTE)

.0 GLOBE

MBLY

TYPICAL STYLE

SHADE LOBE

TO SEPARATE

FIG. 5

“=’

TO REPLACE
