LP Series

Low Level Recessed LED Luminaire

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: The LP Series

LED utilizes three high

performance white LEDs

combined with a solid-state

integral driver circuit. A user-

selectable, three level intensity

control or an optional line

voltage dimmable driver (120

VAC models only) are available.

The LP Series with white LEDs

operates at 3,500 K nominal

with a minimum CRI of 80.

The amber LEDs operate at a

nominal wave length of 600 nm.

Housing: Assembled from

premium die cast aluminum

and painted in a durable

powder coat finish. Numerous

standard finishes available with

optional finishes available for

custom projects. Assembled

as a one-piece device that

includes the LED light engine,

integral power supply, three

level intensity control or line

voltage dimmable driver (120

VAC models only). All LED

and electrical components

are protected by both a

polycarbonate lens, and high

impact power supply case

that will be located within the

junction box.

Electrical Specifications:

Current at dip switch setting

12 VDC: low 0.140 A,

medium 0.330 A, high 0.430 A

12 VAC: low 0.220 A,

medium 0.465 A, high 0.585 A

120 VAC: low 0.035 A,

medium 0.065 A, high 0.085 A

120 VAC line voltage dimmable:

60 Hz, 0.072 A

Operation: “Normally

On” remote power supplies

(LPS Series) are available

from 100 VA to 500 VA in

12 VAC. Power supplies (120

VAC input) conform to UL

1598 and are rated as Class

2 Distribution systems. All

power supplies are furnished

in a UL type 3R enclosure and

are provided with thermal

type secondary output circuit

protection. “Normally Off/

Emergency” remote power can

be provided by any Lightolier

12V emergency lighting

product with additional remote

capacity (example: C3250 or

C3275 Series). “Normally On/

Emergency” remote power can

be provided by Lightolier LPE

emergency power system. The

LPE system will support up to

20 LP Series 12 V luminaires

operating in both continuous

duty and emergency operation

for 90 minutes.

Warranty

Five-year full electronics

warranty.

Electronics: Designed with all

solid-state components with a

rating of 10 years of continuous

“normally on” use. Electrical

connection is made via two

flying leads. Standard product

incorporates dip switches

on rear of product allowing

three levels of intensity. An

optional line voltage dimmable

driver is available on 120 VAC

models (see factory options).

The line voltage dimmable

driver requires a reverse-phase

ELV dimming system. See LP

Series Compatible Dimmer

specification sheet.

Operating Temperature

Range: Standard wet location

-31°F (-35°C) to 104°F (40°C)

Code Compliance

UL 1598 and 924 listed. UL

listed for wet locations. NFPA

101, NEC, BOCA, OSHA and

IBC illumination standards.

Meets ADA specifications for

wall mounted lighting fixtures.

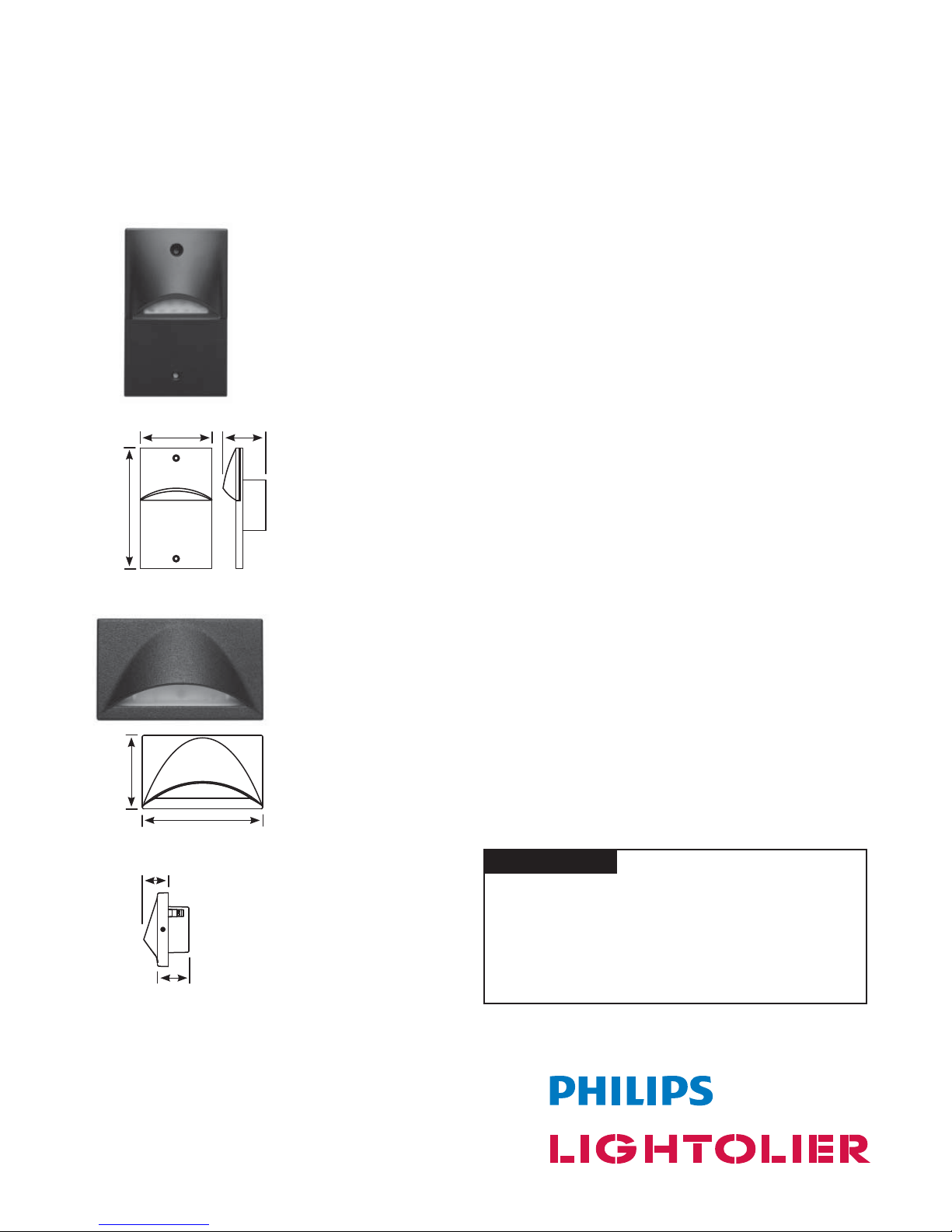

2.75"

(6.99 cm)

1.5"

(3.8 cm)

4.5"

(11.4 cm)

4.5"

(11.4 cm)

2.75"

(6.99 cm)

.78"

(1.98 cm)

.91"

(2.31 cm)

LP1SBK

LPH1SBK

LP Series

Low Level Recessed LED Luminaire

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LP Series June 21, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LP = Low Level

Emergency Lighting

Product

LPH = Horizontal

Low Level Emergency

Lighting Product

1= 12V AC, DC

2= 120 VAC

Input Voltage Lens

S= Satin

Finish

WH = White

BK = Black

IV = Ivory

A= Aluminum

G= Gunmetal

BR = Ornamental Bronze

AC = Aged Copper

VG = Velvet Green

GA = Granite

N= Nickel

DIM = Line Voltage

Dimmable1

AMB = Amber LEDs

BLU = Blue LEDs

Factory Options

Optics

Wall Mounted 18" AFF

High Setting

Note

1) Line voltage dimmable

driver available only with

120 VAC (LP2, LPH2)

models.

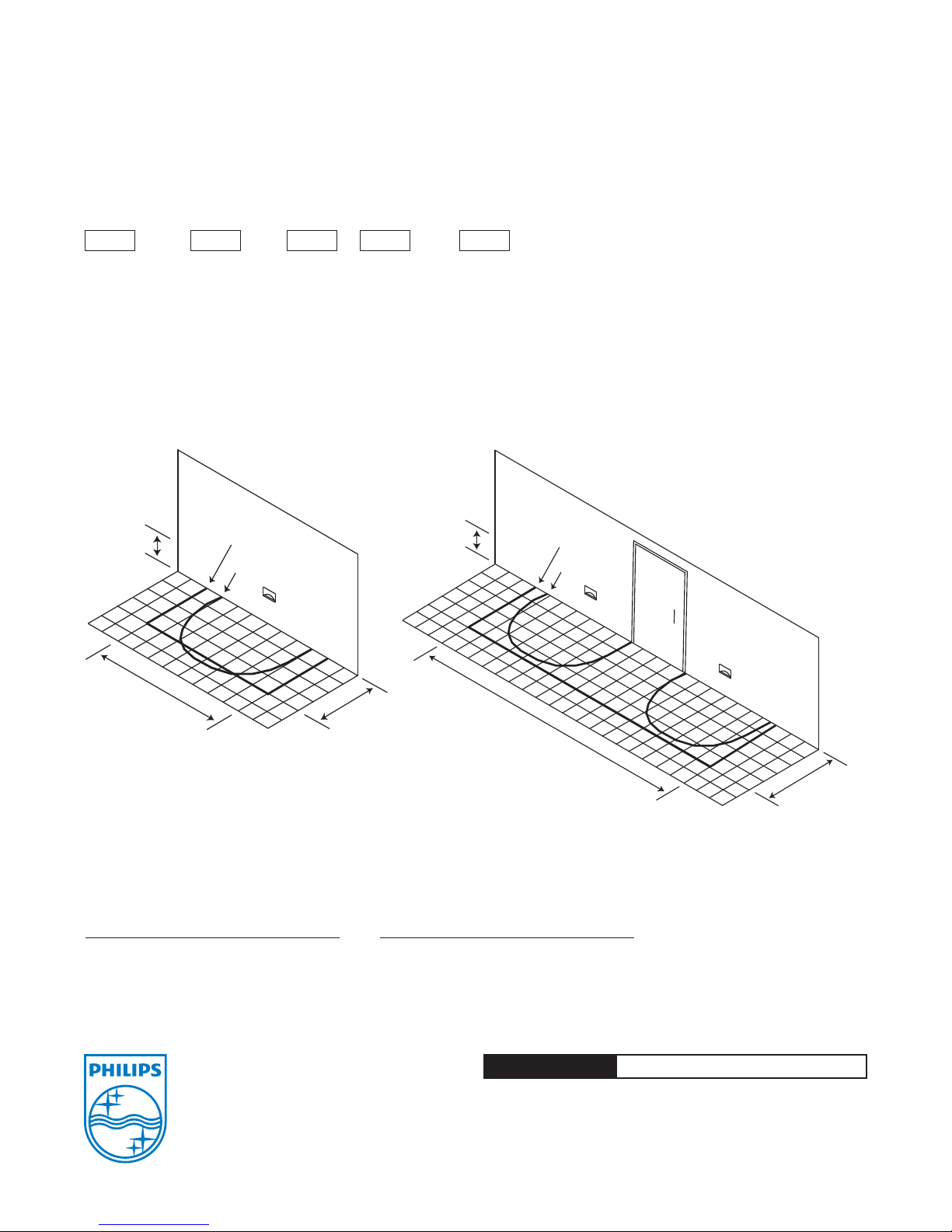

18 in.

8 ft.

4 ft.

1 FC avg.

1 FC min.

18 in.

18 ft.

5 ft.

1 FC avg.

1 FC min.

Average initial footcandles = 3.11

Maximum initial footcandles = 10.1

Minimum initial footcandles = 0.4

Maximum to minimum ratio = 25.25

10’ Fixture Spacing

Average initial footcandles = 2.39

Maximum initial footcandles = 10.5

Minimum initial footcandles = 0.3

Maximum to minimum ratio = 35.00

* The optics layout shown is intended to be used as reference

only. Standard reflectances used were 80/50/20. Lightolier is not

responsible for site specific conditions that may alter the results.

Lumen Output

The following data represents absolute lumen output in accordance with test method IESNA LM-79-08.

Vertical, Lumens

Low Med High

12 VAC/VDC 57.1 123.5 156.0

120 VAC 65.5 123.8 156.0

120 VAC DIM 162.6

Horizontal, Lumens

Low Med High

12 VAC/VDC 54.2 113.1 148.8

120 VAC 62.9 119.3 148.7

120 VAC DIM 128.7
