Lightolier Lytespan DRL70 Bedienungsanleitung

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting System DRL70

Page 1 of 2 Director®Metal Halide 70W T6

Ordering Information

Catalog No. Finishes Track Mounting Lamp Reflectors

DR2LS70WH White Compatible with Lytespan Basic, Radius T6 Single Ended, G12 Base Use one of:

DR2LS70BK Black and Advent Track Systems; and all Ceramic Metal Halide 70W DRT6RS

DR2LS70SL Silver Multipoint and Monopoints. DRT6RM

DO NOT USE with Extension Wands, DRT6RF

Sloped Ceiling Adapter or ProSpec Track.

SOLD SEPARATELY

Description

Remote controlled spotlight that can be mounted anywhere along the track

and remotely aimed through the use of a hand-held controller. Can not be

dimmed. Can not turn on/off using hand-held controller.

Features

1. Full remote control of pan and tilt movement to aim at any object below

the luminaire.

2. Positions can be recorded for future use.

3. Continuous movement and sequencing option.

4. Interchangeable Click-On™ reflectors to achieve desired beam spread.

REFLECTORS SOLD SEPARATELY.

5. Die-cast aluminum housing.

Electrical

Electronic Ballast

Input Voltage: 120V, 60 Hz

Power Factor: >95%

Input Power: 78W

Max. Input Current: .67A

Total Harmonic Distortion: <10%

ANSI Code: M139, M143, M98

Do not use on a dimming circuit.

Labels

cULus Classified

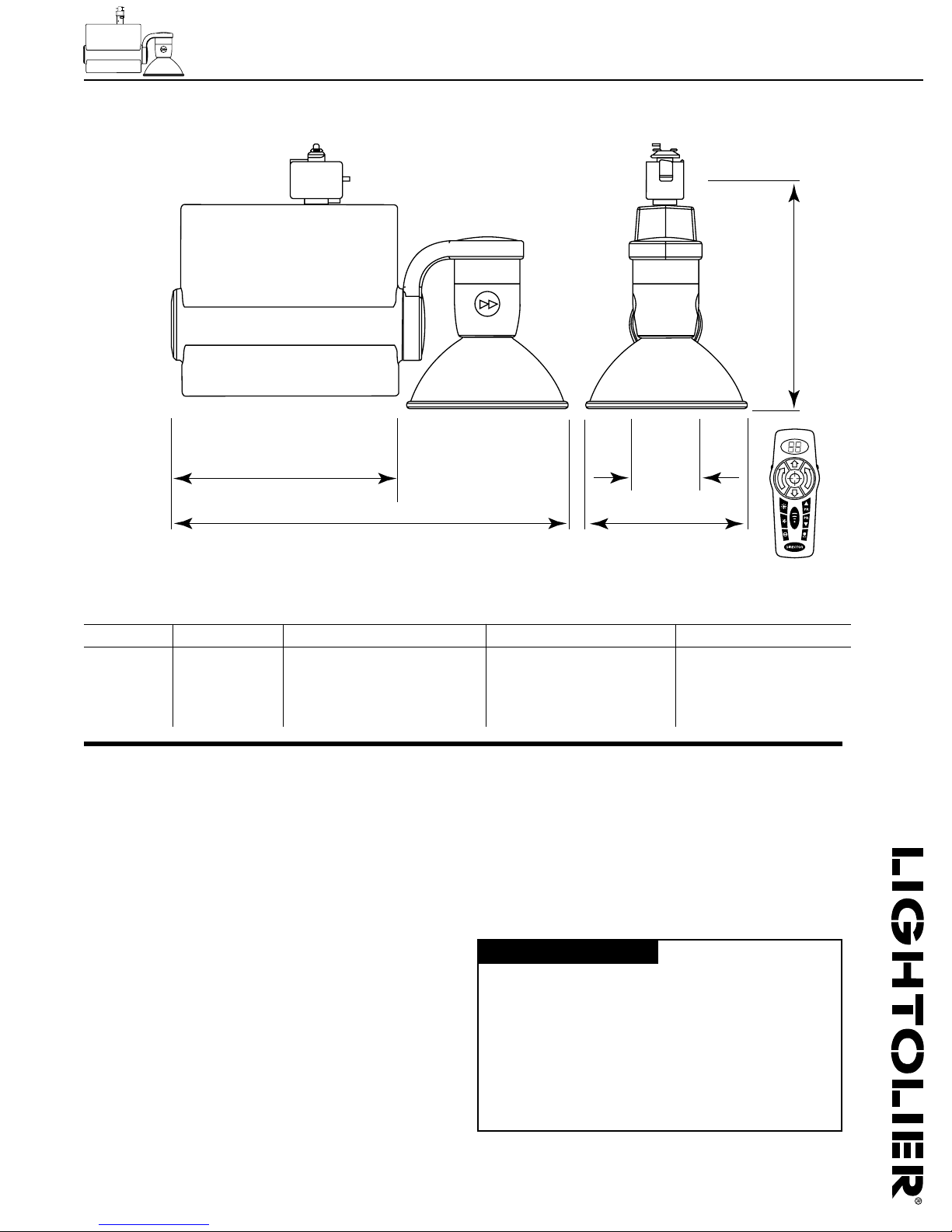

12 13/16”

(325)

5 1/4”

(133)

2 13/32”

(61)

7 1/2”

(190)

7”

(177)

Requires Laser

Remote Control

for Operation

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan®Track Lighting System DRL70

Page 2 of 2 Director®Metal Halide 70W T6

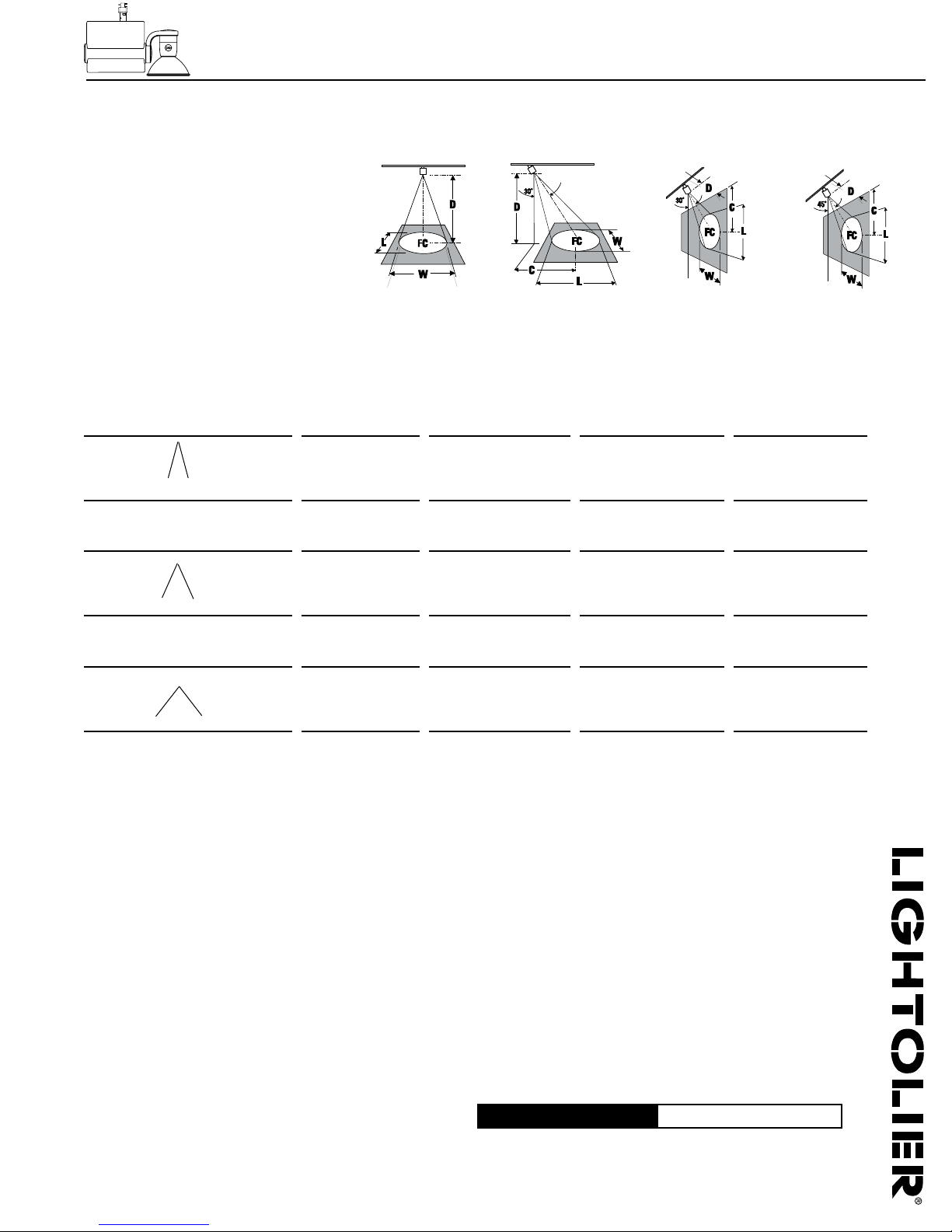

AIMING ANGLE

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle power

drops to 50% of the maximum. FC are the initial footcandles

at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers

for availability and performance.

Lamp Information:

70W T6 Clear Ceramic Metal Halide

Initial Lumens: 6600

CRI: 81

Rated Avg. Life: 9,000 to 15,000 hrs.

8' 363 1.7' 1.7' 8' 4.6' 236 2.3' 1.9' 3' 5.2' 323 2.6' 1.3' 5' 5.0' 329 2.1' 1.5'

12' 161 2.5' 2.5' 12' 6.9' 105 3.4' 2.9' 4' 6.9' 182 3.5' 1.7' 6' 6.0' 228 2.6' 1.8'

16' 91 3.4' 3.4' 16' 9.2' 59 4.5' 3.9' 5' 8.7' 116 4.3' 2.1' 7' 7.0' 168 3.0' 2.1'

20' 58 4.2' 4.2' 20' 11.5' 38 5.6' 4.9' 6' 10.4' 81 5.2' 2.5' 8' 8.0' 128 3.4' 2.4'

DRT6RS Spot

Reflector

23,234

12° x 12°

8' 265 3.4' 3.4' 8' 4.6' 172 4.6' 3.9' 3' 5.2' 235 5.9' 2.6' 4' 4.0' 374 3.6' 2.4'

10' 169 4.3' 4.3' 10' 5.8' 110 5.8' 4.9' 4' 6.9' 132 7.9' 3.4' 5' 5.0' 239 4.5' 3.0'

12' 118 5.1' 5.1' 12' 6.9' 76 6.9' 5.9' 5' 8.7' 85 9.8' 4.3' 6' 6.0' 166 5.3' 3.6'

14' 86 6.0' 6.0' 14' 8.1' 56 8.1' 6.9' 6' 10.4' 59 11.8' 5.1' 7' 7.0' 122 6.2' 4.2'

DRT6RM Med

Flood Reflector

16,934

24° x 24°

8' 461 5.2' 5.2' 8' 4.6' 299 7.2' 6.0' 3' 5.2' 409 11.4' 3.9' 5' 5.0' 417 7.3' 4.6'

10' 295 6.5' 6.5' 10' 5.8' 191 9.0' 7.5' 4' 6.9' 230 15.2' 5.2' 6' 6.0' 290 8.7' 5.5'

12' 205 7.8' 7.8' 12' 6.9' 133 10.8' 9.0' 5' 8.7' 147 19.0' 6.5' 7' 7.0' 213 10.2' 6.4'

14' 150 9.1' 9.1' 14' 8.1' 98 12.6' 10.5' 6' 10.4' 102 22.8' 7.8' 8' 8.0' 163 11.6' 7.4'

DRT6RF Flood

Reflector

38° x 38°

AIMING ANGLE:

0˚ Horizontal Aiming 30˚ Horizontal Aiming 30˚ Vertical Aiming 45˚ Vertical Aiming

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

29,483

0˚ 30˚ Horizontal 30˚ Vertical

45˚ Vertical
