Mounting Methods / Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L20-30

Features

• Efficiency 49.8%.

• Swing down microperforated lamp shield for easy relamping and

maintenance.

• Alter soft white film on inside of mesh conceals lamp image provid-

ing balance between reflected and direct light.

• Fully recessed luminaire and lamp compartment.

• 95% Reflective Alter soft white paint finish.

• Specular interior reflector. (solid lamp shield only)

• One piece body for easy installation.

• Easy access to ballast through lamp compartment.

• Fits standard T-Grid ceilings.

• Optional acrylic drop-down visual element.

ALTER SOFT LIGHTS QVS1GPFOS232

Page 1 of 2 1'x4' RECESSED DIRECT/INDIRECT FLUORESCENT,

2 LAMP, TT8, 5’’ DEEP

MICROPERFORATED MESH LAMP SHIELD, STATIC

Microperforated mesh

lamp shields

Also available with solid opaque swing-

down lamp shield

Ceiling compatibility for G type luminaire e.g. QVS1GPFOS232120SO

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

T type luminaire

e.g. QVS1TPFOS232120SO

Construction specially

designed for exposed slot

T-grid to preserve the cove effect

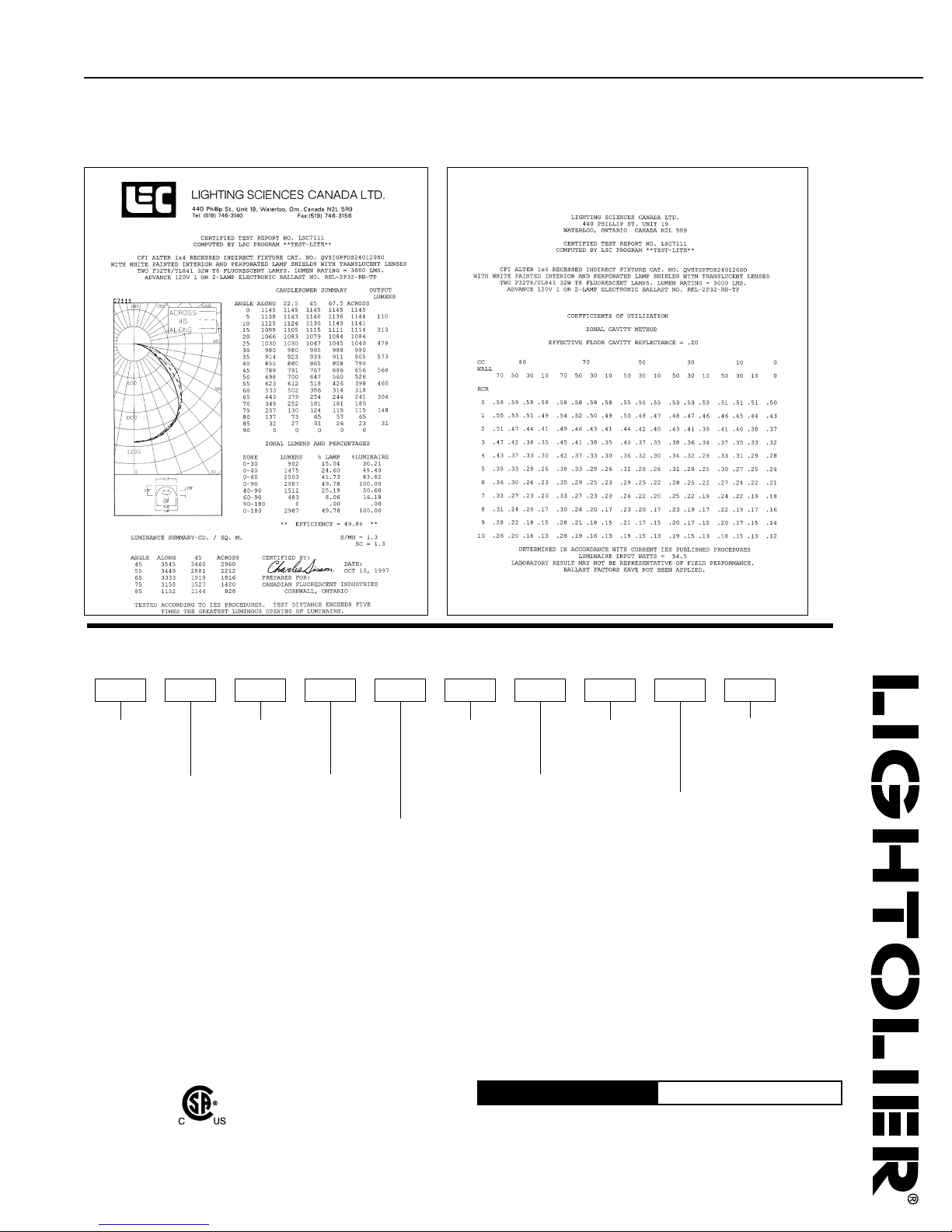

Photometry

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L20-30

Job Information Type:

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold rolled

steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Specular interior reflector (only with solid shield). Soft white acrylic film on inside

of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os are

within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by

Ordering Information

Explanation of Catalog Number. Example: QVS1GPFOS232120SO

ALTER SOFT LIGHTS QVS1GPFOS232

Page 1 of 2 1'x4' RECESSED DIRECT/INDIRECT FLUORESCENT,

2 LAMP, TT8, 5’’ DEEP

MICROPERFORATED MESH LAMP SHIELD, STATIC

QUALITY

VISUAL

STATIC

Recessed direct

indirect soft light

optical system FIXTURE

WIDTH:

1’

CEILING TYPE:

Standard exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

SD = Solid

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 48”)

32 = 32WT8

VOLTAGE:

120V

277V

347V

QVS 1 G 2 32

BALLAST:

OC = Magnetic T8

SO = Electronic T8 instant start

SR = Electronic T8 rapid start

PS = PowerSpec

OPTIONS:

R = Radio Interference Filter

O = Emergency Lighting System

(for Canada)

N = Emergency Lighting System

(for U.S.)

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS = Open slot (no acrylic)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face
