Lightspeed Redcat media Bedienungsanleitung
User Manual
Classroom Audio System
TABLE OF CONTENTS
SECTION 1: 4 System Components and Unpacking
Overview 5 Optional Components
6 Side Panel Controls and Connections
7 Rear Panel Controls and Connections
8 REDMIKE Controls and Connections
9 Cradle Charger Controls and Connections
SECTION 2: 10 Step 1. Determine Set-up Location
Set-up & Use 10 1A. To Set-Up on Table Top
11 1B. To Set-Up Mounted on a Wall
14 Step 2. Audio Integration
16 Step 3. Connecting the Power Supply
17 Step 4. Charging the REDMIKE
18 Step 5. Operating the REDMIKE
19 Step 6. Additional Adjustments &
Connections
20 Output to Assistive Listening Device (ALD)
21 Using the REDMIKE to Amplify External
Audio Equipment
SECTION 3: 22 REDMIKE VC: Controls and Connections
Optional Accessories 23 Charging
23 Initial Set-Up
24 LT-71: Controls and Connections
25 Charging
26 Initial Set-Up
27 REDMIKE Share: Controls and Connections
28 Charging
29 Initial Set-Up
30 iR Media Connector: Initial Setup
31 Audio Integration
31 Other Optional Accessories
SECTION 4: 32 Troubleshooting Guide
Troubleshooting 33 Tips to Obtain Optimal Audio Performance
SECTION 5: 34 Warranty Statement
Warranty &
Specifications
35 Safety Instructions
36 Safety Warnings and Certifications
37 System Specifications
4
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
SECTION 1:
OVERVIEW

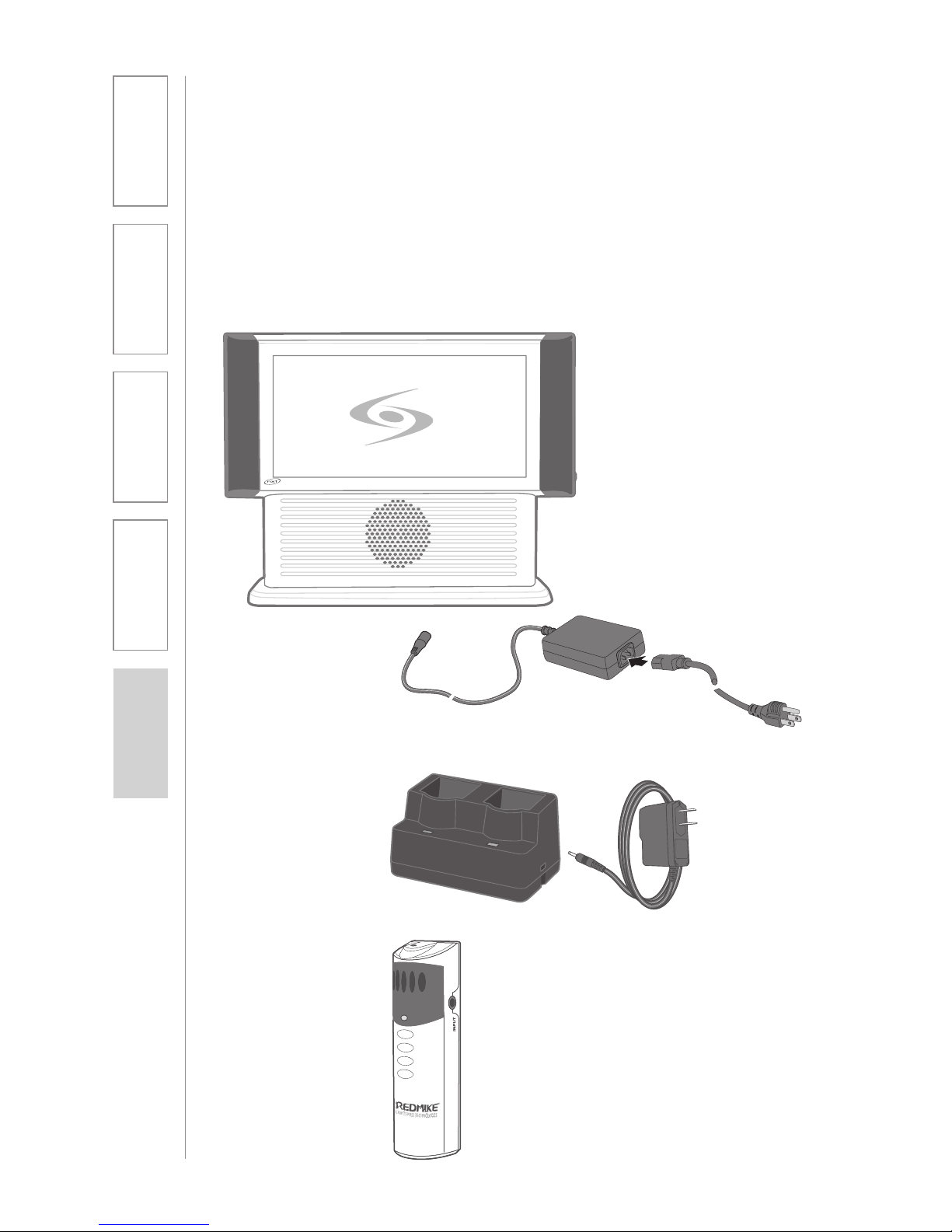

SYSTEM COMPONENTS AND UNPACKING
The standard configuration of the REDCAT® Media will contain:
Charging Cradle and
Power Supply
REDMIKE®
Classroom
Microphone
REDCAT® Media Infrared
Receiver/Amplifier
with Table Stand and
Power Supply
5
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
OPTIONAL COMPONENTS
Optional equipment which may be part of your REDCAT Media system:
REDMIKE® VC
Volume Control
Microphone
LT- 71
LT-71 LightMic
and Charger
Cable
Standard Accessories
RX-RCM REDCAT Media all-in-one system
PS-24V-2.5 24V/2.5A power supply for REDCAT Media
RMT REDMIKE classroom microphone with battery
BA-NH2A27 AA NiMH rechargeable sensing battery for REDMIKE
AC-RMLC2 REDMIKE lavaliere cord
BC-RMCC REDMIKE cradle charger
PS-5V-1.0 5V/1.0A power supply for cradle charger
Optional Components
RMV REDMIKE VC microphone with battery
RMS REDMIKE Share handheld microphone with battery
pack
LT71 LightMic microphone with batteries
BA-NH2APK NiMH rechargeable battery pack for REDMIKE Share
BA-NH1 AA NiMH rechargeable battery for LT71 (2 per
microphone)
REDMIKE® Share
Handheld Mic &
Charger Cable
6
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
SIDE PANEL CONTROLS AND
CONNECTIONS
1. CH A VOLUME: Controls the
volume level of the microphone
set to Channel A.
2. CH B VOLUME: Controls the
volume level of the microphone
set to Channel B.
3. IR INDICATORS: These lights
glow RED when the corresponding
microphone is turned on a
transmitting. A steady light
indicates a strong signal.
4. COMPUTER VOLUME: Controls
the volume level of the audio input
from a computer or other device
connected to the “computer”
input.
5. DVD/VCR VOLUME: Controls the
volume level of the audio input
from a DVD/VCR or other device
connected to the “DVD/VCR”
input.
6. ALD VOLUME: Controls the
volume level of the audio output
to an assisted listening device
(ALD).
7. ALD OUT: 3.5mm outputs to an
ALD or recording device.
8. POWER SWITCH: Turns the
REDCAT Media ON or OFF. The
LED indicator will glow red when
the system is on.
1
2
6
5
7
4
3
8
7
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
Page First
Jacks For
Testing Purposes Only
INPUT ADJ
Jacks For
Testing Purposes Only
250 400 700 1K 1K4 2K5 4K 6K3
— AUDIO INPUTS —
COMPUTER DVD/VCR
DC POWER INPUT
24VDC @ 1.75A PageFirst
INPUT ADJ

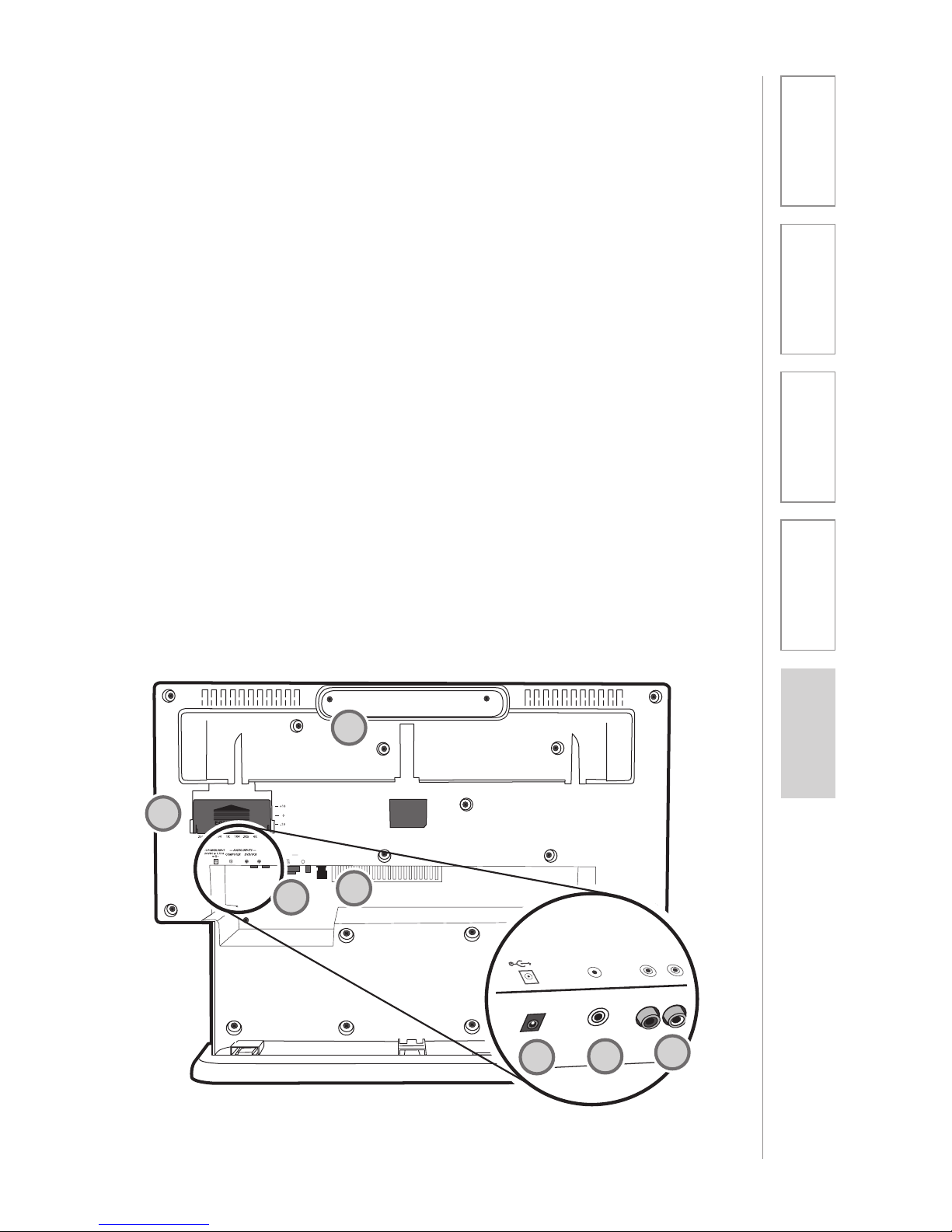

REAR PANEL CONTROLS AND
CONNECTIONS
1. CARRYING INSET: Cutaway grip
for moving or carrying the REDCAT
Media.
2. 8-BAND GRAPHIC EQUALIZER:
The sliding controls adjust
the levels of the various audio
frequencies. This allows the
installer to properly equalize the
system to produce optimum sound
quality.
3. DC POWER INPUT: Plug the
power supply (24V/2.5A) into this
jack.
4. COMPUTER AUDIO INPUT: Plug
a 3.5mm cable from a computer to
this jack to play all computer audio
through the REDCAT Media.
5. DVD/VCR AUDIO INPUT: Plug a
stereo RCA cable from your DVD/
VCR or other device into this jack
to play that audio through the
REDCAT Media.
6. PAGEFIRST INPUT AND ADJ:
Connect the input from optional
PageFirst sensor here when
interface with a buildings paging
system. Use the ADJ control to
adjust the sensitivity if needed.
7. JACKS FOR TESTING PURPOSES
ONLY: These connections are only
for use at the Lightspeed factory
for test and diagnostics.
1
2
345
67
8
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
1. POWER BUTTON: Press this
button to turn the REDMIKE ON,
press again to turn it OFF (mute).
2. POWER/LOW BATTERY
INDICATOR: A BLUE light
indicates the REDMIKE is on and
fully charged. A RED light indicates
a charge is needed.
3. BATTERY COMPARTMENT: To
access the battery compartment,
slide the door downward. The
battery should only be replaced
by a Lightspeed AA rechargeable
sensing battery (part # BA-
NH2A27).
4. YELLOW PROTECTIVE TAB:
Slide the battery compartment
door open to remove this
disposable protective tab before
use. NOTE: do not attempt to
remove the tab without first
opening the compartment door, as
it may tear, leaving fragments.
5. AUDIO/MICROPHONE INPUT:
Use this input to plug in a laptop,
MP3 player or other audio
source to wirelessly transmit
audio to be played through the
system. Alternatively, an external
microphone can be connected.
6. CHANNEL SELECT SWITCH
(CH A/B): This switch allows
for selection between Channel
A or B. If you are using a single
microphone, we recommend using
Channel A.
7. CHARGER CONTACTS (+ -):
These contacts interface with the
charging tabs in the BC-RMCC
cradle charger for daily charging.
Simply place the REDMIKE in the
charger.
REDMIKE CONTROLS AND CONNECTIONS
1
2
3
5
6
7
S
li
d
e
b
at
t
e
ry
d
o
o
r
o
p
e
n
R
e
m
o
v
e
t
a
b
b
e
fo
r
e
u
s
e
4
9
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
1. CHARGE INDICATORS: The light
glows RED while the REDMIKE is
charging. When fully charged, the
light will glow GREEN. A blinking
RED light indicates that no battery
is sensed, (REDMIKE Yellow
Protective Tab may not have been
completely removed—see page
5, item 4.) A blinking Green LED
means a non- Lightspeed battery
has been installed (possibly an
alkaline battery).
2. DC POWER PORT: Connect the
DC power cord here.
3. OPTIONAL CHARGING PORT:
Plug the charging cord for the
optional LT-71 or the REDMIKE
Share microphones here.
CRADLE CHARGER CONTROLS AND
CONNECTIONS
1
2
3
10
1. Overview 2. Setup & Use 3. Optional
Accessories 4. Troubleshooting 5. Warranty, Safety
& Specifications
The REDCAT Media is shipped with a table stand connected and ready for use.
Alternatively, the table stand can be used as the wall mount bracket.
Advantages of either include:
SECTION 2:
SET-UP & USE

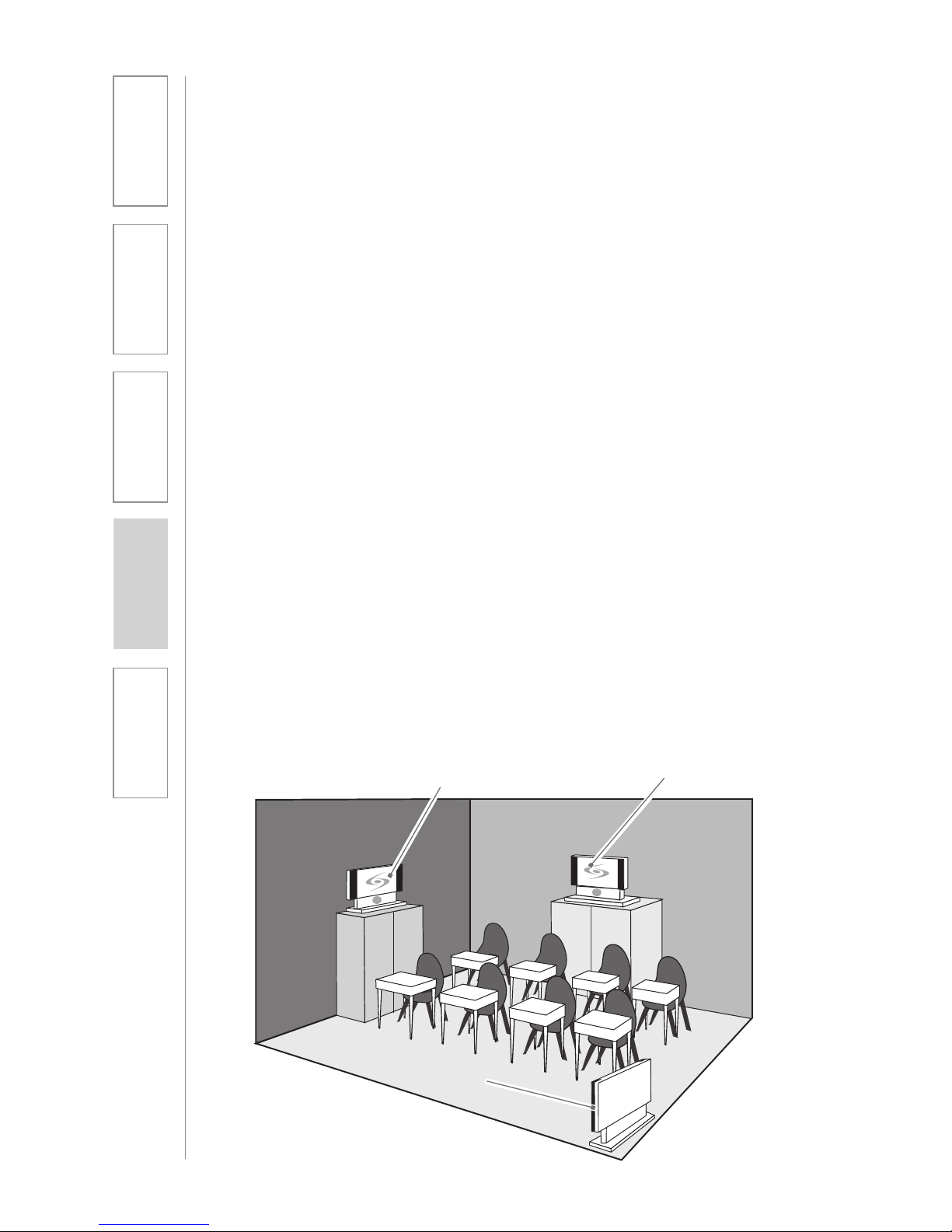

1. DETERMINE SET-UP LOCATION
1A. TO SET-UP ON TABLE-TOP
Tabletop (recommended):
• Virtually no setup time
• Greater flexibility to move to
different locations
First, consider that the REDCAT
Media should be placed within within
7 feet of an electrical outlet and on a
surface about 3-6 feet off the ground.
Next, find a location as far away as
possible from the teacher who will
be using the mic. The best place is
against the wall opposite where the
teacher will be speaking. If this is not
possible, other good locations are
along either wall next to the teacher
or in a corner. Avoid placing the
REDCAT Media next to where the
teacher instructs. Putting the REDCAT
Media in close proximity to the
teacher’s mic can result in feedback.
Wall-mount:
• More permanent setup
• Greater security
Avoid!
Good placement Best placement
