Lilin PIH 7000IP Bedienungsanleitung

Quick Installation Guide

IP Fast Dome Camera

Power/Network LED

Camera Base

Dome Cover

Camera Case

Decoration Ring

RJ-45 Jack

RS-485 In/Out Jack

Alarm In/Out Jack

Video In/Out Jack

Power In Jack

Follow these steps to install your IP Fast Dome:

1. Familiarize yourself with the IP Fast Dome - (this page)

2. IP Fast Dome Hardward Installation - (Page 3)

3. IP Fast Dome Software Setup - (Page 7)

For more information, please visit our web site http://www.meritlilin.com

Page1of12IP Fast Dome Quick Installation Guide

Chapter 1. STRUCTURAL ELEMENT

Chapter 2. FAST DOME CAMERA SETUP

DIP Switch Setting

Camera ID Switch

Camera Function Switch

Alarm Mode Switch

Fan Power Switch

Chapter 2-1. Fan Power Switch

Chapter 2-2. Alarm Mode Switch

Chapter 2-3. Camera Function Switch

Turn the number 2 switch to ON position to activate the internal fan. This will maintain the

temperature inside and make the electric parts longer life.

Alarm Mode can be set as Lock or Release mode. Turn number 1 switch to ON position to

choose Release mode. Turn number 1 switch to OFF position to choose Lock mode.

Fast Dome has 6 alarm inputs and 1 output, which can be set either NC (normally close) or

NO (normally open) mode. Turn number 2 switch to ON position to choose NC mode.

Turn number 2 switch to OFF position to choose NO mode.

Turn number 1 switch to ON position for AGC function

Turn number 2 switch to ON position for BLC function

Turn number 3 switch to ON position for AWB function

Turn number 3 switch to OFF position for Manual White Balance (MWB)

When fast dome is set to MWB, turn number 4 switch to ON for Outdoor (color temp. 3200K)

or to OFF for Indoor (color temp. 6300K)

Page2of12IP Fast Dome Quick Installation Guide

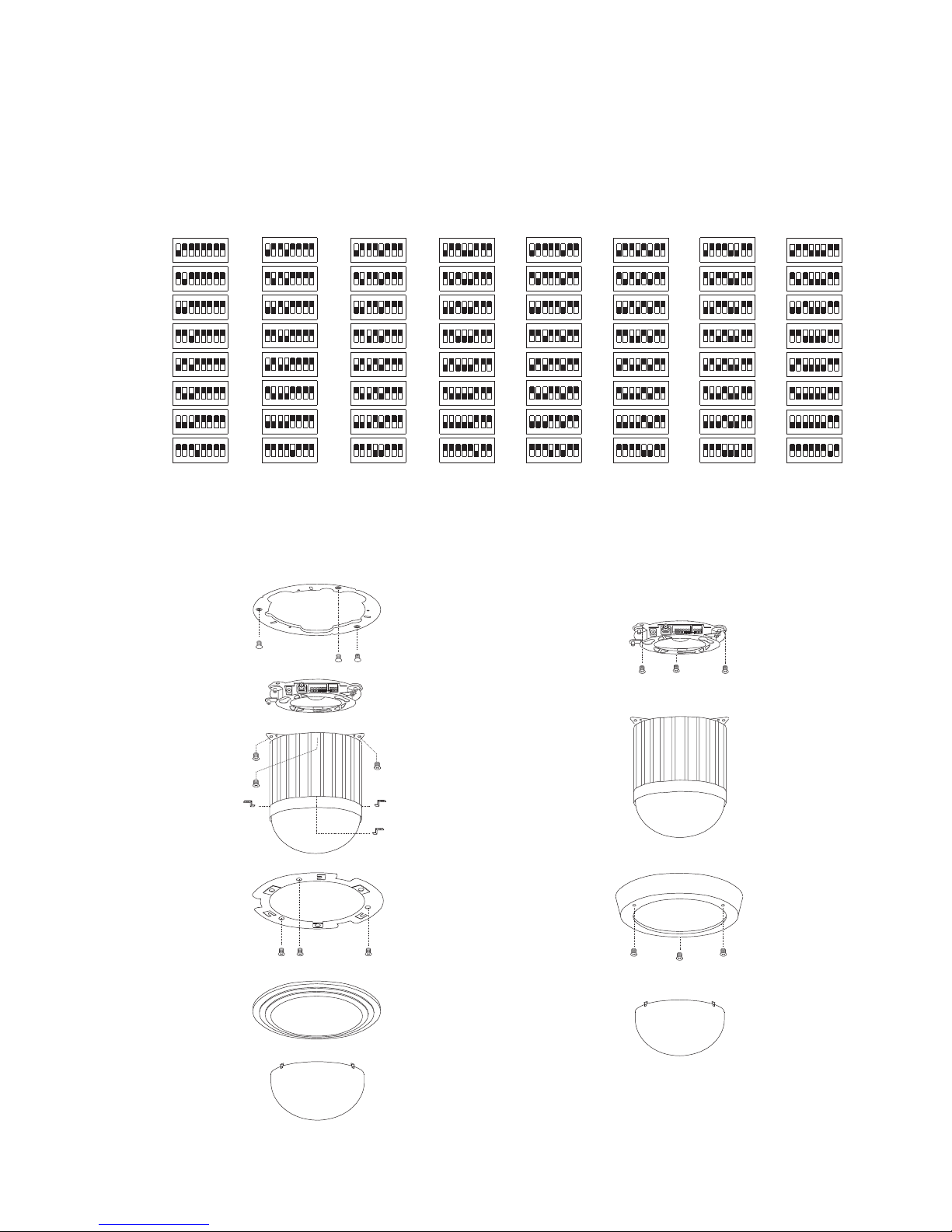

Chapter 2-4. Fast Dome ID Address Setting Refer Chart

Up to 64 Fast Dome Camera can be serial linked in one system.

Therefore each dome is addressed by ID switch located at the base of the Fast Dome.

Below is the address setting for camera 1~64:

1 5432 76 8

15432 76 8

1 5432 76 8

1 2 34 5

867

1 5432 76 8

1 2 34 5

867

1 2 34 5 867

1 5432768

12345

867

12 34 5 867

76854321

15432768

1 5432 76 8

1 2 34 5

867

1 5432768

1 2 34 5 867

15432768

12 34 5 867

15432768

2345 867

1 5432

768

18672345

12345

867

2345 867

12 34 5 867

15432768

12345

867

1 5432

768

12345 867

15432768

17685432

15432768

12 34 5 867

1 5432

768

15432768

2345 867

18672345

12345

867

2345 867

1 5432

768

12 34 5 867

15432768

12345

867

17685432

15432768

12345 867

15432768

1 5432 768

12345 867

12 34 5 867

5432 768

12345 867

12 34 5 867

1 5432768

15432768

5432 768

12345 867

1 5432 768

12345 867

17 33 49

218

34 50

5135

193

5236

204

5337

215

5438

226

5539

237

5640

248 64

12 34 5 867

1 5432768

Chapter 3. HARDWARE INSTALLATION

Attached Mounting

Embedded Mounting

Page3of12IP Fast Dome Quick Installation Guide

Page4of12IP Fast Dome Quick Installation Guide

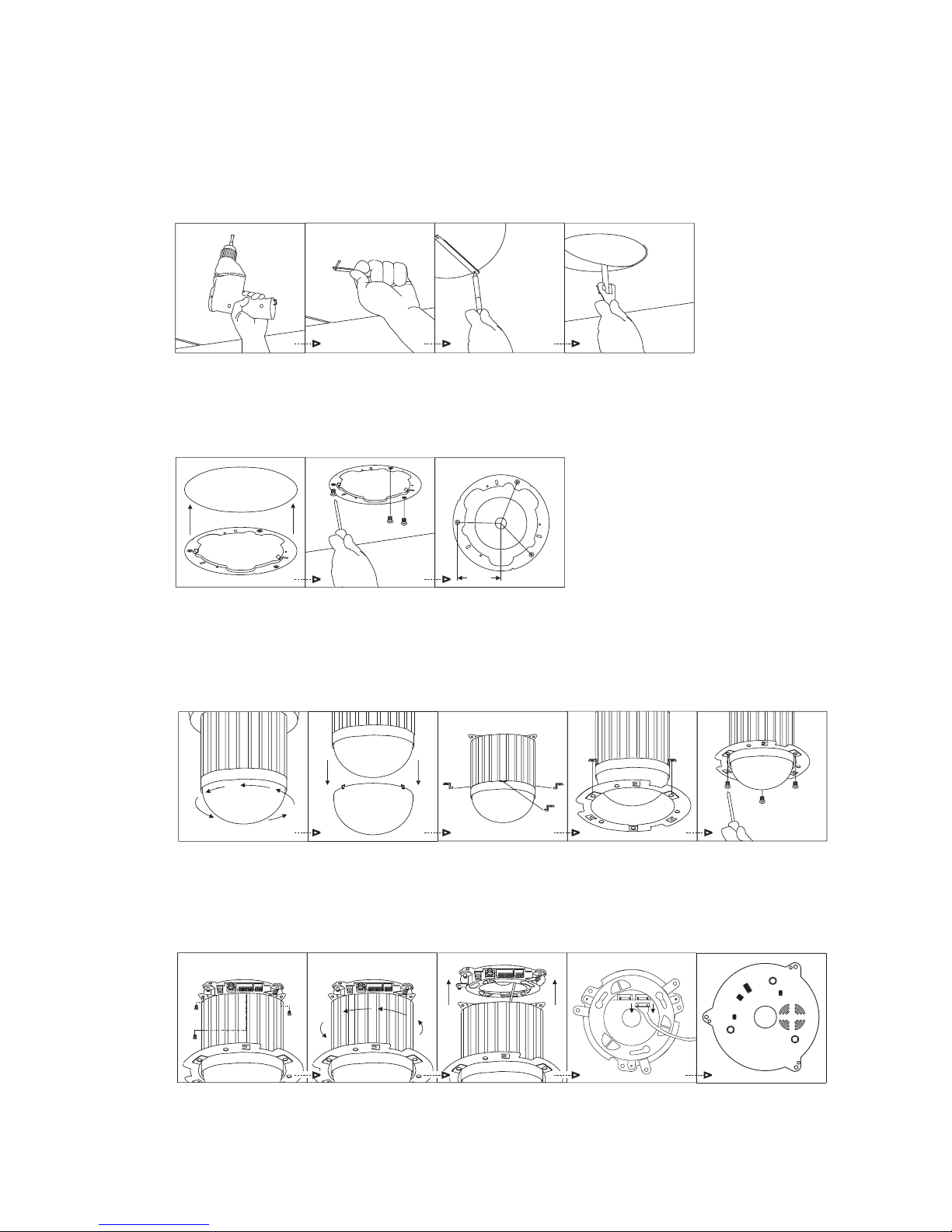

Chapter 3-1. Embedded Mounting

1. Drill a 3/32" (2.4mm) hole at the center of the chosen area.

2. Use a pencil and a compass to mark a circle 6.7" (170mm) in diameter and cut the circle.

Step 1 Ceiling Preparation

120

93mm

120

Ring size and screw location

Step 2 The Ceiling Ring

1. Attach the ring to ceiling.

2. Tighten the three tapping screws into the ceiling or three machine screws with screw nuts.

Step 3 The Fix Ring

1. Turn the dome cover anti-clockwise.

2. Separate the dome cover from camera.

3.PutonthethreeLshapescrewnuts.

Step 4 Camera Setting

1. Untighten the three screws from the base.

2. Turn the camera body anti-clockwise.

3. Separate the camera body from the base.

4. Attach fix ring with screw nuts.

5. Tight the three black screw into the screw nuts.

4. Unplug the connection cable.

5. Setting Fast Dome Camera.

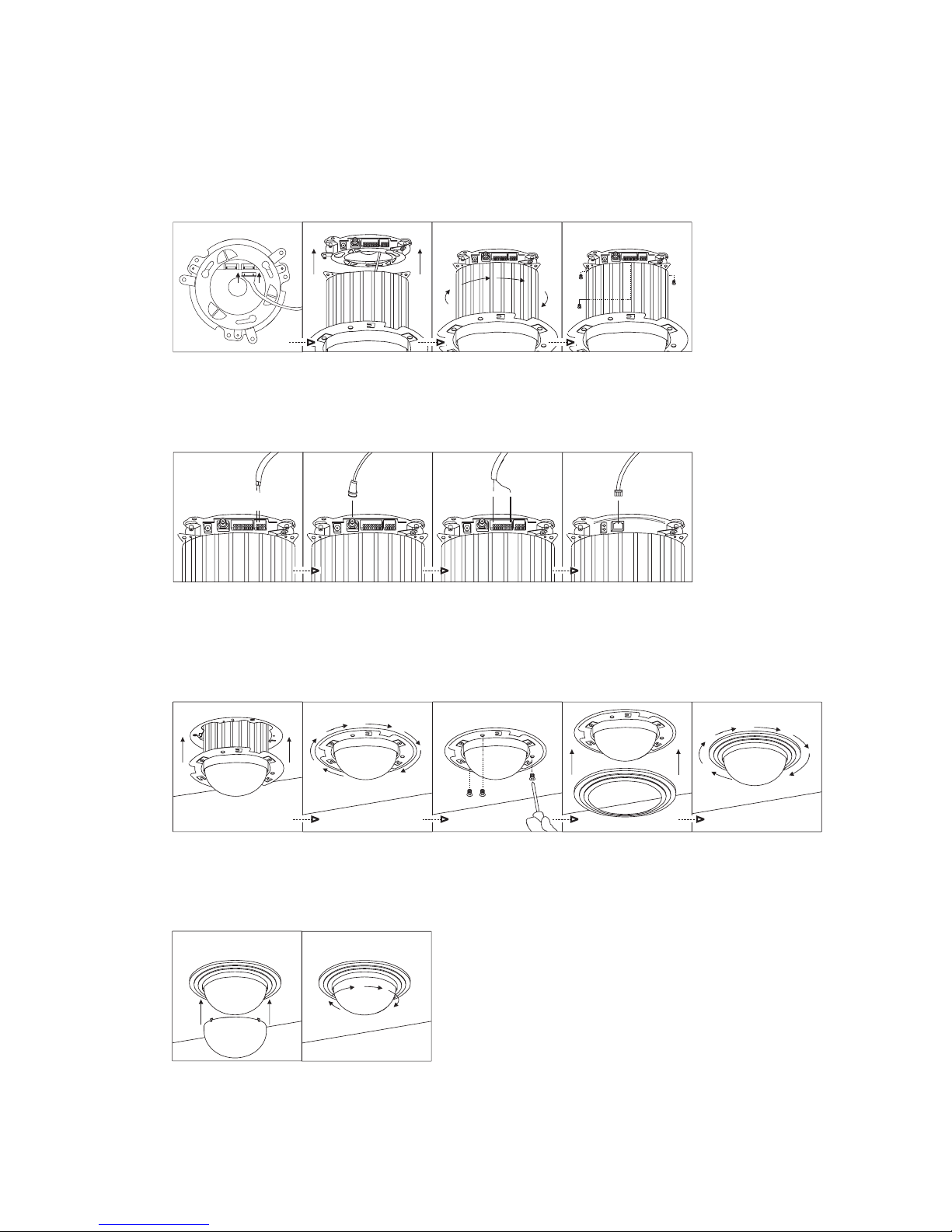

Step 5 Attach the Camera Body and Base

TXDI -

TXDI+

GNDALARM 1

Step 6 Connection

VIDEO

OUT Network

1. Reconnect the connection cable.

2. Attach camera body to base.

3. Turn camera body clockwise to tight position.

4. Tight the three screws to fix the camera body.

1. Connect RS-485 cable.

2. Connect video signal cable.

3. Connect alarm output cable.

4. Connect Ethernet cable.

Step 7 Install Camera Body and Decoration Ring

1. Put camera body and the fix ring into the hole.

2. Turn the camera body clockwise to tight position.

3. Tighten three black screws.

4. Put on decoration ring.

5. Turn the ring clockwise to tight position.

Step 8 Install The Dome Cover

Note : After dome cover is attached, use glass-cleaning cloth to clean dome cover.

Unclean dome cover may affect camera performance.

1. Attach dome cover to camera body.

2. Turn the dome cover clockwise to tight position.

Page5of12IP Fast Dome Quick Installation Guide

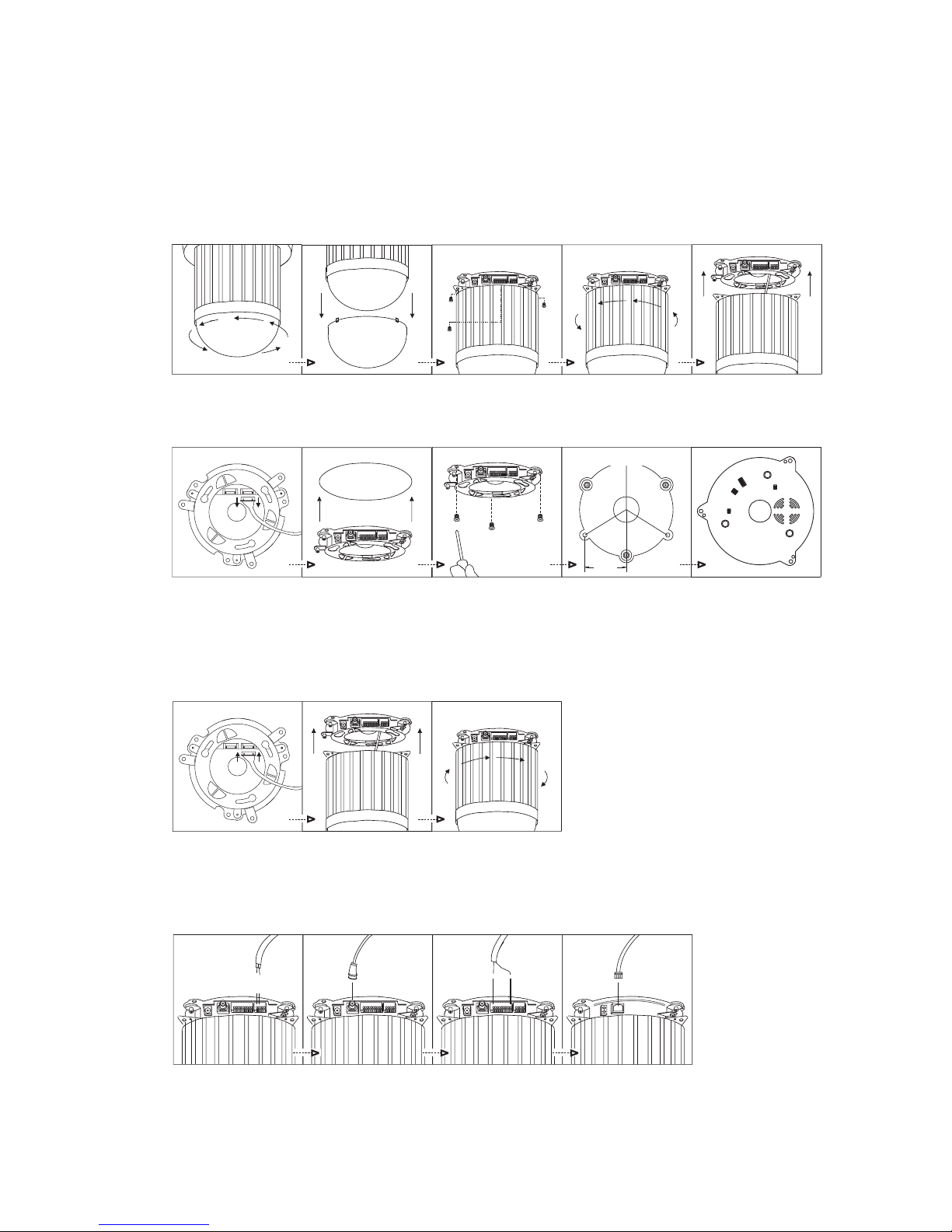

Chapter 3-2. Attached Mounting

1. Turn the dome cover anti-clockwise.

2. Separate the dome cover from camera.

3. Untighten the three screws from base.

Step 1 Fix The Base

120120

120

72mm

Base size and screw location

Step 2 Attach Camera Body and Base

4. Turn the camera cover anti-clockwise.

5. Separate the camera body from the base.

6. Unplug the connection cable.

7. Attach base to ceiling.

8. Tighten three tapping screws into the ceiling.

9. Setting Fast Dome Camera.

1. Reconnect the connection cable.

2. Attach camera body to base.

3. Turn camera body clockwise to tight position.

Step 3 Connection

1. Connect RS-485 cable.

2. Connect video signal cable.

3. Connect alarm output cable.

4. Connect Ethernet cable.

TXDI -

TXDI+

GNDALARM 1

VIDEO

OUT Network

Page6of12IP Fast Dome Quick Installation Guide

Page7of12IP Fast Dome Quick Installation Guide

Step 4 Install Decoration Ring and Dome Cover

Note : After dome cover is attached, use glass-cleaning cloth to clean dome cover.

Unclean dome cover may affect camera performance.

1. Put on Decoration ring to base.

2. Tighten the three screws.

3.Putondomecovertocamerabody.

4. Turn dome cover clockwise to tight position.

Chapter 4. SOFTWARE INSTALLATION

Note:

In order to control IP Fast Dome via both keyboard and web page, please set the ID switch.

Once the ID switch is set, please also set the ID of the web page.

Chapter 4-1. Assign IP by IP Installer

IP Installer is a Windows 98/ME/NT/2000 program. It is the software providing an easier way for

the setting of IP address and network configurations of IP Fast Dome.

Using this tool, you can easily set multiple IP Fast Domes at the same time with the batch setting

function. By utilizing IP Installer, the setting process is largely simplified and the setting time is

effectively shortened. Moreover, IP installer can not only save all the configurations of IP Fast

Dome as backup, but also restore the previous configurations of IP Fast Dome.

Double click the mouse left button on the IP Installer icon.

*Execute IP Installer

IP Fast Dome Quick Installation Guide

Always consult your network administrator before assigning the IP address to your IP Fast Dome

/ Video Server.

Make sure that the IP Fast Dome is powered on and correctly connected to the network.

Obtain the IP address not used yet from your network administrator.

MAC address : Each IP Fast Dome has a unique Ethernet address (MAC address) shown on the

top of the IP Fast Dome base as the serial number (S/N), 12 digits, e.g. 000429-XXXXXX.

Note : You have to separate base from body to see the MAC address. For instruction, please

refer to Chapter 3-1 step 4 to separate the base.

*Preparation before IPAssignment

Page8of12

The IP Installer form is displayed on the screen.

Click this button to search the

IP Fast Dome / Video Server in the LAN.

ListalltheIPFastDome/VideoServer

found in the LAN.

TEST OK

S/N:

00429-011BF0

M/N:

POF0312

IP Fast Dome Quick Installation Guide

Select the MAC address of your IP Fast Dome in the list. The MAC address is identical to the

unit's S/N. Click the menu bar View/Property to open the Property Page for the selected item.

After filling in the properties, chick the OK button to submit the settings for the unit and the

settings are activated immediately.

*Assign the IPAddress to IP Fast Dome

Page9of12
