FLEXTEC™450 CE

OPERATORʼS MANUAL

For use with machines Code 11776

IM10091

April, 2011

Safety Depends on You

Lincoln arc welding and cutting

equipment is designed and built

with safety in mind. However,

your overall safety can be

increased by proper installation

... and thoughtful operation on

your part. DO NOT INSTALL,

OPERATE OR REPAIR THIS

EQUIPMENT WITHOUT READ-

ING THIS MANUAL AND THE

SAFETY PRECAUTIONS CON-

TAINED THROUGHOUT. And,

most importantly, think before

you act and be careful.

• Sales and Service through Subsidiaries and Distributors Worldwide •

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

• World's Leader in Welding and Cutting Products •

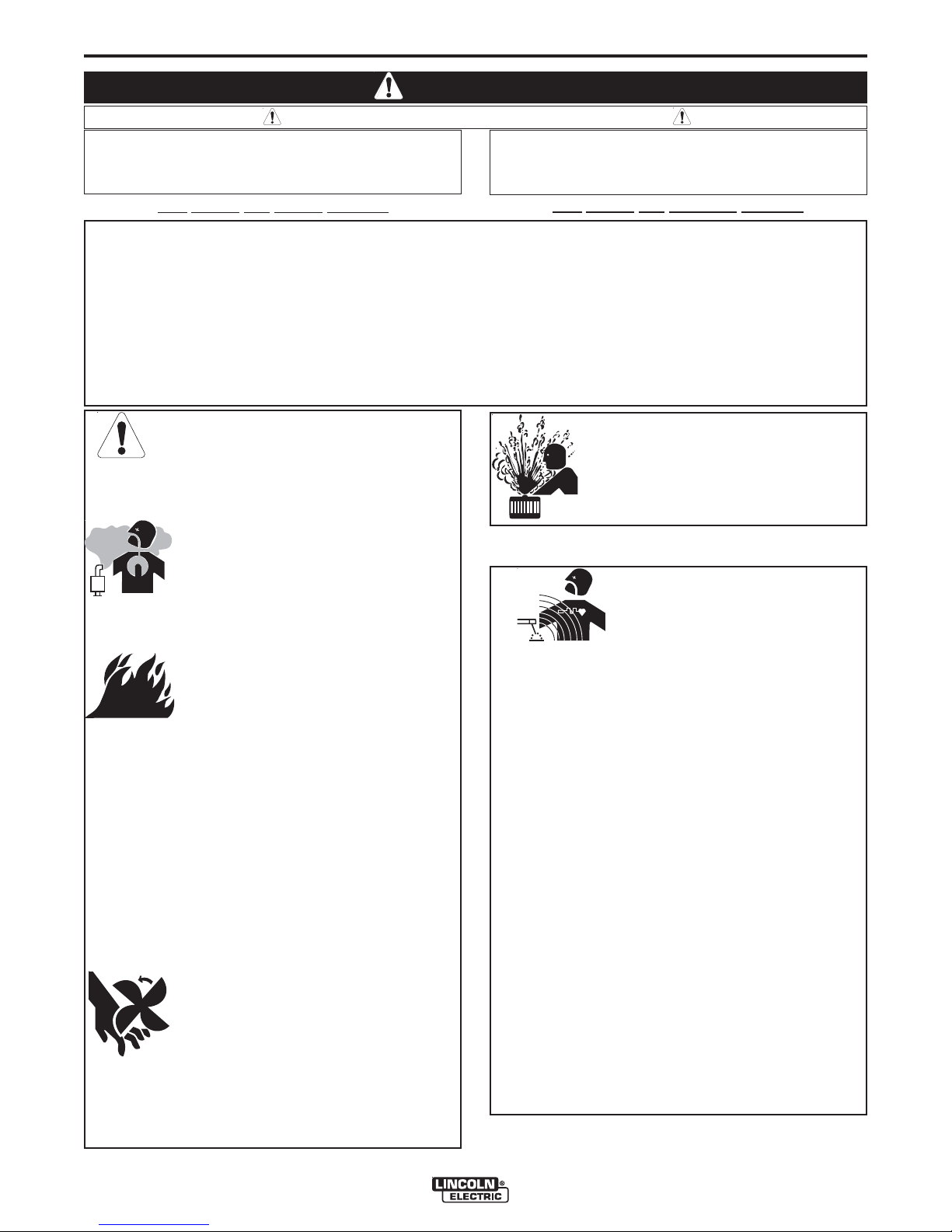

FOR ENGINE

powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance

work unless the maintenance work requires it to be running.

____________________________________________________

1.b. Operate engines in open, well-ventilated

areas or vent the engine exhaust fumes

outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame

welding arc or when the engine is running.

Stop the engine and allow it to cool before

refueling to prevent spilled fuel from vaporiz-

ing on contact with hot engine parts and

igniting. Do not spill fuel when filling tank. If

fuel is spilled, wipe it up and do not start

engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers and devices in

position and in good repair.Keep hands, hair, clothing and

tools away from V-belts, gears, fans and all other moving

parts when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove

guards only when necessary and replace them when the

maintenance requiring their removal is complete.

Always use the greatest care when working near moving

parts.

___________________________________________________

1.f. Do not put your hands near the engine fan.

Do not attempt to override the governor or

idler by pushing on the throttle control rods

while the engine is running.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while

turning the engine or welding generator during maintenance

work, disconnect the spark plug wires, distributor cap or

magneto wire as appropriate.

SAFETY

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.

KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you

purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box

351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available

from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE

PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

WARNING

ELECTRIC AND

MAGNETIC FIELDS

may be dangerous

2.a. Electric current flowing through any conductor causes

localized Electric and Magnetic Fields (EMF). Welding

current creates EMF fields around welding cables and

welding machines

2.b. EMF fields may interfere with some pacemakers, and

welders having a pacemaker should consult their physician

before welding.

2.c. Exposure to EMF fields in welding may have other health

effects which are now not known.

2.d. All welders should use the following procedures in order to

minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure

them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right

side, the work cable should also be on your right side.

2.d.4. Connect the work cable to the workpiece as close as

possible to the area being welded.

2.d.5. Do not work next to welding power source.

1.h. To avoid scalding, do not remove the

radiator pressure cap when the engine is

hot.

CALIFORNIA PROPOSITION 65 WARNINGS

Diesel engine exhaust and some of its constituents

are known to the State of California to cause can-

cer, birth defects, and other reproductive harm.

The engine exhaust from this product contains

chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

The Above For Diesel Engines The Above For Gasoline Engines

SAFETY

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover

plates to protect your eyes from sparks and

the rays of the arc when welding or observing

open arc welding. Headshield and filter lens

should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant

material to protect your skin and that of your helpers from

the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable

screening and/or warn them not to watch the arc nor expose

themselves to the arc rays or to hot spatter or metal.

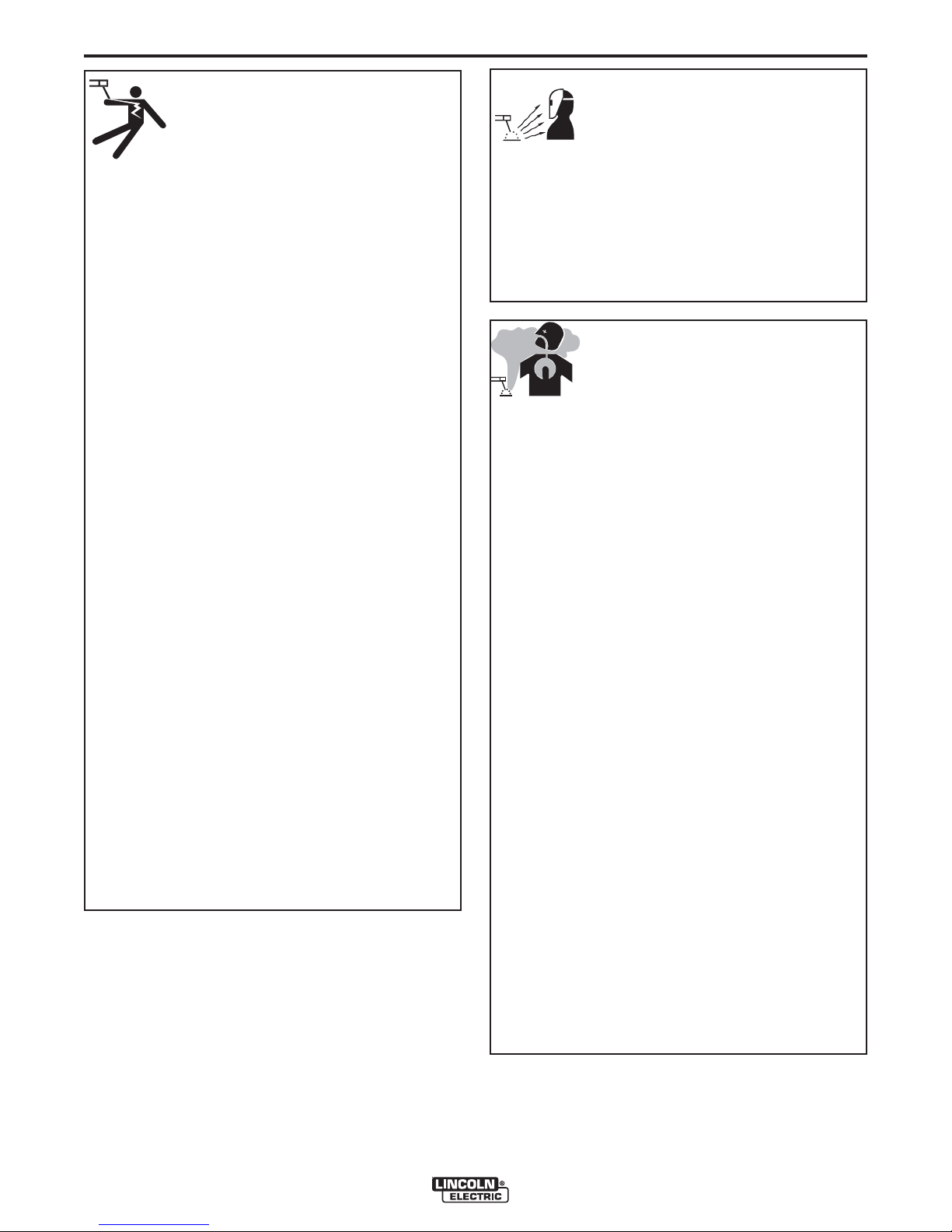

ELECTRIC SHOCK can

kill.

3.a. The electrode and work (or ground) circuits

are electrically “hot” when the welder is on.

Do not touch these “hot” parts with your bare

skin or wet clothing. Wear dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation.

Make certain the insulation is large enough to cover your full

area of physical contact with work and ground.

In addition to the normal safety precautions, if welding

must be performed under electrically hazardous

conditions (in damp locations or while wearing wet

clothing; on metal structures such as floors, gratings or

scaffolds; when in cramped positions such as sitting,

kneeling or lying, if there is a high risk of unavoidable or

accidental contact with the workpiece or ground) use

the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode,

electrode reel, welding head, nozzle or semiautomatic

welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical

connection with the metal being welded. The connection

should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical

(earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and

welding machine in good, safe operating condition. Replace

damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot” parts of

electrode holders connected to two welders because voltage

between the two can be the total of the open circuit voltage

of both welders.

3.i. When working above floor level, use a safety belt to protect

yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

FUMES AND GASES

can be dangerous.

5.a. Welding may produce fumes and gases

hazardous to health. Avoid breathing these

fumes and gases. When welding, keep

your head out of the fume. Use enough

ventilation and/or exhaust at the arc to keep

fumes and gases away from the breathing zone. When

welding with electrodes which require special

ventilation such as stainless or hard facing (see

instructions on container or MSDS) or on lead or

cadmium plated steel and other metals or coatings

which produce highly toxic fumes, keep exposure as

low as possible and within applicable OSHA PEL and

ACGIH TLV limits using local exhaust or mechanical

ventilation. In confined spaces or in some circum-

stances, outdoors, a respirator may be required.

Additional precautions are also required when welding

on galvanized steel.

5. b. The operation of welding fume control equipment is affected

by various factors including proper use and positioning of

the equipment, maintenance of the equipment and the spe-

cific welding procedure and application involved. Worker

exposure level should be checked upon installation and

periodically thereafter to be certain it is within applicable

OSHA PEL and ACGIH TLV limits.

5.c.

Do not weld in locations near chlorinated hydrocarbon

vapors

coming from degreasing, cleaning or spraying operations.

The heat and rays of the arc can react with solvent vapors

form phosgene, a highly toxic gas, and other irritating prod-

ucts.

5.d. Shielding gases used for arc welding can displace air and

cause injury or death. Always use enough ventilation,

especially in confined areas, to insure breathing air is safe.

5.e. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the

material safety data sheet (MSDS) and follow your

employer’s safety practices. MSDS forms are available from

your welding distributor or from the manufacturer.

5.f. Also see item 1.b.

iii

SAFETY

iii

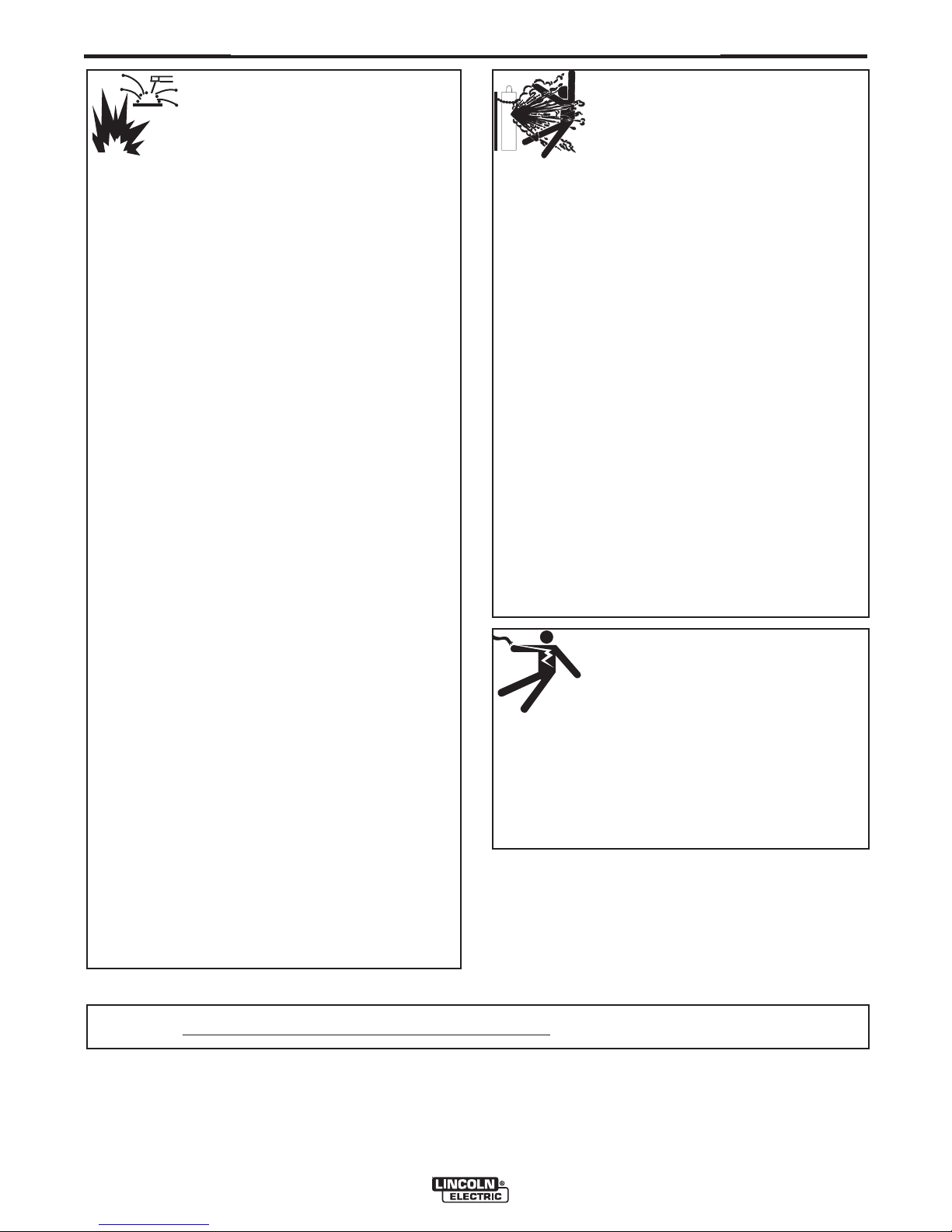

FOR ELECTRICALLY

powered equipment.

8.a. Turn off input power using the disconnect

switch at the fuse box before working on

the equipment.

8.b. Install equipment in accordance with the U.S. National

Electrical Code, all local codes and the manufacturer’s

recommendations.

8.c. Ground the equipment in accordance with the U.S. National

Electrical Code and the manufacturer’s recommendations.

CYLINDER may explode

if damaged.

7.a. Use only compressed gas cylinders

containing the correct shielding gas for the

process used and properly operating

regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for

the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely

chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other

electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet

when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand

tight except when the cylinder is in use or connected for

use.

7.g. Read and follow the instructions on compressed gas

cylinders, associated equipment, and CGA publication P-l,

“Precautions for Safe Handling of Compressed Gases in

Cylinders,” available from the Compressed Gas Association

1235 Jefferson Davis Highway, Arlington, VA 22202.

WELDING and CUTTING

SPARKS can

cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

the welding sparks from starting a fire.

Remember that welding sparks and hot

materials from welding can easily go through small cracks

and openings to adjacent areas. Avoid welding near

hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site,

special precautions should be used to prevent hazardous

situations. Refer to “Safety in Welding and Cutting” (ANSI

Standard Z49.1) and the operating information for the

equipment being used.

6.c. When not welding, make certain no part of the electrode

circuit is touching the work or ground. Accidental contact

can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the

proper steps have been taken to insure that such procedures

will not cause flammable or toxic vapors from substances

inside. They can cause an explosion even

though

they have

been “cleaned”. For information, purchase “Recommended

Safe Practices for the

Preparation

for Welding and Cutting of

Containers and Piping That Have Held Hazardous

Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or

welding. They may explode.

6.f.

Sparks and spatter are thrown from the welding arc. Wear oil

free protective garments such as leather gloves, heavy shirt,

cuffless trousers, high shoes and a cap over your hair. Wear

ear plugs when welding out of position or in confined places.

Always wear safety glasses with side shields when in a

welding area.

6.g. Connect the work cable to the work as close to the welding

area as practical. Work cables connected to the building

framework or other locations away from the welding area

increase the possibility of the welding current passing

through lifting chains, crane cables or other alternate cir-

cuits. This can create fire hazards or overheat lifting chains

or cables until they fail.

6.h. Also see item 1.c.

6.I. Read and follow NFPA 51B “ Standard for Fire Prevention

During Welding, Cutting and Other Hot Work”, available

from NFPA, 1 Batterymarch Park, PO box 9101, Quincy, Ma

022690-9101.

6.j. Do not use a welding power source for pipe thawing.

Refer to http://www.lincolnelectric.com/safety for additional safety information.

SAFETY

PRÉCAUTIONS DE SÛRETÉ

Pour votre propre protection lire et observer toutes les instructions

et les précautions de sûreté specifiques qui parraissent dans ce

manuel aussi bien que les précautions de sûreté générales suiv-

antes:

Sûreté Pour Soudage A LʼArc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à lʼélectrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours

tout contact entre les parties sous tension et la peau nue

ou les vétements mouillés. Porter des gants secs et sans

trous pour isoler les mains.

b. Faire trés attention de bien sʼisoler de la masse quand on

soude dans des endroits humides, ou sur un plancher

metallique ou des grilles metalliques, principalement dans

les positions assis ou couché pour lesquelles une grande

partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état

defonctionnement.

d.Ne jamais plonger le porte-électrode dans lʼeau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à souder

parce que la tension entre les deux pinces peut être le

total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions

pour le porte-électrode sʼapplicuent aussi au pistolet de

soudage.

2. Dans le cas de travail au dessus du niveau du sol, se protéger

contre les chutes dans le cas ou on recoit un choc. Ne jamais

enrouler le câble-électrode autour de nʼimporte quelle partie

du corps.

3. Un coup dʼarc peut être plus sévère quʼun coup de soliel,

donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi quʼun verre blanc afin de se protéger les yeux du ray-

onnement de lʼarc et des projections quand on soude ou

quand on regarde lʼarc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de

lʻarc.

c. Protéger lʼautre personnel travaillant à proximité au

soudage à lʼaide dʼécrans appropriés et non-inflammables.

4. Des gouttes de laitier en fusion sont émises de lʼarc de

soudage. Se protéger avec des vêtements de protection libres

de lʼhuile, tels que les gants en cuir, chemise épaisse, pan-

talons sans revers, et chaussures montantes.

5. Toujours porter des lunettes de sécurité dans la zone de

soudage. Utiliser des lunettes avec écrans lateraux dans les

zones où lʼon pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de

prévenir tout risque dʼincendie dû aux étincelles.

7. Quand on ne soude pas, poser la pince à une endroit isolé de

la masse. Un court-circuit accidental peut provoquer un

échauffement et un risque dʼincendie.

8. Sʼassurer que la masse est connectée le plus prés possible

de la zone de travail quʼil est pratique de le faire. Si on place

la masse sur la charpente de la construction ou dʼautres

endroits éloignés de la zone de travail, on augmente le risque

de voir passer le courant de soudage par les chaines de lev-

age, câbles de grue, ou autres circuits. Cela peut provoquer

des risques dʼincendie ou dʼechauffement des chaines et des

câbles jusquʼà ce quʼils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage.

Ceci est particuliérement important pour le soudage de tôles

galvanisées plombées, ou cadmiées ou tout autre métal qui

produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant

dʼopérations de dégraissage, nettoyage ou pistolage. La

chaleur ou les rayons de lʼarc peuvent réagir avec les vapeurs

du solvant pour produire du phosgéne (gas fortement toxique)

ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté,

voir le code “Code for safety in welding and cutting” CSA

Standard W 117.2-1974.

PRÉCAUTIONS DE SÛRETÉ POUR

LES MACHINES À SOUDER À

TRANSFORMATEUR ET À

REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code de

lʼélectricité et aux recommendations du fabricant. Le dispositif

de montage ou la piece à souder doit être branché à une

bonne mise à la terre.

2. Autant que possible, Iʼinstallation et lʼentretien du poste seront

effectués par un électricien qualifié.

3. Avant de faires des travaux à lʼinterieur de poste, la debranch-

er à lʼinterrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur

place.

Thank You for selecting a QUALITY product by Lincoln Electric. We want you

to take pride in operating this Lincoln Electric Company product

••• as much pride as we have in bringing this product to you!

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it

handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.

The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.

CAUTION

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims

for material damaged in shipment must be made by the purchaser against the transportation company at the

time the shipment is received.

Please record your equipment identification information below for future reference. This information can be

found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code_________________________________________________________________

Serial Number____________________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you

have recorded above. The code number is especially important when identifying the correct replacement parts.

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equip-

ment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln

Electric for advice or information about their use of our products. We respond to our customers based on the best information in our posses-

sion at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such infor-

mation or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customerʼs particular purpose,

with respect to such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or

correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter any

warranty with respect to the sale of our products.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control

of, and remains the sole responsibility of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained in

applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com

for any updated information.

On-Line Product Registration

- Register your machine with Lincoln Electric either via fax or over the Internet.

• For faxing: Complete the form on the back of the warranty statement included in the literature packet

accompanying this machine and fax the form per the instructions printed on it.

• For On-Line Registration: Go to our

WEB SITE at www.lincolnelectric.com. Choose “Support” and then “Register

Your Product”. Please complete the form and submit your registration.

vi vi

TABLE OF CONTENTS

Page

Installation .......................................................................................................Section A

Technical Specifications ........................................................................................A-1

Welding Process, Physical Dimensions ..........................................................A-2

Safety Precautions ..........................................................................................A-3

VRD™ (Voltage Reduction Device) ..............................................................................A-3

Select Suitable Location..................................................................................A-3

Lifting...............................................................................................................A-3

Stacking ..........................................................................................................A-3

Environmental Limitations ...............................................................................A-3

Input and Grounding Connections ..................................................................A-3

High Frequency Protection ....................................................................................A-3

Input Connection ............................................................................................A-4

Input Fuse and Supply Wire Considerations...................................................A-4

Cable Connections..........................................................................................A-5

Recommended Electrode and Work Cable for arc Welding ..................................A-6

Output Cable Guidelines........................................................................................A-6

________________________________________________________________________

Operation .........................................................................................................Section B

Safety Precautions ................................................................................................B-1

Graphic Symbols............................................................................................B-1, B-2

Product Description ..............................................................................................B-2

Duty Cycle .............................................................................................................B-2

Design Features ....................................................................................................B-2

Recommended Processes and Equipment ...........................................................B-3

Case Front Controls...............................................................................................B-4

Power-Up Sequence..............................................................................................B-5

Case Back Controls...............................................................................................B-5

Common Welding Procedures, Weld Controls and Displays..................B-5, thru B-8

_______________________________________________________________________

Accessories.....................................................................................................Section C

Options / Accessories............................................................................................C-1

________________________________________________________________________

Maintenance ....................................................................................................Section D

Safety Precautions ................................................................................................D-1

Visual Inspection ...................................................................................................D-1

Routine Maintenance.............................................................................................D-1

Periodic Maintenance............................................................................................D-1

________________________________________________________________________

Section E ..............................................................................................Troubleshooting

Safety Precautions.................................................................................................E-1

How to Use Troubleshooting Guide.......................................................................E-1

Troubleshooting Guide ..........................................................................................E-2

Error Codes ...........................................................................................................E-3

________________________________________________________________________

Wiring Diagram and Dimension Print ..............................................................Section F

________________________________________________________________________

Parts List ....................................................................................................P-674 Series

________________________________________________________________________

FLEXTEC™ 450 CE

A-1

INSTALLATION

A-1

TECHNICAL SPECIFICATIONS -

FLEXTEC™ 450 CE

RATED OUTPUT

POWER SOURCE-INPUT VOLTAGE AND CURRENT

Model

K3065-1

Duty Cycle

60% rating

100% rating

Volts at Rated Amperes

36.5V

34V

28V

26V

38V

36V

36.5V

34V

36.5V

34V

Amperes

450

400

450

400

450

400

450

400

450

400

Duty Cycle

60%

100%

60%

100%

60%

100%

60%

100%

60%

100%

Process

GMAW (CV)

GTAW (CC)

MMAW (CC)

FCAW-GS (CV)

FCAW-SS (CV)

Input Amperes

37 / 35 / 34

29 / 28 / 27

Idle Power

72 Watts

Max.

(fan on)

Power Factor @

Rated Output

95%

Input Voltage ± 10%

380 / 400 / 415 / 3 / 50 / 60

(1) Cord and Fuse Sizes based upon the U.S. National Electric Code and maximum output for 40°C (104°) ambient.

(2) Also called “inverse time” or “thermal/magnetic” circuit breakers; circuit breakers that have a delay in tripping action that decreases as the

magnitude of current increases.

VOLTAGE

50/60Hz

380/3/50

400/3/60

415/3/60

Maximum

Input

Amperes

42 A

40 A

39 A

4 CONDUCTOR

SOOW or similar Cord in 40°C(104°F) Ambient

8 AWG or 10mm2

Fuse (Super Lag) or

Breaker Size (2)

RECOMMENDED INPUT WIRE AND FUSE SIZES (1)

A-2

INSTALLATION

FLEXTEC™ 450 CE

A-2

PHYSICAL DIMENSIONS

TEMPERATURE RANGES

HEIGHT

18.80in (478mm)

MODEL

K3065-1

WIDTH

14.14in (359mm)

DEPTH

26.66in (677mm)

WEIGHT

130lbs (59kg)*

OPERATING TEMPERATURE RANGE

Environmentally Hardened: 14°F to 131°F (-10°C to 55°C

)

STORAGE TEMPERATURE RANGE

Environmentally Hardened: -40°F to 185°F (-40°C to 85°C)

PROCESS

GMAW (CV)

GTAW (CC)

MMAW (CC)

FCAW-GS (CV)

FCAW-SS (CV)

OUTPUT RANGE (AMPERES)

40-500

10-500

15-500

40-500

OCV (Uo)

OCV (Ur)

WELDING PROCESS

IP23 155º(F) Insulation Class

*Weight does not include input cord.

** Output De-rated at Temperatures above 40°C.

A-3

INSTALLATION

A-3

VRD™ (VOLTAGE REDUCTION DEVICE)

The VRD™ feature provides additional safety in the CC-

Stick mode. The VRD™ reduces the OCV (Open Circuit

Voltage) at the welding output terminals while not welding to

less than 35VDC.

The VRD™ requires that the welding cable connections be

kept in good electrical condition because poor connections

will contribute to poor starting. Having good electrical con-

nections also limits the possibility of other safety issues

such as heat-generated damage, burns and fires.

The machine is shipped with VRD™ “enabled”. The VRD™

function can be disabled or enabled via a dip switch on the

control P.C. board.

The control board and dip switch can be accessed by

removing the case top as shown in the Operation Section

figure B.3.

SELECT SUITABLE LOCATION

LOCATION AND VENTILATION FOR COOLING

Place the welder where clean cooling air can freely

circulate in through the rear louvers and out through

the case sides. Dirt, dust, or any foreign material that

can be drawn into the welder should be kept at a mini-

mum. Failure to observe these precautions can result

in excessive operating temperatures and nuisance

shutdowns.

LIFTING

Both handles should be used when lifting the FLEX-

TEC™ 450 CE. When using a crane or overhead

device a lifting strap should be connected to both han-

dles. Do not attempt to lift the FLEXTEC™ 450 CE

with accessories attached to it.

SAFETY PRECAUTIONS

ELECTRIC SHOCK can kill.

ONLY QUALIFIED PERSONNEL

SHOULD PERFORM THIS INSTALLA-

TION.

• TURN OFF INPUT POWER TO THE POWER

SOURCE AT THE DISCONNECT SWITCH OR

FUSE BOX BEFORE WORKING ON THIS

EQUIPMENT. TURN OFF THE INPUT POWER

TO ANY OTHER EQUIPMENT CONNECTED TO

THE WELDING SYSTEM AT THE DISCONNECT

SWITCH OR FUSE BOX BEFORE WORKING ON

THE EQUIPMENT.

• DO NOT TOUCH ELECTRICALLY HOT PARTS.

• ALWAYS CONNECT THE FLEXTEC™ 450 CE

GROUNDING LUG (LOCATED INSIDE THE

RECONNECT INPUT ACCESS DOOR) TO A

PROPER SAFETY (EARTH) GROUND.

----------------------------------------------------------------------

WARNING

FLEXTEC™ 450 CE

STACKING

The FLEXTEC™ 450 CE cannot be stacked.

ENVIRONMENTAL LIMITATIONS

The FLEXTEC™ 450 CE is IP23 rated for use in an

outdoor environment. The FLEXTEC™ 450 CE should

not be subjected to falling water during use nor should

any parts of it be submerged in water. Doing so may

cause improper operation as well as pose a safety

hazard. The best practice is to keep the machine in a

dry, sheltered area.

Do not mount the FLEXTEC™ 450 CE over com-

bustible surfaces. Where there is a combustible

surface directly under stationary or fixed electrical

equipment, that surface shall be covered with a

steel plate at least .060” (1.6mm) thick, which shall

extend not less than 5.90” (150mm) beyond the

equipment on all sides.

-----------------------------------------------------------------------

INPUT AND GROUNDING CONNECTIONS

MACHINE GROUNDING

The frame of the welder must be grounded.

A ground terminal marked with the symbol

shown is located inside the reconnect/input

connection area for this purpose. See your local and

national electrical codes for proper grounding meth-

ods.

HIGH FREQUENCY PROTECTION

Locate the FLEXTEC™ 450 CE away from radio con-

trolled machinery. The normal operation of the FLEX-

TEC™ 450 CE may adversely affect the operation of

RF controlled equipment, which may result in bodily

injury or damage to the equipment.

CAUTION

AMPS

340

375

400

450

VOLTS

34VDC

35VDC

36VDC

38VDC

TEMPERATURES

55°C

DUTY CYCLE

100%

60%

40%

20%

HIGH TEMPERATURE OPERATION

WELDER OUTPUT RATINGS AT 55°C

ELEVATED TEMPERATURES

Andere Handbücher für FLEXTEC 450 CE

Inhaltsverzeichnis

Andere Lincoln Electric Schweißsystem Handbücher

Lincoln Electric

Lincoln Electric SPEEDTEC 200C BR Bedienungsanleitung

Lincoln Electric

Lincoln Electric IDEALARC R3R 500-I Bedienungsanleitung

Lincoln Electric

Lincoln Electric PRO-CUT 10474 Bedienungsanleitung

Lincoln Electric

Lincoln Electric Mobiflex 200-M Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC V160 Bedienungsanleitung

Lincoln Electric

Lincoln Electric WELD-PAK 100 IMT460-D Bedienungsanleitung
