Lincoln Electric IDEALARC CV-305 Bedienungsanleitung

IG Flux-Cored

CV-305

When it comes to welding mild steel, stainless steel, aluminum and alloy

materials, you won’t find a more reliable power source than the CV-305.

This well-engineered CV unit features two inductance connections. Lincoln’s

Twist- ate®output connectors make it easy to choose the right inductance

for your application.

This unit is the most compact unit in its class, yet it’s loaded with

convenient features! Digital meters that can be preset, line voltage

compensation, a remote and local control option, and a 7-year rectifier

warranty — what more do you need?

Publication E4.22 11/06

Web Update 6/07

www.lincolnelectric.com

Processes

Advantage Lincoln

•Precision Arc Perfomance

- Stack them three-high or purchase an affordable package that

includes the new LF-72 feeder, a agnum®400 IG gun and

more!

- Two output connectors allow you to optimally connect to high or

low inductance for arc conrol. Use low inductance output

connection when short-arc welding, and high inductance output

connection with spray and globular transfer welding

•Features & Innovations

- Compact unit is 20 lbs. (9.0 kg) lighter and significantly smaller

than competitive models — save your space!

- Easy access Twist- ate®connection on the front of the machine.

- Digital Ammeter/Voltmeter read-out display allows presets for

added convenience and accuracy.

•Quality & Reliability

- Environmentally protected transformer and power rectifier are

rugged and reliable.

- Provides line voltage compensation for maintaining weld

consistency, even with changes of ±10%.

- Three-year warranty on parts and labor; seven-year warranty on

power rectifier.

MIG WELDERS

TECHNICAL SPECIFICATIONS

Dimensions

Product Product Rated Output Input Current @ H x W x D Net Weight

Name Number Input Power Current/Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.( g)

K2400-1 208/230/460/3/60 315/32.6V/100% 51/48/24A

CV-305 50-400A 24.6 x 19.5 x 27.0 330

K2400-2 230/460/575/3/60 315/32.6V/100% 48/24/20A (625 x 495 x 686) (149)

PHASE

Output

Input

A CLOSER LOOK

FEATURES

• Low flat-top case can be placed under a workbench or stacked

on top of each other for smaller footprint.

• 115V or 42VAC wire feeder auxiliary power.

• Twist-Mate®output connectors require no tools for quick and

easy hook-up. Two Twist-Mate®Cable Plugs included (K852-95).

SYSTEM SELECTION

Ready-Pak®Package

Take the hassle out of ordering — order a Ready-Pak®pre-assembled

welding package. Fully assembled and ready to weld — just add wire

and gas. Select a Ready-Pak®and use one order number on your

order form.

CV-305

[2]

CV-305 / LF-72 Wire Feeder Ready-Pak®Package

Our most popular MIG and flux-cored welding system

Order K2395-1

• CV-305 Power Source (208/230/460/3/60)

• LF-72 Bench Model (Two Roll) Wire Feeder with Universal Wire Reel

stand, 10 ft. Control Cable, and .035-.052" solid wire Drive Roll and

Guide Tube Kits.

• Magnum 400 Welding Gun, 15 ft., .035-.045" wire

• Work (15 ft.) and Wire Feeder (10 ft.) Power Cables Package

• Harris Flowmeter Regulator and Gas Hose.

(Order Swivel Kit K2332-1 for even more flexibility! Note: Can't be used

at the same time with undercarriage while gas cylinder(s) are installed.) Shown:

CV-305 / LF-72 Wire Feeder Ready-Pak Package

www.lincolnelectric.com

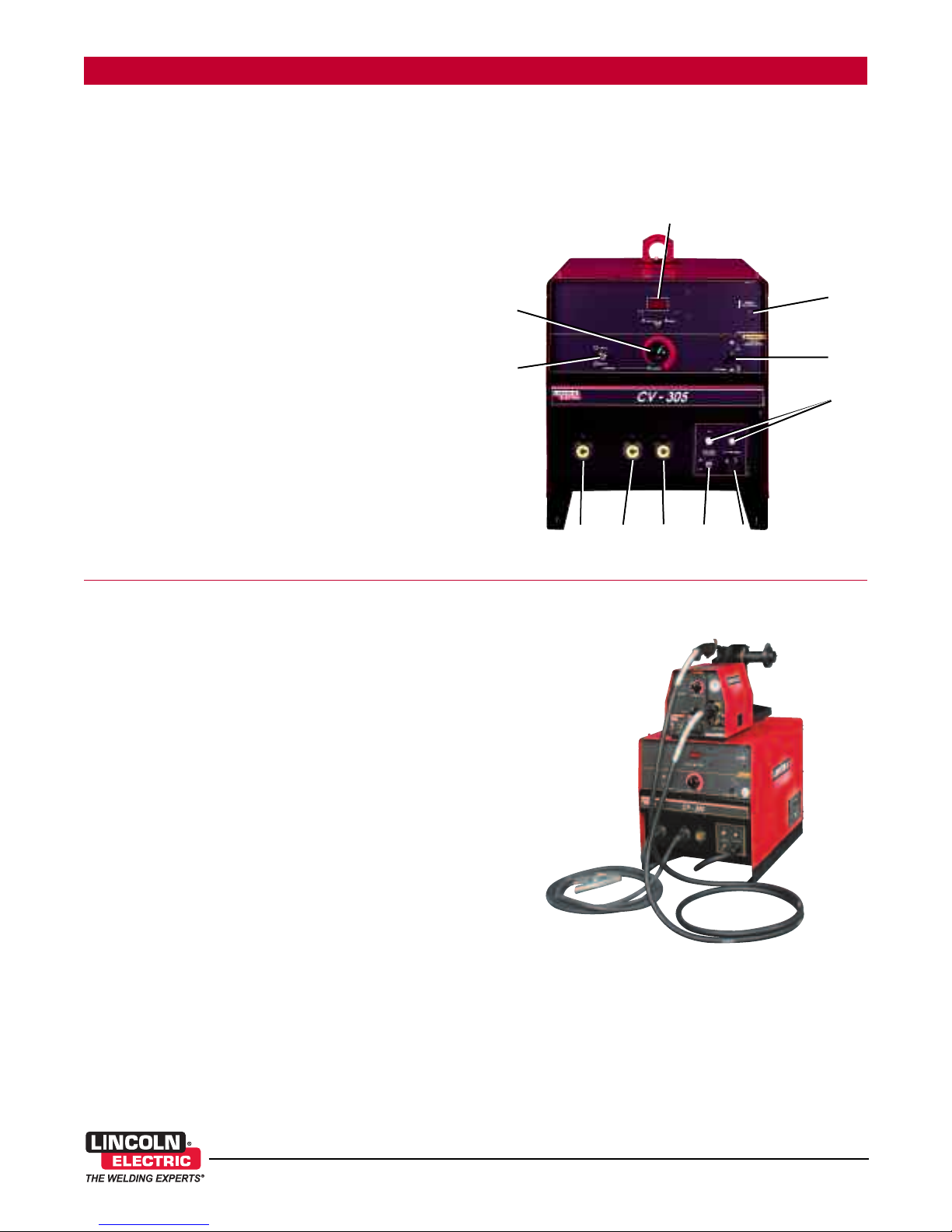

1. Positive Twist-Mate®output connector

2. Low inductance negative Twist-Mate®output connector

3. High inductance negative Twist-Mate®output connector

4. Voltmeter polarity switch

5. 14-pin MS-type wire feeder connector

6. Circuit breakers

7. "On/Off" power switch

8. Thermal trip indicator light

9. Digital Ammeter/Voltmeter display with switch

10. Output control knob

11. Remote/Local control switch

Key Controls

2345

CV-305

[3]

A CLOSER LOOK

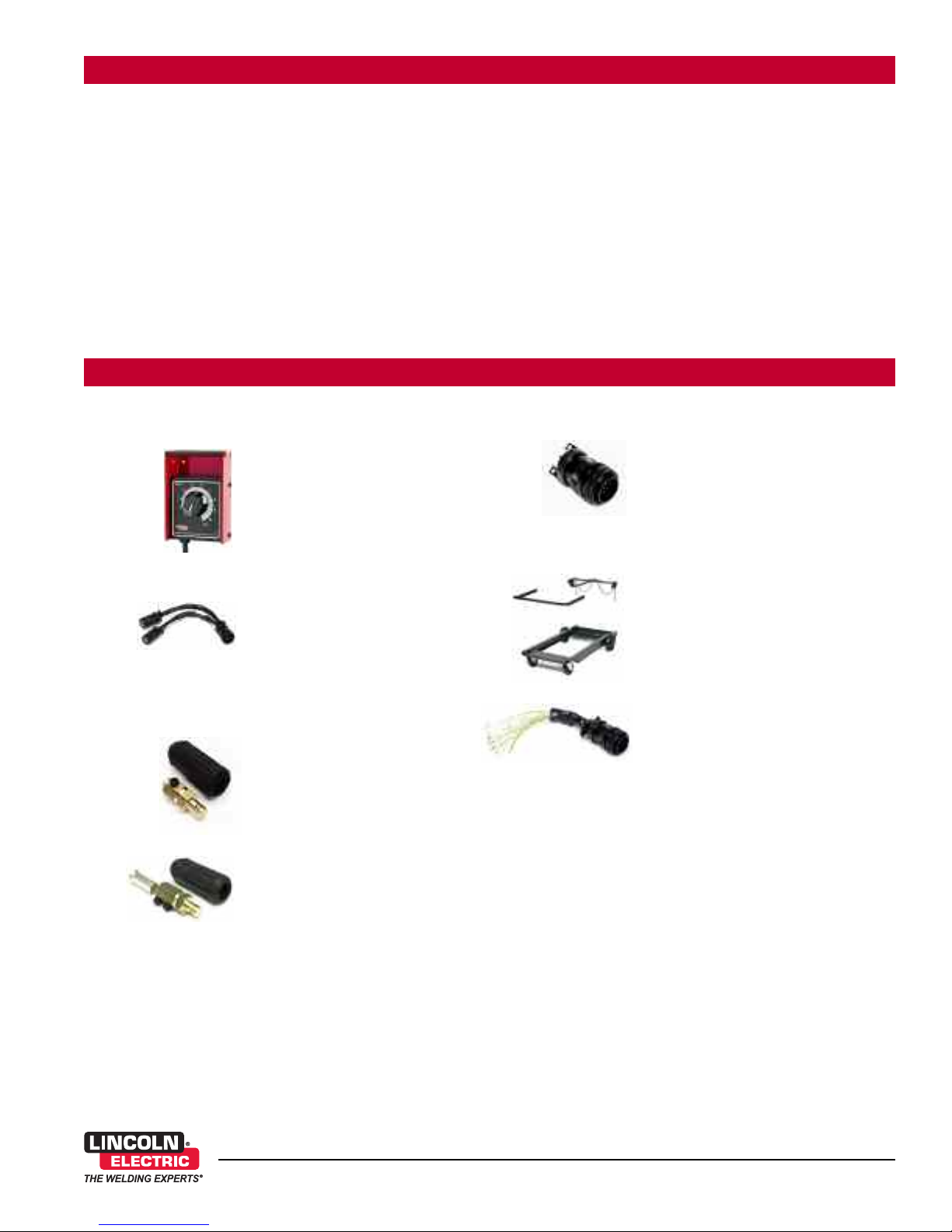

RECOMMENDED OPTIONS

www.lincolnelectric.com

GENERAL OPTIONS

Remote Output Control

For remote output of welding

voltage. Consists of control box

with 25 or 100 ft. (7.6 or 30 m) of

four conductor cable and 6 pin

MS-type connector.

Order K857 for 25 ft. (7.6m).

Order K857-1 for 100 ft. (30m).

Remote Control Cable Adapter

Y connection adapter for

connecting K857 Remote Output

Control (6 pin plug connection) and

wire feeder input cable (14 pin plug

connection) to power source 14 pin

receptacle.

Order K864

Twist-Mate®Cable Plug

For connecting welding cable to

output terminal receptacles. For

1/0 – 2/0 (50 – 70 mm2) cable.

Order K852-70

Twist-Mate®Cable Plug

For connecting welding cable to

output terminal receptacles. For

2/0 – 3/0 (70 – 95 mm2) cable.

Order K852-95

Jumper Plug Kit

Required to close the contactor in

the power source when the power

source is used with a remote ouput

contactor such as the contactor in

the K449 LN-25, or K1870-1 LN-15

wire feeder.

Order K484

Undercarriage

Platform undercarriage with

mounting for two gas cylinders at

rear of welder.

Order K874

Universal Adapter Plug

The adapter plug allows user

connection of any suitable

accessory or wire feeder to the

output contactor and auxiliary

power circuitry. Consists of a 14

pin MS-type (Amphenol) connector

with 8” (203mm) stripped leads.

Order K867

QUALITY AND RELIABILITY

• Electronic and thermostatic protection from current overload or

excessive temperatures.

• “Cold” electrode with a solid state contactor when the trigger

is released for added safety.

• Microprocessor-based control PC board has built-in diagnostic

routines for quick and easy troubleshooting.

• Circuit boards are protected with a specially insulated coating

to extend life and ensure reliable performance.

• Solid state circuitry provides extra long life during repetitive

applications.

• Three-year warranty on parts and labor; seven-year warranty on

power rectifier.

• Manufactured under a quality system certified to ISO 9001

standards.

THE LINCOLN ELECTRIC COMPANY

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

CV-305 208/230/460/3/60 K2400-1

CV-305 230/460/575/3/60 K2400-2

READY-PAK®PACKAGE

CV-305/LF-72 Bench Model Wire Feeder (208/230/460/3/60) K2395-1

RECOMMENDED GENERAL OPTIONS

Remote Output Control, 25 ft. (7.6m) K857

100 ft. (30m) K857-1

Remote Control Cable Adapter K864

Twist-Mate Cable Plug for 1/0-2/0 (50-70 mm2) cable K852-70

Twist-Mate Cable Plug for 2/0-3/0 (70-95 mm2)cable K852-95

umper Plug Kit K484

Universal Adapter Plug K867

Undercarriage K874

RECOMMENDED WIRE FEEDER OPTIONS

LF-72 and LF-74 See publication E8.11

LN-15 See publication E8.60

LN-23P See publication E8.90

LN-25 See publication E8.100

Cobramatic®See publication E8.300

Magnum®Spool Gun See publication E12.100

TOTAL:

CV- 05 ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

C U S T O M E R A S S I S T A N C E P O L I C Y

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our

customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for advice or information about their use of our products. We respond to our customers based on

the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability,with respect to such information or advice. We

expressly disclaim any warranty of any kind, including any warranty of fitness for any customer’s particular purpose, with respect to such information or advice. As a matter of practical consideration,

we also cannot assume any responsibility for updating or correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter

any warranty with respect to the sale of our products.

Lincoln Electric is a responsible manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the customer.

Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change — This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.
