Linear Technology DC1737A Kurzanleitung zur Einrichtung

dc1737af

DEMO MANUAL DC1737A

DESCRIPTION

LTC3863

Low IQInverting

DC/DC Converter

Demonstration circuit 1737A is a current-mode inverting

DC/DC converter featuring the LT C

3863.

The board operates from an input range of 4.5V to 16V,

and provides a –5.2V, 1.7A output or a –12V, 1A output

(jumper selectable). It operates at 400kHz and may be

synchronized to an external clock. A soft-start feature

controls output voltage slew rate at start-up, reducing

current surge and voltage overshoot. Burst Mode

opera-

tion that improves efficiency at light loads can be enabled

with a jumper. A power good output signal is provided.

The demonstration board has options for larger MOSFET

and diode packages on the back of the board for higher

output current requirements.

L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks

of Linear Technology Corporation. All other trademarks are the property of their respective

owners.

PERFORMANCE SUMMARY

This board is suitable for a wide range of automotive,

telecom, industrial, and other applications. The LTC3863

is available in small 12-pin thermally enhanced MSOP and

DFN Packages. For other output requirements, see the

LTC3863 data sheet or contact the LT C factory.

Design files for this circuit board are available at

http://www.linear.com/demo

Specifications are at TA= 25°C

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

VIN Input Supply Range 4.5 16 V

VOUT Output Voltage –5.2V/–12V V

IOUT Output Current Range, Continuous Free Air 0 –1.7/1.0 A

fSW Switching (Clock) Frequency 400 kHz

VOUT P-P Output Ripple VIN = 12V, VOUT = –12V, IOUT = 1A (20MHz BW) 30 mVP-P

VREG Output Regulation Line and Load (4.5VIN to 16VIN, –12VOUT, 0A to 1A Out) ±0.1 %

POUT/PIN Efficiency (See Figure 3) VIN = 12V, VOUT = –12V, IOUT = 1A 89.3 %

Approximate Size Component Area ×Top Component Height 0.9 ×0.8 ×0.18 Inches

dc1737af

DEMO MANUAL DC1737A

QUICK START PROCEDURE

Demonstration circuit 1737 is easy to set up to evaluate

the performance of the LTC3863. Refer to Figure 1 for

proper measurement equipment setup and follow the

procedure below:

Note:Whenmeasuringtheoutputvoltageripple, care must

be taken to avoid a long ground lead on the oscilloscope

probe. Measure the output voltage ripple by touching the

probe tip and ground ring directly across the last output

capacitor as shown in Figure 1.

1. Set an input power supply that is capable of 4.5V to

16V to 5V. Then turn off the supply.

2. Withpower off, connect the supplyto the input terminals

+VIN and –VIN.

a. Inputvoltages lower than 4.5V can keepthe converter

from turning on due to the undervoltage lockout

feature of the LTC3863.

b. If efficiency measurements are desired, an ammeter

capable of measuring 2A DC or a resistor shunt can

be put in series with the input supply in order to

measure the DC1737A’s input current.

c. A voltmeter with a capability of measuring at least

16V can be placed across the input terminals in order

to get an accurate input voltage measurement.

3. Turn on the power at the input.

Note: Make sure that the input voltage never exceeds 16V.

4. Check for the proper output voltage of –5.2V. Turn off

the power at the input.

–

VOUT

VIN

IOUT

LOAD

–

– +

IIN

– +

Figure 1. Proper Measurement Equipment Setup

dc1737af

DEMO MANUAL DC1737A

QUICK START PROCEDURE

IOUT (A)

EFFICIENCY (%)

0.01 0.1

VIN = 5V

VIN = 12V

IOUT (A)

EFFICIENCY (%)

0.01 0.1

VIN = 5V

VIN = 12V

5. Once the proper output voltage is established, connect

a variable load capable of sinking 1.7A at 5.2V to the

output terminals +VOUT and –VOUT. Set the current

for 0A.

a. If efficiency measurements are desired, an ammeter

or a resistor shunt that is capable of handling 1.7A

DC can be put in series with the output load in order

to measure the DC1737A’s output current.

b. Avoltmeterwithacapabilityofmeasuring at least 12V

can be placed across the output terminals in order

to get an accurate output voltage measurement.

6. Turn on the power at the input.

Note: If there is no output, temporarily disconnect the load

to make sure that the load is not set too high.

7. Once the proper output voltage is again established,

adjust the load and/or input within the operating range

and observe the output voltage regulation, ripple volt-

age, efficiency and other desired parameters.

8. Remove the VOUT jumper to observe operation at

–12VOUT up to 1A.

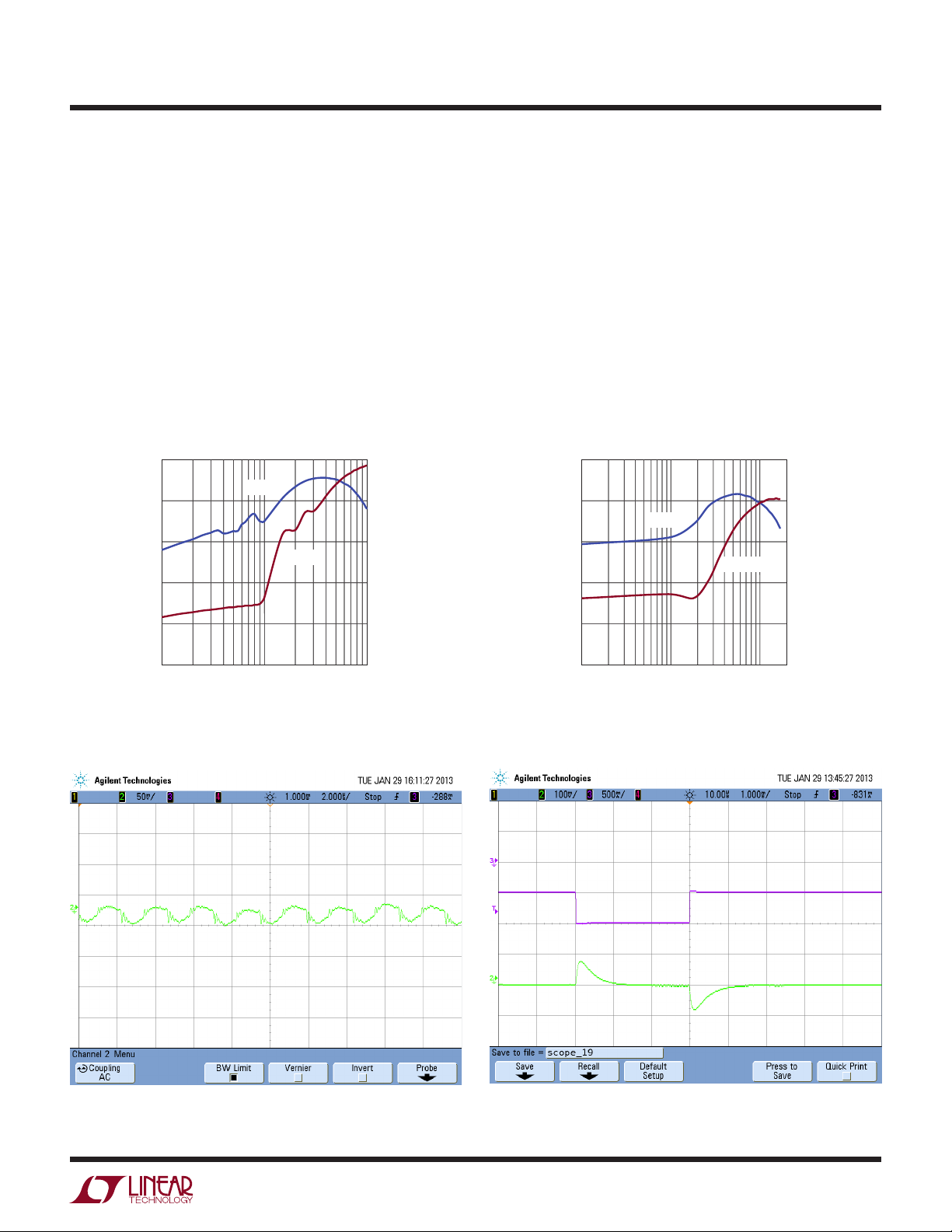

Figure 2. –12VOUT Efficiency with Burst Mode Operation

at Light Loads

Figure 4. Output Ripple at 12VIN, –12VOUT and 1A Out

(50mV, 2µs/Div, 20MHz)

Figure 5. Transient Response Waveform at 12VIN, –12VOUT

and 0.5A to 1A to 0.5A Out (0.5A, 100mV, 10µs/Div)

Figure 3. –5.2VOUT Efficiency with Burst Mode Operation

at Light Loads

dc1737af

DEMO MANUAL DC1737A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 Cap., SMT, 100µF, 20V, SVP OSCON SANYO, 20SVP100M

2 2 CIN2, CIN3 CAP.,X7R, 10µF, 25V, 20%, 1210 TDK, C3225X7R1E106M

3 2 COUT1, COUT2 CAP.,X7R, 33µF, 16V, 20%, 1812 TDK, C4532X7R1C336M

4 2 COUT3, COUT5 CAP.,POSCAP, 150µF, 16V 7343 PANASONIC, 16TQC150MYF

5 1 COUT4 CAP.,X7R, 1µF, 16V, 10%, 0603 AVX, 0603YC105KAT2A

6 1 C1 Cap., NPO, 100pF, 50V, 10%, 0603 AVX, 06035A101kAT1A

7 1 C2 Cap., X7R, 27nF 25V, 10%, 0603 AVX, 06033C273KAT

8 1 C3 Cap., NPO, 390pF, 25V, 1%, 0603 AVX, 06033A391FAT2A

9 1 C5 Cap., X7R, 0.47µF, 16V, 20%, 0603 AVX, 0603YC474MAT2A

10 1 C6 Cap., X7R, 0.1µF, 16V, 20%, 0603 AVX, 0603YC104MAT2A

11 1 C7 Cap., X7R, 0.1µF, 100V, 20%, 0805 TDK, C2012X7R2A104M

12 1 C8 CAP., NPO, 68pF, 50V, 5%, 0603 AVX, 06035A680JAT2A

13 1 D1 DIODE, PDS540, POWERDI5-2PIN DIODES INC, PDS540-13

14 1 L1 IND, 10uH, 20%, D104C TOKO, 919AS-100M=P3

15 1 Q1 TRANSISTOR, SI7129DN, PWRPAK1212-8 VISHAY, Si7129DN-T1-GE3

16 1 R1 RES., CHIP, 61.9k, 1/16W, 1% , 0603 VISHAY, CRCW060361K9FKED

17 1 R2 RES., CHIP, 14.7k, 1/16W, 1% , 0603 VISHAY, CRCW060314K7FKED

18 1 R3 RES., CHIP, 80.6k, 1/16W, 1% , 0603 VISHAY, CRCW060380K6FKED

19 1 R5 RES., CHIP, 523k, 1/16W, 1% , 0603 VISHAY, CRCW0603523KFKED

20 1 R7 RES., 0.016 1/2W 1% 2010 VISHAY, WSL2010R0160FEA

21 1 R8 RES., CHIP, 100k, 1/16W, 1% , 0603 VISHAY, CRCW0603100KFKED

22 1 R9 RES., CHIP, 698k, 1/10W, 1% , 0603 VISHAY, CRCW0603698KFKED

23 1 R11 RES., CHIP, 45.3k, 1/16W, 1% , 0603 VISHAY, CRCW060345K3FKED

24 1 U1 IC, LTC3863EMSE, MSE12 LINEAR TECH.CORP. LTC3863EMSE

Additional Demo Board Circuit Components

25 0 COUT6 CAP., OPT KE0 OPT

26 0 C4 CAP., OPT 0603 OPT

27 1 R4 RES., OPT 0603 OPT

28 2 R6, R10 RES., CHIP, 0Ω, 1/16W, 0603 VISHAY, CRCW06030000Z0ED

Hardware For Demo Board Only

29 7 E1, E2, E3, E4, E5, E6, E7 TESTPOINT, TURRET, .090” pbf MILL-MAX, 2501-2-00-80-00-00-07-0

30 2 JP1, JP3 JMP, 0.079 SINGLE ROW HEADER, 3-PIN SULLINS, NRPN031PAEN-RC

31 1 JP2 JMP, 0.079 DOUBLE ROW HEADER, 6-PIN SULLINS, NRPN062PAEN-RC

32 4 J1, J2, J3, J4 CONN, BANANA JACK KEYSTONE 575-4

33 3 XJP1, XJP2, XJP3 SHUNT, 0.079" CENTER SAMTEC, 2SN-BK-G

34 4 MTGS AT 4 CORNERS STAND-OFF, SNAP ON NYLON 0.50" tall KEYSTONE, 8833(SNAP ON)

dc1737af

DEMO MANUAL DC1737A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

SCHEMATIC DIAGRAM

dc1737af

DEMO MANUAL DC1737A

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ●FAX: (408) 434-0507 ●www.linear.com

 LINEAR TECHNOLOGY CORPORATION 2013

LT 0513 • PRINTED IN USA

DEMONSTRATION BOARD IMPORTANT NOTICE

Linear Technology Corporation (LT C ) provides the enclosed product(s) under the following AS IS conditions:

This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT

OR EVALUATION PURPOSES ONLY and is not provided by LT C for commercial use. As such, the DEMO BOARD herein may not be complete

in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety

measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union

directive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.

If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date

of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user releases LT C from all claims

arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or

agency certified (FCC, UL, CE, etc.).

No License is granted under any patent right or other intellectual property whatsoever. LT C assumes no liability for applications assistance,

customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.

LT C currently services a variety of customers for products around the world, and therefore this transaction is not exclusive.

Please read the DEMO BOARD manual prior to handling the product. Persons handling this product must have electronics training and

observe good laboratory practice standards. Common sense is encouraged.

This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a LT C applica-

tion engineer.

Mailing Address:

Linear Technology

1630 McCarthy Blvd.

Milpitas, CA 95035

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Analog Devices Inc.:

DC1737A
