DEMO MANUAL DC2270A

DESCRIPTION

LT3095

Dual-Channel Low Noise Bias

Generators

Demonstration circuit 2270A is a dual-channel low noise

biasgeneratorfeaturingLT3095.TheLT3095generatestwo

lownoise bias supplies fromacommon input voltage range

from 3V to 20V. Each channel includes a fixed frequency,

peak current mode step-up switching regulator and a low

noise, single resistor programmable linear regulator. The

maximum load current is 50mA for each channel.

Each boost regulator adjusts its output voltage to 2V above

the corresponding linear regulator’s output voltage, opti-

mizing power dissipation, PSRR and transient response.

The integrated boost regulator, frequency compensation

and Schottky diodes minimize the external component

count and simplify system design.

The switching frequency can be programmed either via

oscillator resistor or an external clock from 450kHz to L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

PERFORMANCE SUMMARY

2MHz. The SYNC pin on the demo board is grounded by

default. To synchronize to an external clock, move JP1

to SYNC and apply the external clock to the SYNC turret.

The RTresistor (R2) should be chosen to set the LT3095

internal switching frequency to the SYNC frequency.

The LT3095 is available in a thermally enhanced 24-Lead

3mm × 5mm QFN package.

The LT3095 data sheet gives a complete description of

the device, operation and application information. The

data sheet must be read in conjunction with this quick

start guide for demo circuit 2270.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2270A

Specifications are at TA= 25°C

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

VIN Input Voltage Range 3 20 V

VOUT1 Channel1 Output Voltage 4.9 5 5.1 V

VOUT2 Channel2 Output Voltage 14.7 15 15.3 V

IOUT1 Channel1 Max Output Current 50 mA

IOUT2 Channel2 Max Output Current 50 mA

fSW Switching Frequency RT= 100kΩ 0.95 1 1.05 MHz

VOUT,P-P Output Voltage Peak-to-Peak Noise VIN = 5V, VOUT = 15V, IOUT = 50mA, fSW = 1MHz

20MHz BW

65 µV

dc2270afa

DEMO MANUAL DC2270A

QUICK START PROCEDURE

Demonstration circuit 2270 is easy to set up to evaluate

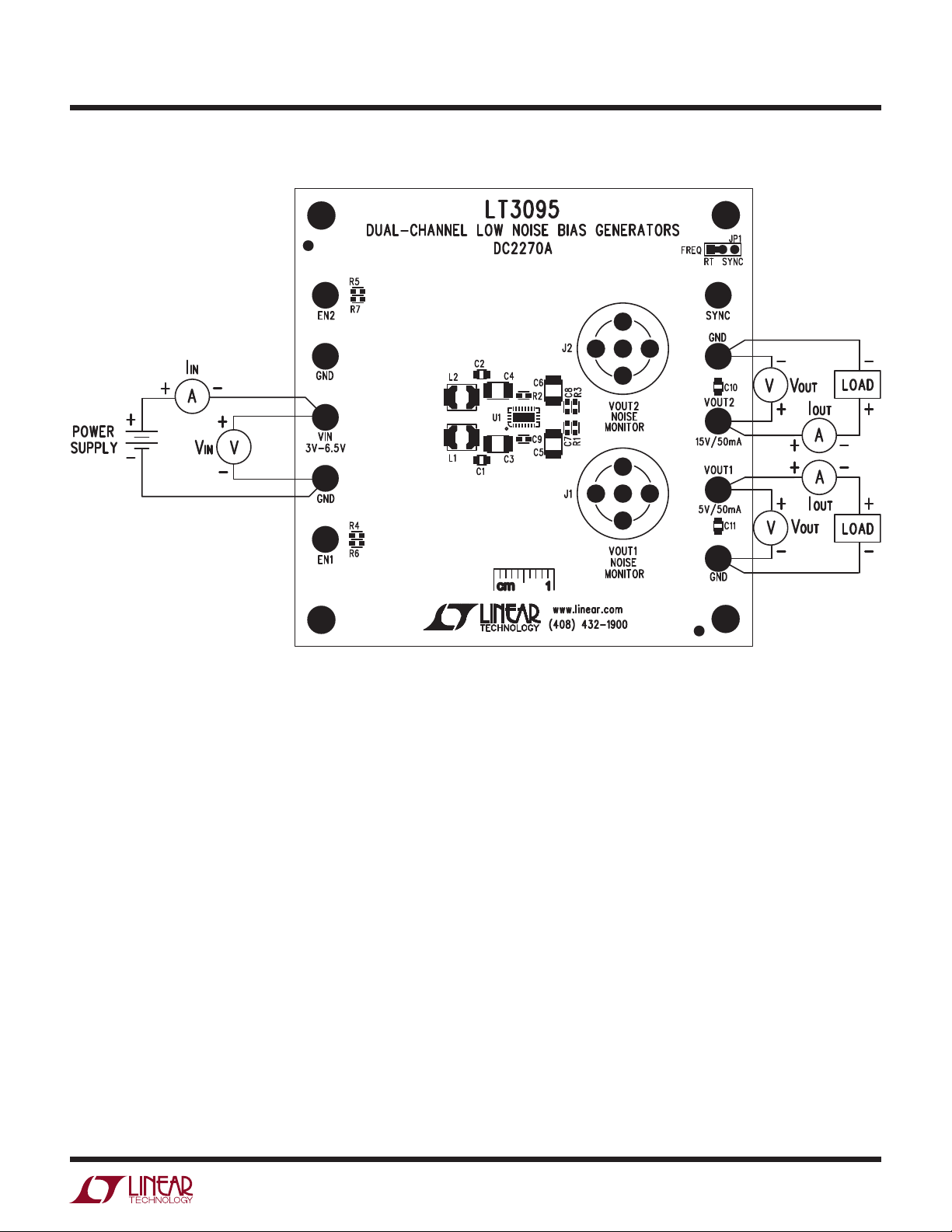

the performance of the LT3095. Refer to Figure 2 for

proper measurement equipment setup and follow the

procedure below:

1. Place JP1 on RT position.

2. With power off, connect the input power supply to VIN

and GND. Make sure that the input voltage does not

exceed 20V.

3. With power off, connect loads from VOUT1 to GND, and

VOUT2 to GND.

4. Turn on the power at the input.

5. Check for the proper output voltages (5V and 15V).

NOTE: If there is no output, temporarily disconnect the

load to make sure that the load is not set too high or

is shorted.

6. Once the proper output voltage is established, adjust

the load within the operating range and observe the

output voltage regulation and other parameters.

7. An external clock can be added to the SYNC terminal

whenSYNC function is used(JP1onthe SYNC position).

The set switching frequency should be programmed

to the SYNC frequency. See the data sheet section

Programming the Switching Frequency for details.

8. The output noise can be measured by J1 and J2. Please

refer to Application Notes 70 for details.

1µs/DIV

BSTOUT

20mV/DIV

OUT

50µV/DIV

dc2270a F01

= 5V

OUT

= 15V

LOAD

= 50mA

OSC

= 1MHz

20MHz BW

Figure 1. Transient Output Ripple

dc2270afa

DEMO MANUAL DC2270A

QUICK START PROCEDURE

*J1 AND J2 ARE THE BNC CONNECTORS TO COAXIAL CABLE FOR NOISE MEASUREMENT.

PLEASE REFER TO AN70 APPENDIX B FOR DETIALS

Figure 2. Proper Measurement Equipment Setup

dc2270afa

DEMO MANUAL DC2270A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 2 C1, C2 CAP., 2.2µF, X7R, 25V, 10%, 0805 MURATA, GRM21BR71E225KA73L

2 2 C3, C4 CAP., 10µF, X7R, 25V, 10%, 1210 MURATA, GRM32DR71E106KA12L

3 2 C5, C6 CAP., 2.2µF, X7R, 25V, 10%, 1210 AVX, 12103C225KAT2A

4 2 C7, C8 CAP., 1µF, X7R, 25V, 10%, 0603 MURATA, GRM188R71E105KA12D

5 1 C9 CAP., 0.1µF, X7R, 6.3V, 10%, 0603 AVX, 06036D104KAT2A

6 1 L1 INDUCTOR, 6.8µH COILCRAFT LPS4012-682MR

7 1 L2 INDUCTOR, 10µH COILCRAFT LPS4012-103MR

8 4 R1, R2, R4, R5 RES., CHIP, 100k, 1/10W, 1%, 0603 VISHAY, CRCW0603100KFKEA

9 1 R3 RES., CHIP, 300k, 1/10W, 1%, 0603 VISHAY, CRCW0603300KFKEA

10 1 U1 I.C., REGULATOR, QFN24-3X5-UDD LINEAR TECH., LT3095EUDD#PBF

Additional Demo Board Circuit Components

1 0 C10, C11 (OPT) CAP., 0805

2 0 C12, C13 (OPT) CAP., 0603

3 0 R6, R7 (OPT) RES., 0603

4 0 C14 (OPT) CAP, TANT., 10µF, 25V, 20%, 2312 AVX, TAJW106M025RNJ

Hardware: For Demo Board Only

1 10 E1-E10 TESTPOINT, TURRET, 0.094" pbf MILL-MAX, 2501-2-00-80-00-00-07-0

2 1 JP1 HEADER 3 PIN 0.079 SINGLE ROW WURTH, 620 003 111 21

3 1 XJP1 SHUNT, 0.079" CENTER WURTH, 608 002 134 21

4 2 J1-J2 CONN, BNC, 5 PINS CONNEX, 112404

dc2270afa

DEMO MANUAL DC2270A
