800 SERIES

MADE IN THE USA

LINK ELECTRONICS, INC.

Y/C DISTRIBUTION AMP

MODEL PVA-851

FEATURES

16 Outputs

Y & C Gain

Bandwidth 30MHz

Input Terminate Switch

4-Pin Mini DIN Connectors

The PVA-851 is a self-contained Y/C Video

Distribution Amplifier. It's input is normally high-

impedance, looping, but may be terminated using

a rear panel push button switch. All inputs and

outputs use a standard four pin Mini-DIN

connectors.Frontpanelindependentgaincontrols

for Luminance (Y) and Chrominance (C) allow for

precise adjustment.

The PVA-851 is an ideal device for duplication in

a Y/C environment. One looping input and 16

outputs of Y/C are provided through Mini-DIN's.

The video performance of the PVA-851 is

outstanding with differential phase and gain errors

of less than 0.1oand 0.1%, respectively. High-

performanceCMFop-ampsinthevideopathallow

the PVA-851 to combine wide bandwidth of

30MHz with low noise of greater than 68dB. The

power consumption is less than 8.0VAR.

The Y/C distribution amplifier is housed in a

rugged 1RU chassis and is backed by LINK's ten-

year warranty.

LINKELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668

Phone 573 334 4433 FAX 573 334 9255

PVA-851/091802

MODEL PVA-851

Y/C DISTRIBUTION AMP

SPECIFICATIONS

INPUT:

Video Level: ...................................................... 1.0Vpp±3dB

Impedance: ............................................. 20kΩor 75Ω, selectable

Configuration:.......................................... .Single-ended, AC coupled

CrossTalk ...................................................>65dB @3.58MHz

............................................................>55dB @10.0MHz

OUTPUTS:

Number ...................................................... Sixteen (16) Y/C

Level ..................................................UnityGain,+3dB,-1.5dB

Impedance ..........................................................75Ω, ±1%

Frequency Response: ...........................................±0.1dBto10MHz

...............................................................-1.0@20MHz

...............................................................-3.0@30MHz

DifferentialGain ........................................................ <0.1%

DifferentialPhase........................................................ <0.1

Propagation Delay ........................................................17ns

Hum and Noise ........................................................ >68dB

DC Offset ............................................................ <0.2Vdc

FieldRateTilt.......................................................... <0.2%

ENVIRONMENTAL:

Temperature: ...............................................0°to50°C(ambient)

Humidity: ............................................10%to90%non-condensing

Power: ................................................................8VAR

AC Input: ...........................................120/240VAC (±10%) 50/60Hz

MECHANICAL:

Height: ........................................................... 1.75inches

Width:..............................................................19inches

Depth: ..............................................................8inches

Weight:............................................................. 4.75Lbs.

LINK ELECTRONICS, INC.

2137 Rust Avenue

Cape Girardeau, MO 63703

Phone: 573 334 4433

FAX: 573 334 9255

PROFESSIONAL SERIES--

stand-alone system products--by LINK

Inhaltsverzeichnis

Andere Link electronics Verstärker Handbücher

Link electronics

Link electronics Analog Pulse Distribution Amplifier DigiFlex... Bedienungsanleitung

Link electronics

Link electronics Video Distribution Amplifier IEC-750 Bedienungsanleitung

Link electronics

Link electronics DigiFlex 1152 Bedienungsanleitung

Link electronics

Link electronics Starflex 3550 Bedienungsanleitung

Link electronics

Link electronics HD SD SDI Distribution Amplifier VDA-55 Bedienungsanleitung

Link electronics

Link electronics DigiFlex 1132 Bedienungsanleitung

Link electronics

Link electronics 700 Series Bedienungsanleitung

Link electronics

Link electronics PAA-60 Bedienungsanleitung

Link electronics

Link electronics 200 Series Mounting Frame Audio and Video DA's... Bedienungsanleitung

Link electronics

Link electronics DigiFlex 1153 Bedienungsanleitung

Link electronics

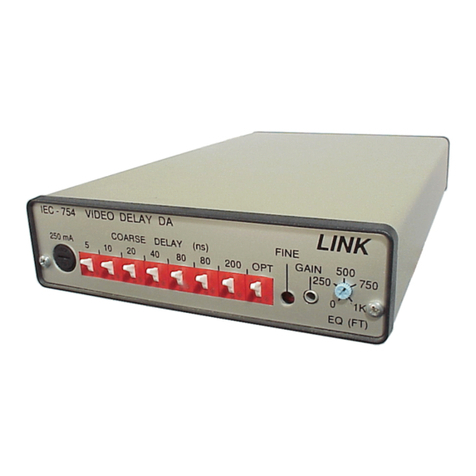

Link electronics Variable Delay Video Amplifier IEC-754 Bedienungsanleitung
