Linksys BEFSR41 - EtherFast Cable/DSL Router Bedienungsanleitung

Instant Broadband™ Series

Cable/DSLRouters

Use this guide to install the following products:

BEFSR41 ver. 2 EtherFast Cable/DSL Router with 10/100 4-Port Switch

BEFSRU31 EtherFast Cable/DSL Router with USB Port and 10/100

3-Port Switch

BEFSR11 ver. 2 EtherFast 1-Port Cable/DSL Router

User Guide

Linksys. Microsoft, Windows, and the Windows logo are registered trademarks of

Microsoft Corporation. All other trademarks and brand names are the property of their

respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant Broadband EtherFast Cable/DSL Router will be

free from physical defects in material and workmanship for one year from the date of pur-

chase, when used within the limits set forth in the Specifications section of this User

Guide. If the product proves defective during this warranty period, call Linksys Technical

Support in order to obtain a Return Authorization number. BE SURE TO HAVE YOUR

PROOF OF PURCHASE ON HAND WHEN CALLING. When returning a product, mark

the Return Authorization number clearly on the outside of the package and include a

copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED

WITHOUT PROOF OF PURCHASE. All customers located outside of the United States

of America and Canada shall be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-

UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,

with respect to its products or the contents or use of this documentation and all accom-

panying software, and specifically disclaims its quality, performance, merchantability, or

fitness for any particular purpose. Linksys reserves the right to revise or update its prod-

ucts, software, or documentation without obligation to notify any individual or entity.

Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

The Instant Broadband EtherFast Cable/DSL Router has been tested and complies with

the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio fre-

quency energy and, if not installed and used according to the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that inter-

ference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which is found by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG-BEFSR11/41/U31-021902D-JL

EtherFast

Cable/DSL Routers

Chapter 7: Configuring Your Network with the

Cable/DSL Router 34

Configuring PCs to Connect to the Cable/DSL Router 34

Configuring the Cable/DSL Router 36

Chapter 8: The Cable/DSL Router’s

Web-based Utility 39

Quick and Easy Router Administration 39

Setup 40

Password 45

Status 46

DHCP 47

Log 49

Security 50

Help 52

Advanced 53

IP Filtering 54

Port Range Forwarding 56

Dynamic Routing 61

Static Routing 62

DMZ Host 64

MAC Address Clone 65

Appendix A: Troubleshooting 66

Common Problems and Solutions 66

Frequently Asked Questions 79

Appendix B: Glossary 83

Appendix C: How to Ping Your ISP’s E-mail &

Web Addresses 96

Appendix D: Installing the TCP/IP Protocol 99

Appendix E: Twisted-Pair Cabling 101

Crimping Your Own Network Cables 102

Appendix F: Finding the MAC Address and IP

Address for Your Network Adapter 103

Instant Broadband™Series

Table of Contents

Chapter 1: Introduction 1

The Linksys EtherFast Cable/DSL Router 1

Features 1

Package Contents for the 4-Port Router (BEFSR41) 2

Minimum Requirements 2

Package Contents for the 1-Port Router (BEFSR11) 3

Minimum Requirements 3

Package Contents for the 3-Port Router (BEFSRU31) 4

Minimum Requirements 4

Chapter 2: Getting to Know the 4-Port

EtherFast Cable/DSL Router 5

The 4-Port Router’s Rear Panel 5

The 4-Port Router’s Front Panel LEDs 6

Chapter 3: Getting to Know the 1-Port

EtherFast Cable/DSL Router 8

The 1-Port Router’s Rear Panel 8

The 1-Port Router’s Front Panel LEDs 9

Chapter 4: Getting to Know the 3-Port

EtherFast Cable/DSL Router 11

The 3-Port Router’s Rear Panel 11

The 3-Port Router’s Front Panel LEDs 13

Chapter 5: Connecting the Cable/DSL Router

to Your Network 15

Overview 15

LANs and WANs 15

IP Addresses: A Quick Lesson 16

Connecting Your Hardware Together & Booting Up 18

Uplinking: Connecting More Devices toYour Router 20

Chapter 6: Installing the BEFSRU31’s USB

Port Drivers 21

Installing the Windows 98 Driver 21

Installing the Windows 2000 Driver 26

Installing the Windows Millennium Driver 30

Installing the Windows XP Driver 32

Instant Broadband™Series EtherFast

Cable/DSL Routers

Chapter 1:Introduction

The Linksys EtherFast®Cable/DSL Router

Congratulations on the purchase of the EtherFast Cable/DSL Router from

Linksys! The EtherFast Cable/DSL Router is the perfect solution for connect-

ing a network of PCs to a high-speed broadband Internet connection and to an

Ethernet network backbone. Configurable as a DHCP server for your network,

the EtherFast Cable/DSL Router is the only visible network device on the

Internet. The Router also serves as your Internet NAT firewall, protecting your

network’s PCs from being accessed by external users. All incoming data pack-

ets are monitored and filtered. The Router can also be configured to block

internal users’access to the Internet with IP filtering, as well as to play Internet

games, videoconference, and much more. Plus, the Router supports Universal

Plug and Play (UPnP), which allows Windows XP to automatically configure

the Router for various Internet applications, such as videoconferencing and

gaming—making the Router a snap to use.

Now all of your PCs can enjoy lightning-fast broadband Internet connections

and share internal network data. Link them all together and network faster than

you ever thought possible.

•Connects to a Cable/DSL Modem and to a 10/100 Network

•Supports Universal Plug and Play (UPnP)

•Equipped With a 3 or 4-Port 10/100 Switch (BEFSRU31 & BEFSR41 ver. 2

only)

•Connects Up to 253 PCs to the Internet with Just One WAN IP Address

•Configurable throughYour Web Browser

•Supports Single-Session IPSec and PPTP Pass-Through for Virtual Private

Network (VPN)

•Administer and Upgrade Your Router Remotely Over the Internet

•10/100 Switch Speeds Up Your Gaming and Multimedia Connections

(BEFSRU31 & BEFSR41 ver. 2 only)

•Configurable as a DHCP Server onYour Network

•Compatible with Virtually All Standard Internet Applications

•Administrators Can Set Up Port Filtering, Port Range Forwarding, MAC

Address Filtering, DMZ Hosting, and Much More

Appendix G: 4-Port Router Specifications 107

4-Port Environmental Specifications 107

Appendix H: 1-Port Router Specifications 108

1-Port Environmental Specifications 108

Appendix I: 3-Port Router Specifications 109

3-Port Environmental Specifications 109

Appendix J: Warranty Information 110

Appendix K: Contact Information 111

The Linksys EtherFast Cable/DSL Router

Features

EtherFast

Cable/DSL Routers

Instant Broadband™Series

Package Contents for the 1-Port Router (BEFSR11)

•One EtherFast 10/100 1-Port Cable/DSL Router

•One Power Adapter

•One User Guide

•One Setup Wizard CD-ROM

•One TechHelper CD-ROM (not shown)

•One Quick Installation and Registration Card (not shown)

•One External Cable or DSL Modem with Ethernet Port and Network Cable

(UTP CAT 5 RJ-45)

•TCP/IP Network Protocol with Ethernet Network Adapter and Cable (UTP

CAT 5 RJ-45) Per PC

•Internet Explorer 4.0 or Higher (5.5 Recommended), or Netscape Navigator

4.7 and higher

Package Contents for the 1-Port Router (BEFSR11)

•One EtherFast Cable/DSL Router with 10/100 4-Port Switch

•One Power Adapter

•One User Guide

•One Setup Wizard CD-ROM

•One TechHelper CD-ROM (not shown)

•One Quick Installation and Registration Card (not shown)

•One External Cable or DSL Modem with Ethernet Port and Network Cable

(UTP CAT 5 RJ-45)

•TCP/IP Network Protocol with Ethernet Network Adapter and Cable (UTP

CAT 5 RJ-45) Per PC

•Internet Explorer 4.0 or Higher (5.5 Recommended), or Netscape Navigator

4.7 and higher

Package Contents for the 4-Port Router (BEFSR41)

Minimum Requirements Minimum Requirements

Figure 1-1

Figure 1-2

EtherFast

Cable/DSL Routers

Instant Broadband™Series

Chapter 2:Getting to Know the

4-Port EtherFast®Cable/DSL

Router

Your Router’s ports, where network cables are connected, are located on the

rear panel of your Router.

WAN The WAN (Wide Area Network) port is where you

connect your RJ-45 Internet connection through a

cable or DSL modem. Your modem connection

will not work from any other port.

Ports 1-4 These four LAN (Local Area Network) ports con-

nect to network devices, such as PCs, print servers,

and remote hard drives. If Port 1is being used, the

Uplink port will not work because these two shared

ports have internally shared wiring.

Uplink The Uplink port is used to expand your network by

connecting to another switch or hub. Uplinking to a

switch or a hub is done by simply running a cable

from the Uplink port to the other device. See the

Uplinking: Connecting More Devices to the Router

section for more on uplinking.

If the Uplink port is being used, Port 1 will not

work.

Power The Power port is where you will connect the

power adapter.

•One EtherFast Cable/DSL Router with USB Port & 10/100 3-Port Switch

•One USB Cable

•One 3.5" Floppy Disk for USB Setup

•One Power Adapter

•One User Guide

•One Setup Wizard CD-ROM

•One TechHelper CD-ROM (not shown)

•One Quick Installation and Registration Card (not shown)

•One External Cable or DSL Modem with Ethernet Port and Network Cable

(UTP CAT 5 RJ-45)

•TCP/IP Network Protocol with Ethernet Network Adapter and Cable (UTP

CAT 5 RJ-45) Per PC

•Internet Explorer 4.0 or Higher (5.5 Recommended), or Netscape Navigator

4.7 and higher

Package Contents for the 3-Port Router (BEFSRU31)

Minimum Requirements

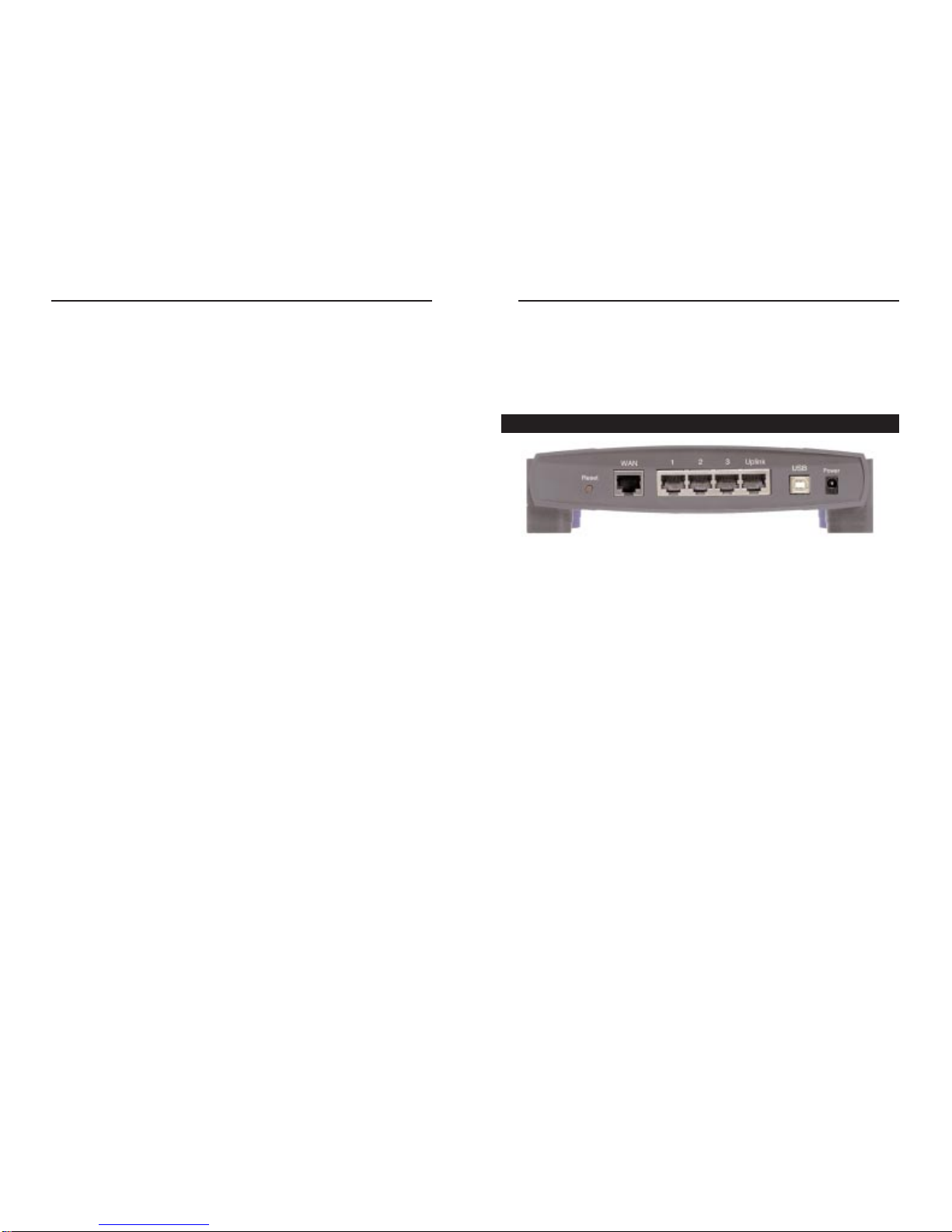

The 4-Port Router’s Rear Panel

Figure 1-3

Figure 2-1

EtherFast

Cable/DSL Routers

Instant Broadband™Series

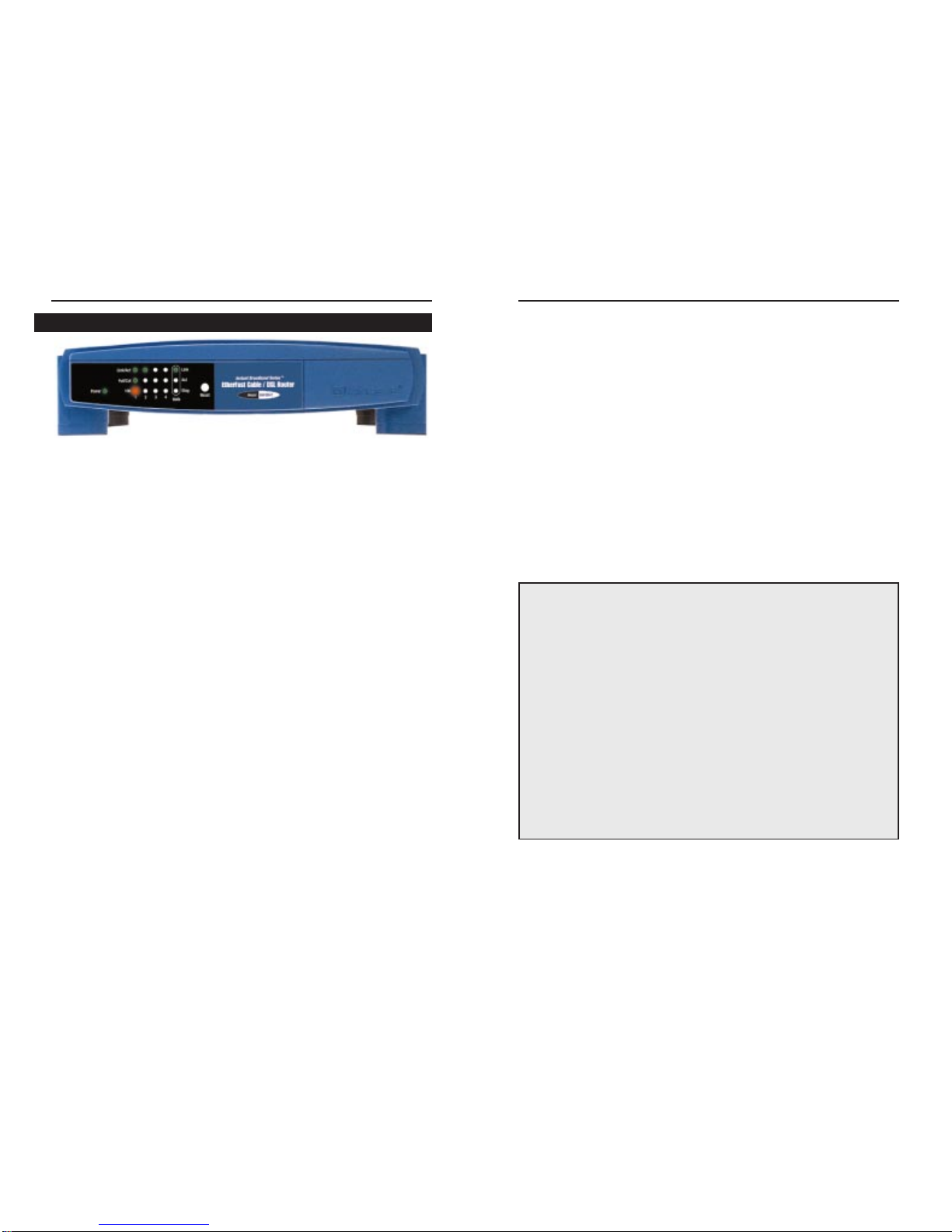

The WAN Indicators

Link Green. The Link LED lights up when a successful connec-

tion is made between the Router and your broadband device

or network.

Act Green. The Act LED flickers when the Router is sending or

receiving data over the broadband WAN port (to the

Internet).

Diag Red. The Diag LED lights up when the Router goes through

its self-diagnosis mode during every boot-up. It will turn off

upon successful completion of the diagnosis.

If this LED stays on for an abnormally long period of time,

see “Appendix A: Troubleshooting.”

The Reset Button*

The Reset button can be used in one of two ways.

1. If your Router is having problems connecting to the Internet, press the Reset

button for just a moment with a paper clip or a pencil tip. This clears up any

jammed connections, and is similar to pressing the Reset button on your PC

to reboot it.

2. If you are experiencing extreme problems with your Router and have tried

all other troubleshooting measures, press the Reset Button and hold it down

until the red Diag LED on the front panel turns on and off completely.

This will restore factory defaults and clear all of the Router’s settings, includ-

ing the IP addresses you entered.

* The Reset Button is located on the front panel of the 4-Port Router, and the rear panels of the 3-

Port Router and the 1-Port Router.

Power Green.The Power LED lights up when the Router is powered

on.

Link/Act Green. The Link/Act LED serves two purposes. If the LED

is continuously lit, the Router is successfully connected to a

device through the corresponding port (1, 2, 3or 4). If the

LED is flickering, the Router is actively sending or receiving

data over that port. Port 1 is lit when using the Uplink port.

Full/Col Green. The Full/Col LED also serves two purposes. If this

LED is lit up continuously, the connection made through the

corresponding port is running in Full Duplex mode. If the

LED flickers, the connection is experiencing collisions.

Infrequent collisions are normal.

If this LED flickers too often, there may be a problem with

your connection. See “Appendix A: Troubleshooting” if you

encounter this problem.

100 Orange. The 100 LED lights up when a successful 100 Mbps

connection is made through the corresponding port.

If this LED does not light up, then your connection speed is

10 Mbps.

The 4-Port Router’s Front Panel LEDs

Figure 2-2

EtherFast

Cable/DSL Routers

Instant Broadband™Series

Buttons & Switches

The Reset Button Details on the Reset button are found in the

“Getting to Know the 4-Port EtherFast Cable/DSL

Router” section.

The Crossover Switch

When “uplinking,” or connecting two pieces of network hardware together,

such as a hub and a switch, a general rule of thumb is to plug one end of a

network cable into a straight-through port, and the other end into a crossover

port. Standard ports are straight-through ports, and uplink ports are crossover

ports.

The

Port

Power Green. The Power LED lights up green when the Router is

powered on.

Important: The chart in Figure 3-2 is for reference purposes

only. Every network is different. If you do not make a connec-

tion to a hub or switch by using the settings above, change the

position of the Crossover Switch.

The 1-Port Router’s Front Panel LEDs

Chapter 3:Getting to Know the

1-Port EtherFast Cable/DSL

Router

The rear panel of the Router is where all of the Router’s cabling connections

are made, and where you can reset or configure the Router’s LAN port.

WAN The WAN (Wide Area Network) port is where you

connect your RJ-45 Internet connection through a

cable or DSL modem. Your modem connection

will not work from any other port.

LAN The LAN (Local Area Network) port is where you

connect your Router to a PC, hub, or switch. If you

have more than one PC, connect an Ethernet hub or

switch to your Router, and then connect your PCs to

that hub or switch.

Power The Power port is where you will connect the

power adapter.

The One-Port Router’s Rear Panel

Figure 3-1

Figure 3-2

Figure 3-3

EtherFast

Cable/DSL Routers

Instant Broadband™Series

Link/Act Green. The Link/Act LED serves two purposes. If the LED

is continuously lit, the Router is successfully connected to a

device through the LAN port. If the LED is flickering, the

Router is actively sending or receiving data through the LAN

port.

Full/Col Green. The Full/Col LED also serves two purposes. If this

LED remains lit, a LAN port connection is being successful-

ly maintained. If the LED flickers, the connection is experi-

encing collisions. Infrequent collisions are normal.

If this LED flickers too often, there may be a problem with

your connection. See “Appendix A: Troubleshooting” if you

encounter this problem.

10/100 Orange. The 10/100 LED lights up when a successful

100 Mbps connection is made through the corresponding

port.

If a connection is running at 10 Mbps, the 10/100 LED will

not light up.

The WAN Indicators

Link Green. The Link LED lights up when a successful connec-

tion is made between the Router and your broadband device

or network.

Act Green. The Act LED flickers when the Router is sending or

receiving data over the broadband WAN port.

Diag Red. The Diag LED lights up when the Router goes through

its self-diagnostic mode. It will turn off upon successful

completion of the diagnosis.

If this LED stays on for an abnormally long period of time,

see “Appendix A: Troubleshooting.”

Chapter 4:Getting to Know the

3-Port EtherFast Cable/DSL

Router

Ports 1-3 These three LAN ports connect to your PCs, hubs,

switches, print servers, or any other devices with an

Ethernet port.

Uplink The Uplink port connects to another hub or switch

for port expansion when you run out of open ports

for your network devices. Since the Uplink port and

the standard port right next to it share internal wiring,

you can only use one of the two ports at a time.

WAN The WAN (Wide Area Network) port is where you

connect your RJ-45 Internet connection through a

cable or DSL modem. Your modem connection

will not work from any other port.

Power The Power port is where you will connect the

power adapter.

USB The USB port (Type B - slave) can connect to a

USB-ready PC or a USB hub. This allows you to

enjoy an immediate, plug-and-play connection with-

out even installing a network adapter for your PC.

To work with USB ports, your PC must be running

Windows 98, 2000, Millennium, or XP.

The 3-Port Router’s Rear Panel Ports

Figure 4-1

EtherFast

Cable/DSL Routers

Instant Broadband™Series

Buttons

The Reset Button Details on the Reset button are found in the

“Getting to Know the 4-Port EtherFast Cable/DSL

Router” section.

Power Green. The Power LED lights up green when the Router is

powered on.

Link/Act Green. The Link/Act LED serves two purposes. If the LED

is continuously lit, the Router is successfully connected to a

device through the corresponding RJ-45 port (1, 2, or 3). If

the LED flickers, then that port is sending or receiving data

to and from the network.

Full/Col Green. The Full/Col LED also serves two purposes. If this

LED is continuously lit, the connection made through the

corresponding port is successfully running in Full Duplex

mode. If the LED is flickering, the connection is experien-

cing collisions. Infrequent collisions are normal.

If this LED flickers too often, there may be a problem with

your connection. See “Appendix A: Troubleshooting” if you

have problems.

100 Orange. The 100 LED lights up when a successful 100 Mbps

connection is made through the corresponding port. If this

LED does not light up, then your connection speed is

10 Mbps.

This USB icon denotes the presence of a USB port or connector.

Your 3-Port Router comes with a USB cable that has two different types of con-

nectors. TypeA, the master connector, is shaped like a rectangle and plugs into

your PC’s USB port. Type B, the slave connector, resembles a square and con-

nects to the USB port on the rear panel of your Router.

USB Compatibility with Your PC

To use the USB port on the 3-Port Router, you must have Windows 98, 2000,

Millennium, or XP installed on your PC. USB cannot run in a Windows 95 or NT

environment.

Also, your PC must have a USB port installed and enabled. Some PCs may have a dis-

abled USB port. If your port doesn’t seem to be working, there may be jumpers on the

motherboard or a menu option in the BIOS to enable a PC’s USB port.

Other motherboards have USB interfaces, but no ports. You can purchase and install

a USB-ready card at your local computer store. See your PC’s user guide for instruc-

tions.

USB Type A USB Type B

Important: USB ports do not work on PCs running

Windows 95 or Windows NT.

The 3-Port Router’s Front Panel LEDs

Figure 4-2

Figure 4-3

Figure 4-4

Andere Handbücher für BEFSR41 - EtherFast Cable/DSL Router

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Linksys Netzwerk-Router Handbücher

Linksys

Linksys E2500 Bedienungsanleitung

Linksys

Linksys WRT54GL - Wireless-G Broadband Router... Bedienungsanleitung

Linksys

Linksys BEFSR41 - EtherFast Cable/DSL Router Leitfaden

Linksys

Linksys BEFN2PS4 - EtherFast Cable/DSL And Voice... Bedienungsanleitung

Linksys

Linksys VELOP Bedienungsanleitung

Linksys

Linksys WET54GS5 - Wireless-G EN Bridge Bedienungsanleitung

Linksys

Linksys WET200 - Wireless-G Business Ethernet Bridge Bedienungsanleitung

Linksys

Linksys WET11 - Instant Wireless EN Bridge Network... Original Betriebsanleitung

Linksys

Linksys WRVS4400N - Small Business Wireless-N Gigabit Security... Bedienungsanleitung

Linksys

Linksys WET11 - Instant Wireless EN Bridge Network... Bedienungsanleitung

Linksys

Linksys BEFVP41 - EtherFast Cable/DSL VPN Router Original Betriebsanleitung

Linksys

Linksys BEFSR41 - EtherFast Cable/DSL Router Bedienungsanleitung

Linksys

Linksys SFE2010 Handbuch

Linksys

Linksys BEPSR11 Bedienungsanleitung

Linksys

Linksys EA4500 Bedienungsanleitung

Linksys

Linksys RV082 Bedienungsanleitung

Linksys

Linksys FGW5500 Bedienungsanleitung

Linksys

Linksys WRT160N - Wireless-N Broadband Router... Kurzanleitung

Linksys

Linksys XAC Series Bedienungsanleitung

Linksys

Linksys SPA2102-AN - Single Port Router Bedienungsanleitung

Linksys

Linksys BEFSX41 - Instant Broadband EtherFast Cable/DSL Firewall... Bedienungsanleitung

Linksys

Linksys RV082 Original Betriebsanleitung

Linksys

Linksys RVS4000 Bedienungsanleitung

Linksys

Linksys SLM2008 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
