WET11

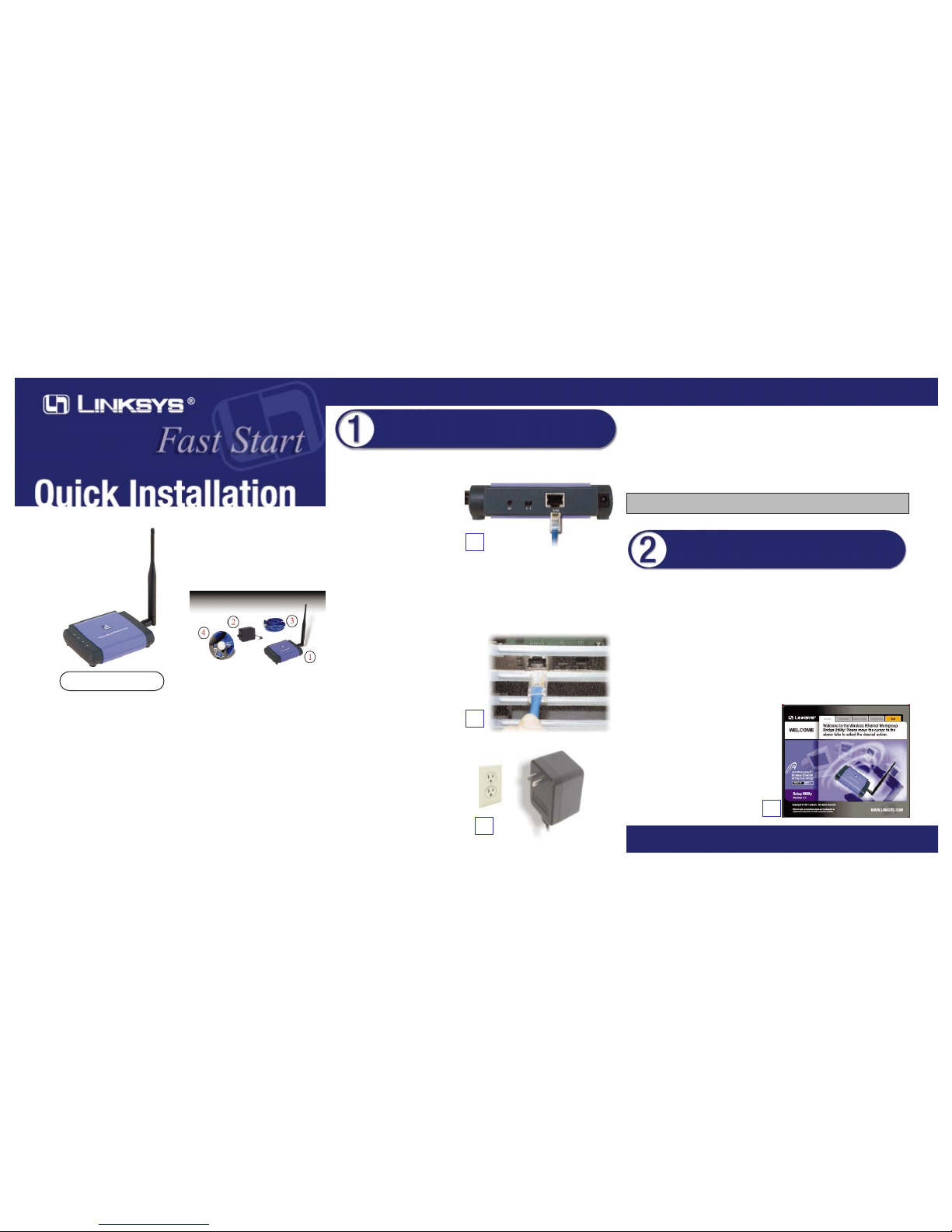

Included with the Linksys WET11 Wireless

Ethernet Workgroup Bridge

• Linksys Instant Wireless™ Wireless Ethernet

Workgroup Bridge (1)

• One External Antenna (attached)

• One Power Adapter (2)

• One UTP Category 5 Cable (3)

• One Setup CD-ROM with User Guide (4)

• Quick Installation and Registration Card (not

shown)

A. Plug a crossover or straight

cable into the RJ-45 jack on

the back panel of the

Workgroup Bridge.

B.The X-|| selection switch offers a choice between two settings. Use

the X setting if you are connecting the Workgroup Bridge to a net-

work card or other Ethernet device. Use the || setting if you are

connecting the Workgroup Bridge to a hub or switch.

C. Plug the other end of the

crossover or straight cable

into the RJ-45 jack on the

PC you wish to use to con-

figure the Workgroup

Bridge.

D. Plug the supplied AC power

adapter into the jack on the

back panel of the

Workgroup Bridge. Then

plug the other end into a

power outlet.

E. Proceed to the next section, “Install the Wireless Ethernet

Workgroup Bridge.”

F.After configuration, unplug the crossover or straight cable from the

PC, and plug it into the RJ-45 jack on the Ethernet-ready network

device you wish to add to the WLAN.

A Insert the Setup CD-ROM into your CD-ROM drive.The Setup

Utility should run automatically, and theWelcome screen should

appear. If it does not, click the Start button and choose Run. In the

box that appears, enter D:\setup.exe (where “D” is the letter of your

CD-ROM drive).

B. To install yourWireless

Ethernet Workgroup Bridge,

click on the Install tab.

WWiirreelleessss

EEtthheerrnneett

WWoorrkkggrroouupp

BBrriiddggee

Instant Wireless

Connect the Wireless Ethernet

Workgroup Bridge

Your installation is complete. For setup information or any other

questions, refer to your products User Guide.

WWW.LINKSYS.COM

Installation Process

For more detailed instructions, please refer to the Instant Wireless Wireless

Ethernet Workgroup Bridge User Guide.

Install the Wireless Ethernet

Workgroup Bridge

The configuration of the Wireless Ethernet Workgroup Bridge requires use

of a PC and web browser.

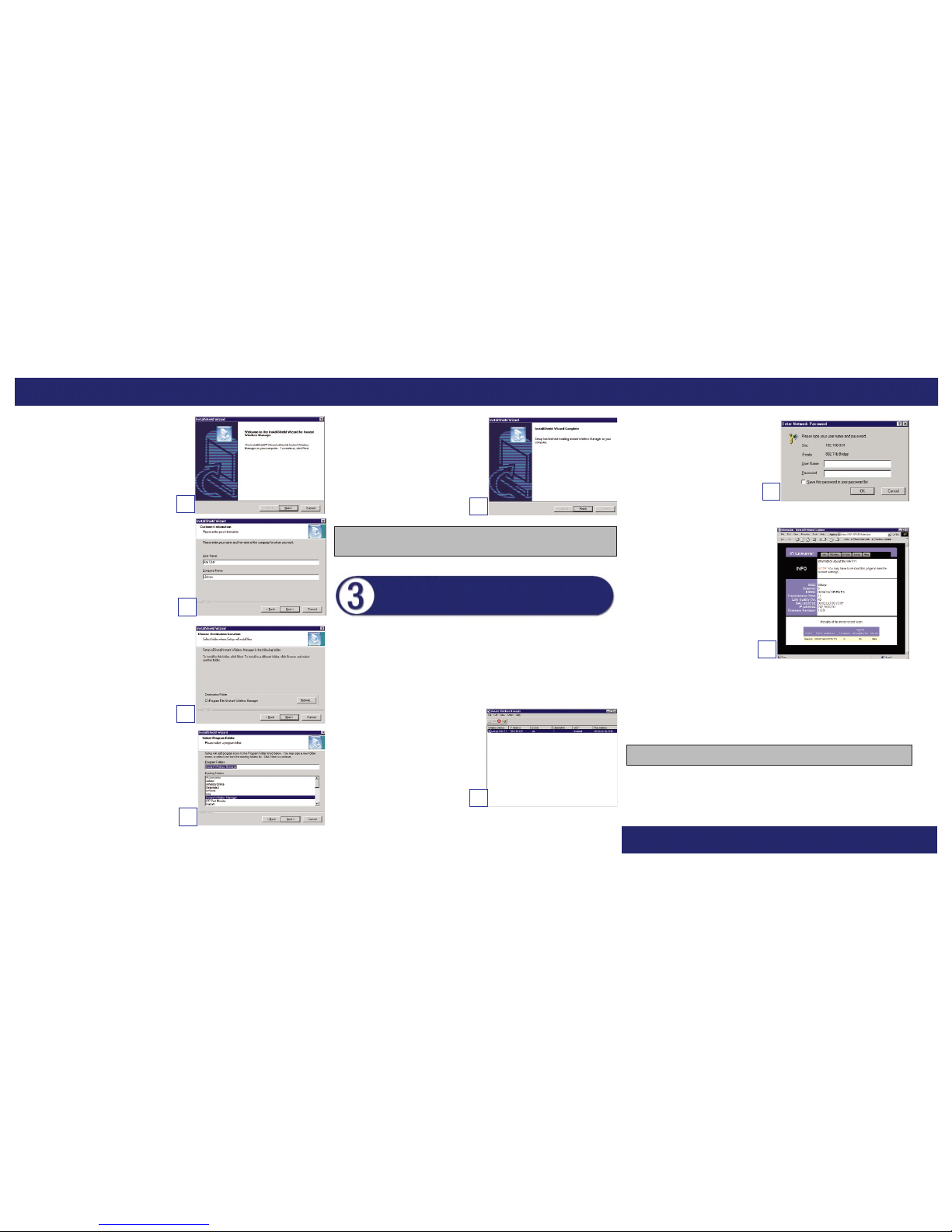

C. When you see this screen,

click the Next button.

D. Enter your User Name and

Company Name.Then click

the Next button.

E. The InstallShield Wizard

will automatically choose a

folder where Setup will

install the utility files. Click

Browse if you want to choose

a different folder. Then click

the Next button.

F. The InstallShield Wizard

will automatically choose a

folder where Setup will

install the program icons. If

you want to create a new

folder, type the new folder’s

name in the Program

Folders: field. Click the Next

button to continue.

G.The InstallShield Wizard has

successfully installed the

Instant Wireless Manager.

Click the Finish button.

A. The Instant Wireless Configuration Utility enables you to conve-

niently configure your LAN connection. It must be accessed from

the Instant Wireless Manager. On the desktop of the PC connected

to the Workgroup Bridge, double-click the Instant Wireless Manager

icon.The InstantWireless Manager will automatically search for

wireless devices on the LAN.

B. When the Instant Wireless

Manager finds an

Workgroup Bridge, its infor-

mation is displayed. In the

list window, double-click the

name of the Wireless

Ethernet Workgroup Bridge

you wish to configure.Then

your default web browser

will automatically open.

C. You will see the following screen.

Type in your User Name and

Password.The first time you access

the Instant Wireless Configuration

Utility, leave the User Name field

blank, and type in the default

Password, admin. Click OK.

Make sure you enter the default

password in lowercase letters.

D. The INFO screen of the Workgroup

Bridge’s Instant Wireless

Configuration Utility will appear.

E. The Instant Wireless Configuration Utility provides five screens for

configuring the Workgroup Bridge’s settings. When you have fin-

ished the configuration, unplug the crossover or straight cable from

the PC, and plug it into the RJ-45 jack on the Ethernet-ready net-

work device you wish to add to theWLAN.

You have now completed installation of the Instant Wireless Manager.

Proceed to the next section, Start the Instant Wireless

Configuration Utility.

WWW.LINKSYS.COM

Start the Instant Wireless

Configuration Utility

Your installation is complete. For setup information or any other questions,

refer to your products User Guide.

QI-WET11-011205NC JL
