EtherFast®Wireless-

Ready USB PrintServer

Use this Guide to install:

Model No.: PPS1UW

User Guide

Instant EtherFast®Series

istered trademarks of Linksys. Microsoft, Windows, and the Windows logo are registered

trademarks of Microsoft Corporation. All other trademarks and brand names are the

property of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant EtherFast® EtherFast®Wireless-Ready USB

PrintServer will be free from physical defects in material and workmanship for one year

from the date of purchase, when used within the limits set forth in the Specifications sec-

tion of this User Guide. If the product proves defective during this warranty period, call

Linksys Technical Support in order to obtain a Return Authorization number. BE SURE TO

HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. RETURN REQUESTS

CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a prod-

uct, mark the Return Authorization number clearly on the outside of the package and

include a copy of your original proof of purchase. All customers located outside of the

United States of America and Canada shall be held responsible for shipping and han-

dling charges.

IN NO EVENT SHALL LINKSYS’S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. Linksys makes no warranty or representation,

expressed, implied, or statutory, with respect to its products or the contents or use of this

documentation and all accompanying software, and specifically disclaims its quality,

performance, merchantability, or fitness for any particular purpose. Linksys reserves the

right to revise or update its products, software, or documentation without obligation to

notify any individual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623

FCC STATEMENT

The Instant EtherFast® EtherFast®Wireless-Ready USB PrintServer has been tested and

complies with the specifications for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These rules are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radi-

ate radio frequency energy and, if not installed and used according to the instructions,

may cause harmful interference to radio communications. However, there is no guaran-

tee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which is found by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG_PPS1UW_ 041202E JL

Table of Contents

Chapter 1: Introduction 1

The Instant EtherFast® Wireless-Ready USB PrintServer 1

Features 1

Package Contents 2

Chapter 2: Getting to Know the EtherFast®

Wireless-Ready USB PrintServer 3

The Wireless-Ready USB PrintServer’s LEDs 3

The Wireless-Ready USB PrintServer’s Ports 4

Chapter 3: Hardware Installation 5

Overview 5

Finding the Wireless-Ready USB PrintServer’s Default Name 5

Connecting the Wireless-Ready USB PrintServer toYour Network 6

Chapter 4: Windows Driver Setup 7

Overview 7

The Autorun Bi-Admin Management Utility Installation 8

Installing the Wireless-Ready USB PrintServer’s Drivers 10

Chapter 5: Bi-Admin: PrintServer Management 16

Overview 16

Starting the Bi-Admin Management Utility 16

Using Bi-Admin 18

Setting the Wireless-Ready USB PrintServer’s IP Address 20

Changing the Device Name 21

Enabling and Disabling Protocols 21

Attaching Bi-Admin to a Remote Linksys PrintServer 22

Resetting the Wireless-Ready USB PrintServer 22

Restoring Factory Default 22

Chapter 6: Configuring the EtherFast®Wireless-Ready

USB PrintServer Using the Web-Based Utility 23

Accessing the Web-Based Utility 23

The Server Page 24

The Printer Page 24

The TCP/IP Page 25

The Wireless Page 26

The Status Page 27

Chapter 7: Advanced Properties 28

The AppleTalk Page 28

The Internet Printing Page 29

The Logical Printers Page 30

The NetBEUI Page 31

The SNMP Page 32

Chapter 8: Internet Printing Protocol (IPP) 34

Windows IPP Client Setup 34

Chapter 9: DHCP Support for the EtherFast®

Wireless-Ready USB PrintServer 40

Appendix A: Troubleshooting 41

Hardware Issues 41

General Printing Issues 41

Appendix B: About Bi-Directional Printing 42

Appendix C: About the Wireless-Ready USB

PrintServer Software 43

Appendix D: Glossary 44

Appendix E: Specifications 52

Appendix F: Environmental 53

Appendix G: Warranty Information 54

Appendix H: Contact Information 55

Instant EtherFast

Series EtherFast

Wireless-Ready USB PrintServer

Chapter 1:Introduction

Congratulations on your purchase of the Instant EtherFast®Wireless-Ready

USB PrintServer, the fastest and easiest way to network your printers. Now

you can share your printing resources without tying up your workstation per-

formance with pending print jobs.

The Instant EtherFast®Wireless-Ready USB PrintServer comes with an easy-

to-use software management suite that runs seamlessly with virtually all

Windows operating systems. Fully compatible with standard laser, bubble jet,

ink jet, and dot matrix printers, the Instant EtherFast®Wireless-Ready USB

PrintServer also supports your bi-directional printers.

• Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment

(when used with the Instant Wireless™ Network PC Card)

• Configurable ThroughYour Networked PC’s Web Browser

• Runs with Virtually All USB-Compliant Laser, Ink Jet, Bubble Jet, and

Color Printers

• Supports Multiple Print Jobs Simultaneously

• Integrates Through Both Ethernet and Wireless Connections (when used

with the Instant Wireless™ Network PC Card)

• Works with Virtually All Major Operating Systems

• Stand-Alone Unit—No Dedicated PrintServer PC Needed

• Easy-to-Use Built-In Remote Management Utility

• 256KB RAM Buffer for Faster Graphics Performance

• 512KB Flash Memory for Future Upgrades

The Instant EtherFast®Wireless-Ready USB PrintServer

Instant EtherFast

Series EtherFast

Wireless-Ready USB PrintServer

Features

• One EtherFast®Wireless-Ready USB PrintServer

• One AC Power Adapter

• One User Guide (on CD-ROM)

• One Quick Installation and Registration Card (not shown)

Package Contents

Figure 1-1

Chapter 2: Getting to Know the

EtherFast®Wireless-Ready USB

PrintServer

LAN Green.The LAN LED serves two purposes.

If the LED is continuously illuminated, the

PrintServer is successfully connected to a

device through the LAN port. If the LED is

flickering, the PrintServer is actively send-

ing or receiving data to the wired network.

WLAN Amber. The WLAN LED will flicker when

the PrintServer is actively sending data to

or receiving data from the wireless net-

work.

ACT Green. The ACT LED will remain continu-

ously lit when a printer is correctly con-

nected to the PrintServer. The LED will

flicker when print jobs are being transmit-

ted to the printer, over both the wired and

wireless networks.

Err Red.The Error LED lights up when there is a problem printing to the

indicated printer.

The Wireless-Ready USB PrintServer’s LEDs

Instant EtherFast

Series EtherFast

Wireless-Ready USB PrintServer

USB This USB Port connects to your printer.

LAN This port connects to your wired network using a stan-

dard Category 5 network cable.

Reset Button Press this button to reset the PrintServer to factory

defaults and generate a diagnostic printout, which is

discussed below.

Power This port connects the power adapter.

PCMCIA (side panel) This port, located on the side of the PrintServer, is

where you will plug in the Instant Wireless™ Network

PC Card for wireless functionality.

The Wireless-Ready USB PrintServer’s Ports

To reset the factory default settings:

1. Unplug the PrintServer.

2. Press and hold the diagnostic button. While pressing the button, plug in the

PrintServer.

3. If you continue pressing the button for 10 seconds, the PrintServer will be

reset to factory defaults.

To generate a Diagnostic print out

1. Ensure that both the PrintServer and the printer attached to the Printer port

are ON.

2. Press the diagnostic button, and hold it in for 2 seconds.

3. The test page, containing the current settings, will be printed.

PostScript printers are unable to print this page. If you have a PostScript print-

er on the Printer port, the test page will not be printed.

Figure 2-1

Figure 2-2

EtherFast

Wireless-Ready USB PrintServer

The PrintServer does not have an ON/OFF power switch. Whenever its power

adapter is plugged into a power supply, the PrintServer is powered on. The

PrintServer can be powered on before, during, or after your network is powered

on.

Connecting the PrintServer to Your Network

1. Plug one end of a UTP Category 5 (or better) cable into the PrintServer’s

LAN Port.

2. Connect the other end of the cable into a networked hub or switch.The dis-

tance between the PrintServer and the second device should not exceed 328

feet (100 meters).

3. The LAN LED will become active. If the LAN LED does not light up, see

Appendix A: Troubleshooting for more information.

Connecting a Printer to the PrintServer

1. Connect your printer to the PrintServer’s USB port with your USB cable.

2. Power on your printer.

Connecting the Power

1. Plug the power adapter cord into the PrintServer’s Power port.

2. Plug the power adapter into the wall.

The PrintServer’s hardware installation is now complete, and you are now

ready to install the PrintServer’s software.

Important: Only use the power adapter packaged with the

PrintServer. Using a different power adapter could dam-

age the PrintServer.

Chapter 3: Hardware Installation

Before starting the physical installation, be sure to find the PrintServer’s

Default Name first. The information may be hard to access after the

PrintServer is completely installed in your network and surrounded by wires

and computers.

On the bottom of the PrintServer, there is a white bar code sticker with an SC

number printed on it (for example, SCA71107). This number is the

PrintServer’s Default Name, which you’ll use in the PrintServer driver installa-

tion. Since it is written in hexadecimal form, the SC number may include let-

ters as well as numbers. You can use bi-admin software to find the default

name. For more information, see Chapter 5: Bi-Admin: PrintServer

Management.

Overview

Finding the Wireless-Ready USB PrintServer’s Default

Name

Instant EtherFast

Series

Important: Without setting up the wireless functionality with an Instant

Wireless™ Network PC Card, the PrintServer will only function through

your 10/100 Ethernet network. After connecting and configuring an

Instant Wireless™ Network PC Card, the PrintServer will be able to take

advantage of wireless functionality.

Connecting the Wireless-Ready USB PrintServer to Your

Network

1. Insert the Setup Utility CD. A built-in autorun will begin the installation of

the PrintServer’s Bi-Admin Management Utility, and display Figure 4-1.

Click the product you wish to install, followed by the Install tab to continue.

2. The installation routine will begin to run and display Figure 4-2. Close any

other programs you might have running during this installation procedure, and

click the Next button to continue or Cancel to forgo installation.

The Autorun Bi-Admin Management Utility Installation

EtherFast

Wireless-Ready USB PrintServer

Chapter 4: Windows Driver Setup

This section installs the PrintServer’s software on your Windows 95, 98,

Millennium, NT, 2000, or XP computers to give them PrintServer printing abil-

ities. The PrintServer is fully compatible with Windows 95, 98, Millennium,

NT 4.0, 2000, and XP environments.

At this point, you must have:

• the PrintServer hardware installed on your network. If not, see Chapter 3:

Hardware Installation.

• TCP/IP installed on each of your computers.

• an IP address assigned to each of the computers on your network. If not, see

Chapter 9: DHCP Support for the Wireless-Ready PrintServer.

• an IP address assigned to the PrintServer. By default the PrintServer has

DHCP enabled. If you need to assign an IP address, go to Chapter 5: Bi-

Admin: PrintServer Management.

This setup should be completed on the network administrator’s computer

before all other users’ computers on the network. The PrintServer’s IP address

will be assigned in this first installation on the network administrator’s com-

puter only, which takes three extra steps.

It is assumed that your CD-ROM drive’s letter name is designated as “D”. If

your CD drive is named another letter, replace all instances of “D” with the

appropriate letter.

If you need to install the PrintServer’s driver on computers without a CD-ROM

drive, you can create a setup disk by using a computer with a CD-ROM drive

to copy the contents of D:\Driver\Win9xNT onto a floppy disk.

Overview

Instant EtherFast

Series

Figure 4-1

Figure 4-2

EtherFast

Wireless-Ready USB PrintServer

1. To begin driver installation, click the Start button, and select Run. Type

D:\Driver\Win9xnt\setup.exe (where “D” is the letter of your CD-ROM

drive) in the Open field that appears. Click the OK button.

2. The Welcome screen appears. Read the text that appears, and click the

Next button.

Installing the Wireless-Ready USB PrintServer’s Drivers

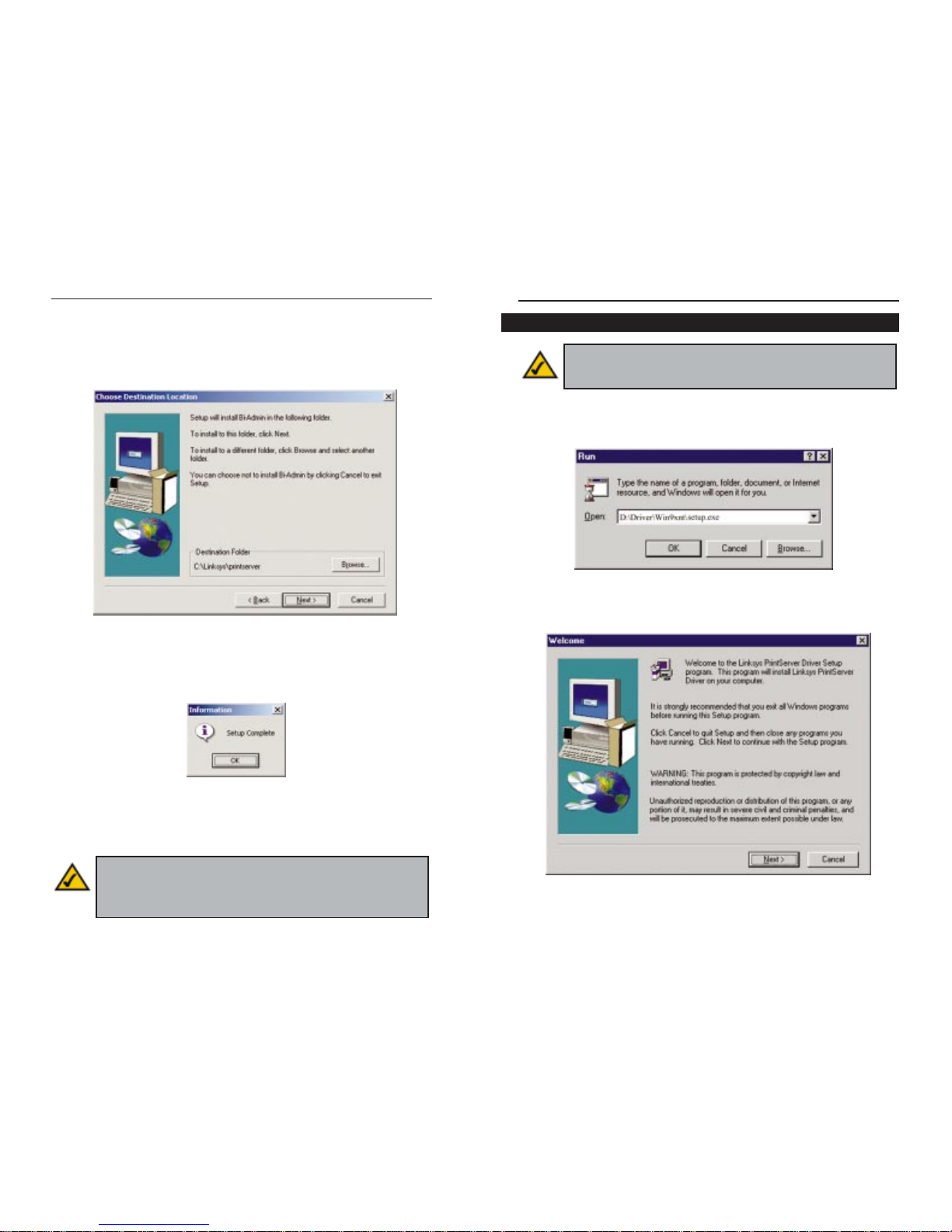

3. The next screen that appears, shown in Figure 4-3, will request you to choose

a destination folder. You can either use the default folder by clicking the

Next button or choose an alternate folder by clicking the Browse button and

selecting a folder from the window that pops up. Click the Back button to

take a step backward in the installation, or Cancel to forgo installation.

4. The Bi-Admin Management Utility will now be installed. When it is com-

plete, you will see Figure 4-4. Click the OK button and continue to the next

section, Installing the Wireless-Ready PrintServer’s Drivers.

For more information about Bi-Admin Management, go to Chapter 5: Bi-

Admin: PrintServer Management.

Note: After you have run the Autorun program and installed the Bi-

Admin Management Utility, the Autorun will still run every time you

insert the CD. Do NOT install the Bi-Admin Management Utility

again. Click the EXIT tab to prevent duplicate installation.

Instant EtherFast

Series

Figure 4-3

Figure 4-4

Figure 4-5

Figure 4-6

Note: Make sure you have an IP address for the computer and an IP

address for the PrintServer. If you need to assign an IP address to the

PrintServer, go to Chapter 5: Bi-Admin: PrintServer Management.

EtherFast

Wireless-Ready USB PrintServer

Instant EtherFast

Series

5. Driver installation is now completed, but the Print Driver still needs to be

configured. The PrintServer will not function properly until the Print

Driver is configured. Check the box beside Configure Print Driver Now,

and click the Finish button to continue.

6. Before setting up and configuring the Printer Port, follow the directions on

the screen, as shown in Figure 4-10, and click the OK button to continue.

3. Click Next to accept the default Destination Directory, shown in Figure 4-7

(recommended). If you choose to utilize another directory, click the Browse

button, and choose the appropriate directory. Then, click the Next button.

4. The following screen, shown in Figure 4-8, will assign a Program Folder

to the Windows Taskbar. The default Program Folder is the Linksys

PrintServer Driver. If you would like to use another name for the Program

Folder, type it in the Program Folders field or select one from the Existing

Folders field. Click the Next button to continue.

Figure 4-7

Figure 4-8

Figure 4-9

Figure 4-10

Instant EtherFast

Series

9. The Add Printer Wizard screen will come up at this point. Follow the stan-

dard procedure for adding printers under Windows. If you have any ques-

tions on adding printers, please refer to your printer’s documentation.

10. After your printer(s) have been added, you will return to the Configure

Printer Port screen. Click the Connect button to connect the printer(s).

EtherFast

Wireless-Ready USB PrintServer

7. The Printer Port Setup screen will display the PrintServer and all of the

printers with which it communicates. Here, you have the option of installing

the printer by highlighting its description and clicking the Next button.You

can also close this screen by clicking the Close button.

8. This will display the Configure Printer Port screen. Any installed printers

will be displayed in the Existing Printers field. To connect a printer, select

the printer from this field, and click the Connect button. You can install a

printer by clicking the Add New Printer button.

Figure 4-11

Figure 4-12

Figure 4-13

Figure 4-14

Andere Handbücher für PPS1UW - EtherFast Wireless-Ready USB PrintServer Print...

Inhaltsverzeichnis

Andere Linksys Druckserver Handbücher

Linksys

Linksys WPSM54G - Wireless-G PrintServer With Multifunction Printer Support Print... Bedienungsanleitung

Linksys

Linksys WPS54GU2 - Wireless-G PrintServer For USB 2.0 Print... Bedienungsanleitung

Linksys

Linksys WPS11 ver. 3 Original Betriebsanleitung

Linksys

Linksys WPS54G - Wireless-G PrintServer Print Server Bedienungsanleitung

Linksys

Linksys Instant EtherFast EPSX3 Bedienungsanleitung

Linksys

Linksys WPSM54G V1.1 Bedienungsanleitung

Linksys

Linksys WPS11 ver. 3 Bedienungsanleitung

Linksys

Linksys WPSM54G - Wireless-G PrintServer With Multifunction Printer Support Print... Bedienungsanleitung

Linksys

Linksys EFSP42 ver. 2 Bedienungsanleitung

Linksys

Linksys PPS1UW - EtherFast Wireless-Ready USB PrintServer Print... Original Betriebsanleitung

Linksys

Linksys WPS11 ver. 3 Bedienungsanleitung

Linksys

Linksys PSUS4 - PrintServer For USB Bedienungsanleitung

Linksys

Linksys PPS1UW - EtherFast Wireless-Ready USB PrintServer Print... Bedienungsanleitung

Linksys

Linksys Instant EtherFast EPSX3 Original Betriebsanleitung

Linksys

Linksys WPSM54G - Wireless-G PrintServer With Multifunction Printer Support Print... Bedienungsanleitung

Linksys

Linksys WPS11 ver. 3 Bedienungsanleitung

Linksys

Linksys WPS54GU2 - Wireless-G PrintServer For USB 2.0 Print... Original Betriebsanleitung

Linksys

Linksys WPSM54G - Wireless-G PrintServer With Multifunction Printer Support Print... Bedienungsanleitung

Linksys

Linksys Instant EtherFast EPSX3 Bedienungsanleitung

Linksys

Linksys WPS54GU2 - Wireless-G PrintServer For USB 2.0 Print... Bedienungsanleitung

Linksys

Linksys WPS54GU2 - Wireless-G PrintServer For USB 2.0 Print... Bedienungsanleitung

Linksys

Linksys WPS54G - Wireless-G PrintServer Print Server Bedienungsanleitung

Linksys

Linksys PSUS4 - PrintServer For USB Bedienungsanleitung

Linksys

Linksys WPS54G - Wireless-G PrintServer Print Server Bedienungsanleitung

Beliebte Druckserver Handbücher anderer Marken

Digitus

Digitus DN-13003-1 Bedienungsanleitung

Edimax

Edimax PS-1206PWg Bedienungsanleitung

Intellinet

Intellinet 509077 Bedienungsanleitung

Atlantis Land

Atlantis Land NETSERVER A02-PSU_GX02 Bedienungsanleitung

Buffalo

Buffalo LPV4-U2-300S Bedienungsanleitung

Zonet

Zonet ZPS1000 Bedienungsanleitung

TRENDnet

TRENDnet TEW-P11G Bedienungsanleitung

Axis

Axis 140 BJC Bedienungsanleitung

HP Jetdirect 280m - 802.11b Wireless Print... Bedienungsanleitung

MicroNet

MicroNet SP766W Bedienungsanleitung

NETGEAR

NETGEAR PS104 - Hub - EN Bedienungsanleitung

Axis

Axis AXIS 1610 Bedienungsanleitung

Buffalo

Buffalo LPV4-U2-300S Bedienungsanleitung

Axis

Axis 5600+ Bedienungsanleitung

LevelOne

LevelOne WPS-9123 Bedienungsanleitung

NETGEAR

NETGEAR PS105 Bedienungsanleitung

Xerox

Xerox FreeFlow Print Server V9 SP3 Bedienungsanleitung

SEH

SEH primos Bedienungsanleitung
