Linksys X2000 Bedienungs- und Sicherheitshinweise

Product Overview

Linksys X2000/X3000

X3000

Top

Ethernet If the LED is continuously lit, the

modem router is successfully connected to a

device through that port.

Wi-Fi Protected Setup™ Button Press this

button to have Wi-Fi Protected Setup™ search for

your Wi-Fi Protected Setup™-supported wireless

device. The LED is continuously lit when a Wi-

Fi Protected Setup™ connection is successfully

established. The LED blinks slowly while Wi-Fi

Protected Setup™ is setting up a connection, and

blinks rapidly in amber if an error occurs. The LED

is off when Wi-Fi Protected Setup™ is idle.

Wireless The Wireless LED lights up when the

wireless feature is enabled. It flashes when the

modem router is actively sending or receiving

data over the network.

WAN Lights up white when the modem router

is connected directly to an ADSL line. Lights up

blue when the modem router is set up as a router

only and is connected to the internet through a

separate modem.

Power The Power LED lights up when the

modem router is powered on. When the modem

router goes through its self-diagnostic mode

during every boot-up, the LED flashes. When the

diagnostic is complete, the LED is continuously

lit.

Product Overview

Linksys X2000/X3000

Back

DSL—Connects to the ADSL line.

Cable—To use the modem router as only a router, use a

network cable to connect this port to a separate modem’s

LAN/Ethernet port.

Ethernet—Using Ethernet cables (also called network

cables), these Ethernet ports connect the modem router

to computers and other Ethernet network devices on your

wired network.

USB—For network-attached storage, connect an external

USB drive to this port.

Power—The Power port connects to the included power

adapter.

Power button—Press | (on) to turn on the modem router.

(Button not available on North American models.)

Bottom

Reset—This button allows you to reset the router to

its factory defaults. Press and hold the Reset button for

approximately five seconds.

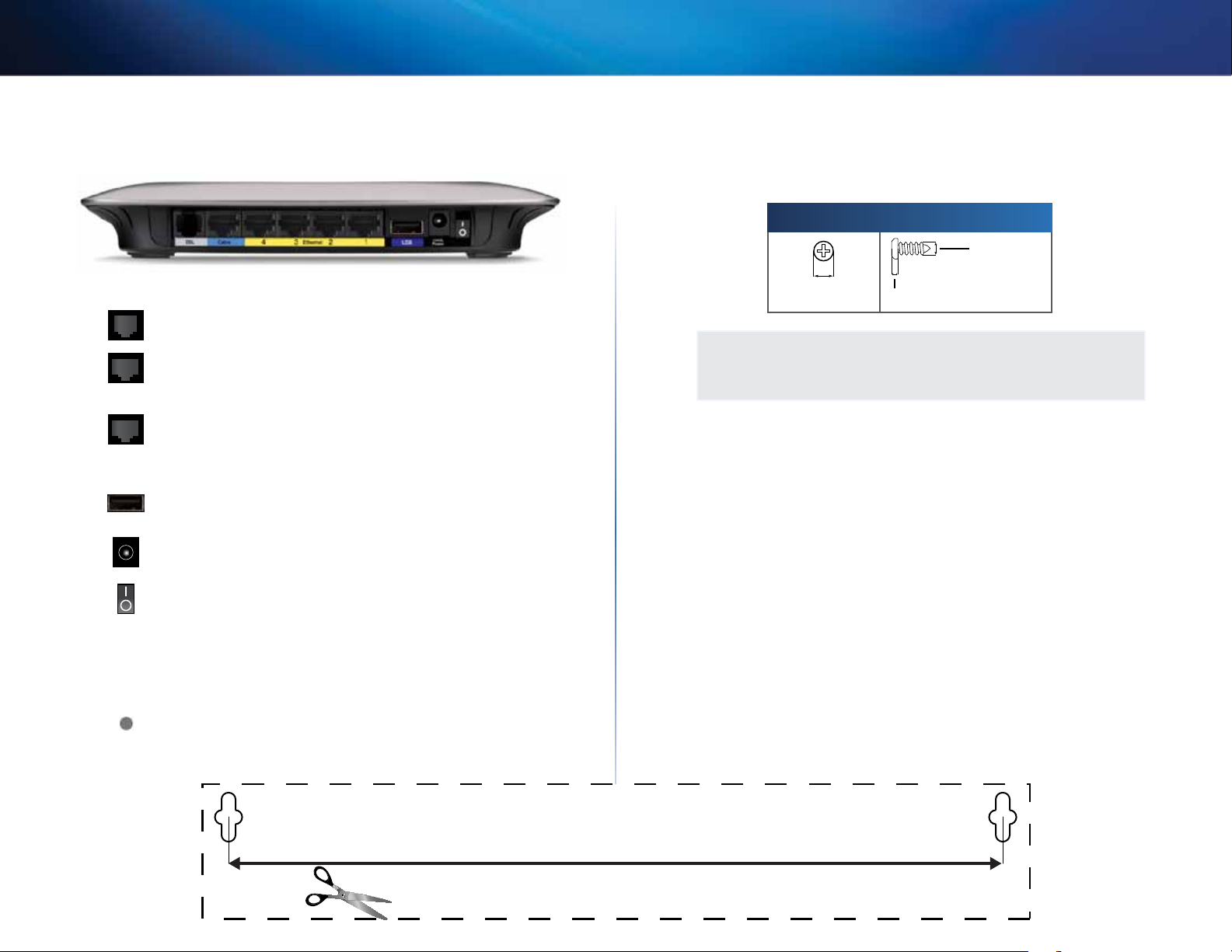

Wall-mounting placement

The router has two wall-mount slots on its bottom panel. The distance between

the slots is 175.56 mm. Two screws are needed to mount the router.

Suggested Mounting Hardware

2.5-3.0 mm

4-5 mm 1-1.5 mm

NOTE

Cisco is not responsible for damages incurred by unsecured wall-

mounting hardware.

Follow these instructions:

Determine where you want to mount the router. Make sure that the wall

you use is smooth, flat, dry, and sturdy. Also make sure the location is

within reach of an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are 175 mm apart.

3. Insert a screw into each hole and leave 3 mm of its head exposed.

4. Position the router so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the router down

until the screws fit snugly into the wall-mount slots.

175 mm

Wall-mounting template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

Specifications

Linksys X2000/X3000

X3000

Standards WLAN: 802.11n, 802.11g, 802.11b

Ethernet: 802.3, 802.3u, 802.3ab

ADSL: T1.413i2, G.992.1 (G.DMT), G.992.2

(G.Lite), G.992.3 (ADSL2), G.992.5 (ADSL2+)

for Annex A, B, M, L, U-R2 for Annex B

USB 2.0

Ports DSL, Cable, Gigabit (10/100/1000) Ethernet (1-4),

Power, USB

Buttons On/Oﬀ, Reset, Wi-Fi Protected Setup™

LEDs Power, Ethernet (1-4), Wi-Fi Protected Setup,

Wireless, Internet

Cabling Type CAT5, RJ-11 (for Annex A), RJ-45 (for Annex B)

Antennas 2 Internal

Modulations 802.11b: CCK/QPSK, BPSK

802.11g: OFDM/BPSK, QPSK, 16-QAM, 64-QAM

802.11n: OFDM/BPSK, QPSK, 16-QAM, 64-QAM

Transmit Power 802.11b: 12,5 ± 1,5 dBm

802.11g: 12,5 ± 1,5 dBm

802.11n: 12,5 ± 1,5 dBm

Receive Sensitivity 802.11b: -85 dBm (typical) @ 11 Mbps

802.11g: -70 dBm (typical) @ 54 Mbps

802.11n HT20: -68 dBm (typical) @ MCS15

802.11n HT40: -65 dBm (typical) @ MCS15

Antenna gain 802.11b/g/n: Right antenna 3,60 dBi

Left antenna 2,51 dBi

Security Features

WPA2™/WPA™ Personal and Enterprise;

128, 64 bits WEP; MAC Address Filtering;

SPI Firewall

OS Requirements Windows 7, Windows Vista, Windows Vista

(for Setup wizard) 64-bit edition, or Windows XP

Mac OS X 10.5 or higher

USB Storage Maximum supported capacity: 1 x 2 TB

Environmental

Dimensions 202 x 34 x 160 mm (8,0” x 1,3” x 6,3”)

Weight 335 g (11,8 oz)

Power 12VDC, 1,5A

Certiﬁcation FCC, CE, Telepermit, K.21, UL, CB,

Wi-Fi (802.11b/g/n), WPA™, WPA2™, WMM,

Wi-Fi Protected Setup™

Operating Temperature 0 to 40°C (32 to 104°F)

Storage Temperature -20 to 70°C (-4 to 158°F)

Operating Humidity 10 to 85% Noncondensing

Storage Humidity 5 to 90% Noncondensing

NOTES

For regulatory, warranty, and safety information, see the CD that

came with your modem router or go to Linksys.com/support.

Specifications are subject to change without notice.

Maximum performance derived from IEEE Standard 802.11

specifications. Actual performance can vary, including lower

wireless network capacity, data throughput rate, range and

coverage. Performance depends on many factors, conditions and

variables, including distance from the access point, volume of

network traffic, building materials and construction, operating

system used, mix of wireless products used, interference and other

adverse conditions.
