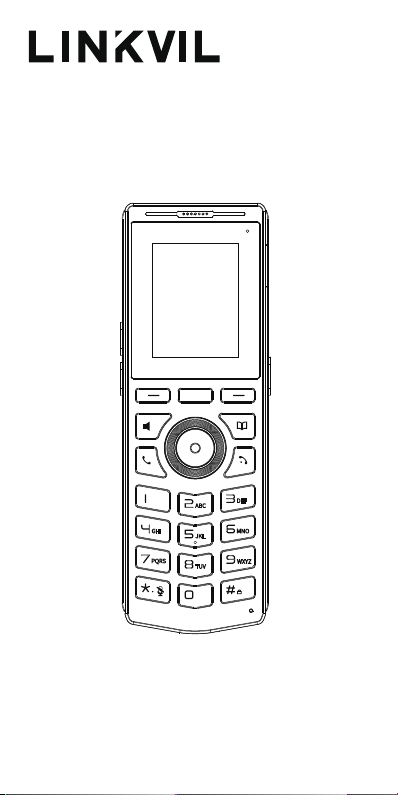

LINKVIL W610W Bedienungsanleitung
Portable Wi-Fi Phone
Quick Start Guide
V0.1
W610W

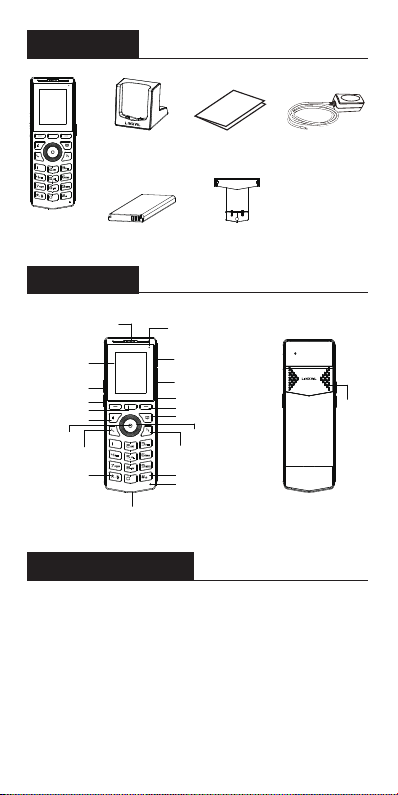

Packing list
Handset
Belt Clip
Quick Start Guide
Portable
Wi-Fi Phone Rechargeable Battery
Power Adapter
Charging Base
Earpiece Status Indicator
Speaker
Belt clamping hole
Headphone jack
PTT key
Soft key
Phone book
Keypad
Microphone
Charging interface
On-hook key/PowerOff-hook key
Mute key
Hands-free
DSS key
Screen
Volume Key +
Volume Key -
Navigation key
OK key
Install the battery
1. Remove the rear case: Remove the rear case of
the whole machine with a little force from the handle
position A of the rear case of the main unit.
2. Install the battery: Take out the battery from the
packaging box, with the battery with the notch facing up,
put the battery C at the battery compartment C.
3. Install the battery cover: Align the back cover
with the buckle on the back of the main unit, press your
hands along the edge of the main unit from top to
bottom (there will be a "click" sound during the process),
and ensure that there is no gap, it means that the back
cover is fastened.
Replacement battery
1. Remove the rear case: Remove the rear case of
the whole machine with a little force from the handle
position A of the rear case of the main unit.
Remove
the rear case Install the battery
Install the back cover
C C
Buckle
A
2. Remove the old battery: Push up at B to remove
the old battery.
3. Install the new battery: Take out the battery from
the packaging box, with the battery with the notch facing
up, put the battery C at the battery compartment C.
Fanvil Technology Co., Ltd.
Website: www.fanvil.com
Tel: +86-755-2640-2199 Fax: +86-755-2640-2618
Add: 10/F Block A, Dualshine Global Science Innovation Center,
Honglang North 2nd Road, Bao'an District, Shenzhen, China
Remove the
rear case
Remove
the battery
A
Install the back cover
Buckle
C
Install the battery
4. Install the back cover: Align the back cover with the
buckle on the back of the main unit, press your hands
along the edge of the main unit from top to
bottom (there will be a "click" sound during the process),
and ensure that there is no gap, it means that the back
cover is fastened.
C
B
Connect Wi-Fi
1.Press Menu >Basic>9 WLAN.
2.Select Wi-Fi.
Connect the charging base
Install the belt clip
Note：
1.Use Fanvil-supplied power adapter (5V/2A).
A third-party power adapter may damage the handset.
2.Check the charging status on the top-right corner of
the LCD screen.
Configuration
Configuration via Web
Configuration via Phone
1.Press Menu > Advanced Settings
(Default password 123).
2.Select Accounts: To configure enable the account,
fill the SIP server address, port, user name,
password etc.
1.Get the IP address from the phone: Press Menu
> Status >1Network >Wi-Fi IP.
2.Login: Input the IP address in the web browser.
The PC and phone should be in the same IP address
segment (The default username and password are
both ‘admin’.)
3.Configure: Select Accounts, and fill the relevant
content.
Warning
- Please dispose of lifeless battery under guidance.
- Recycle your device.
- Replacement of a battery with an incorrect type that can defeat a
safeguard (for example,in the case of some lithium battery types).
- Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
- Leaving a battery in an extremely high temperature surrounding
environment that can result in an explosion or the leakage of flammable
liquid or gas.
- A battery subjected to extremely low air pressure that may result in an
explosion or the leakage of flammable liquid or gas.
Used below 35℃in the state of charge
Regulatory Compliance
Federal Communication Commission (FCC) — USA
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference,
and (2) this device must accept any interference received; including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
residential installation. This equipment generates, uses, and can radiate
radio frequency energy, and if it is not installed and used in accordance with
the instruction manual, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
FCC Radiation Exposure Statement:
The device has been tested and comply with FCC SAR limits. And keep the
device minimum 5mm from the body when normal use.
This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the bottom of this equipment is a label that contains,
among other information, a product identifier in the format
US: 3I1IPNANW610W. If requested, this number must be provided to the
telephone company.
