Lochinvar SYNC SB 1000 Anwendungshandbuch

SYNC-RP Rev H

SYNC®

Condensing Boilers

SB 1000 - 1500

Replacement Parts List

PARTS & SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

14 43

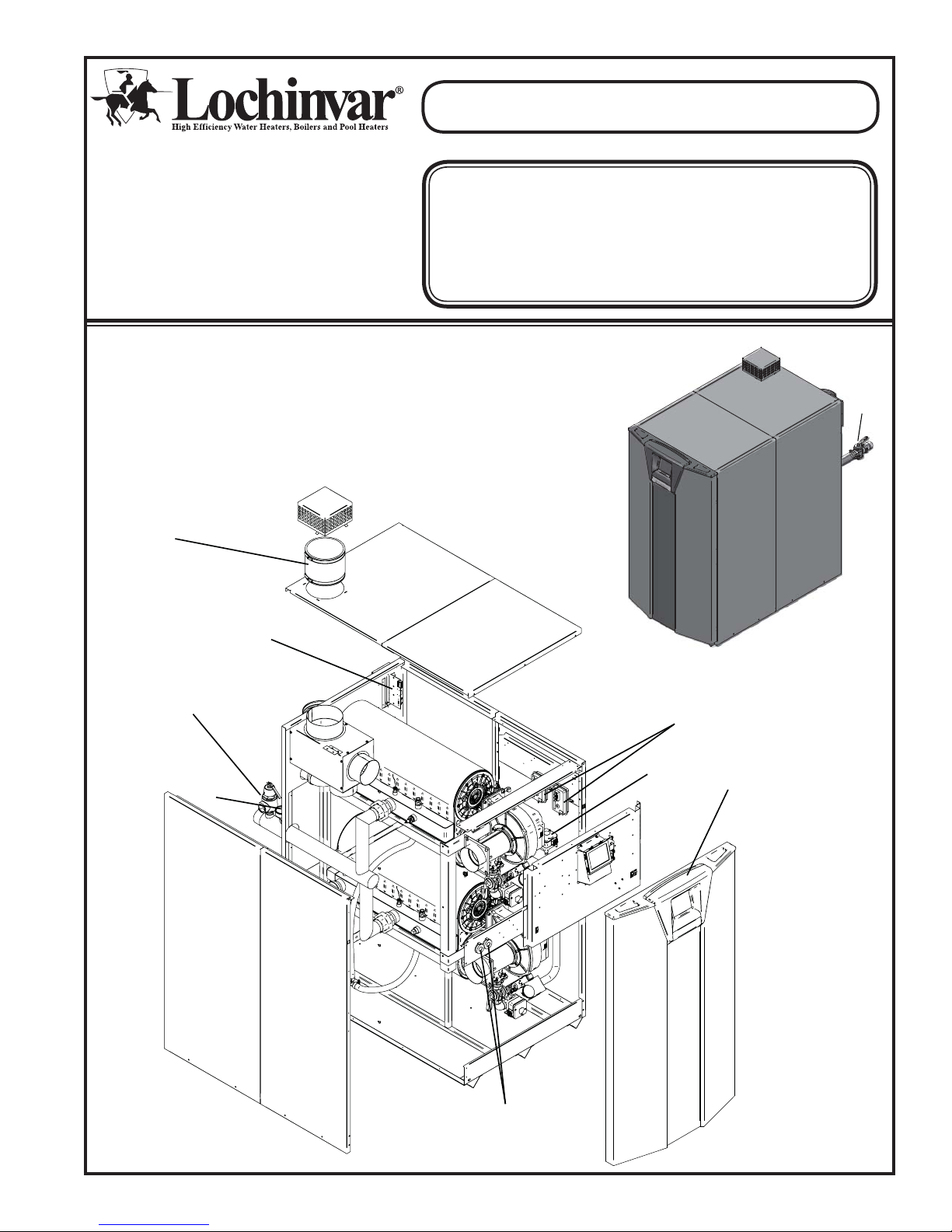

18 19 20 17 5617

CONTROL PANEL ASSEMBLY

GAS TRAIN SB 1000

HEAT EXCHANGER ASSEMBLY

2 of 4

SYNC-RP Rev H

GAS TRAIN SB 1300, 1500

3 of 4

SYNC-RP Rev H

ITEM NO. PART NO. DESCRIPTION MODEL

HEAT EXCHANGER ASSEMBLY

1 HEX30000 HEAT EXCHANGER SBN/L1000

1 HEX30001 HEAT EXCHANGER SBN/L1300

1 HEX30002 HEAT EXCHANGER SBN/L1500

CONTROLS

2 RLY20023 LOW VOLTAGE CONNECTION BOARD ALL

3 RLY20027 INTEGRATED CONTROL PRIOR TO SERIAL L09 SBN/L1000

3 RLY20022 INTEGRATED CONTROL PRIOR TO SERIAL L09 SBN/L1300-1500

3 RLY20056 INTEGRADED CONTROL BEGINNING SERIAL L09 SBN/L1000

3 RLY20055 INTEGRADED CONTROL BEGINNING SERIAL L09 SBN/L1300-1500

3 RLY30008 INTEGRATED CONTROL HIGH ALTITUDE PRIOR TO SERIAL L09 SBN/L1000

3 RLY30007 INTEGRATED CONTROL HIGH ALTITUDE PRIOR TO SERIAL L09 SBN/L1300-1500

3 RLY30034 INTEGRATED CONTROL HIGH ALTITUDE BEGINNING SERIAL L09 SBN/L1000

3 RLY30033 INTEGRATED CONTROL HIGH ALTITUDE BEGINNING SERIAL L09 SBN/L1300-1500

4 RLY30031 LCD DISPLAY PRIOR TO SERIAL L09 ALL

4 RLY30032 LCD DISPLAY BEGINNING SERIAL L09 ALL

5 RLY2085 PUMP RELAY BOARD ALL

6 RLY2222 1.5HP PUMP RELAY ALL

7 RLY20020 ECS CONTROL BOARD BEGINNING SERIAL L09 ALL

7 RLY20054 ECS CONTROL BOARD PRIOR TO SERIAL L09 ALL

8 TST2032 INLET/OUTLET SENSOR ALL

9 TST2044 BULBWELL, INLET/OUTLET SENSOR ALL

10 HLC2701 MANUAL RESET HIGH LIMIT ALL

11 TST2306 BULBWELL, HIGH LIMIT ALL

12 FAN30005 FAN ASSEMBLY SBN/L1000

12 FAN3038 FAN ASSEMBLY PRIOR TO SERIAL C09 SBN/L1300-1500

12 FAN30001 FAN ASSEMBLY BEGINNING SERIAL C09 SBN/L1300-1500

13 PRS2054 AIR PRESSURE SWITCH ALL

13 PRS20018 AIR PRESSURE SWITCH, HIGH ALTITUDE ALL

14 PRS2046 GAS PRESSURE SWITCH, LOW ALL

15 PRS2047 GAS PRESSURE SWITCH, HIGH ALL

16 SWT2006 ON/OFF SWITCH ALL

17 RLY2105 RELAY, 24VAC ALL

18 SWT2002 MOMENTARY OFF SWITCH, RED ALL

19 SWT2003 MOMENTARY OFF SWITCH, BLACK ALL

20 WTR30000 LOW WATER CUT-OFF, MANUAL RESET ALL

20 WTR30001 LOW WATER CUT-OFF,AUTO RESET ALL

- WTR20011 PROBE, LWCO ALL

- WTR20000 BOOT, LWCO ALL

GAS VALVES

21 VAL30007 GAS VALVE ASSEMBLY NAT SBN1000

21 VAL30008 GAS VALVE ASSEMBLY NAT SBN1300

21 VAL30009 GAS VALVE ASSEMBLY NAT SBN1500

21 VAL30015 GAS VALVE ASSEMBLY LP SBL1000

21 VAL30016 GAS VALVE ASSEMBLY LP SBL1300

21 VAL30017 GAS VALVE ASSEMBLY LP SBL1500

22 GKT2050 GAS VALVE GASKET SBN/L1300-1500

23 GAC2028 GAS CUT OFF VALVE 3/4" SBN/L1000

24 GAC2029 GAS CUT OFF VALVE 1X1 SBN/L1300-1500

25 GKT2081 GASKET, VENTURI SBN/L1300-1500

26 VAL2951 GAS CUT OFF VALVE 1 1/2" ALL

27 GKT2080 AIR SHROUD GASKET SBN/L1000

PLEASE HAVE MODEL AND SERIAL NUMBER WHEN ORDERING PARTS

4 of 4

SYNC-RP Rev H 05/11 Printed in the U.S.A

ITEM NO. PART NO. DESCRIPTION MODEL

PILOT & BURNER ASSEMBLIES

28 PLT3023 FLAME SENSOR W/ GASKET ALL

29 GKT2450 GASKET, FLAME SENSOR ALL

30 PLT30000 IGNITER W/ GASKET ALL

31 GKT2449 GASKET, IGNITOR ALL

32 BNR30000 BURNER W/ GASKET SBN/L1000

32 BNR30001 BURNER W/ GASKET SBN/L1300

32 BNR30002 BURNER W/ GASKET SBN/L1500

33 GKT2062 GASKET, BURNER ALL

34 WTR20001 FLAP VALVE ASSEMBLY W/ GASKET & STABILITOR ALL

35 GKT2034 GASKET, FAN SBN/L1300-1500

36 GKT2438 GASKET, FAN SBN/L1000

37 WTR3086 HEAT EXCHANGERACCESS DOOR KIT ALL

38 GKT2063 GASKET DOOR RUBBER ALL

MISCELLANEOUS

39 MSC3180 SIGHT GLASS ALL

40 GKT2453 GASKET, SIGHT GLASS ALL

41 FIB2167 DIVIDER PLATE, INSULATION BAFFLE ALL

42 FIB2146 BURNER PLATE, INSULATION, DOOR ALL

43 MSC2242 DISPLAY BEZEL ALL

44 RLV2003 RELIEF VALVE 50 PSI ALL

45 RLV30000 AIR VENT VALVE ALL

46 GTP2900 GAUGE TRIOMETER, 75# PSI ALL

47 JKB20001 ADAPTER, FAN SBN/L1000

48 JKB60071 AIR SHUTTER SBN/L1300

49 CPG2064 COUPLING 4" SBN/L1000

50 CPG20000 COUPLING 6" ALL

51 PVC20025 INLET STIFFENER SBN/L1000

52 JKD5040 INLETADAPTER SBN/L1300-1500

- FUS2000 1.25 AMP ALL

- FUS2001 3.15 AMP ALL

- FUS2002 5 AMP ALL

- TST2311 OUTDOOR AIR SENSOR ALL

- MSC20060 CONDENSATE TRAP ALL

- SWT2011 BLOCKED DRAIN SWITCH ALL

- TST3403 FLUE TEMP SENSOR KIT ALL

- KIT3046 NEUTRALIZER KIT ALL

- KIT3085 ALARM BELL KIT ALL

- KIT30047 SIDEWALL VENT KIT ALL

- KIT30064 HEAT EXCHANGER CLEANING KIT ALL

- MSC20062 DOOR CATCH ALL

- MSC2202 DOOR STRIKE ALL

- HLC30000 LIMIT, HEAT EXCHANGER OVER TEMP ALL

PLEASE HAVE MODEL AND SERIAL NUMBER WHEN ORDERING PARTS
