Lockton MDL2100 Bedienungsanleitung

Digital Lock

Art. MDL2100

8000 Code

Combinations

Left or Right

Handed Door

No Batteries

Required

Easy

Installation Press Button

Code

Easy Combination

Change

Holdback Option

(Lock Latch Open)

Art. MDL2100

pre-set code here

Record your factory

Content of box

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

OUTSIDE

INSIDE

RIGHT HAND LEFT HAND

1. Digital Exterior Code Pad Assembly

2. Digital Interior Handle Assembly

3. Neoprene Seals. x 2

4. Latchbolt (60mm standard)

5. Spindles x 3 (only one is used)

6. Fixing Interior Code Pad screws x 4

7. Wood Screws x 4. Use with Latchbolt

and Strikeplate.

8. Latchbolt Support Post.

9. Colour code tumblers x 4 Spare

10. Tweezers

11. Strike Plate

12. Strike Box

13. Code Card

Align the bottom of the template

page 914mm from ﬂoor. Fold the

template on the dotted 60mm

backset line to suit the deadlatch

assembly supplied.

Tape the template to the door.

Viewed from the outside

(Code Pad Side)

eg. your door is right

handed if the hinges are

on the right.

9 10

7 8

1211

321

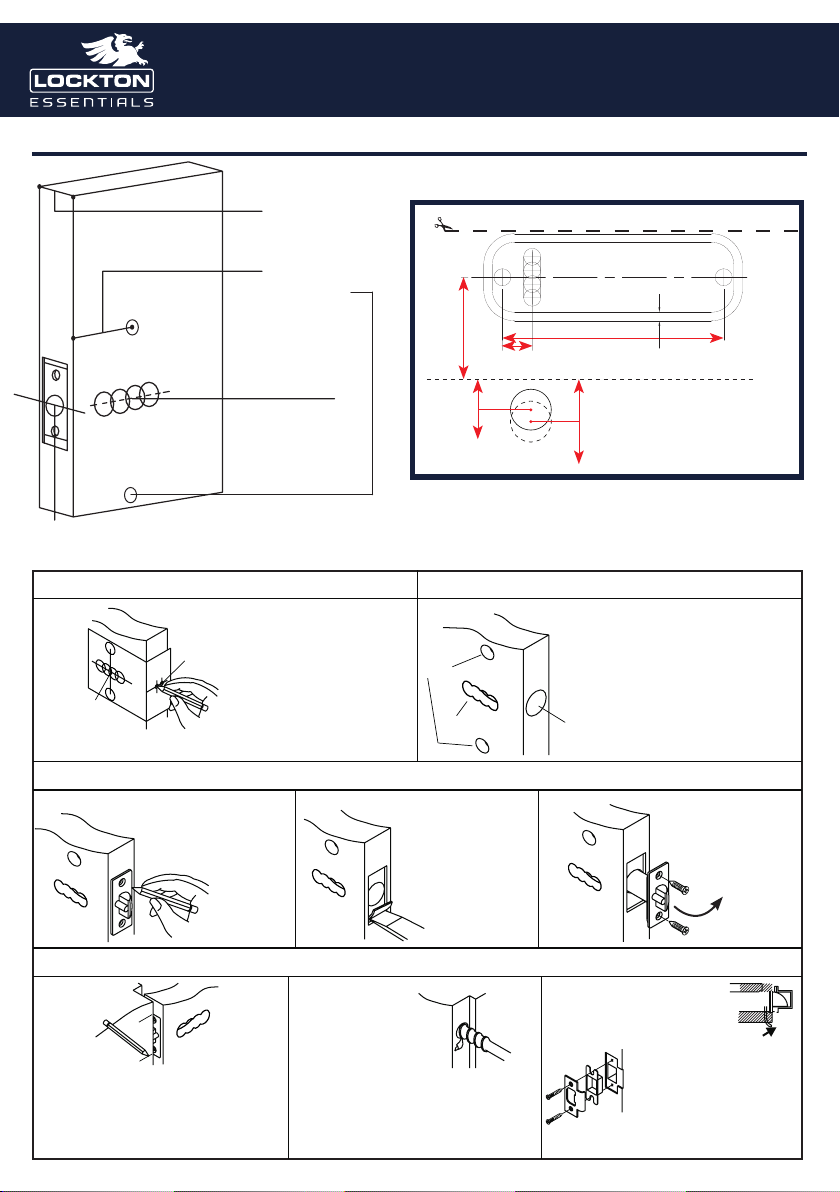

2) Apply the Template

1) Select Handing

Applying the template

Art. MDL2100

Preparing the door / Installing the Latch & Strike

DRILL TEMPLATE AT BACK OF BOOK

a. b. c.

1. MARK DOOR 2. DRILL HOLES

3. INSTALL LATCH

4. INSTALL STRIKE

MARK CENTRE

OF DOOR FOR

25mm HOLE

MARK

6 x 10mm HOLE

60 or 70mm

BACKSET

Mark center of door

edge as indicated

on template. Mark

center hole on door

face through guide on

template.

4 x 10mm HOLE 25mm HOLE

Drill all 6 x 10mm holes through the

door. It is recomended that the holes

be drilled from both sides to prevent

splitting.

Drill 25mm hole in center of door edge

for the latch.

Insert latch in hole

keeping it parallel to face

of door. Mark outline and

remove latch

Chisel 3mm deep or

until latch face is ﬂush

with the door edge

Insert latch and tighten

screws

(NOTE: Latchbolt

bevel must face to

closing direction)

Close door until latchbolt touches jamb

to locate strike in jamb and center line of

strike. Open door and extend line from

mark to door stop. Measure one half

of door thickness from door stop and

vertically mark drill point center for strike.

Drill 25mm hole 12.7mm

deep in door jamb on

drill point for strike

CAUTION: To ensure proper lockset

function. Hole in jamb must be drilled a

full 12.7mm deep.

Cut out jamb 1.5mm

deep for strike. install

& tighten screws

GUARD BOLT

STRIKE

Guardbolt stops against

strike, as illustrated,

preventing forcing when door

is closed. Adjustable tang on

strike permits bending in or

out to ﬁt between door and

eliminate being too loose.

Backset 60mm

(2 x 10mm)

(Optional

70mm latch

available)

Door thickness

(35-50mm)

(4 x 10mm)

130

Lockcase

Outline of

10mm Hole

Outline of

rubber seal

through the door

and clear a slot

Drill 4x10mm holes

17.5

Fold along the edge of the door

(Match to length of LATCH)

10mm Hole

60mm

Fitting template

Cut Along Dotted Line

35mm Thick Door

50mm Thick Door

3) Door Preparation and Strike Installation

2 x 10mm HOLE

Closing direction

Art. MDL2100

Interior Handle

Assembly

HANDING

(POSITION A)

SCREWS

BLACK

(POSITION B)

Viewed from

the outside

SPINDLE SHOULD ENGAGE

DOOR HUNG ON RIGHT

THE LATCH AS ABOVE

SPINDLE SHOULD ENGAGE

THE LATCH AS ABOVE

DOOR HUNG ON LEFT

STOPPER

LATCH

TURN THE HANDLE DOWN TO

RETRACT THE LATCH AND SLIDE

THE LATCH STOPPER TO KEEP

THE LOCK UNLATCHED.

Fit the latch support post in

the back of the digital code

pad assembly. Hole A for right

hand hung door and hole B for

left hand hung door.

Three spindles are provided. Select the spindle length

to suit the door thickness.

* For door thinknesses less than 35mm use the shorter

spindle (75mm). For door thinknesses of 35-50mm

use the longer spindle (85mm) or (100mm).

* Position spindle centrally through the latch hub to

suit door handing.

PIN HERE

HAND DOOR

FOR LEFT

LOCATE

HANDING

PLATE

COVER

SCREWS

HANDING

BLUE The digital exterior code pad

assembly is usually factory set

for right hand door handing

and the digital Interior code

pad is set for left hand door

handing (The outer knob will

turn freely in an anticlockwise

direction and resist clockwise

turning).

To change for a left hand door:

* Remove the two BLUE

screws and handing pin cover

plate.

* Remove the handing pin

and replace it in the hole

horizontally opposite.

* Replace handing pin cover

plate.

* Check that the outer knob now turns freely in a

clockwise direction and resists anticlockwise turning

The Digital Interior Handle

Assembly is usually factory set

for right hand door handing.

(The Handle will turn freely

in an anticlockwise direction

only).

To change for a left hand door:

* Remove BLACK handing

screw from position A and

relocate it in position B.

* Check that the inside handle now turns freely in a

clockwise direction only.

* For door thinknesses

less than 48mm use

the shorter screws

(36mm).

* Fit the neoprene

seals to both the

exterior code pad

and Interior handle

assemblies.

* Hold the exterior

code pad assembly

onto the door with the

Select the ﬁxing screws to suit the door thinkness.

spindle in position and ensuring that the latch support

post engages the hole in the deadlatch assembly.

* Locate the Interior handle assembly on the inside of

the door engaging the spindle in the handle hub.

* Screw both sides together using the ﬁxing bolts top

and bottom.

* Before ﬁnal tightening of ﬁxing screws make sure the

lock is vertical. Test the mechanism to ensure that the

lock functions correctly and moves easily.

DO NOT overtighten the ﬁxing screws-this may cause

distortion and lead to poor operation.

IMPORTANT :

CHECK THAT THE CODE WORKS TO AVOID A

LOCKOUT BEFORE CLOSING THE DOOR.

4) Fit Latch Support Post

5) Handing the Digital Code Pad

Assembly

6) Handing the Digital Interior Handle

Assembly

7) Positioning the Spindles

8) Mounting the Lock

9) Latch Stopper

Installation Guide

Art. MDL2100

2RED

square cut

BLUE

Changing the Code number

BLUE

square

KEYLESS

TUMBLER

BLUE

cut

RED

cut

RED KEY

square

TUMBLER

CODE

PLATE SCREWS

PLATE

CODE

RED

push button

square cut

outside outside

number

1. Remove the lock from

the door.

2. Remove the 4 RED code

plate retaining screws

from the back of the

code pad assembly. Take

extra care to keep the

lock body on a ﬂat

surface when removing

the code plate to avoid

spilling the small code

module components

3. From the factory code

setting, there are 5 RED

coloured key “active”

Code tumblers and

8 BLUE coloured

“keyless” code tumblers

plus 1 neutral code

tumbler in the “C”

position (this is the code

clearing tumbler and

must not be removed).

4. Push and hold the “C”

button. Never attempt

to remove the “C” button

code tumbler. With the

“C” button held down,

remove one or more

code tumblers using the

tweezer supplied.

5. Note the dierent shapes

of the code tumblers

before re-inserting them

into the code module.

RED and BLUE code tumblers have the square cut

low and high respectively. WHEN REPLACING CODE

TUMBLERS THE SQUARE CUT MUST ALWAYS FACE

THE OUTSIDE OF THE LOCK BODY.

6. Establish and write down your new code & insert

the appropriate coloured tumbler next to the

code numbers in the module. DO NOT LEAVE ANY

TUMBLER POSITION EMPTY. With the spare tumbler

provided in the screw pack you can reduce or increase

your code to 4 or 6 digits.

7. Replace the code plate and secure with the 4 RED

retaining screws.

8. Check the code by pressing the “C” button followed by

the code number.

9. The knob should turn freely in both directions. If not

return to step 4

10. Reinstall the lock. Place the spare colour code

tumblers in a safe place with the instructions and code.

IMPORTANT:

BEFORE CHANGING CODES THE

“C” BUTTON MUST BE DEPRESSED

AND HELD IN THE DOWN POSITION

THROUGHOUT CODE CHANGING

PROCEDURE. FAILURE TO DO THIS

WILL DAMAGE THE CODE MODULE.

SIMILAR DAMAGE WILL OCCUR

IF CODES ARE NOT RE-INSERTED

CORRECTLY. PLEASE REFER TO

CODE CHANGE INSTRUCTIONS. AS A

GUIDELINE RED OR BLUE SHOULD

ALL BE IN LINE IF CODES ARE

CORRECTLY INSERTED.

130

Lockcase

Outline of

10mm Hole

Outline of

rubber seal

through the door

and clear a slot

Drill 4x10mm holes

17.5

Fold along the edge of the door

(Match to length of LATCH)

10mm Hole

60mm

Fitting template

Cut Along Dotted Line

35mm Thick Door

50mm Thick Door
