Logitech TR1478BD Bedienungsanleitung
FLIGHT YOKE SYSTEM
Professional Yoke and Throttle Quadrant Simulation Controller
Manche à volant et quadrant de commande des gaz
pour simulation devol pro
USER GUIDE |GUIDE DE L’UTILISATEUR
logitechG.com
3
4ENGLISH
16 FRANÇAIS
29 ESPAÑOL
42 PORTUGUÊS
4English
LEFT HANDLE
8-way point of view hat switch
2-way rocker switch
Single-function button
(back of left handle)
RIGHT HANDLE
2x2-way rocker switches
Single-function button
3-position Mode switch
(back of right handle)
CHRONOGRAPH
Accurate time and stopwatch function to time
each leg of your ight.
Display also indicates which programming mode
is selected.
5English
GETTING STARTED: QUADRANT
LEVER KNOBS
Detachable lever knobs to congure
any combination of throttle, aps,
mixture or prop pitch
LEVERS
Smooth-travel levers
with 0 button detent
THREE 2-WAY ROCKER SWITCHES
6English
INTRODUCTION
Congratulations on buying the Logitech G Flight Yoke System. The Flight Yoke features
realistic controls congurable for all the major ight simulation software to make
your ying experiences more realistic.
FEATURES:
• 8-way point of view hat switch
• 6 x 2-way rocker switches
• 2 x Single-function buttons
• 3-position mode switch
• Downloadable software to program and customize controls and to save
personalized proles.
INSTALLING THE FLIGHT YOKE AND THROTTLE QUADRANT

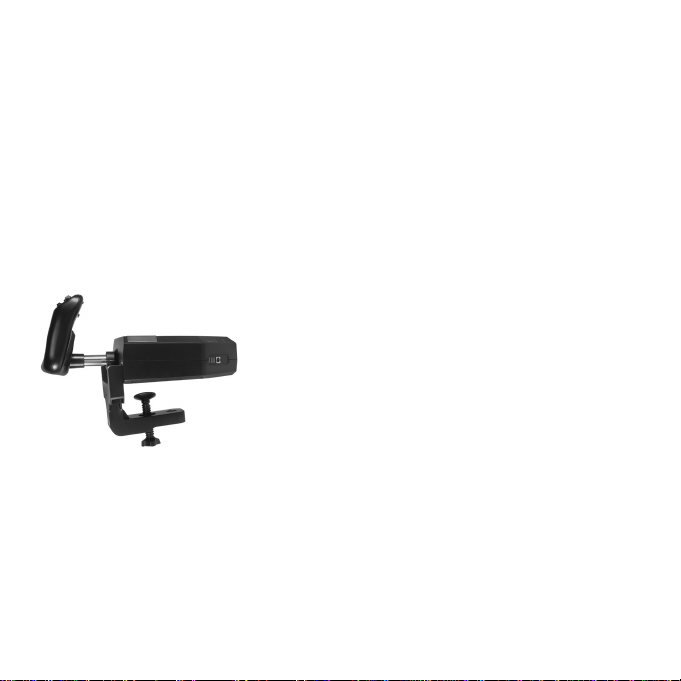

First, x the Flight Yoke to your table or desk by
inserting the prongs of the mounting clamp into
the holes on the yoke base and then tightening
the screw mechanism until the yoke is rmly attached
(be careful not to overtighten the screw as you may
damage the clamp). Next, screw the mounting plate
to the Throttle Quadrant using the four screws
provided. You can screw the plate to one of two sides
of the quadrant depending on how you want
to mount the quadrant - either in front and
below your table or on top of it. Please note that whichever way you choose
to mount the quadrant, ensure that as you look at the unit the rocker switches are
at the bottom.
Now tighten the throttle unit clamp’s screw mechanism until it is rmly attached
to your table. You can also position the Throttle Quadrant on the left or right side of
the Flight Yoke.
7English
Now, connect the Throttle Quadrant to the Flight Yoke with
the PS/2 connector provided.
Use the integrated USB Hub on the side of the Flight Yoke to easily
connect other parts of the Logitech G Flight range of products,
such as additional Flight Throttle Quadrants, Flight Rudder Pedals,
or other peripherals.
INSTALLATION FOR WINDOWS®10, WINDOWS®8.1
ANDWINDOWS®7
DRIVER INSTALLATION
1 Visit logitech.com/support/yoke to download the latest drivers and software
for your operating system.
2 With device disconnected, follow the onscreen instructions to complete the
installation.
3 At the Driver Setup screen, only when prompted, insert USB cable into one of
your computer’s USB ports, then click Next.
4 At the Driver Setup screen, click Next to test your controller.
5 Follow the on screen prompts to test the controls and verify device operation.
After the test, click OK.
8English
IMPORTANT INFORMATION
Driver updates
From time to time there may be updates to the driver and programming software for
this product. You can check for the latest software updates by visiting the Logitech
website (support.logitech.com).
Enabling your controller in the game
Most games support game controllers, but typically default to the mouse and
keyboard until you go into the option menu within the game. The rst time you start
a game after installing your controller, go to the options menu within the main menu
of the game and make sure your controller is set up correctly. If you are having trouble
working out how to do this, or if you’re unsure whether the game itself supports game
controllers, then please refer to the user manual of that game for more help.
TECHNICAL SUPPORT
Online Support: support.logitech.com
PROGRAMMING YOUR LOGITECH G PRO FLIGHT YOKE AND THROTTLE
QUADRANT
The Pro Yoke System’s buttons, controls and axes correspond to commonly used
functions in Microsoft FS9 and FSX according to the tables below.
As with any software, if you wish to change the function of a button or control,
you will need to change the settings of the game software.
9English
CONFIGURING YOUR FLIGHT YOKE AND THROTTLE QUADRANT FOR
MICROSOFT FLIGHT SIMULATOR 9 AND FSX
The Flight Yoke System’s buttons, controls and axes correspond to commonly used
functions in Microsoft FS9 and FSX. As with any software, if you wish to change
the function of a button or control, you will need to change the settings of the game
software.
Once you have done this, simply nd the command that you want to assign to
your controller from the list of commands, click it and then click the Change
Assignment button. A window will appear asking you to move the part of your
controller that you want to assign to that command - press/move the button/axis
that you want to assign to that command and then click OK.
Tip: You may nd that when you assign the levers on the quadrant to a command,
that they don’t appear to work when you test them in the game. If this happens then
you must look in the Sensitivities screen (Flight Simulator 2004) or the Calibration
tab of the Controls screen (Flight Simulator X) of the game, select the axis command
in the list there and ensure that the Sensitivity isn’t set too low (set the horizontal
sensitivity slider control to around 70%).
