Logitech POWERSHELL Bedienungsanleitung

POWERSHELL

CONTROLLER + BATTERY

Setup Guide|Guide d’installation

English. . . . . . . . . . . . . 4

Français . . . . . . . . . . . . 12

Español . . . . . . . . . . . 20

Português . . . . . . . . . . 28

www.logitech.com/support . . . . . . . . . . . . . . . . 39

4 English

54 22 3

English 5

Know your product

1. 8-Way Analog D-Pad

2. Analog shoulder buttons

3. iPhone Sleep/Wake button

4. iPod touch adapter

5. Lightning connector

6. Analog buttons

7. Pause button

8. Audio Jack access port

9. Extended battery on/o switch

10. Wrist strap mount (wrist strap not included)

11. Micro-USB charging port

12. iPhone/iPod touch volume and ring/silent switch access

13. Headset extender cable

14. Micro-USB charging cable

15. Camera opening

16. Battery indicator

6 English

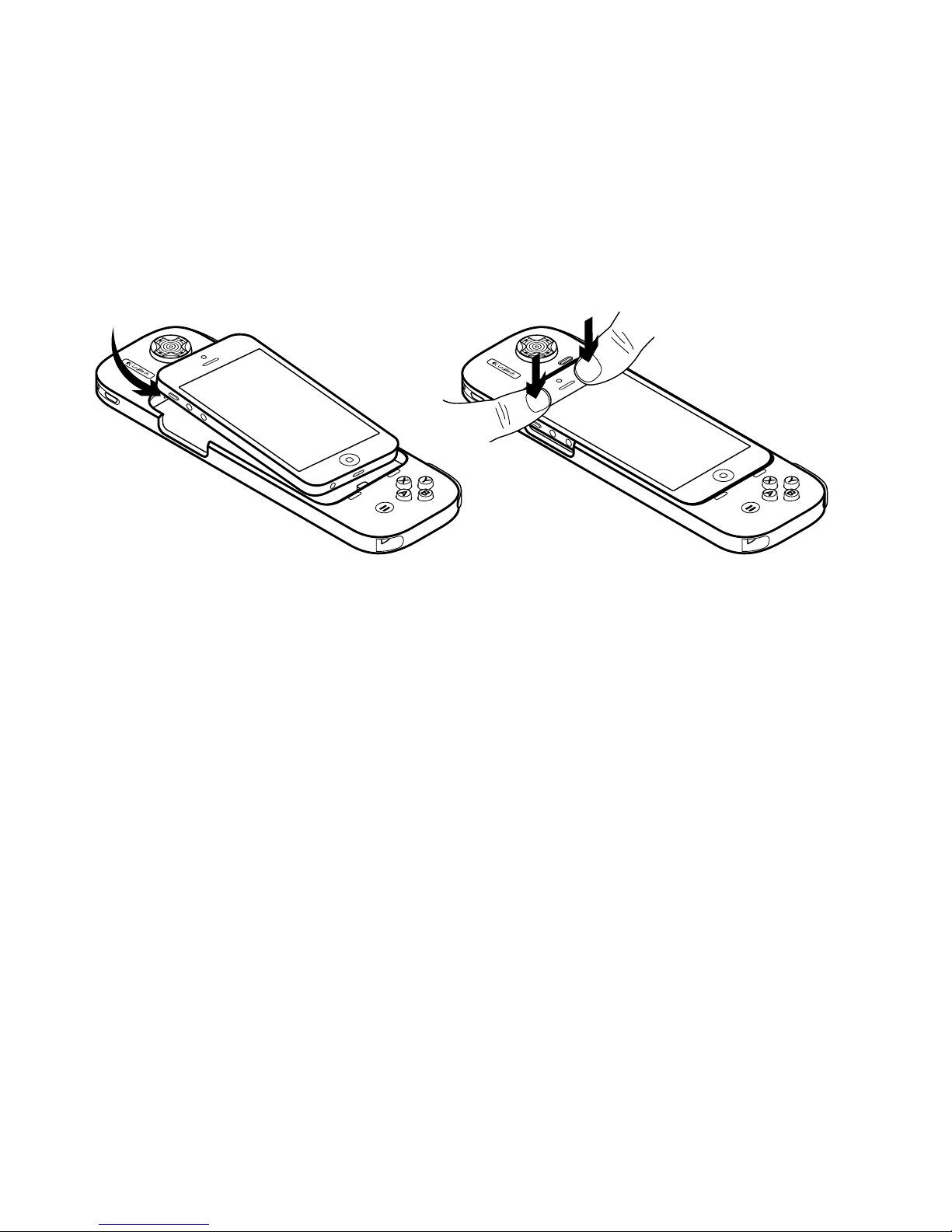

Getting Started

iPhone:

1. Place the iPhone onto the Controller’s Lightning connector.

2. Press phone into the Controller’s frame until the phone

is held securely.

English 7

iPod touch:

1. Place iPod touch adapter into the body of the Controller’s cradle.

Note: Insert the iPod touch adapter so that the G pull-tab rests

behind the Lightning connector.

2. Place the iPod touch onto the Lightning connector.

3. Press the iPod touch into the Controller’s frame until the iPod touch

is held securely.

8 English

Using your Controller

1. Use the Controller to play iOS 7 games.

2. To use a headset with your Controller, insert the included headphone

extender cable into the audio jack access port.

3. To extend your iPod touch or iPhone battery, simply move

the Extended Battery switch to “On”.

4. When the Controller’s battery needs to be charged, the G logo on

the back will turn red. Please charge your Controller when possible.

English 9

Removing your iPod touch or iPhone from

your Controller

1. Remove any headphones or other audio jack devices from

the headset port.

2. Over a table, hold your Controller and press through the camera

opening until the iPhone or iPod touch rotates slightly out of

the Controller’s frame.

3. Once the iPhone or iPod touch is slightly out of the frame,

pull your Apple device directly away from the Lightning connector.

10 English

Charging your Controller

1. Plug your USB charging cable into your iPhone or iPod AC adapter*.

2. Plug the micro-USB connector into the Controller’s charging port.

3. The G logo will blink while charging. Once the Controller

is fully charged, the G logo will glow solid blue. Your Controller

is now charged.

4. To charge your iPhone or iPod touch while charging your Controller,

make sure to set the Extended Battery switch to On.

* Only use Apple power adapters compatible with iPhone 5 or iPod touch

(5th generation).

Note: At the end of product life remove battery as shown.
