Logitech Ultrathin Keyboard Folio Bedienungsanleitung

Ultrathin Keyboard Folio |aK1050 键盘保护套

Protective case with integrated keyboard

For Samsung GALAXY Tab410.1

带集成键盘的保护套

(适用于 GALAXY Tab410.1)

Setup Guide | 设置指南

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

Contents / 目录

English 3 简体中文 14

www.logitech.com/support/ultrathin-keyboard-folio-galaxy-tab-4

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

3 English

Know your product

1. Tablet holder

2. Protective folio

3. Hook

4. Magnet

5. Function keys

6. Keyboard

7. Bluetooth®/

battery status light

8. Bluetooth connect button

9. On/o switch

10. Micro-USB charging port

11. Micro-USB charging cable

12. Product documentation

620-006186.003

Ultrathin Keyboard Folio | aK1050 键盘保护套

PDF

www.logitech.com/support/ultrathin-keyboard-folio-galaxy-tab-4

1 2 3

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

4 English

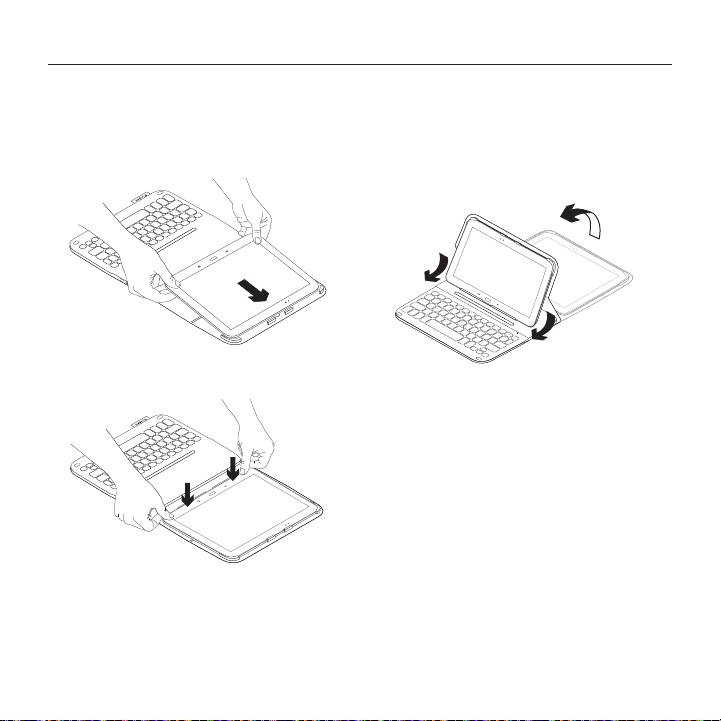

Setting up the keyboard folio

Getting started

1. Open the keyboard folio and push

your Samsung GALAXY Tab4 10.1 into

the tablet holder:

2. Push your Samsung GALAXY Tab4 10.1

down into the hook:

3. Move the keyboard folio into the typing

position by lifting the back of the

protective folio and sliding the hook

forwards until it aligns with the magnet:

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

5 English

Connecting your keyboard and tablet

The keyboard folio links to your tablet

via a Bluetooth® connection. The ﬁrst time

you use the keyboard folio, you must pair

the keyboard with your tablet.

1. Turn on the keyboard:

The status light blinks blue (fast blink)

to indicate that the keyboard is

discoverable, ready for pairing with

your tablet. The ﬁrst time you turn on

the keyboard it remains discoverable

for 15 minutes.

If the status light turns red, charge

the battery. For more information,

see “Charging the keyboard battery.”

2. Make sure your tablet’s Bluetooth

feature is on.

From a Home screen, touch Apps

Settings Network connections

section, and turn on the Bluetooth

switch.

3. Pair the keyboard folio with your tablet.

(i) In your tablet’s Bluetooth settings

page, select “Ultrathin Keyboard

Folio S410” in the list of Available

devices.

(ii) When prompted, enter the PIN

displayed using the folio keyboard.

When successful connection is made,

the status light turns solid blue for

a short time, and then turns o.

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

6 English

Connecting to another tablet

1. Make sure the keyboard is turned on.

2. Make sure your tablet’s Bluetooth

feature is on.

From a Home screen, touch Apps

Settings Network connections

section, and turn on the Bluetooth

switch.

3. Press the Bluetooth Connect button:

The status light blinks blue (fast blink)

to indicate that the keyboard

is discoverable, ready for pairing with

your tablet. The keyboard is discoverable

for 3 minutes.

4. Pair the keyboard folio with your tablet.

(i) In your tablet’s Bluetooth settings

page, select “Ultrathin Keyboard

Folio S410” in the list of Available

devices.

(ii) When prompted, enter the PIN

displayed using the folio keyboard.

When successful connection is made,

the status light turns solid blue for

a short time, and then turns o.

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

7 English

Using the keyboard folio

Two viewing positions

The keyboard folio provides two viewing

positions—one for typing and another

for browsing.

To type:

1. Move the tablet holder into the typing

position, aligning it with the built-in

magnet to secure it:

2. Turn on the keyboard:

If the status light turns red, charge

the battery. For more information,

see “Charging the keyboard battery.”

If you don’t use the keyboard for a while

in the typing position, it enters sleep mode

automatically. Pressing any key wakes it.

To browse, place the tablet holder in

the browsing position:

You can switch o the keyboard if you want

to conserve battery power.

Typing position

Browsing position

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

8 English

Status light indicators

Bluetooth and battery status light

Light Description

Blinking green The battery is charging.

Green The battery is charged (more than 10%).

Red Battery power is low (less than 10%). Recharge the battery.

Blinking blue Fast: The keyboard is in discovery mode, ready for pairing.

Slow: The keyboard is trying to reconnect to your Samsung

GALAXY Tab4 10.1.

Solid blue Bluetooth pairing or reconnection is successful.

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

9 English

Function keys

FN + Back: Esc

FN + 1: Lock screen

Lock or unlock the tablet screen

FN + 2: Web browser

FN + 3: Mail

FN + 4: Calendar

FN + 5: Music

FN + 6: Previous track

FN + 7: Play/Pause

FN + 8: Next track

FN + 9: Mute

FN + 0: Volume down

FN + -: Volume up

FN + =: Print Screen

FN + Backspace: Forward delete

FN + Tab: Show all apps

FN + Caps Lock:

Quick panel/Notiﬁcations

FN + X: Cut

FN + C: Copy

FN + V: Paste

FN + Left cursor: Home

FN + Right cursor: End

FN + Up cursor: Page Up

FN + Down cursor: Page Down

FN + Search: Voice search

Use your voice to send messages,

make calls, and more

FN + Right Alt: Android™ menu

FN + Android home:

Switch applications

FN + spacebar: Switch language

Note:

• To select a function key, press and hold the FN key, and then press the key indicated above.

Logitech Ultrathin Keyboard Folio - For Samsung GALAXY Tab4 10.1

10 English

Charging the keyboard battery

If the status light is red the keyboard folio battery needs to be charged.

1. Plug one end of the micro-USB cable

into the charging port, and the other

end into a USB port on your computer.

The status light blinks green as the

battery charges.

2. Charge the battery until the status light

turns solid green.

USB
