PRO WIRELESS

SETUP GUIDE

Important Safety, Compliance and

Warranty Information

Informations importantes

concernant la sécurité,

la mise en conformité et la garantie

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . .3

FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . 12

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . 21

PORTUGUÊS . . . . . . . . . . . . . . . . . . . . . . 30

3ENGLISH

SETUP INSTRUCTIONS

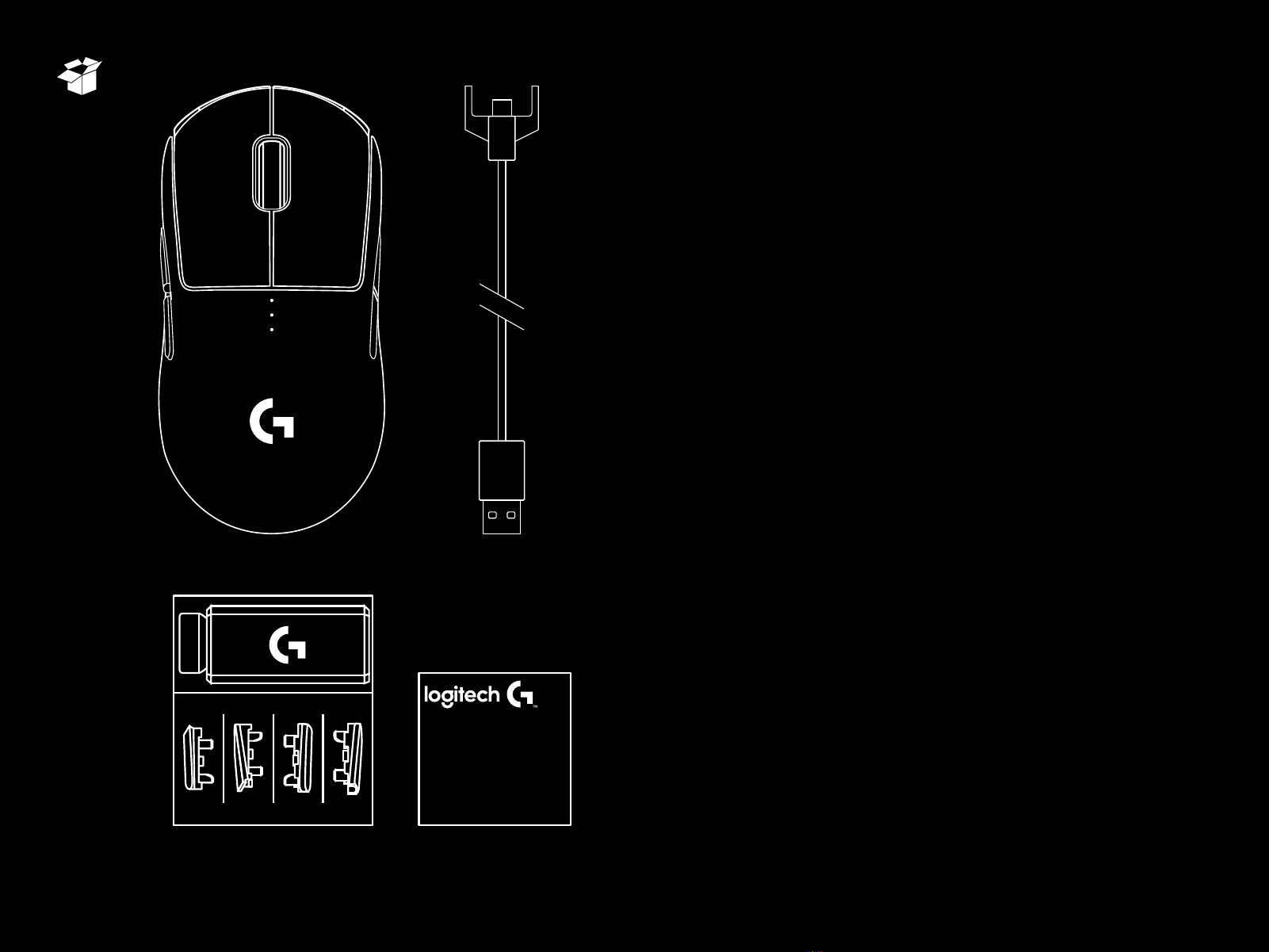

1 A wireless receiver attached to the USB adapter can be found

in the accessory box. Plug one end of the cable into your PC,

and the other end into the USB adapter and receiver.

–The receiver can also be used plugged directly into

yourPC. However, using the cable and adapter when

in wireless mode is recommended and allows for better

connectivity and easy access to the cable for recharging.

2 Turn mouse on via the switch on the bottom of the mouse.

3 Download Logitech Gaming Software

PRO

WIRELESS

www.logitechG.com/support/pro-wireless

4ENGLISH

4 To charge, disconnect the cable from the adapter and plug

into the front of the mouse. Your mouse will operate in

data-over-cable mode whenever it is plugged in directly to

aPC. Full charge from empty requires around 2 hours plugged

in to a PC USB port.

5ENGLISH

> 2 m

~ 20 cm

Tips:

–Keep the mouse and receiver 2 m+ away from wireless routers

or other 2.4GHz wireless devices to minimize environmental

noise.

–PRO WIRELESS has a wireless range of up to 10 meters.

Toensure optimal performance in noisy wirelessenvironments,

and to keep the charging cable easily accessible,

itisrecommended to keep the receiver within 20 cm

ofthemouse.

6ENGLISH

BUTTON CONFIGURATIONS

PRO WIRELESS comes with replaceable buttons and button caps,

which are held onto the mouse magnetically. These should be

stored in box when not in use. These replaceable buttons support

conversion to the following congurations:

1 Right handed

2 Left handed

3 No buttons

4 Full buttons R

7ENGLISH

8ENGLISH

8 FULLY PROGRAMMABLE BUTTONS

1 Left (Button 1)

2 Right (Button 2)

3 Wheel click (Button 3)

4 Back (Button G4)

5 Forward (Button G5)

6 Back (Button G6)

7 Forward (Button G7)

8 DPI cycle (bottom of mouse, Button 8)

9 Receiver storage door + Powerplay module enclosure

(bottomof mouse)

10 On/O switch (bottom of mouse, not programmable)

PRO

WIRELESS

810

9ENGLISH

BATTERY LIFE

PRO WIRELESS has a rechargeable 250mAH LiPol battery which

provides it with up to 60 hours non-stop gaming at 1ms report

rate with lights o, or 48 hours non-stop gaming at 1ms report

rate with RGB color cycling on.*

–Charge level can be checked when the mouse is poweredon

orusing Logitech Gaming Software to assign a button

tocheck charge level.

–Charge level is displayed for seven seconds at mouse power-on

using the color and number of bars illuminated on the DPI

indicator:

–3 green dots = 50–100%

–2 green dots = 30–50%

–1 green dots = 15–30%

–1 ashing red dot = <15%

Tips:

–You can program a button to show charge level using LGS.

–The bottom dot will ash red when battery is at 15% or less.

When this happens, plug in your mouse to charge.

–Charge level, power draw, and estimated remaining battery

life can be checked in Logitech Gaming Software.

*Battery life and capacity may vary with age and use. Rechargeable batteries have a limited

number of charge cycles.

10 ENGLISH

CHARGING/DATA OVER CABLE

Plug your mouse in via the provided USB charging cable

when the battery is low. PRO WIRELESS is also compatible

with the Logitech G POWERPLAY wireless charging system,

soldseparately.

LOGITECH GAMING SOFTWARE

You can customize the onboard prole settings using

theLogitech Gaming Software. These settings include button

programming, report rate, performance/endurance modes and

tracking behavior. PRO WIRELESS allows up to 5 DPI settings.

By default, PRO WIRELESS has the following settings:

–DPI: 400/800/1600/3200

–Report rate: 1ms

–Performance mode
