Logitech NuLOOQ navigator Leitfaden

Welcome to Logitech NuLOOQ navigator

Congratulations on acquiring your new Logitech NuLOOQ navigator control device. This innovative

new device is truly your mouse's best friend. Off

load navigation and many other actions from the

mouse onto the NuLOOQ navigator. To get the

most from your device, you can use this help

system. It offers ideas on how you can use your

device's features when you are working, playing,

and communicating. It provides details on

customizing your device to suit you. And it gives

instructions on how to carry out your daily tasks

with your device.

Use this help system to work smarter, play more,

and communicate better with your Logitech

NuLOOQ navigator.

Select a task... (Click on link below)

●Configuring Adobe Photoshop CS2 for 1st Time Use

●Quickly Getting Started using your NuLOOQ navigator

●Installing / Uninstalling NuLOOQ navigator

●Using NuLOOQ navigator with Adobe Photoshop CS2

●Using NuLOOQ navigator with Adobe Photoshop Elements 4

●Other Applications

●Configuring NuLOOQ navigator for other apps

●Support

All other trademarks are the property of their respective owners.

Configuring Adobe Photoshop CS2 for 1st Time Use

Before NuLOOQ navigator can be used with Adobe Photoshop CS2, you must first configure Adobe Photoshop CS2 and then restart CS2

for proper operation. To get started, first ensure that the NuLOOQ navigator driver has been installed on your system and your system has

been restarted, if required.

Once up and running, start Adobe Photoshop CS2. After a first time install, you'll get a dialog box saying that you need to configure

Adobe Photoshop CS2.

Click on OK and once in Photoshop, go to "Keyboard Shortcuts..." menu. This menu is available from the "Edit" menu item.

A dialog box appears with options on configuring shortcut keys for virtually any command in Photoshop.

Click on "File" menu command. This will expand all the "File" menu commands. Scroll down the list till you fine "NuLOOQ Plug-in...".

Click under shortcut column next to "NuLOOQ Plug-in..." row and enter a shortcut command. Note, this shortcut command can be

anything, you'll not be typing this shortcut key at anytime, so make it as complicated as possible. This is required for our

Photoshop plug-in and once configured, you'll never have to use it again.

Click on OK once complete and then exit out of Photoshop. You may now start Photoshop and start using NuLOOQ navigator. No other

configuration changes are required from within the NuLOOQ navigator panel.

If you change your workspace or load a different workspace, you may need to reconfigure the shortcut key for NuLOOQ Plug-in.

respective owners.

Getting Started

Logitech NuLOOQ navigator is a powerful device with a great deal of functionality and flexibility. Click on links below

to quickly get to a different section.

●NuLOOQ navigator components

●Placing the device on the desk

●Properly holding your NuLOOQ navigator

●Using the navring

●Using the tooltuner dial

●Using the triggerpoints

●Configuring NuLOOQ navigator

NuLOOQ navigator components

The NuLOOQ navigator is composed of a number of moveable and touch sensitive parts:

●navring: The gray moveable ring encircling the device.

●tooltuner dial: The touch sensitive circular surface located on top. (Also referred to as tooltuner.)

●click triggerpoints: The 4 triggerpoints within the tooltuner dial groove. Triggerpoints labeled I, III and the circle

and square buttons are click triggerpoints.

●touch triggerpoint: The single button located in the center labeled triggerpoint II.

Placing the device on the desk

The NuLOOQ navigator is not a mouse, but rather works with your mouse, trackball or tablet and keyboard. If you use

your mouse or tablet with the right hand, the NuLOOQ navigator should be placed on the left hand side. And vice versa if

you use your mouse or tablet on the left hand side. Picture below is an example of how NuLOOQ navigator is used on the

left hand and the mouse on the right hand.

Properly holding the NuLOOQ navigator

The NuLOOQ navigator is composed of a moveable ring, called the navring and also a touch sensitive surface located on

top of the device called the tooltuner dial or tooltuner. The most practical way to hold the device is to gently place your

thumb and middle or index finger on the gray ring and rest your arm on its side next to the navigator. This allows you to

move the navring as well as the tooltuner dial with minimal hand movement. See picture below for an example of the left

hand can be placed on the NuLOOQ navigator. We don't recommend placing your hand over the top the device as that

limits your access to the tooltuner dial and the built-in triggerpoints.

Using the navring

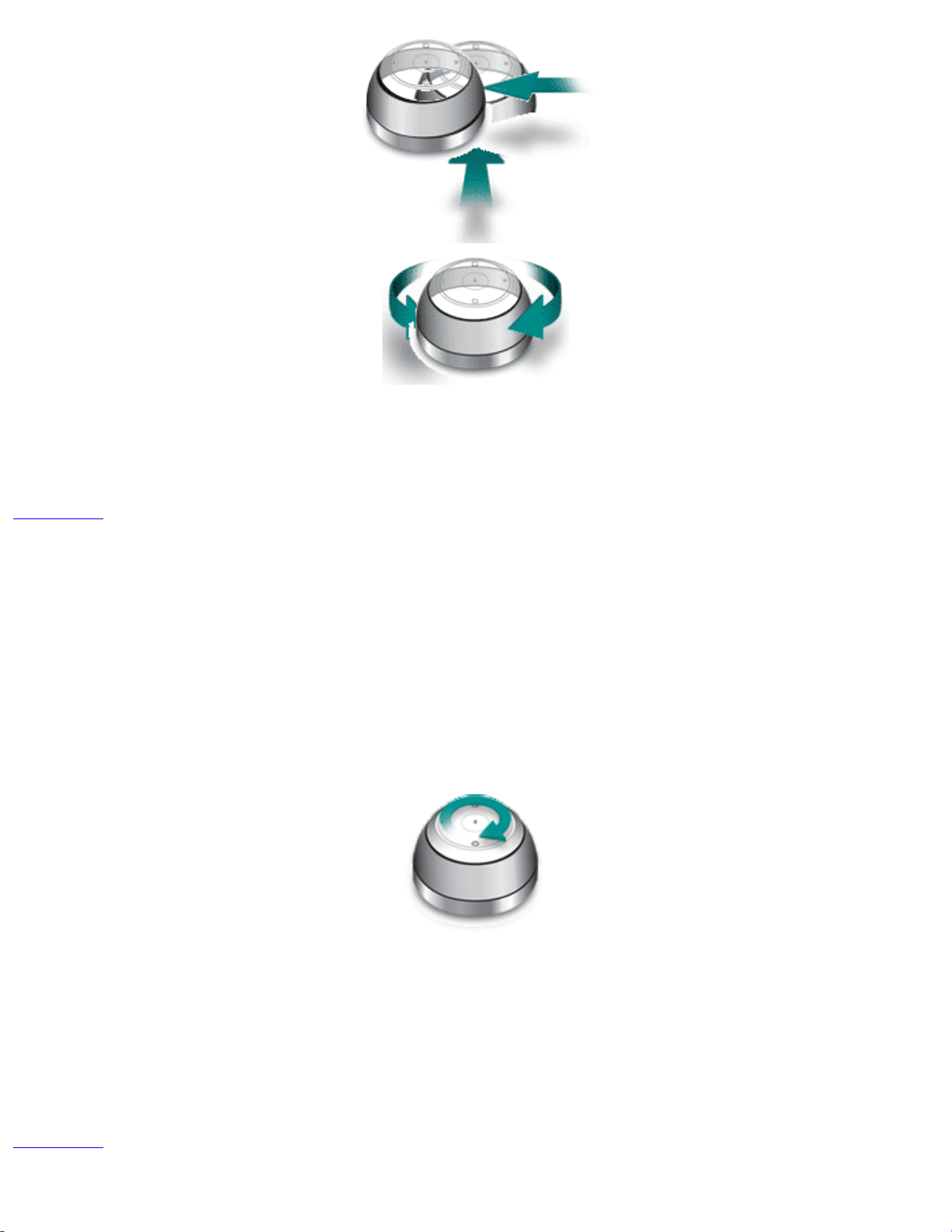

The navring is a gentle moveable gray ring encircling the device. This ring can be moved in all horizontal directions and

twisted, as shown in animated image below. Keep in mind that the device is not intended to move. Only the navring

slides, while the device is stationary.

In most applications, the navring is used to pan and zoom around documents and images. However in timeline based apps,

such as video editing or audio applications, the navring can be configured to navigate the timeline, such as moving forward

or backwards or adjusting resolution.

Using the tooltuner dial

The tooltuner dial is a flat touch-sensitive surface located on the top of your NuLOOQ navigator. To use the tooltuner dial,

just gently glide your finger on the surface within the groove in a clockwise or counter clockwise direction as shown in the

picture below.

The tooltuner dial is typically used to adjust brush size or text attributes in applications like Adobe Photoshop and Adobe

InDesign. However the tooltuner dial can be configured for many uses, including adjusting volume or navigating

timelines.

Using the triggerpoints

The surface of the tooltuner dial also contains five triggerpoints; 4 triggerpoints require a click to activate, while one is

touch sensitive.

All 5 triggerpoints are fully programmable and configurable. Triggerpoint II is touch sensitive and doesn't require a

click to activate. Just resting your finger on the surface of triggerpoint II will activate the button. The triggerpoints can be

configured to execute shortcut commands or even act as a modifier key. The NuLOOQ navigator control panel can be used

to configure the triggerpoints by application.

Please note that in applications such as Adobe Photoshop and Adobe InDesign, to adjust the brush size or text attributes

using tooltuner dial, a button needs to be configured to enable that mode. By default the button at the top (looks like a

square) is configured to enable tooltuner dial to adjust brush size. In other applications, all 5 buttons are programmable.

Configuring NuLOOQ navigator

The NuLOOQ navigator control panel can be used to quickly configure NuLOOQ navigator for your custom needs. The

control panel can be opened by either right clicking on navigator icon on system tray and opening panel or opening control

panel window and then double clicking on NuLOOQ navigator icon.

property of their respective owners.
