Lowrance HDS Gen2 Touch Bedienungsanleitung

HDS Gen2 Touch Combo

Quick Start Guide

Overview

No. Description

1 Touch screen

2 SD Card reader

3 Waypoint key. A short press opens the waypoint menu; long press opens Find

menu.

4 Pages key. A short press displays the home screen. Repeated short presses cycles

through favorite pages.

5 IN / OUT/MOB key. Zoom key for chart, radar and sonar pages. A simultaneous press

on both keys will position a Man Overboard waypoint at the vessel’s position

6 Power key. A short press opens the backlight/power dialog. Repeated short presses

toggles through brightness levels.

The power button

• Press and hold: Turn unit on/oﬀ

• Single press:

Display dialog for light

adjustment, night mode and

standby mode

• Repeated presses: Toggle preset brightness levels

2|HDS Gen2 Touch | QuickStart Guide

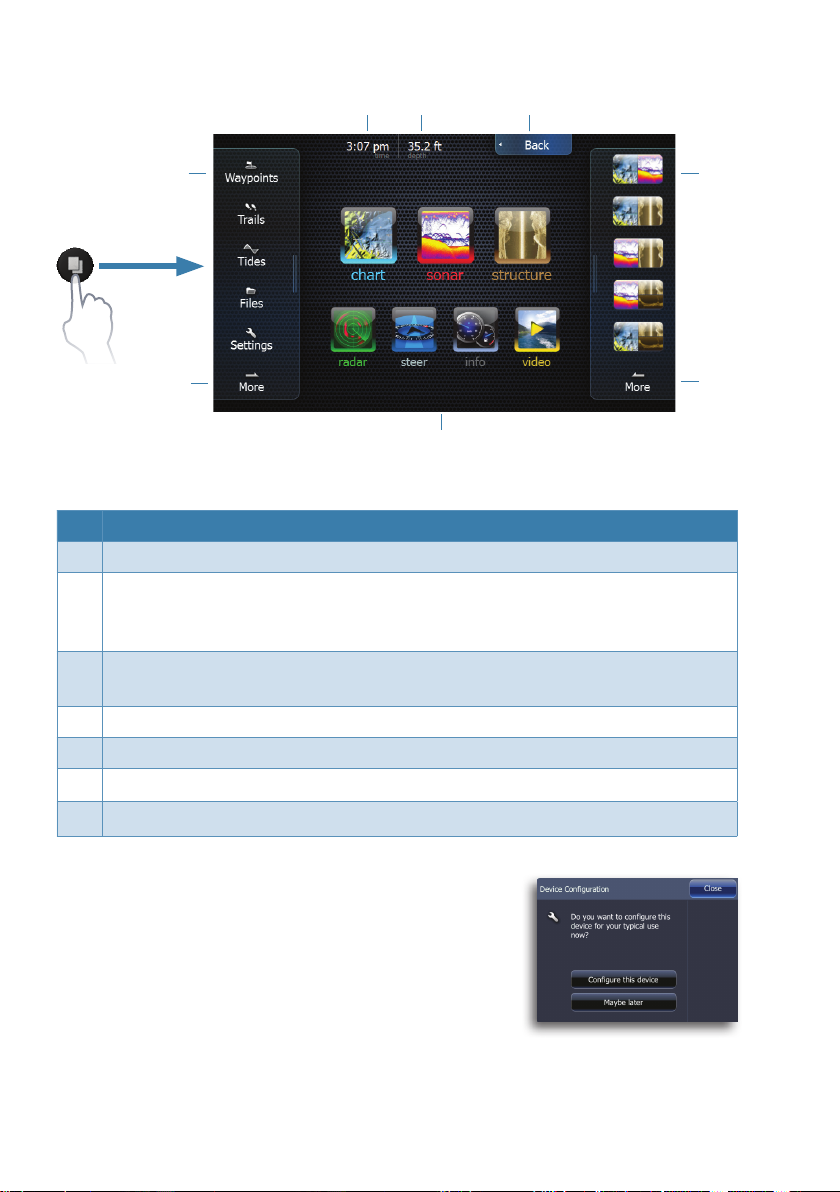

The homescreen

¼Note: video is only available on HDS Gen2 Touch 9” and 12” units.

No. Description

1 Utilities panel. Tap an icon to access utility data.

2 Favorites panel. You can display Favorite pages, save new Favorites or clear

previously conﬁgured pages. Repeatedly tapping the Pages key will cycle

through favorite pages.

3 Main icons. Tap an icon to view a page full screen. Press and hold an icon to

view quick split combo page options.

4 More. Tap to see the full menu.

5 Back. Tap to exit the homescreen and return to previous active page

6 Local time.

7 Water depth.

Device conguration

The device conﬁguration dialog appears when you start

up the unit for the ﬁrst time. It will reappear at the next

restart if you select Maybe later. Tap Close to manually

conﬁgure settings.

| 3

HDS Gen2 Touch | QuickStart Guide

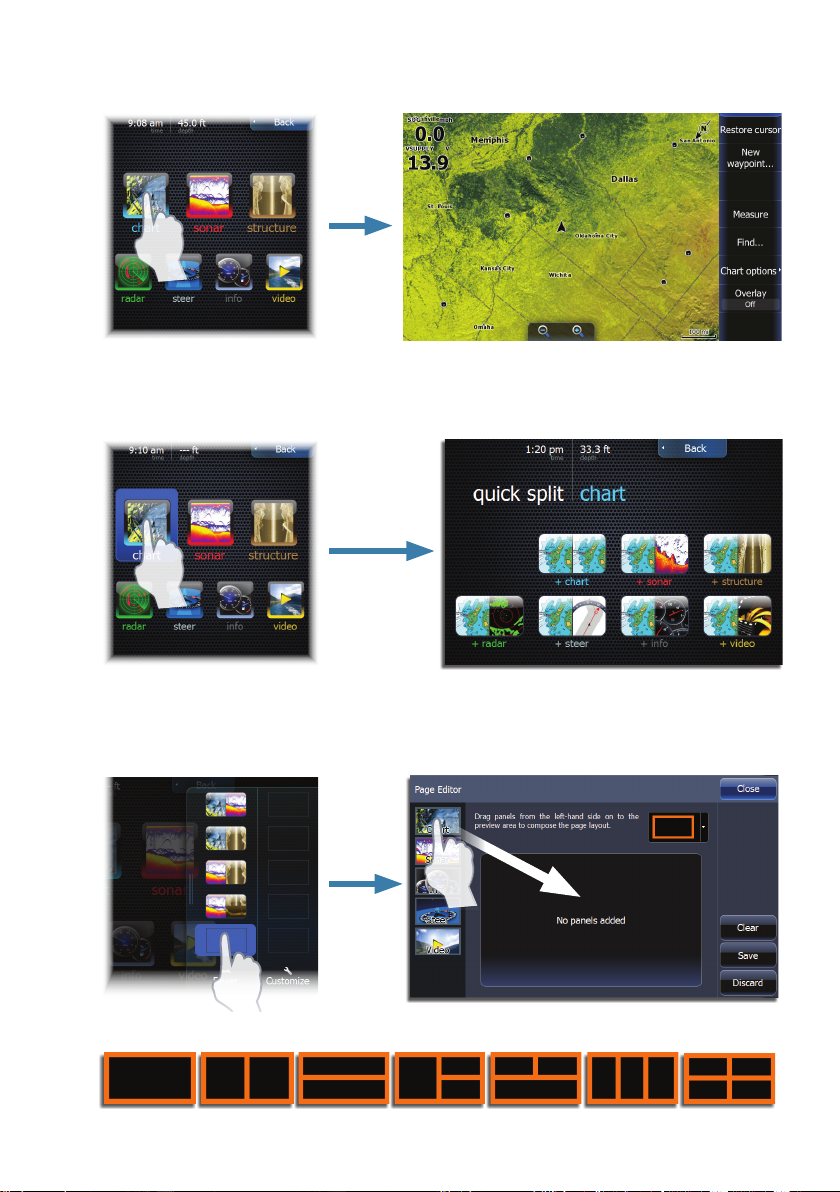

Selecting main pages

Accessing quick splitscreen displays (quick splits)

Customizing favorite pages

Several panel conﬁgurations are available:

Press and hold the page icon

Tap the page icon

4|HDS Gen2 Touch | QuickStart Guide

Menus

Page menu

Hiding the page menu

Hidden system menu

The page menu for each operation mode has a hidden system menu. To access the

hidden system menu, place your ﬁnger on the top menu item and drag down.

To hide the menu, drag it to the right Restoring the page menu

| 5

HDS Gen2 Touch | QuickStart Guide

Operation mode settings menu

System settings

Data Overlay

You can turn on/oﬀ viewing of overlay data and edit overlay data from the hidden

system menu on any page.

6|HDS Gen2 Touch | QuickStart Guide

Saving a Man Overboard waypoint

Using the cursor

Tap the screen to activate the cursor. Drag your ﬁnger in any direction to pan the

screen. Tap Clear Cursor to remove the cursor from the page.

Cursor assist mode

Press and hold your ﬁnger on the screen to switch the cursor to cursor assist mode.

The selection tool will appear above your ﬁnger. Drag the selection tool over the

desired item.

| 7

HDS Gen2 Touch | QuickStart Guide

Creating a waypoint

The waypoint will be positioned at the cursor when the cursor is active. When the

cursor is not active, the waypoint will be positioned at your current location.

¼Note: Press the dedicated waypoint key twice to quickly save a waypoint.

Sonar

Adjusting sonar settings

Sensitivity and Colorline are adjusted by dragging the slide bar vertically.

The slide bar is accessed by tapping Sensitivity or Colorline on the Sonar menu.

8|HDS Gen2 Touch | QuickStart Guide

Fishing modes

Consists of preset packages of sonar settings designed for speciﬁc ﬁshing conditions.

Use fresh water ﬁshing mode when ﬁshing in less than 60 feet of water.

Viewing sonar history

You can view sonar history by activating the cursor and then dragging your ﬁnger

horizontally across the screen.

*988-10310-003*

Touchscreen calibration

If your screen is unresponsive to the touch, or the onscreen response does not align

with your touch, you need to calibrate the touchscreen.

1. Turn the unit oﬀ

2. Press and hold the Waypoint key, then turn the unit on

3. Hold the Waypoint key during power on, until the calibration utility screen comes up

4. Touch crosshair shown on screen to perform nine points calibration

5. After successful calibration the unit will return to normal application screen
