Loxit 8996 Bedienungsanleitung

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ

www.loxit.com ꞁ [email protected]om ꞁ +44(0)1625 856 801

Multi Position Fixed Height - Trolley Mount 8996

- Max Capacity 100kg -Screens upto 86in

Safety instructions

Use the following safety guidelines to help protect your trolley from potential damage and to

ensure your own personal safety.

When adding a TV or any other equipment the party adding this TV or equipment is

responsible for ensuring stability and safe operation of the trolley.

The trolley must only be used on a flat floor area

The trolley must not be moved over rough or uneven ground.

The trolley must only be used indoors in a dry area.

1. Fix the legs to the base using the

M10 x 40mm bolts with pre-applied

thread lock provided.

2. Secure the handle using eight

M5*16 bolts.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ

www.loxit.com ꞁ [email protected]om ꞁ +44(0)1625 856 801

4. Fix the angle brackets to the legs

using two M8 bolts per bracket, the

brackets must be mounted in the

fully vertical position.

The angle brackets can be mounted

at four different heights, fix the

brackets at a height suitable for your

requirements.

3. Fix the casters to the trolley base

using four M10 x 30mm Bolts with

pre-applied threadlock.

Stand the trolley upright once the

casters are mounted.

5. Bolt the mount plate in place using

four M8*20 bolts.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ

www.loxit.com ꞁ [email protected]om ꞁ +44(0)1625 856 801

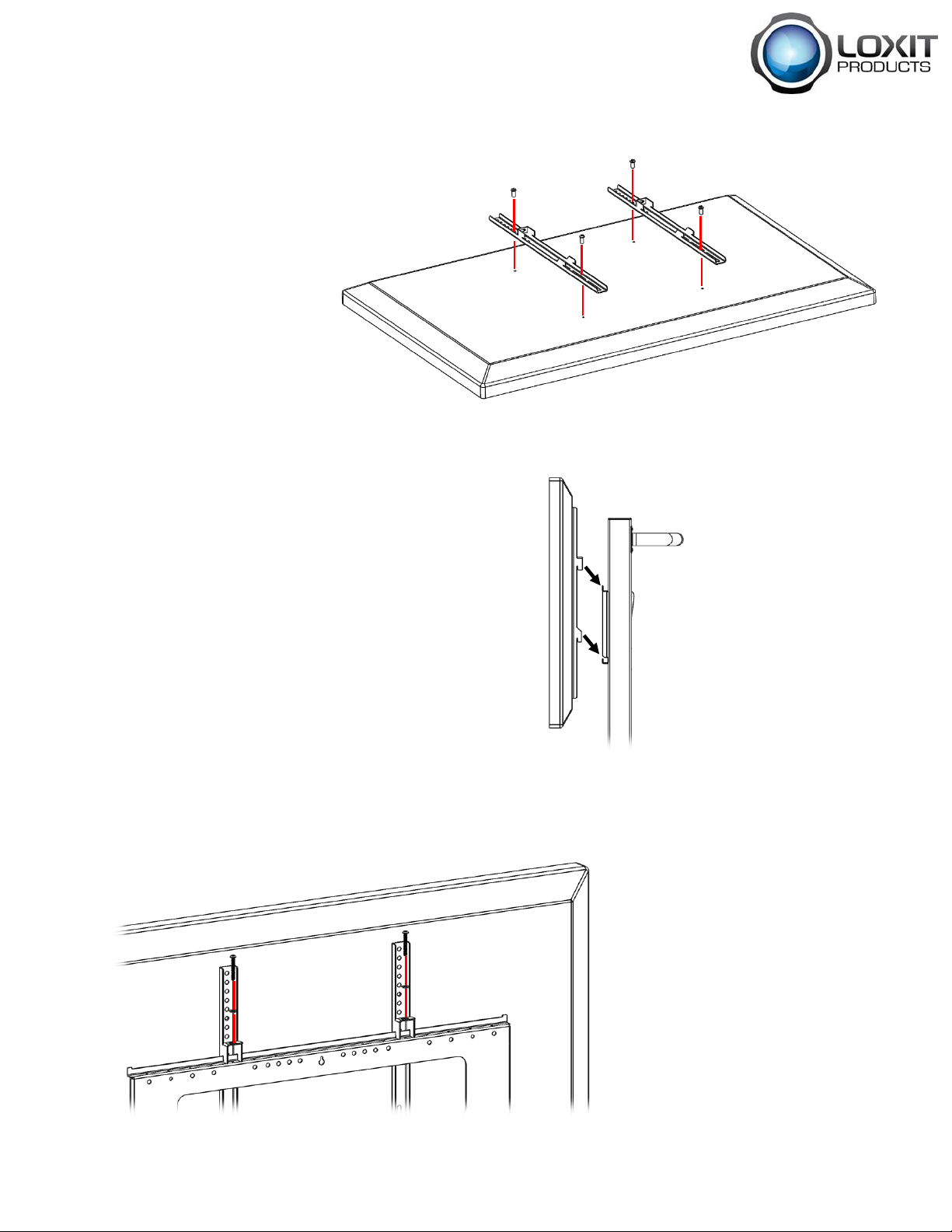

8. Secure the screen in place by fixing through the brackets

into the mount plate, use the M5x50mm Bolts and

washers provided.

7. Make sure the casters on the base are locked,

then hook the screen onto the mount plate.

6. Fix the brackets to the back of the

screen using fixings of an appropriate

size and length for your screen. Ensure

the brackets are as central as possible.
