LP HAL1200 Atlantic Bedienungsanleitung

USER'S MANUAL

1200W AUTOMATIC LINEAR AMPLIFIER

Model: HAL1200 Atlantic

A - Introduction

Thank you for purchasing the HAL 1200 Atlantic.

(Automatic Transistorized Linear Amplifier No Tune nside Computerized).

This compact and lightweight desktop HF linear power amplifier has a

maximum input power of 2.4 KW.

Our solid-state broadband power amp technology makes it the smallest and

lightest in the industry.

Typical output power is 1200W PEP/SSB with the drive power of 25-35 W.

The built-in band decoder will allow you forget about the band setting, without

any data connection to the transmitter, or when the amplifier is connected to

the modern radio through these cables band data as Yaesu BAND DATA,

com C -V, Kenwood RS-232C or F-232, Elecraft BAND OUT.

B - Caution

B-1 Unpack the amplifier, check the fan guard at the rear panel Fan to see if

there is any damage caused by the physical shock during the transportation.

Fan blades must be free to rotate when powered.

The amplifier is cooled by forced airflow. Several inches of clearance on the

top and the rear wall are necessary to allow for smooth air intake into the fan.

B-2 Keep the amplifier out of direct sunlight, in a cool dry environment.

B-3 nternal high voltages, (AC, DC and RF), are present at all times, ON

A R or OFF. nternal access should be limited to avoid injury.

B-4 Turn off the AC main power immediately upon any unusual sounds,

sights or odors. Check readings the display for Warning messages, the fuses

and all cable connections around the amplifier. Please notify the dealer or the

factory of any problems.

B-5 For your safety, do not operate the amplifier without adequate

grounding. A proper ground connection will result in peak performance and

stability, in addition to reduced RF strays or noises.

B-6 To eliminate the RF interference to such home appliances as TV, FM

radio, telephone sets, etc., it is recommended that clamp-on ferrite cores be

inserted at both ends of the remote control cable, coaxial jumper cable, and

antenna cables, as needed. Also, a common mode AC line filter (near the AC

outlet), and in-line low pass filters on the antenna coaxial cable, (as

necessary), are recommended.

B-7 The amplifier has fast acting sophisticated protection circuits controlled

by the latest microprocessor technology. Please note, however, any such

actions that cause the same fault to occur repeatedly, will lead to failure of the

valuable final power MOSFET transistors.

B-8 Before checking into the amplifier, always disconnect the mains power

supply, with the power disconnected, press the power switch to "POWER" to

ON, be sure to wait a minute to allow the high voltage discharge DC , return

the switch to OFF.

The internal potentiometers for RF power detector, protection circuits,

MOSFET bias voltage circuit, etc., are precisely adjusted at the factory, and

should not be altered. Doing so, would require readjustment with precision

measuring instruments.

B-9 The primary power supply is for AC from 100 to 260 V operation. Be

sure to verify your AC line voltage before you plug the AC power cord into the

outlet.

B-10 Before powering on the amplifier, be sure to connect a dummy load

(50 ohms, 1500 W min.) or a well-adjusted antenna to the output terminal.

Operating without any load will cause extreme stress to the RF power

MOSFET’s, although protection circuits should work under critical conditions.

B-11 Required drive power is slightly less than 30 W to obtain the full 1200 W

output. Do not attempt to operate with excessive drive from a high power

transceiver. Transmitting high drive RF (over 70 W) into the amplifier will void

the warranty.

B-12 Keep the copper/aluminum heat sink and air openings free from dust

and blockages. Periodic cleaning will prevent degraded cooling efficiency.

B-13 For long continuous operation in RTTY/FM modes, it is recommended

you reduce the RF drive levels by 20% to 30% lower output than CW/SSB

modes.

B-14 To prevent damage to the precision electronic components, avoid

extreme physical shock to the amplifier. f factory service is required, the

amplifier must be shipped using the original box and packaging materials.

C - Feature

C-1 Our solid-state broadband design engineers worked to make the

HAL 1200 Atlantic, the lightest and most compact 1200 W HF amplifier in the

industry.

C-2 The amplifier is equipped with a newly developed band decoder.

The amplifier’s decoder whit the microprocessor, on detecting RF input,

changes bands automatically without any external connection, or as the data

signal is received from the connection of the associated HF transceiver’s

frequency bands.

C-3 The amplifier’s main PA section includes 4 high power MOSFET

SD2933 by ST Microelectronics, resulting in 1200 W PEP (SSB max.). The

amplifier’s broadband characteristics require no further tuning once the

operating band is selected.

C-4 The amplifier has no output ALC, because by the microprocessor,

controls the input attenuation, to keep the linear region between 20 to 45 W of

drive.

C-5 To ensure a clean RF emission, were used filters LPF of the fifth order

Cauer.

C-6 With the unique duct structure design and the powerfull blower fan, the

copper/aluminium heat sink block for RF PA module (and other components),

are effectively cooled. The fan’s quiet operation allows for even the weakest

DX signals to be heard.

C-7 The amp utilizes an advanced 16 bit MPU (microprocessor) to run the

various high speed protection circuits such as OverDrive, High antenna SWR,

OverHeating PA , in the event of erroneus Band Change, etc.

C-8 A bright, backlit LCD display, in graphical and numerical displays the

input power, output power and reflected power simultaneously, as well as

various status data and warning messages.

D - Specification

Frequency : 1.8 ~ 54 MHz

all amateur bands including WARC bands

Automatic Band Change

(only PTT/TXGND Signal), or

with dedicated connection for the most common

Transceivers Yaesu, Kenwood, COM, Elecraft .

Mode : SSB, CW, RTTY

RF Drive : 20 ~ 45 W (30W typ.)

(automatic selection: NO ALC)

Output Power : 1200W PEP / 1000W CW (typ.) - HF

600W PEP / 500W CW (typ.) - 6 meters Band

Drain Voltage : 50 V

Drain Current : 40 A max.

nput mpedance : 50Ω (unbalanced)

Output mpedance : 50Ω (unbalanced)

Final Transistor : SD2933 x 4 (MOSFET by ST Microelectronics)

Harmonics : -50 dB (<)

MD3 : -34 dB (typ.)

Output Filters : LPF CAUER of 5th order

(160m, 80m, 40m, 30/20m, 17/15m, 12/10m, 6m)

Cooling Method : Forced Air (Fan)

MPU : H TACH /Renesas 16bit

D SPLAY : LCD FSTN 20x4 Backlight;

at Real Time:

- Band

- Type of Automatic Band Change

- Temperature of Power Section

- Status (Ready, StandBy, On Air,

Protect, Warning, .......)

- Warning of Protection

- Announcement for Attenuator nsertion

- nput Power (Graphic/Numeric)

- Output Power (Graphic/Numeric)

- Reflected Power (Graphic/Numeric)

at StandBy, Menu:

- Start (StandBy/Ready)

- AutoBand (Automatic/CAT)

- Temperature (Celsius/Fahrenheit)

PROTECT ONS: - Over Drive

- Output Power Limiter

- High SWR (SWR > 2:1)

- Over Temperature

- Fault of PA Fuses

- n the event of erroneus Band Change

nput/Output Connectors: UHF SO-239 Teflon

AC Power : AC 100 ~ 260 V / 16 ~ 10 A max.

Dimension : 261 x 334 x 153 mm (W x D x H)

Weight : Approx. 9 kg.

Accessories : AC Power Cord x 1

: Spare Fuse 10 A x 1 (for AC 230V line)

: Spare Fuse 16 A x 2 (for PA)

Only for K T version : Fuse Holder x 1 with Fuse 10A x 1 (for AC 230V line)

E - Front Panel De cription

③ ④ ⑤ ⑥ ⑦

⑧

② ①

①POWER Main power switch to turn AC power ON (I) and OFF (O).

Display lights when turned on.

②STBY STAND-BY/OPERATE key and annunciator Yellow LED.

At STAND-BY mode, the Yellow LED is ON, RF signal pass through.

At OPERATE, ( READY) the amplifier is ready to go into ON A R (TX) mode,

the yellow LED is OFF.

③BACKLIGHT LCD DISPLAY.

④WARN Warning Red LED annunciator.

Blinking for Warning, ON at PROTECTED Status (amp. Stopped).

⑤ON AIR Green LED annunciator.

Lights when the amplifier is in transmit (TX) mode.

⑥OK OK Key; in operating mode, and in the event of an alarm Warning or

Protection, confirms the reading of the message displayed , Resetting the

alarm status and turns OFF the Red LED indicator ; in menu mode, confirm

your selection.

⑦MENU Menu Key, enter into the setup menu .

⑧UP / DOWN Keys; in operating mode, selecting HALF or FULL Power

Output ; in menu mode, to navigate the menu.

F - Di play De cription

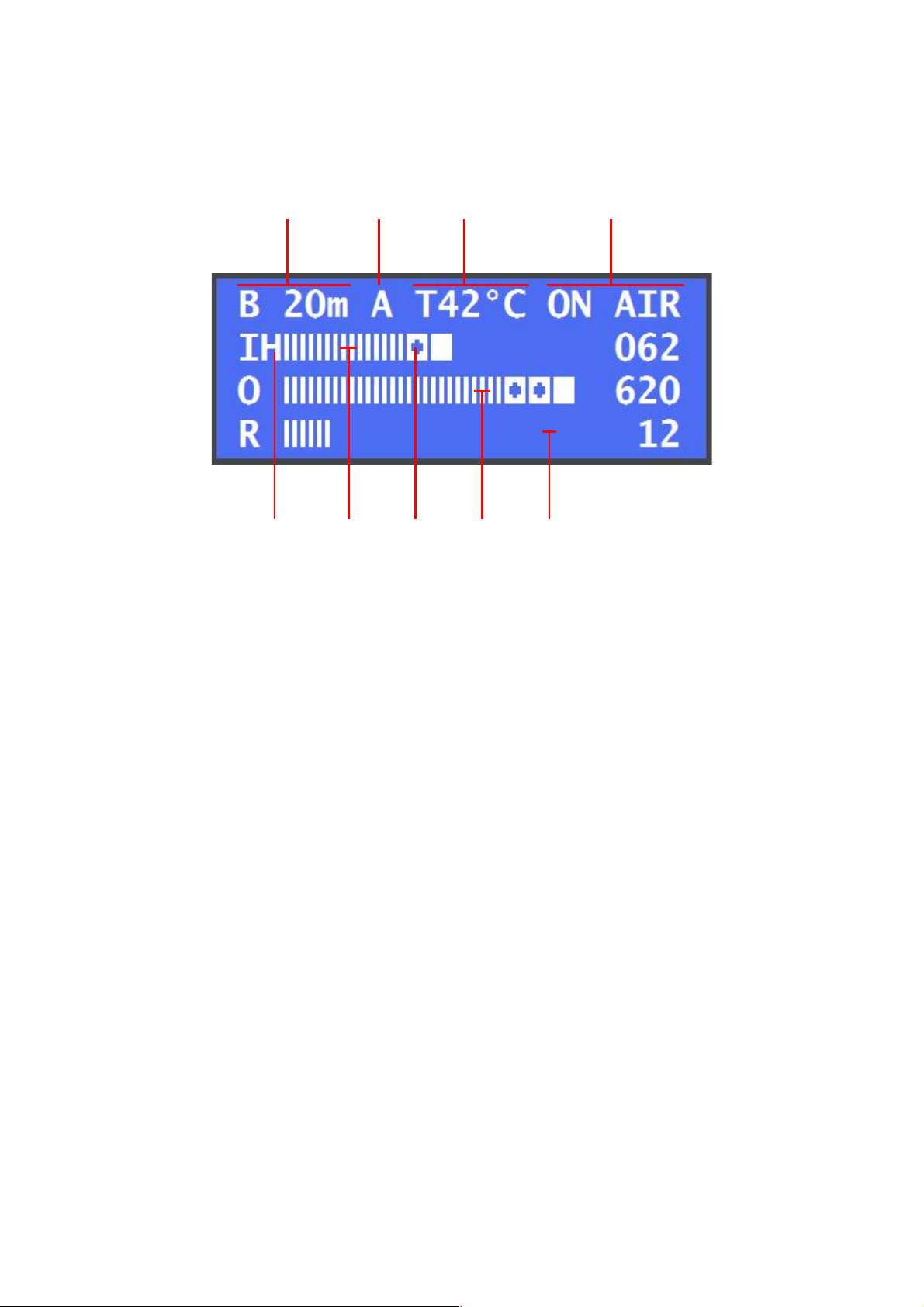

① ② ③ ④

⑤ ⑥ ⑦ ⑧ ⑨

① B Selected band and operational.

②Type of change automatic band selected and active :

A= nternal automatic band decoder, Y= Yaesu Band Data,

K= Kenwood CAT RS232 or F232, I= com C -V, E= Elecraft Band Out .

S=Semi-automatic with the help of the inner decoder bandwidth.

Temperature of Power Amplifier device, ( ③Celsius or Fahrenheit ) .

S④tatus message: STBY=Stand-By , READY=Operate, ON AIR= TX,

PROTEC=Stopped for protection, HI-TEM=High Temp PA,

for Semiautomatic: SET B=Selected Band, W Band=Check Band.

⑤H Signaling of insertion of the input attenuator, in line “I” or in line “R” ;

in line “O” signaling the setting of HALF Power Output.

⑥ I Display line of the input power in graphical and numerical.

⑦ ◘This symbol indicates the optimum power drive. ( about 25W ).

⑧ O Display line of the output power in graphical and numerical.

⑨R Display line of the reflected power in graphical and numerical.

G - Rear Panel De cription

① ② ③ ④ ⑤

⑥ ⑦ ⑧ ⑨

F①an with safety grill.

②RF OUTPUT RF Output Connector. Connect the coax cable to the

antenna.

③RF INPUT RF nput Connector. Connect the coax jumper cable from the

transceiver.

V④entilation hole.

⑤DATA I/O D-Sub Female (15pin) Socket.

Connect the data communication cable HAL <> Transceiver.

⑥GND Ground Terminal.

⑦TX GND RCA Jack. Connect the control cable from the TX GND terminal

(SEND, REMOTE etc.) of the transceiver. Electrical conditions are 24 VDC of

open voltage at receive mode (RX), and short current of 15 mA at transmit

mode (TX).

⑧100-260 VAC AC Mains Socket. Socket for the AC power cord.

⑨FUSE 16-10 A Fuse for AC Mains. (240 V / 10 A glass fuse. (5 x 20)).
