Quickly Guider of LTE Router LTE-S4

User Manual

LTE RouterAP1105

Dec. 2013

This manual will indicate you how to set and use your LTE Router: access into router’s

WEB interface from computer, choose the right operation mode to meet with your

requirement, and then manage your networking easier and faster.

Quickly Guider of LTE Router LTE-S4

密级

Pls check Packing details before use it:

LTE Router *1;

5dBi antenna *2

DC Power Adapter *2

CD with User Manual *1

LAN Cable *1

Quickly Guider

1st : Port Description and Power on

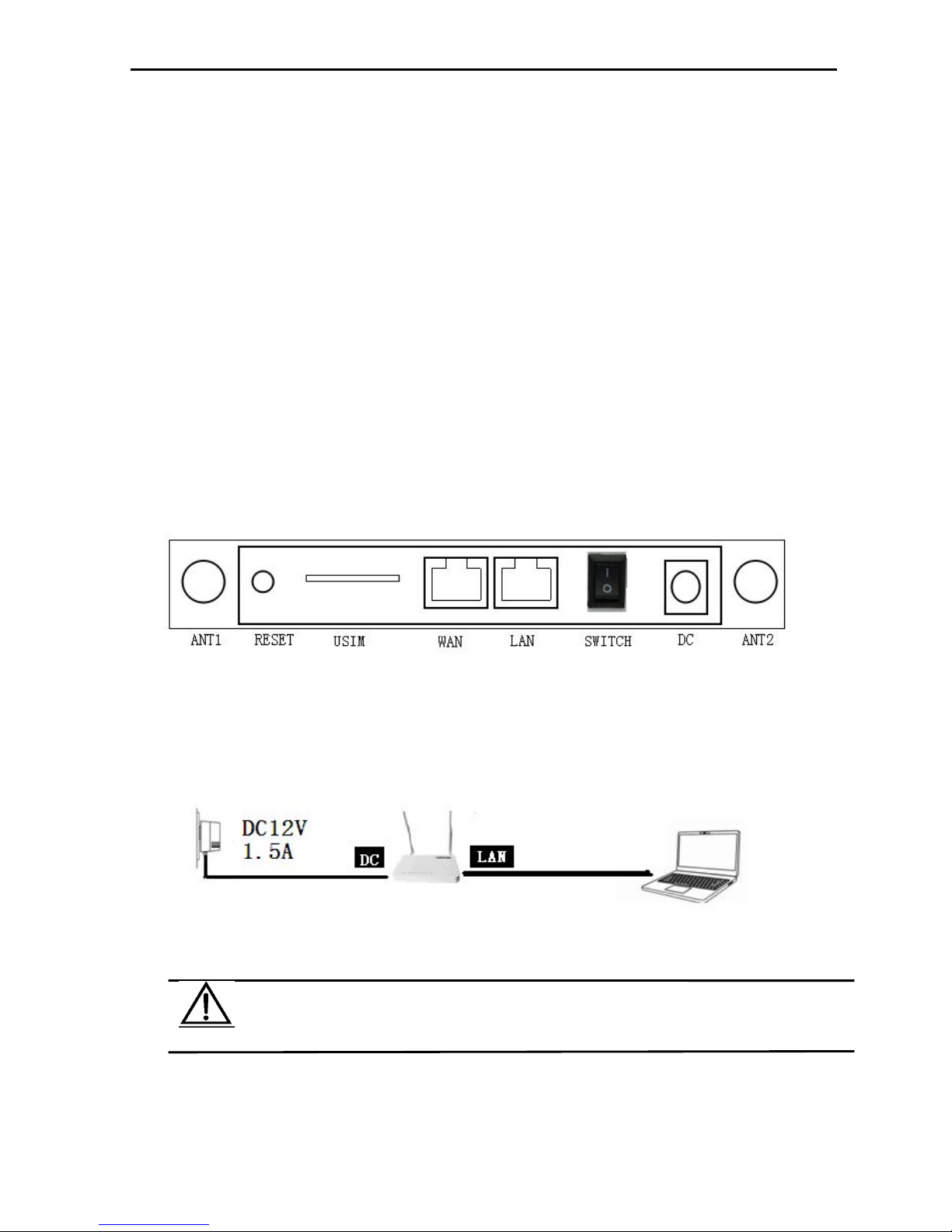

Port Description: showed as P1: Antenna 1, Reset, SIM Card slot, WAN port, LAN Port,

Switch, DC Power, Antenna 2

P 1 LTE-S4 Port Description

Power on：

DC power on: The DC’s electronic standard is 12V/1A, 12V/1.5A, DC connection

diagram and computer connection diagram as follow:

P2 How to power LTE-S4

Atten

Wrong connection and un-matched power adapter may damage this

router

Quickly Guider of LTE Router LTE-S4

密级

2nd : Log in

1) Connect LTE Router with computer by LAN cable, showed as P2.

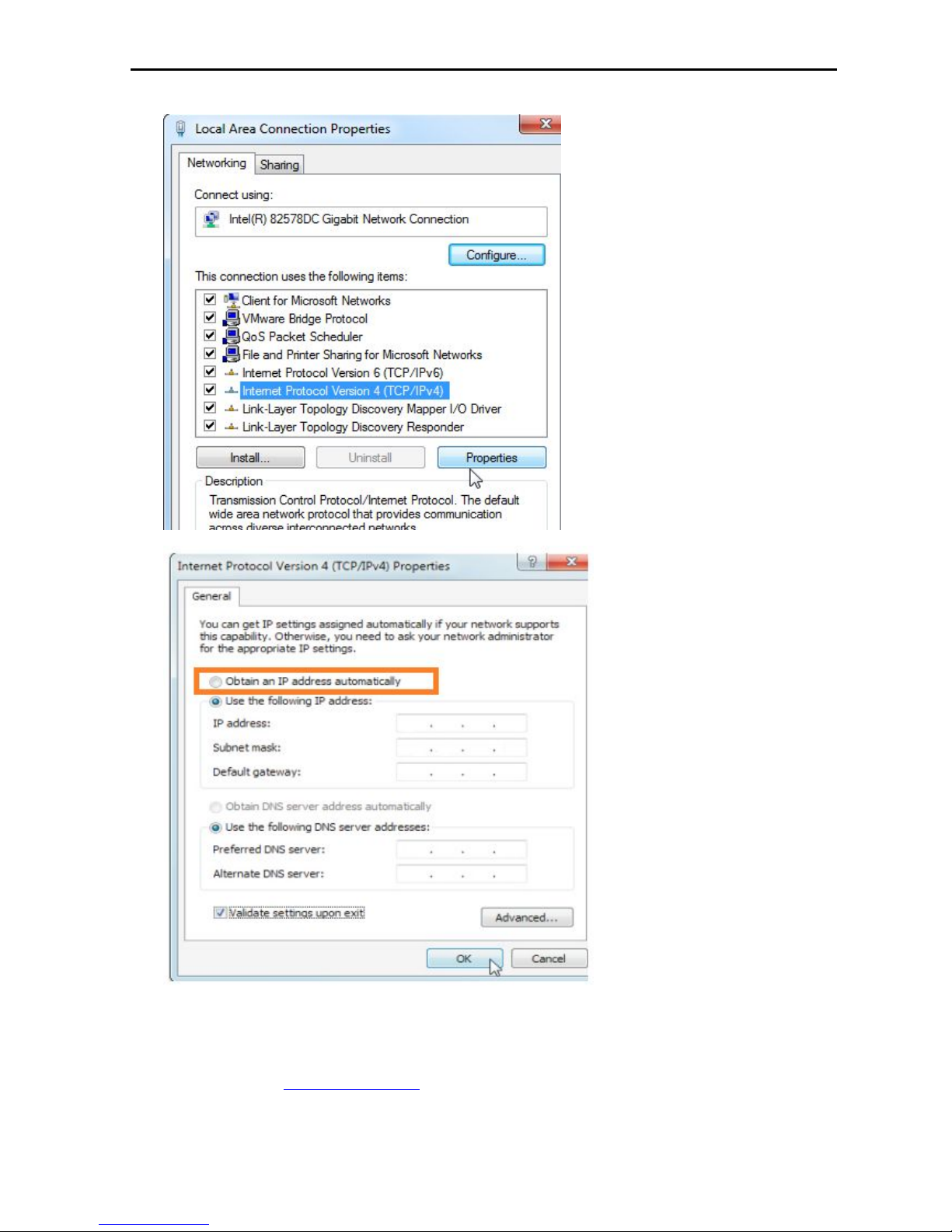

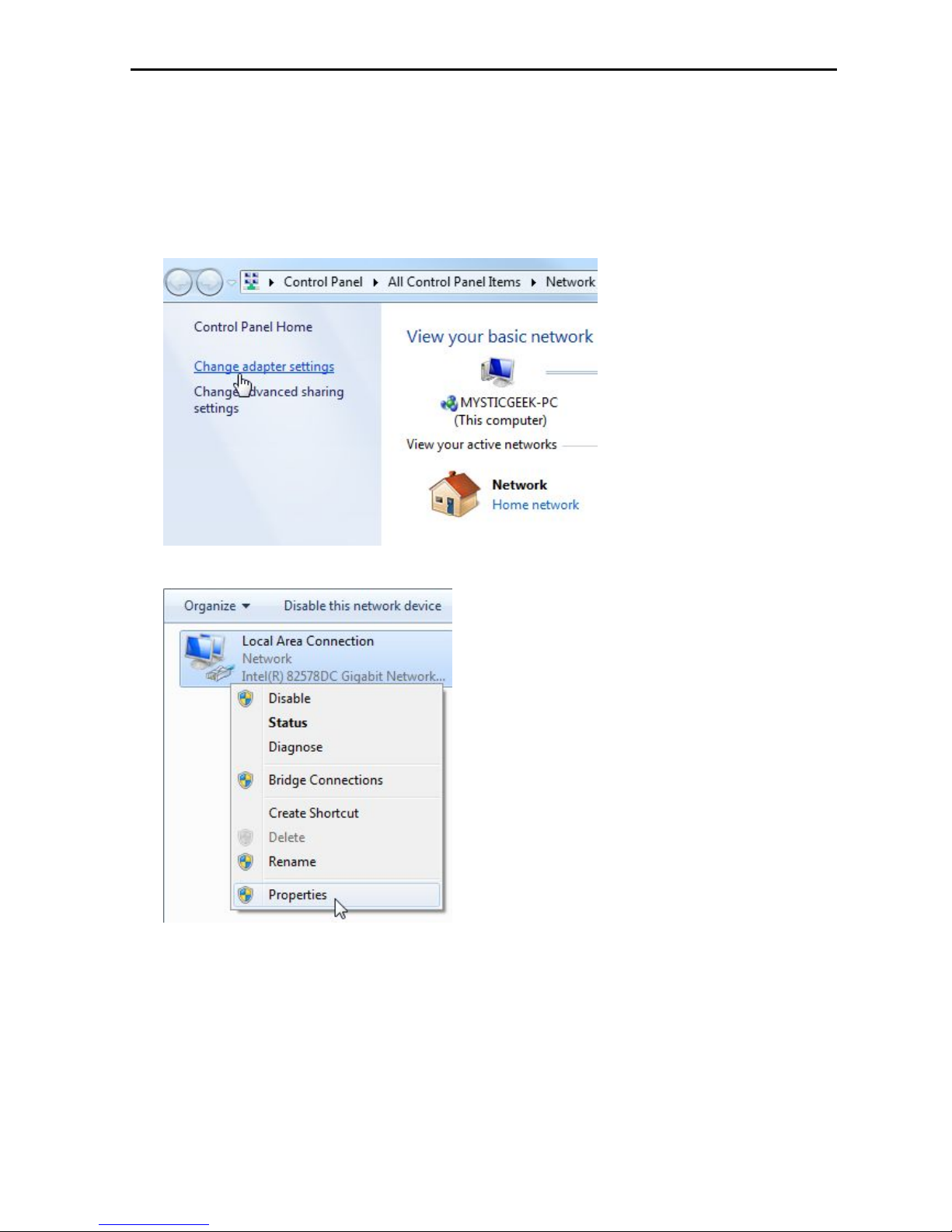

2) Pls check your PC’s IP address and make sure it is Obtain an IP address

automatically as follow:

Quickly Guider of LTE Router LTE-S4

密级

P3. Obtain an IP address automatically

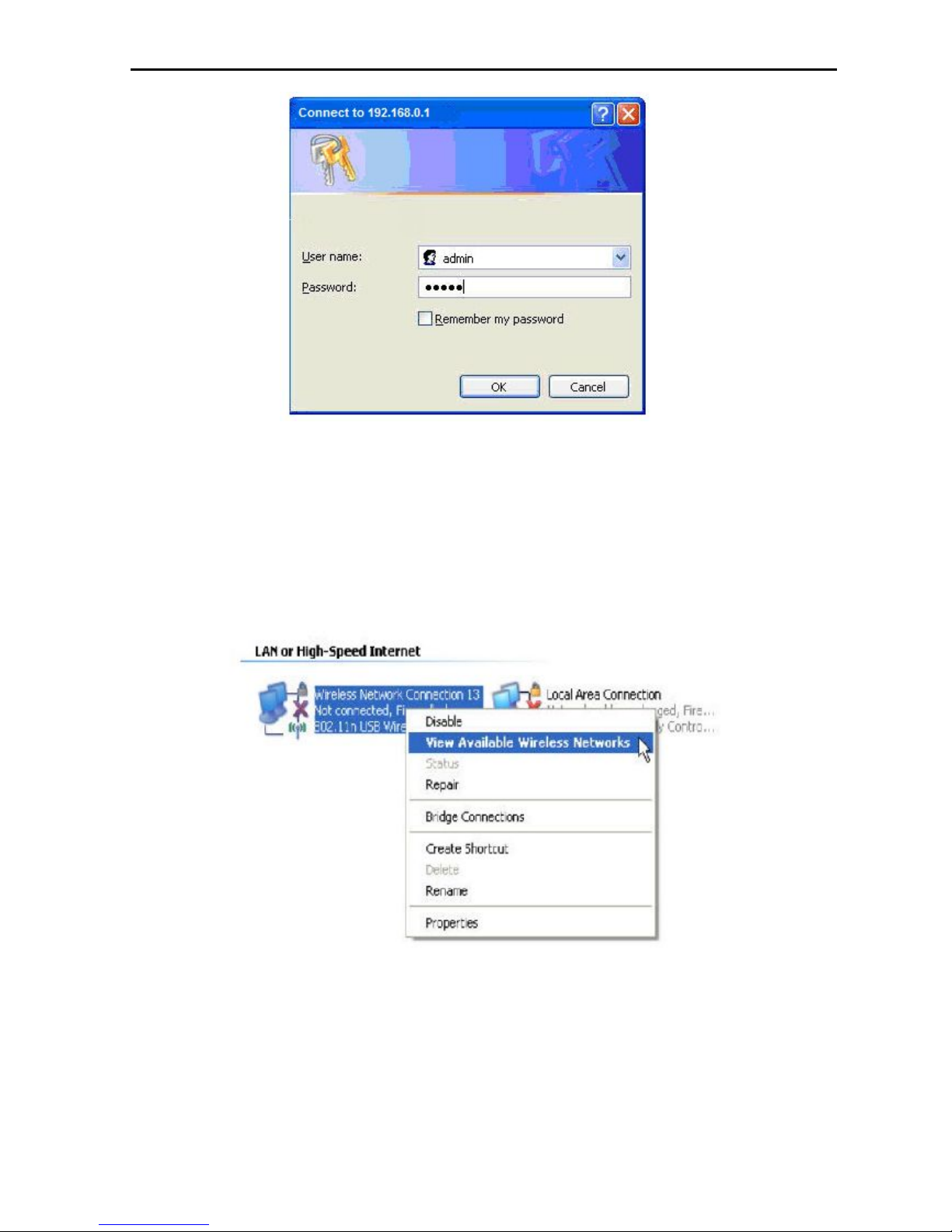

3). Log in: type http://192.168.0.1 in your IE, will pop up P4, pls input admin/admin in

User name and Password

Quickly Guider of LTE Router LTE-S4

密级

P4. Log in router in wired

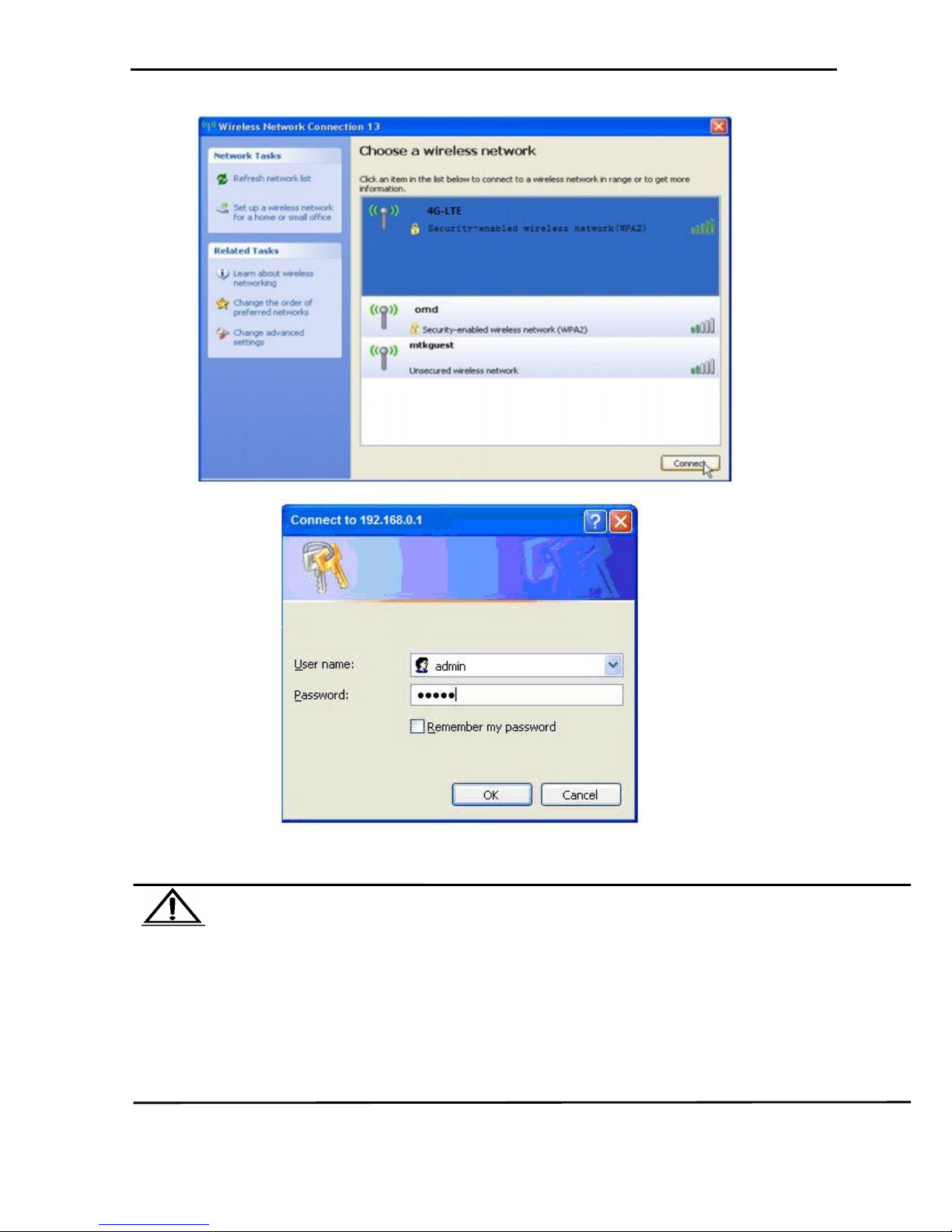

4) If you want to log in this router in Wireless, then the SSID: 4G-LTE, Passwords:

66666666, Search this SSID and input passwords to make your PC connected with

this router, then type 192.168.0.1 , will pop up a window, then input admin/admin to

Quickly Guider of LTE Router LTE-S4

密级

P5: Log in Router wirelessly

Atten

If your computer with build in 802.11b/g/n wireless adapter, but can’t search the

available wireless networking after refresh, pls contact with computer supplier or

after-sale department after appear following points:

Right click My Network Places, select property, appear Local Area Connection or

Other Connection, No Wireless Network Connection

There is Wireless Network Connection in My Network Places, Show General and

Advanced after right click Wireless Network Connection and select properties, but

no Wireless Network Configuration in Window

Quickly Guider of LTE Router LTE-S4

密级

Step 3: Operation Mode:

After entered the WEB management page, you can set LTE-S4 as your requirement. The

default working mode of this device is 3G/4G mode. Following will explain the setting of

3G/4G Operation mode:

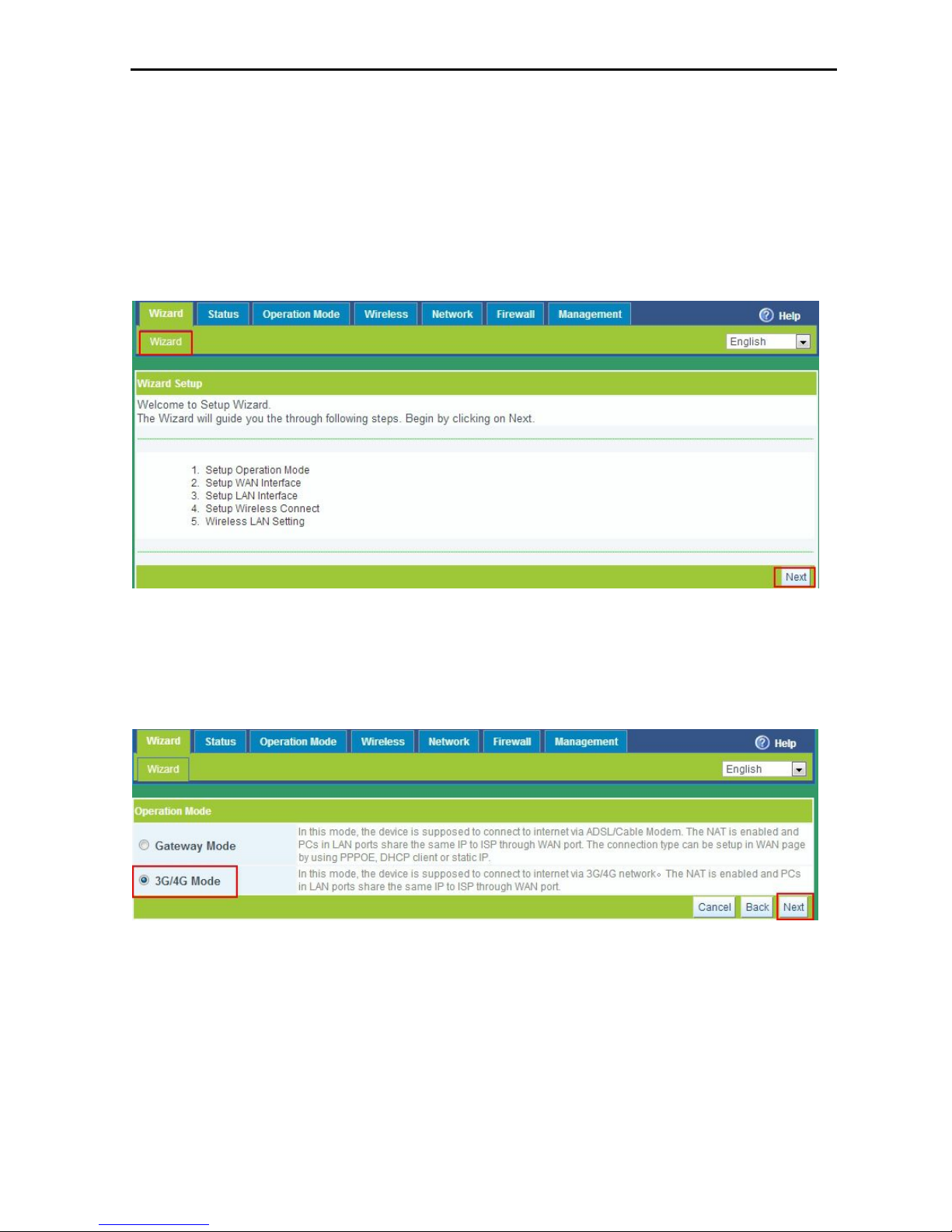

Wizard: As P6 shows, click the “wizard” in the management page, then click” next”

P6 Wizard

Choose operation mode: After click “ Next”, Choose 3G/4G mode in the P 9 shows，

then click “next”.

P7 Choose working mode.

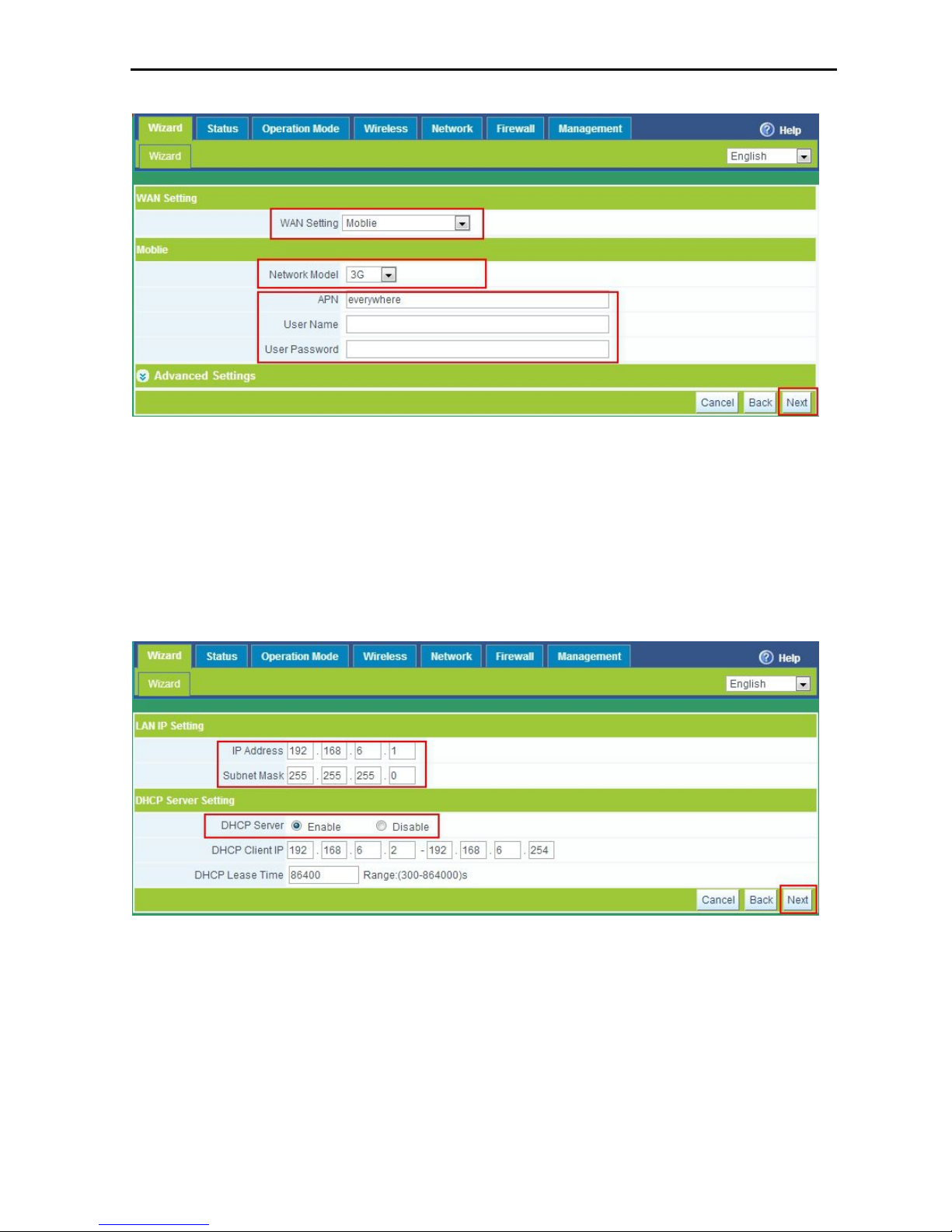

Wan Setting: After enter in the WAN setting page as P8 shows, choose

corresponding mode in the pull-down menu (take”3G” as example), then enter your

user name and password of mobile network (please consult your network operator

for help if don’t know the user name and passwords).

Quickly Guider of LTE Router LTE-S4

密级

P8 WAN Setting

Lan setting

Lan IP setting : Set the IP address you need as P 9 shows.

DHCP server setting: in mobile network mode, DHCP server is opened in default

Click “next”

P9 Lan setting

Basic configuration of wireless network: As P2 shows, you can make basic

configuration of LTE-S4, include SSID, Regional, password, mode, and channel

Then click “ finish”.

Quickly Guider of LTE Router LTE-S4

密级

P 10 Basic configuration of wireless network

Confirm the configuration After click “finished” ，as P 13 shows, choose “Sure”

in the dialog box, then the system will reboot in few minutes and after reboot the

configuration will complete.

P11 Change Operation mode

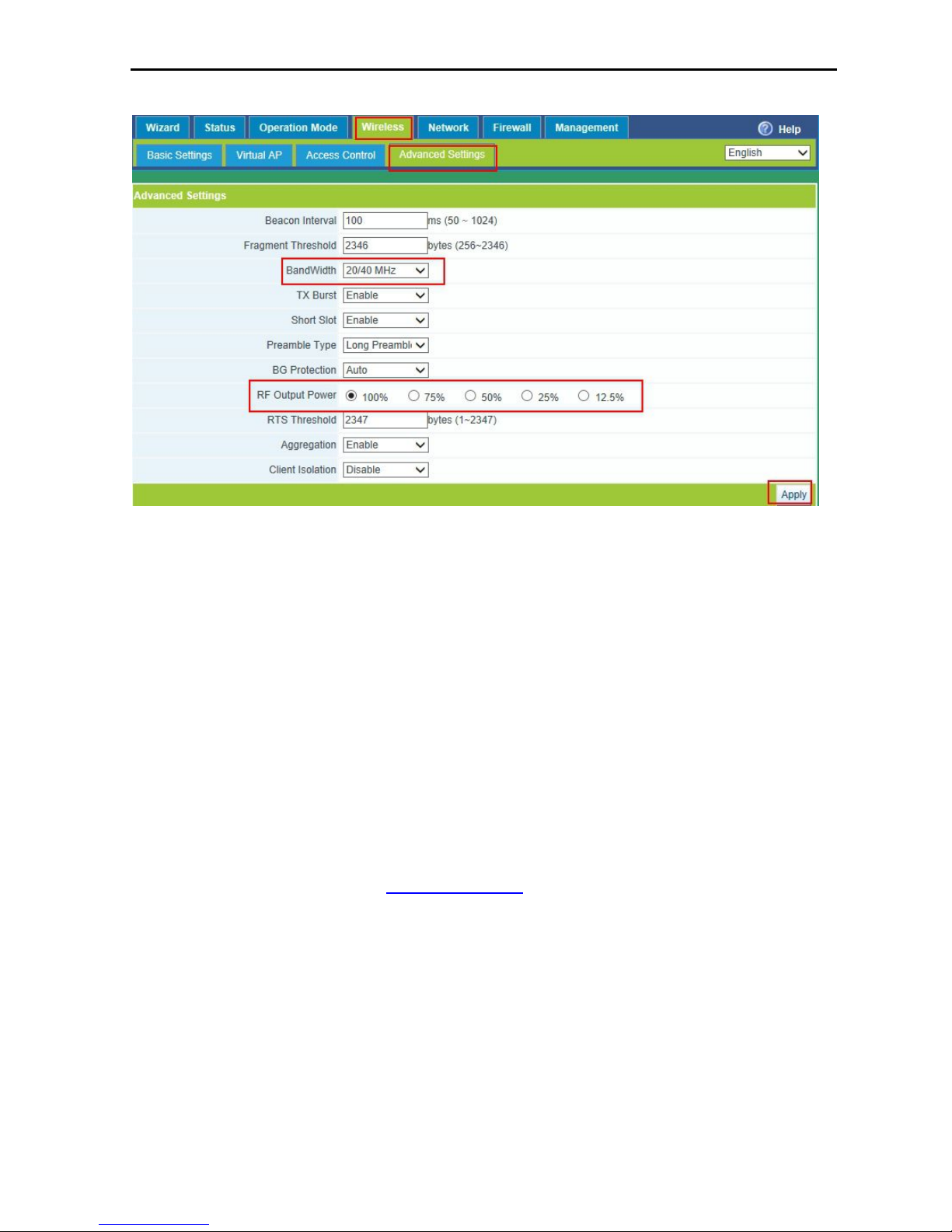

Advanced Settings: Click “Wireless”→”Advanced Settings” to setting, showed as

follow:

Quickly Guider of LTE Router LTE-S4

密级

P12 Advanced setting

Bandwidth: It is 20/40MHz matched automatically.

RF Output Power: It is 100%，75%，50%，25%，12.5%, user can set it as require.

Others: pls set it if professional and in needed, or keep it in default.

Then click “Apply” to finish the setting.

4th : Internet setting and Status checking

IP setting: After set the 3G/4G Networking, the router will reboot to 3G/4G

operation mode. Then insert your SIM card into router, your electronic device can

access the internet from LTE-S4.

Checking Status: type http://192.168.0.1 in your IE and login this router, then

you can check the router’s working status showed as P13. Then finish the 3G/4G

operation mode setting already.

For Gateway mode, pls set it from Wizard also if require.
