LUCCI Air Aria CTC Bedienungsanleitung

V1.0 –AU (2019/09)

LUCCI

AIRFUSION ARIA CTC

CEILING FAN

⚫INSTALLATION

⚫OPERATION

⚫MAINTENANCE

⚫WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATION AND FAN OPERATION.

Aria CTC Installation Instructions

1 | P a g e

THANK YOU FOR PURCHASING

Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read

and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep

instructions for future reference.

SAFETY PRECAUTIONS

1. In Europe: This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning the use of the appliance in a safe way and

understand the hazards involved. Cleaning and maintenance shall not be undertaken by children

without supervision.

2. In Australia: The appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning the use of the appliance by a person responsible

for their safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local

wiring rules.

IN AUSTRALIA

WARNING:

FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION

MUST BE INCORPORATED INTO THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the

minimum electrical safety of this standard.

Please note warranty will be void if installation is without a means for

an all-pole disconnection incorporated in the fixed wiring in

accordance with the wiring rules.

Example: If a fan is connected to a circuit that can be isolated via an

Aria CTC Installation Instructions

2 | P a g e

all-pole safety switch at the switchboard, then this is considered to be

an all-pole disconnection to the ceiling fan electrical circuit, meeting

the requirements of clause 7.12.2 of AS/NZS 60335.1.

A single-pole switch on the active of the receiver input of remote

control must also be included in the wiring, and located the same

room as the ceiling fan.

5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection

facilities. Contact your local government for information regarding the collection systems available. If

electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the

ground water and get into the food chain, damaging your health and well-being.

6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.

7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m

above the floor in Australia.

8. This fan is suitable for indoor, alfresco and coastal areas where the fan is fully undercover with a

minimum of 1 wall. This fan is not waterproof. When installed in an alfresco or coastal area, the

ceiling fan must be positioned in a location protected from water, wind and dust. Exposure to these

elements will void the warranty. Mounting the fan in a situation where it is subject to water or

moisture is dangerous and may increase the risk of damage, injury or electrical shock and will void

the warranty.

9. Must be assembled and installed by a licensed electrician.

10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the

ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.

11. The replacement of parts of the safety suspension system device shall be performed by the

manufacturer, its service agent or suitably qualified persons.

12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a

sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the

suspension system shall be performed by the manufacturer, its service agent or suitably qualified

persons.

Aria CTC Installation Instructions

3 | P a g e

PARTS LIST

•Unpack your ceiling fan carefully. Remove all parts and hardware.

•Lay out all the components on a smooth surface and make sure there are no components missing

before assembling. If parts are missing, return the complete product to the place of purchase for

inspection or replacement.

•Check whether the ceiling fan has been damaged during transport. Do not operate/install any

product which appears damaged in any way. Return the complete product to the place of purchase

for inspection, repair or replacement.

•Examine all parts, you should have the following:

Fan without light

Fan with light

Mounting bracket x 1

Motor assembly x 1

Blades x 4

Bottom motor cover x 1

LED light kit x 1

Motor housing x 1

Mounting screws x 4

Spare screw for fan blade x 1

Balancing kit x 1 set

Wall switch x 1 set

Fig. 1

Aria CTC Installation Instructions

4 | P a g e

INSTALLING THE MOUNTING BRACKET

•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the

blade to the nearest objects or walls.

•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least

20kg, with the 4 long screws provided. Ensure at least 30mm of the screw is threaded into the support.

(Fig. 2)

NOTE: The bracket screws provided are for use with wooden structures only. For structures

other than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable

for the mounting surface and the surrounding environment.

ANGLED CEILING INSTALLATION

This fan hanging system DOES NOT support a degree angled ceiling installation.

HANGING THE FAN TO MOTOR ASSEMBLY

•Install the motor housing (1) onto the motor assembly. (Fig.3)

•Lift the fan assembly up to the mounting bracket. Hang the fan assembly onto the J-hook (2) of the

mounting bracket. (Fig.4)

•Complete the electrical wiring according to the ‘ELECTRICAL WIRING DIAGRAM’section below.

Fig. 3

Fig. 2

20 KG

Fig. 4

Aria CTC Installation Instructions

5 | P a g e

ELECTRICAL WIRING DIAGRAM

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A

LICENSED ELECTRICIAN.

NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED

WIRING.

NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is

omitted when no light kit is used with the ceiling fan.

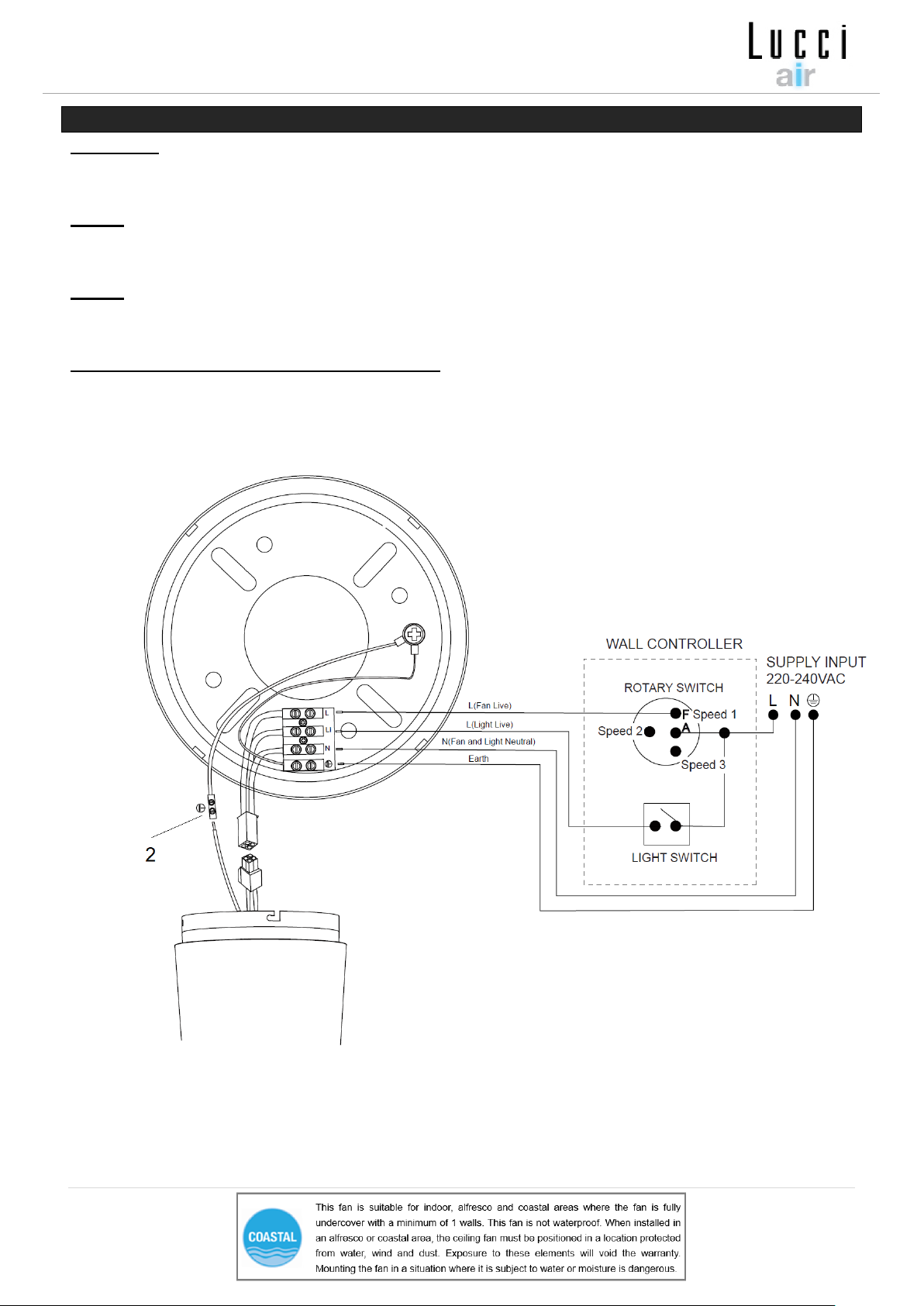

USE WITH WALL SWITCH WIRING DIAGRAM:

Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram below.

(Fig. 5)

Fig. 5

Aria CTC Installation Instructions

6 | P a g e

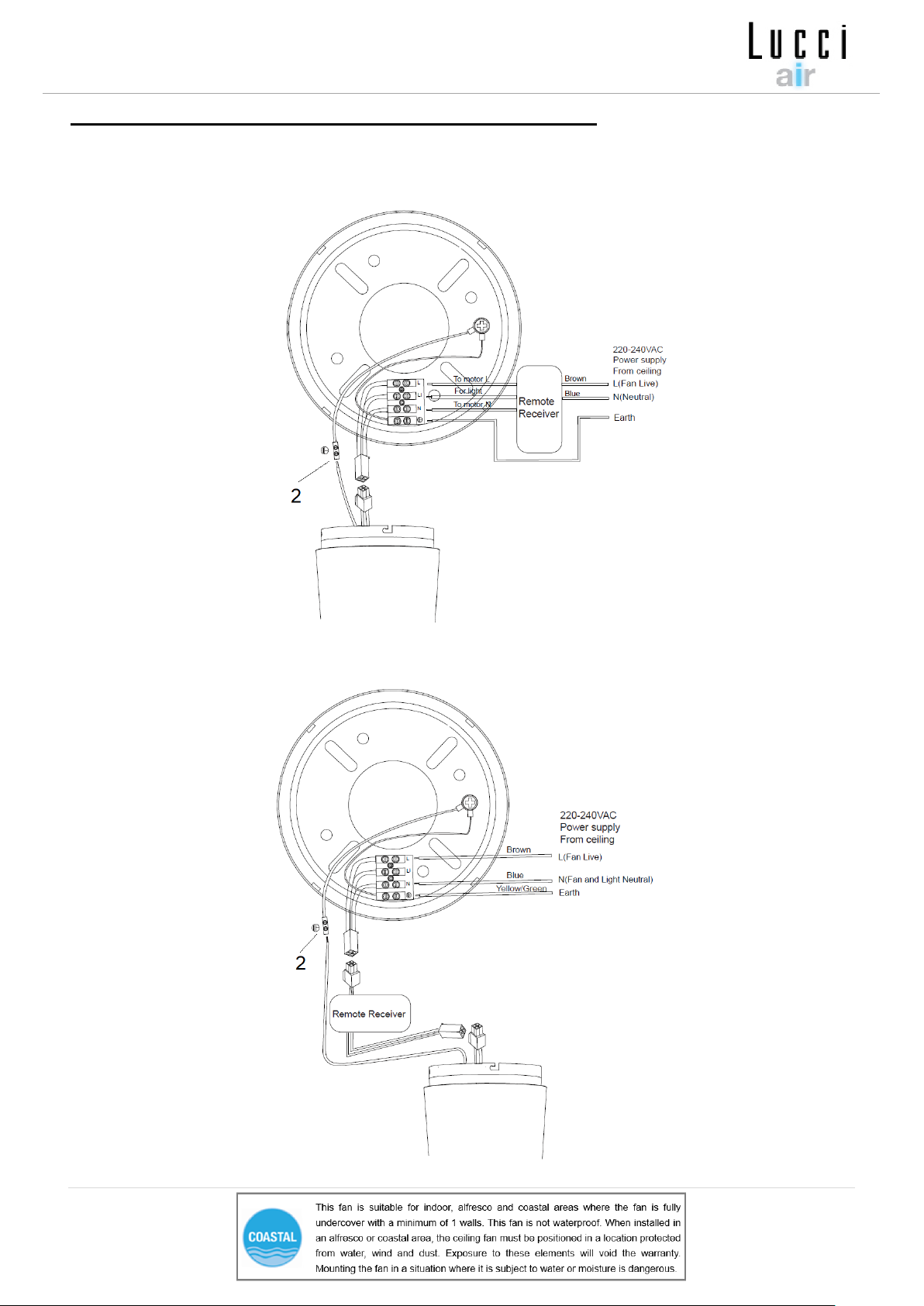

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)

Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 5)

for (Fig.6 and Fig.7)

1/ Remote without plugs (manual wiring)

2/ Remote with plugs (using quick connectors)

Fig. 6

Fig. 7

Aria CTC Installation Instructions

7 | P a g e

INSTALL THE FAN ASSEMBLY TO THE MOUNTING BRACKET

•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling

fan wiring via the quick connector plug.

•Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the

fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket.

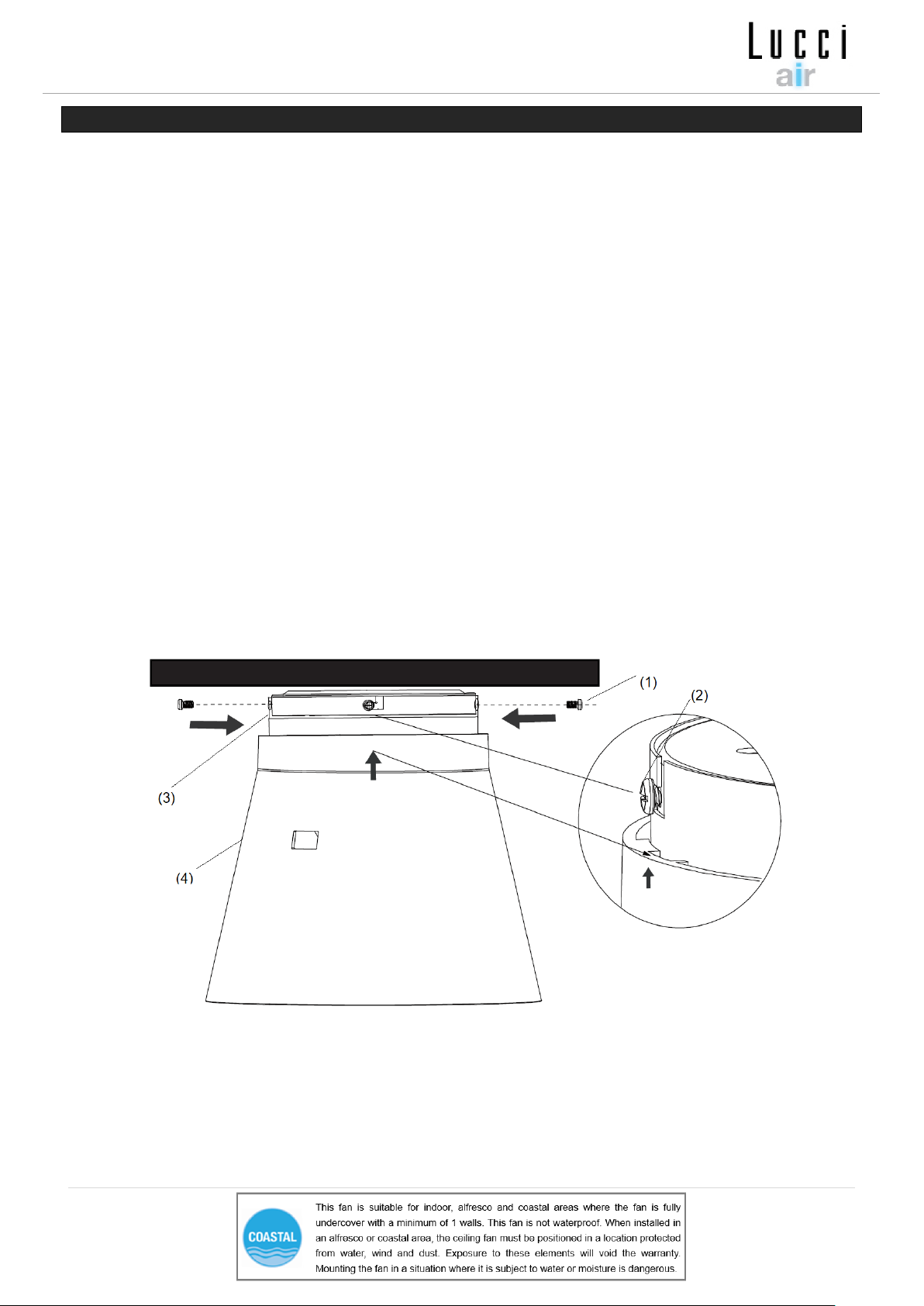

Install the fan assembly to the mounting bracket (Fig.8):

•Loosen two canopy screws (1) and remove from the mounting bracket.

•Loosen two canopy screws with star washer (2) by half thread from the mounting bracket. (For

L-shape slot on canopy to be mounted).

•Lift the hanging canopy of the fan assembly up to the mounting bracket and let the L-shape slot on

the hanging canopy go through the two canopy screws with star washer (2).

•Turn the hanging canopy until it locks in place at the end section of the L-shape slot, ensure the star

washer are between the hanging canopy (3) and screw head. Secure it by tightening the two canopy

screws with star washer (2).

•Secure and tighten the canopy screws (1) to the mounting bracket. The hanging canopy (3) shall

have 4 screws (1) & (2) in total. Avoid damaging the electrical wiring prepared previously when

hanging the canopy.

•Finally attach the canopy cover (4) to the mounting bracket, secure it by pushing the hooks of the

canopy cover into the slot holes of the hanging canopy and turn it anti clockwise.

Fig. 8

Aria CTC Installation Instructions

8 | P a g e

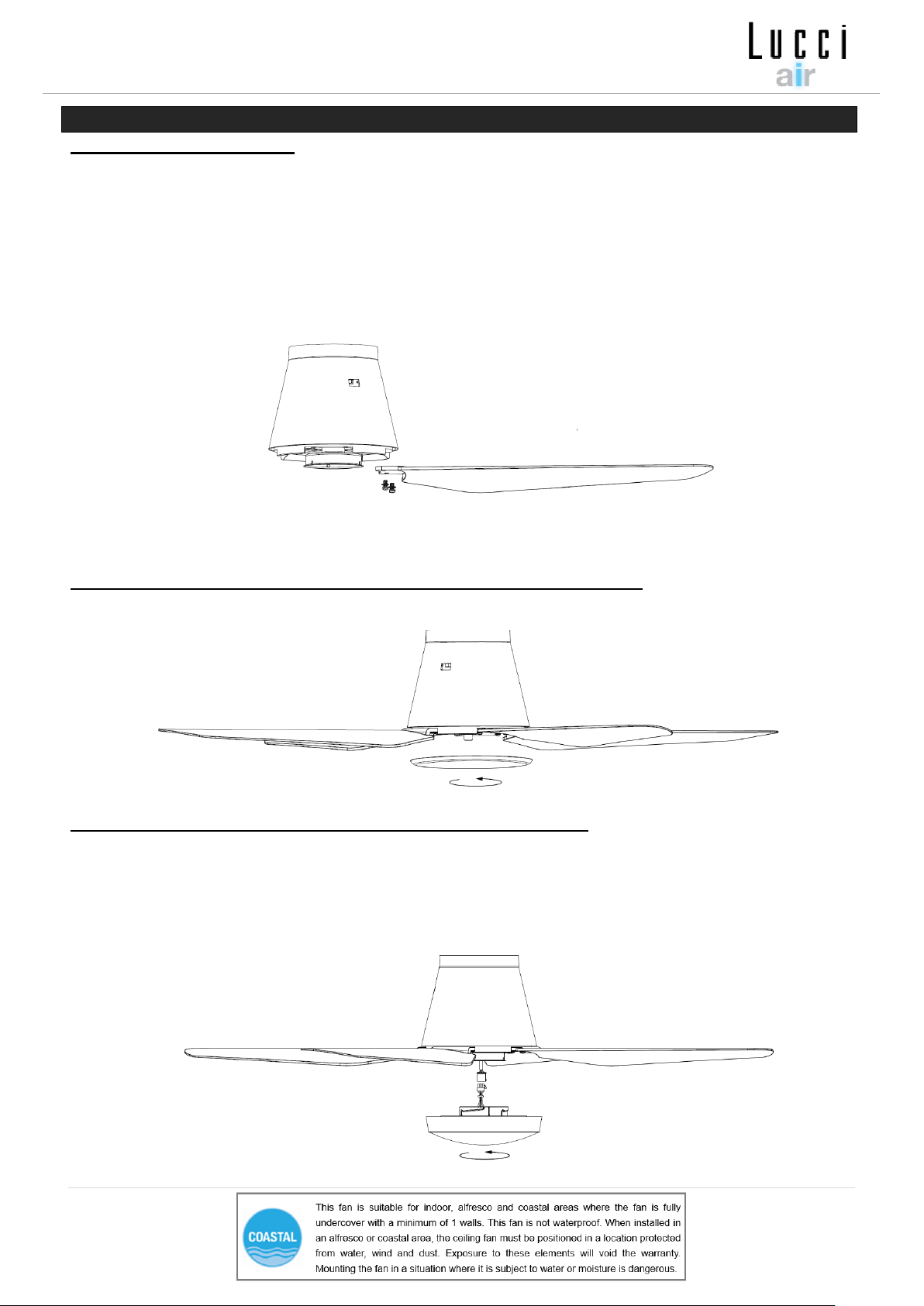

INSTALLING THE FAN BLADE AND LIGHT KIT

BLADE ATTACHMENT (Fig.9)

1. Before installing the blades, remove the blade screws and flat washers from the bottom of fan

motor.

2. Align the 2 holes on the blade with the 2 holes on the rotating member of fan motor assembly and

using the 2 blade screws in step 1, to secure the blade to the fan motor assembly.

Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing. Take care

not to over tighten the screws, as this can damage the blades.

3. Once completed, repeat the process on the remaining blades.

INSTALLING THE BOTTOM COVER (FOR FAN WITHOUT LIGHT FIG.10)

Secure the bottom motor cover to the fan by turning it clockwise.

INSTALLING THE LED LIGHT KIT (FOR FAN WITH LIGHT FIG.11)

- Attach the LED light kit to the lamp base and connect wires to the LED light kit via the quick

connectors.

- Secure the LED light kit on the lamp base by turning the LED light kit body clockwise. Take care not

to cross thread or twist and damage the wires.

Fig. 10

Fig. 11

Fig. 9

Aria CTC Installation Instructions

9 | P a g e

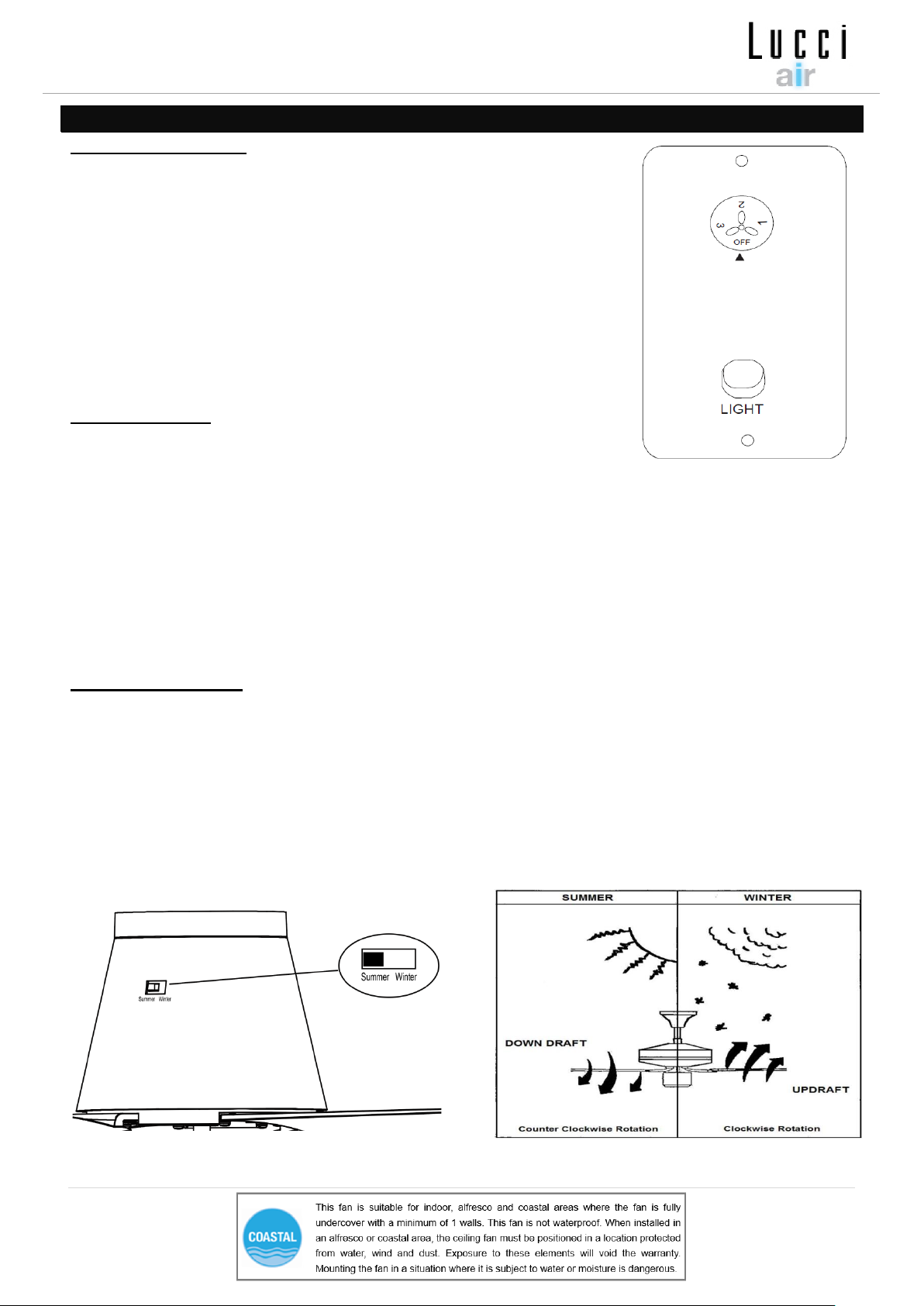

USING YOUR CEILING FAN

FAN WALL CONTROL

Turn on the power and check the operation of the fan.

• OFF Position – Fan off

• 3rd Position – Low fan speed

• 2nd Position – Medium fan speed

• 1st Position – High fan speed

LIGHT CONTROL

• Toggle Switch – On/off

The LED Light Kit has a 3-step dimmable function which is controlled by an ON/OFF switch. Toggle the

switch ON/OFF to the luminaire 4 times within 5 seconds, the globe will light up in the following order:

100% brightness → 60% brightness → 10% brightness → 100% brightness

To switch back to 100% brightness at any stage, turn OFF the luminaire, and then after 5 seconds turn

ON the luminaire, it will reset to 100% brightness.

REVERSING SWITCH

Your ceiling fan can operate in either summer or winter mode.

SUMMER Mode: The reverse switch shall be in the SUMMER position to make the fan rotate in an

anticlockwise direction. The airflow will be directed downwards, for cooling in summer.

WINTER Mode: The reverse switch shall be in the WINTER position to make the fan rotate in a

clockwise direction. The airflow will be directed upwards assisting in the circulation of warm air, for

energy conservation in winter.

Fig. 13

Fig. 12
