Lufft 8160.UANA Bedienungsanleitung
Operating Manual UMB Analogue/Digital Converter ANACON
OTT HydroMet Fellbach GmbH, Fellbach, Germany WEEE DE 98036552
1
Operating Manual
UMB Analogue/Digital Converter ANACON
Order Number: 8160.UANA
Status: V8; 27.07.2021
UMB Analogue/Digital Converter ANACON Operating Manual
2 OTT HydroMet Fellbach GmbH, Fellbach, Germany
TABLE OF CONTENTS
PLEASE READ BEFORE USE .............................................................................................. 4
DESCRIPTION .................................................................................................................. 6
ANACON UMB ANALOGUE/DIGITAL CONVERTER ............................................................ 7
CONFIGURATION ........................................................................................................... 11
INSTALLATION AND COMMISSIONING ............................................................................... 12
SENSOR CHANNEL LIST ................................................................................................. 14
TECHNICAL DATA .......................................................................................................... 17
MAINTENANCE AND CARE .............................................................................................. 21
DISPOSAL ..................................................................................................................... 21
MANUFACTURER ........................................................................................................... 21
EC CERTIFICATE OF CONFORMITY ................................................................................. 22
Version history:
Version
Date
Compiled by
C
omments
V1 15.09.2006 EES/SH First edition
V2
1
1.01.2007
EES
Sensor c
onnection scheme for wind sensor changed; additional channels for wind speed in knots supplemented
V3
27.03.2007
EES
EC Certificate of Conformity and channels for abs. air pressure / h
umidity supplemented; grounded D
IN rail
V4
09.1
0
.2007
EES
Channel list
for precipitation and pulses changed
V5
13.07.2009
EES
Channel list for 2nd Temperature channel added
V6
25.03.2010
FS
New Housing
V7
V8
27.05.2021
27.07.2021
Sec
sec
Update Company Logo and WEEE on first page, Update Table “Measurement Variables”, Update Manufacturer,
Update about connectors, Changes table “Measurement Variables”, Resistor symbol Table “Sensor connection
scheme” improved
English Version (e)
Operating Manual UMB Analogue/Digital Converter ANACON
OTT HydroMet Fellbach GmbH, Fellbach, Germany 3
UMB Analogue/Digital Converter ANACON Operating Manual
4 OTT HydroMet Fellbach GmbH, Fellbach, Germany
Please read before use
Before using the equipment, please read the operating manual carefully and follow the instructions in every
detail.
Safety instructions
Installation and commissioning must only be carried out by suitably qualified specialist personnel.
Never take measurements on or touch live electrical parts.
Only mount the module on the DIN rail when the power is switched off.
Protect the device from direct sunlight
The equipment requires an adjustment period of several minutes on being moved to a
location with different climate conditions.
Pay attention to the technical data and storage and operating conditions.
Designated use
The equipment must only be operated within the range of the specified technical data.
The equipment must only be used under the conditions and for the purposes for which it was designed.
The safety and operation of the equipment can no longer be guaranteed if it is modified or adapted.
Guarantee
The guarantee period is 24 months from the date of delivery. The guarantee is forfeited if the designated use is
violated.
Operating Manual UMB Analogue/Digital Converter ANACON
OTT HydroMet Fellbach GmbH, Fellbach, Germany 5
Symbols used
Important indication concerning possible hazards to the user
Important indication for the correct functioning of the device
UMB Analogue/Digital Converter ANACON Operating Manual
6 OTT HydroMet Fellbach GmbH, Fellbach, Germany
Description
The UMB Analogue/Digital Converter (ANACON) is an intelligent analogue/digital converter with electrical
isolation, suitable for integration into UMB networks. The devices are easily installed on standard EN mounting
rails and networked together by means of mounting rail bus connectors. The 24V feed for the power supply
takes place via the bus connector. Windows software is available for the configuration of the ANACON via
RS232 port and an additional ISOCON (8160.UISO).
Features
2 analogue inputs with 24 bit resolution and signal conditioning for resistance, PT100/PT1000, voltage,
current, frequency and pulses as well as pre-defined settings for a large number of Lufft environmental
sensors. A half-duplex RS485 interface for networking the converters together.
Easy mounting on standard EN mounting rails
Easy networking of up to 32 subscribers via mounting rail bus connectors
24V DC power supply suitable for switchgear cabinets
ESD protection for all interfaces
Configuration via Windows software provided
Functions displayed via LED’s
Low space requirement; width approx. 23mm/module
Low energy consumption / dissipation
Operating Manual UMB Analogue/Digital Converter ANACON
OTT HydroMet Fellbach GmbH, Fellbach, Germany 7

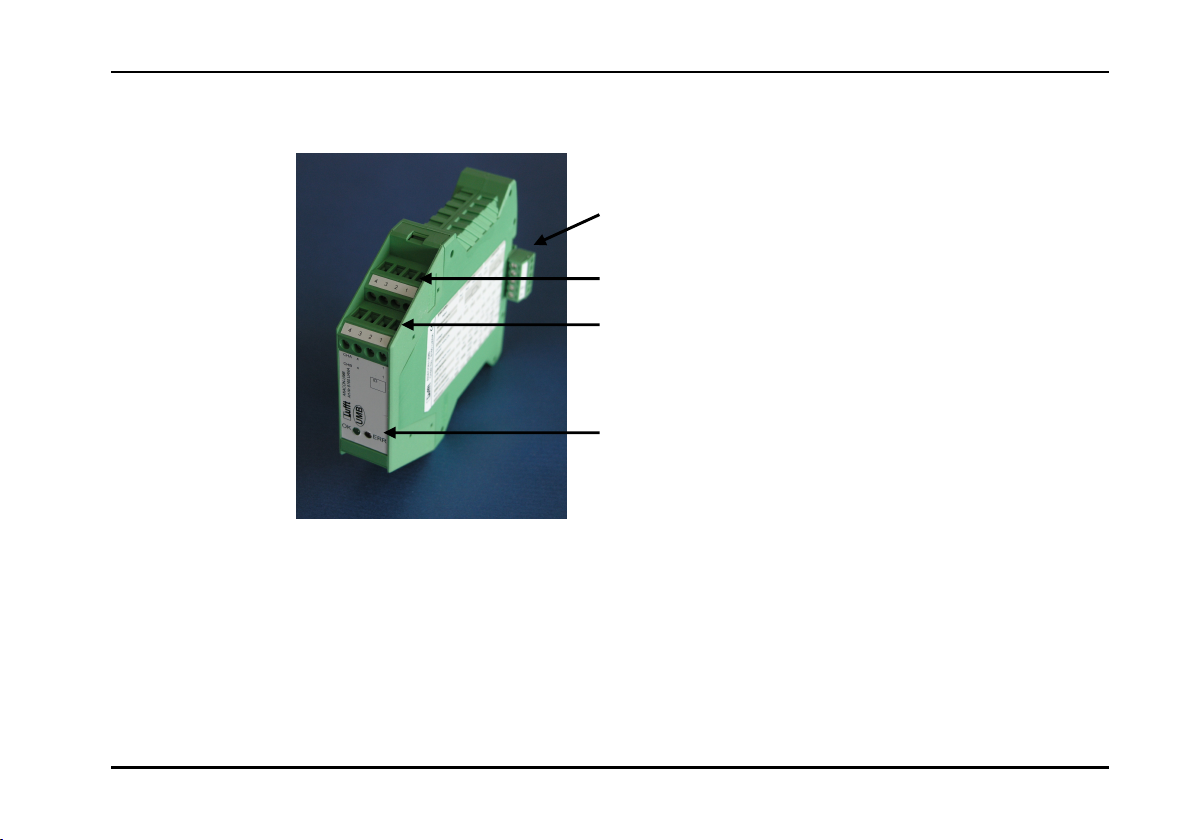

ANACON UMB Analogue/Digital Converter
Summary
Status LED’s
Input Channel B
Input Channel A
Power supply & RS485 bus
interface
UMB Analogue/Digital Converter ANACON Operating Manual
8 OTT HydroMet Fellbach GmbH, Fellbach, Germany

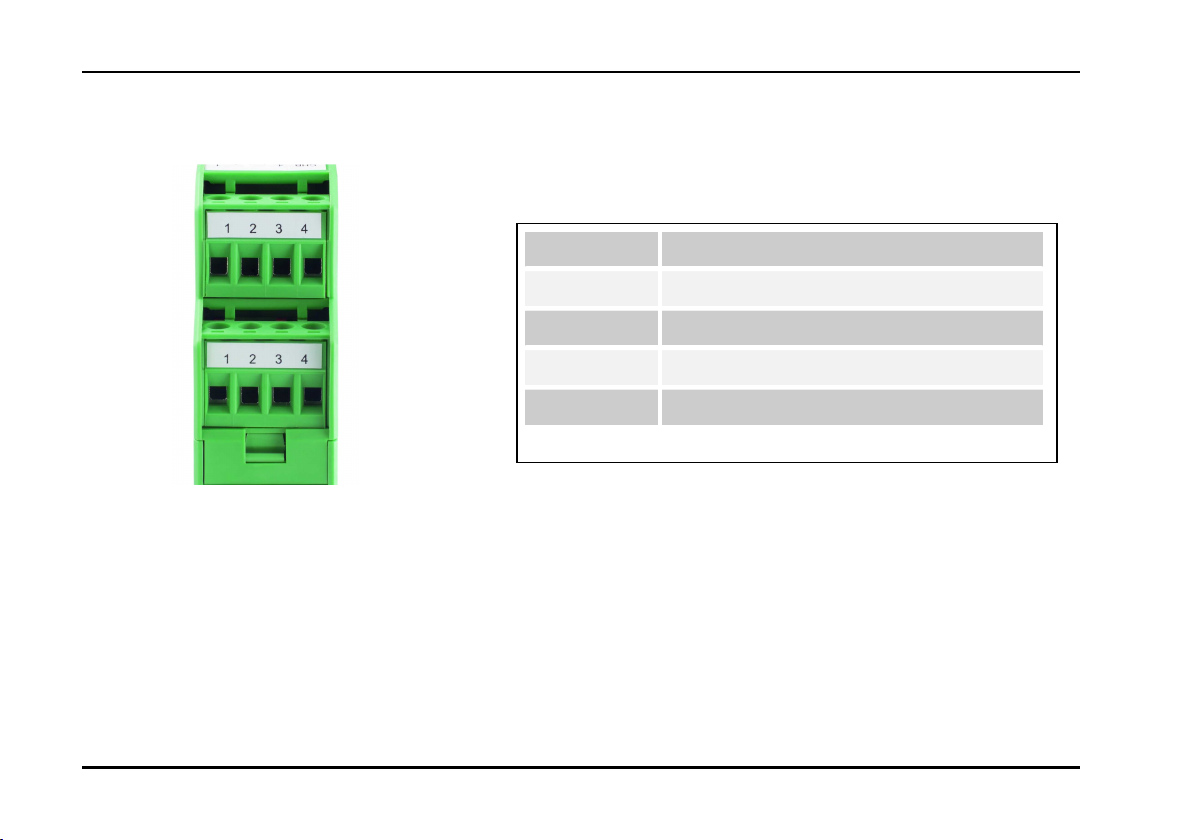

Analogue Inputs Channel A and Channel B
The terminals are suitable for stranded or rigid wires
without end sleeves with cross section from 0,14 mm2
to 2,5 mm2. Alternatively, stranded or rigid wires with
end sleeves can be used with over-all cross section
from 0,25 mm2 to 2,5 mm2.
In any case the stripping length is 8 mm and the
terminals needs to be tightened with a 3,2 mm slotted
screwdriver with a torque from 0,5 Nm to 0,6 Nm.
ANACON-UMB
Connection
Channel B
Channel A
PIN Name
1 Power, Sensor Power Supply
2 ANA_+, Sense High Input
3 ANA_I, Force Low Input
4 ANA_-, Force High Input
Operating Manual UMB Analogue/Digital Converter ANACON
OTT HydroMet Fellbach GmbH, Fellbach, Germany 9

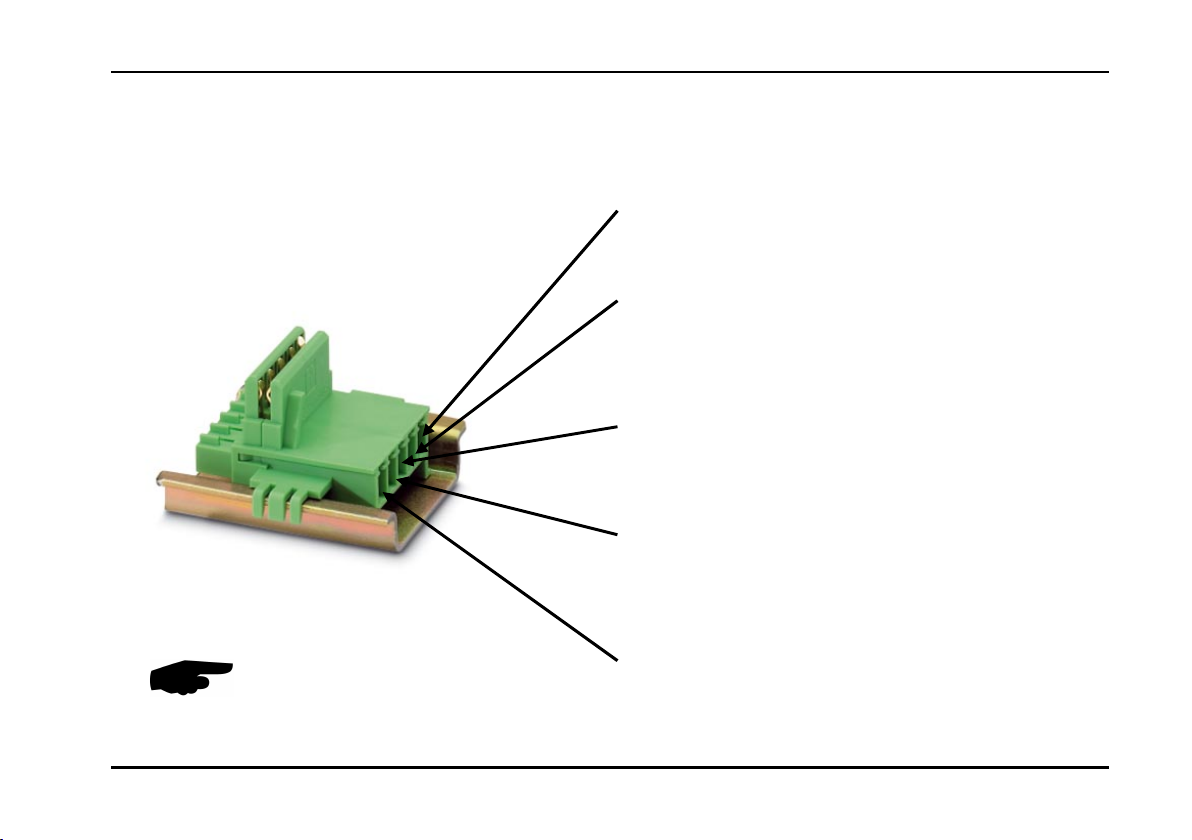

Mounting Rail Bus Connector
NOTE: The assembly must take place on a grounded DIN rail !
Earth 24V Power Supply, Feed
Earth 24V Power Supply, Feed
+24V Power Supply, Feed
B1, Internal Bus
A1, Internal Bus
UMB Analogue/Digital Converter ANACON Operating Manual
10 OTT HydroMet Fellbach GmbH, Fellbach, Germany
Status LED’s
There are 2 LED’s on the front side of the device in order to display the correct configuration and functioning of
the ANACON. Their meanings are as follows:
Red LED: - If this LED lights up permanently after switch-on there is a configuration fault.
- If this LED lights up during operation an unforeseen fault has occurred; the device must be
reset.
Green LED: - This LED flashes briefly (20ms) every 10 seconds to display the function of the device.
- This LED lights up for a longer period (>500ms) during measurement.
