LUX TX9600TS Bedienungsanleitung

CAUTIONS AND WARNINGS . . . . . . . . . . 2

SYSTEM COMPATIBILITY . . . . . . . . . . . . 3

FEATURES . . . . . . . . . . . . . . . . . . . . . . . 4

TOOLS YOU MAY NEED. . . . . . . . . . . . . . 4

MOUNTING LOCATION . . . . . . . . . . . . . . 5

REMOVE OLD THERMOSTAT . . . . . . . . . . 5

INSTALL THERMOSTAT BASE . . . . . . . . . 6

WIRING INFORMATION . . . . . . . . . . . . . . 7

WIRING DIAGRAMS . . . . . . . . . . . . . . . . 9

HARDWARE SETUP OPTIONS . . . . . . . . 18

COMPLETE THE INSTALL . . . . . . . . . . . 20

FRONT PANEL ITEMS . . . . . . . . . . . . . . 20

OPERATING INSTRUCTIONS . . . . . . . . . 21

TEMPERATURE PROGRAMS . . . . . . . . . 24

ADVANCED FEATURES . . . . . . . . . . . . . 25

BATTERY REPLACEMENT . . . . . . . . . . . 33

TECHNICAL ASSISTANCE . . . . . . . . . . . 34

LIMITED WARRANTY . . . . . . . . . . . . . . 34

MERCURY NOTICE . . . . . . . . . . . . . . . . 34

WARNING: Use Energizer®or DURACELL® Alkaline Batteries Only.

Energizer®is a registered trademark of Eveready Battery Company, Inc.

DURACELL®is a registered trademark of The Procter & Gamble Company

TX9600TSa

SMART TEMP®UNIVERSAL

7-DAY PROGRAMMABLE TOUCHSCREEN THERMOSTAT

(FOR BOTH CONVENTIONAL AND HEAT PUMP SYSTEMS)

INSTALLATION AND OPERATING INSTRUCTIONS

IMPORTANT!

• Please read all of these instructions carefully before beginning

installation.

• Label every wire terminal designation on your existing thermostat wiring

before removing your old thermostat.

• Ignore the color of the wires since they may not comply with any

standard. Please connect wires using the terminal letter designations.

Thank you for your confidence in our product. To obtain the best results from

your investment, please read and follow the installation procedures carefully, and

one step at a time. This will save you time and minimize the chance of damaging

either the thermostat or possibly your heating and cooling system. These

instructions may contain information beyond that which may be required for your

particular installation.

52138

• This thermostat requires batteries to operate and failure or sub-standard

performance of the batteries may impair or prevent the correct operation of

the thermostat. Use Duracell®or Energizer®alkaline batteries ONLY for all LUX

thermostats requiring batteries. BE SURE TO CHANGE THE BATTERIES AT LEAST

ONCE A YEAR, or whenever you see the LO BATT indication on the screen.

Failure to follow these battery instructions could result in property damage

and/or personal injury.

• The electrical rating for this thermostat is 1.5 Amps per terminal, with a

maximum total load of 3.0A for all terminals combined.

• The thermostat contains parts that may wear out through use and are

susceptible to failure if over-loaded or used in a manner other than as

indicated in the documentation.

• Check unoccupied residences regularly to ensure that all systems are

operating properly.

• Check any heating/air-conditioning system including this product before

operation and at regular intervals.

• Electrical interference, static electricity, failure or substandard performance of

batteries, wiring defects in the installation and/or characteristics of the

connected HVAC devices may prevent the system from regulating heating and

cooling as anticipated.

• The thermostat is a sensitive device and dropping the product can cause

damage to critical components. If the product is dropped or shaken violently

during transport or installation then it should be replaced immediately.

• Persons with physical or mental limitations may not be able to promptly

respond to a malfunction of the heating/air-conditioning system.

• All residents should be made aware of the potential in any system for

malfunctions that could cause continuous heating or cooling and should be

familiar with the operation and location of the heating/cooling appliance on/off

switch.

• Read the instruction manual completely before installing the thermostat. You

should consult a qualified HVAC technician or an electrician if you do not fully

understand the installation instructions.

CAUTIONS AND WARNINGS:

SET

HEAT

OFF

COOL

AUTO

FAN

TX9600TSa

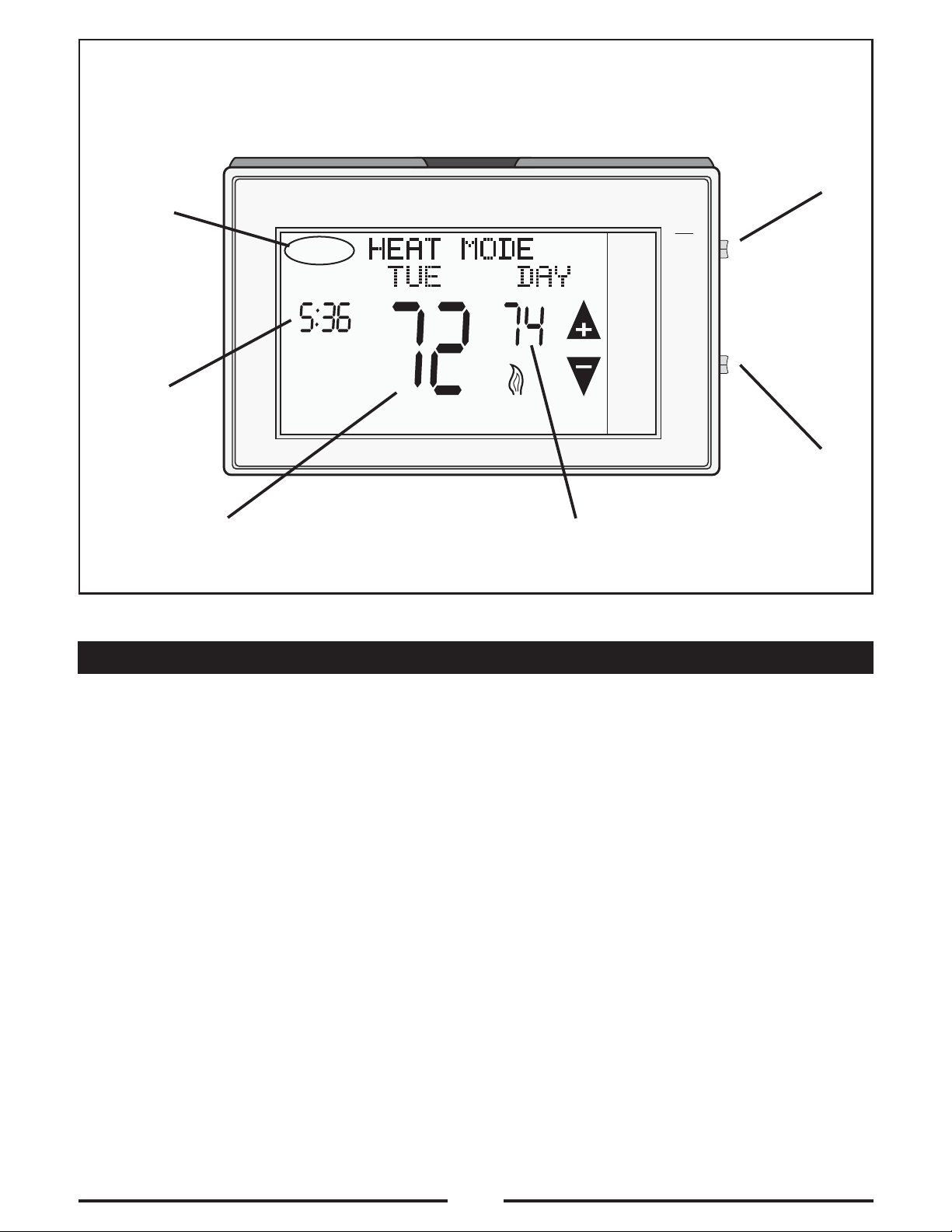

Set TemperatureRoom Temperature

Fan

Mode

Switch

System

Mode

Switch

Button

Clock

The electrical rating for this thermostat is 1.5 Amps per terminal, with a

maximum total combined load of 3.0A for all terminals combined.

COMPATIBLE WITH:

• Most 24-volt heating and cooling systems

• 1 or 2 stage Heat / 1 stage Cool: Gas, Oil or Electric systems

• 1 or 2 stage Heat / 1 stage Cool: Heat Pump systems

• 3-wire hydronic (hot water) zone valves

• Gas Millivolt heaters

NOT COMPATIBLE WITH:

• 120/240 VAC line-voltage systems (without a transformer), ask your LUX

dealer for thermostats to control these systems.

SYSTEM COMPATIBILITY:

• 1 or 2-Heat / 1-Cool, 7-day programming

• Universal Compatibility for all system types

• Each day of the week can be programmed separately

• Easy to use, touchscreen menu operation

• User-selectable periods per day (2 or 4)

• User-selectable programmable or non-programmable operation

• LuxLight®EL (Electro-Luminescent) lighted display

• Energy usage monitor

• Programmable air filter life timer

• Programmable keypad lockout for unauthorized users

• Manual temperature hold

• Adjustable vacation hold (1 to 30 days)

• Temporary temperature override

• Adjustable temperature differential / cycle-rate

• Adjustable 2nd heat stage Offset setting

• User temperature calibration

• Adjustable heat/cool set temperature limit stops

• Smart recovery

• Dual-powered (battery and/or 24-volt system powered)

• Battery-free memory storage

• F/C temperature display

• 12/24-hour clock display

• 5/2-minute selectable time delay for equipment protection

• Screwdrivers

• Wire Stripper

• Wire Cutter

• Drill with assorted drill bits (new installations only)

TOOLS YOU MAY NEED:

FEATURES:

On replacement installations, mount the new thermostat in place of the old one

unless the conditions listed below suggest otherwise. On new installations,

please follow these general guidelines:

1. Mount the thermostat on an inside wall, about 5 ft. (1.5m) above the floor.

2. Do not locate the thermostat where air circulation is poor such as in a corner,

alcove, or behind a door that is normally left open.

3. Do not locate the thermostat where unusual heating or cooling conditions may

be present, such as: direct sunlight, above a lamp, television, or radiator, or on

a wall next to an exterior door or window.

4. Do not locate in a damp environment, as this can lead to corrosion that may

shorten thermostat life.

5. If painting or construction work is still ongoing, cover the thermostat

completely or wait until this work is complete before installation.

WARNING:

All wiring must conform to the local codes and ordinances that are in your

particular location.

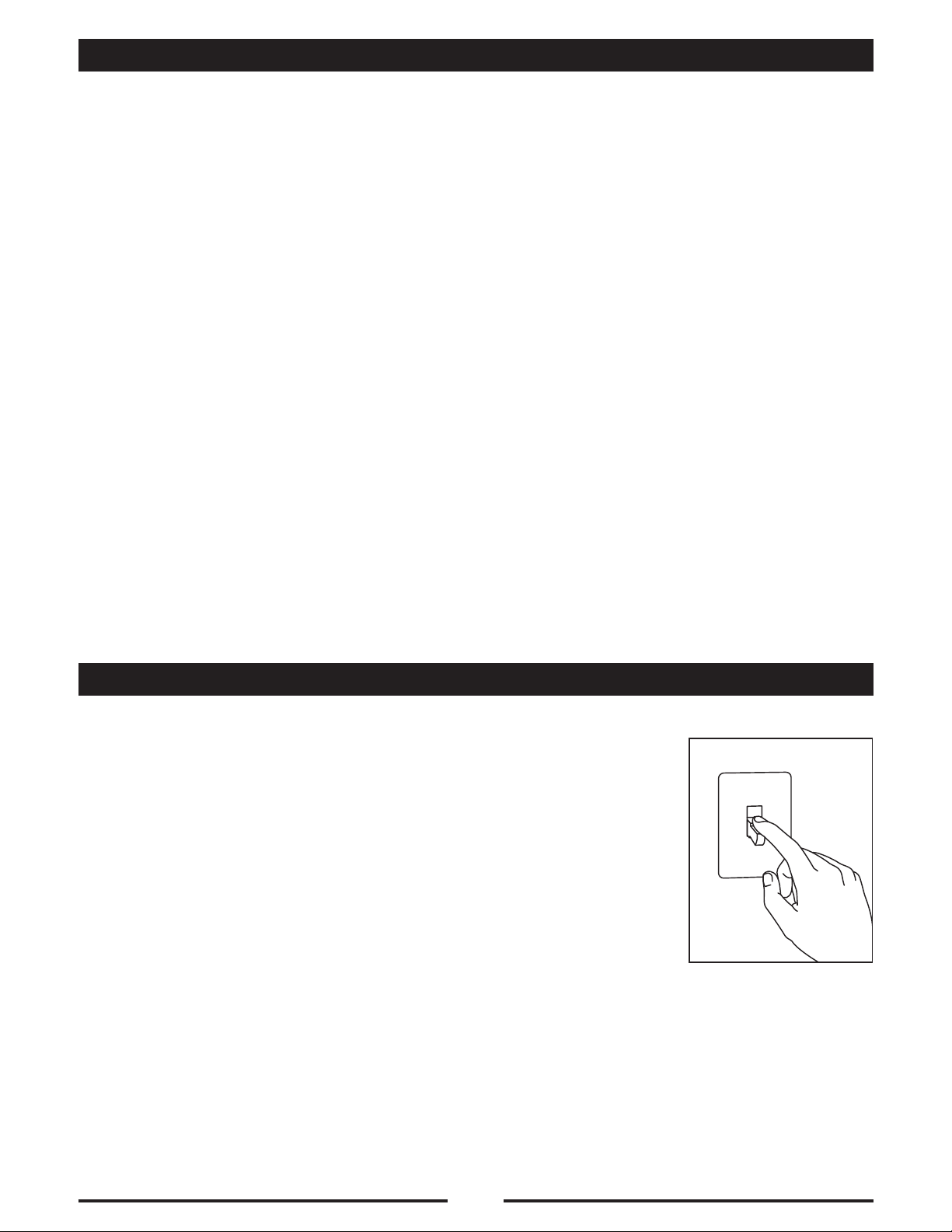

1. Turn OFF the electricity to all heating and cooling

components. Do not turn the electricity back on until

all work is completed.

2. Remove the front portion of your old thermostat to

expose the wiring connections.

3. Write down the letters printed near each wire terminal

that is used, and also the color of each wire that is

connected to it. Self-adhesive wire labels are also

enclosed.

4. Carefully remove the wires one at a time, and bend them in a manner so that

they do not fall back inside the wall. Do not allow bare wire ends to touch

each other.

5. Loosen the mounting screws for the old thermostat and carefully remove it

from the wall.

REMOVE OLD THERMOSTAT:

MOUNTING LOCATION:

OFF

1. Strip wire insulation leaving only 3/8 in. (9.5mm) bare wire ends, and clean off

any corrosion present.

2. Fill the wall opening with non-combustible insulation to prevent drafts from

affecting the thermostat’s normal operation.

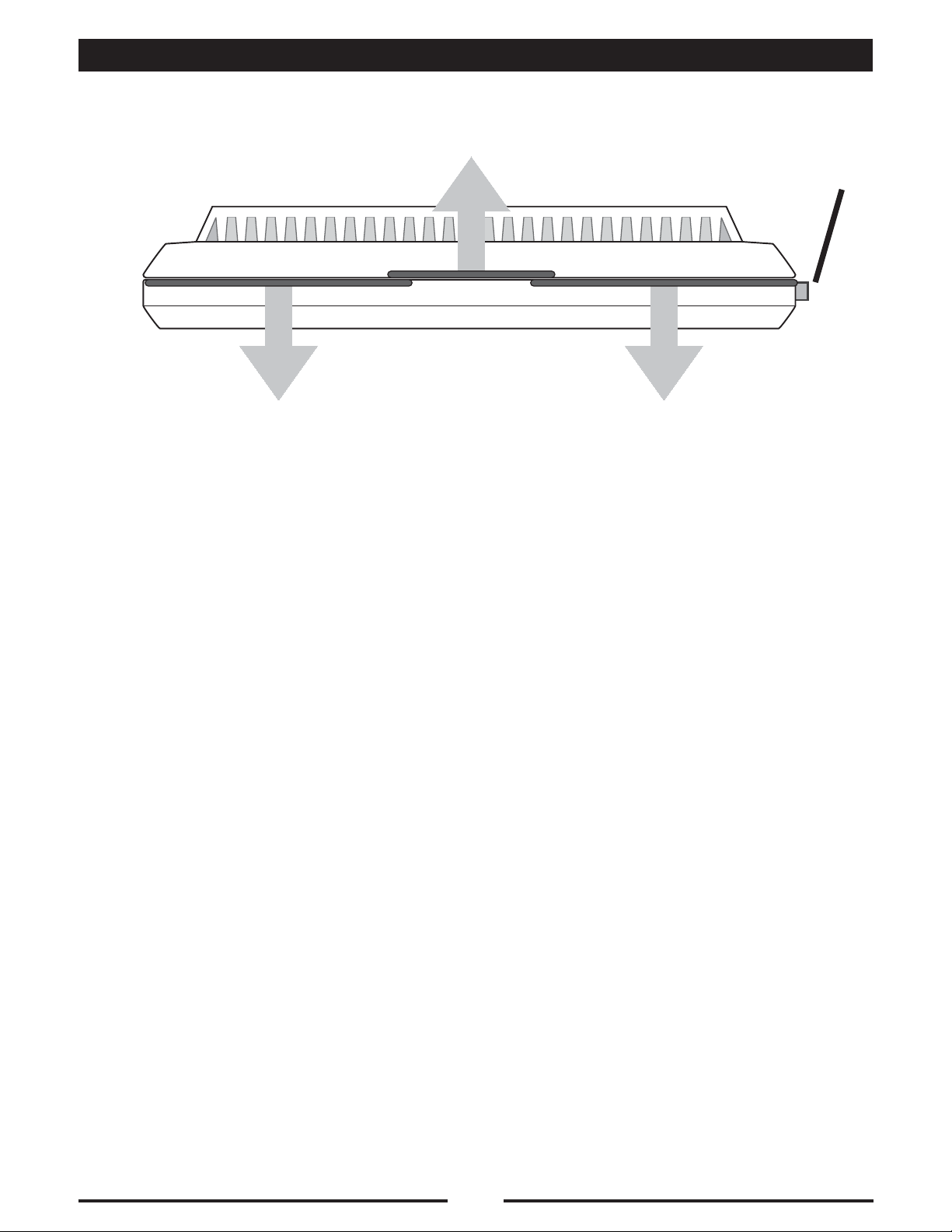

3. Separate new thermostat housing using your thumb and index finger. Provide

pressure in opposite directions to the release tabs on the top of the housing,

in the directions shown in the diagram shown above.

4. Route the wires through the opening in the new thermostat base plate, and

hold the base against the wall. Try to line up the screw holes from the prior

thermostat, and install the mounting screws.

5. If the previous holes cannot be used, hold the thermostat base against the

wall so that it appears straight and level (position the base for best

appearance) and mark for the new screw holes. Attach the base to the wall

using the screws provided (use the supplied plastic anchors if needed when

mounting to a soft material such as drywall).

INSTALL THERMOSTAT BASE:

THERMOSTAT TOP VIEW

Mode

Switches

CONNECTING THE WIRES:

When attaching the wires to the thermostat, please ensure that the bare wire

ends are held ALL the way into the terminal block while the screw is being

tightened.

WIRING BASE PLATE NOTICE:

This thermostat model is part of a family of similar models that have the same

general visual appearance. Even though this base plate may look the same as

base plates from other models, the wiring connections may have different

terminal letters for different purposes. Please do not interchange the back plates

and/or thermostat front halves of other similar looking models. Doing so may

cause undesired heating and/or cooling operation to occur.

WIRING INFORMATION:

WIRING DIAGRAM NOTES:

(Important, please read all notes before connecting wires)

• If the information provided in the following wiring diagrams does not clearly

represent or match your system, please refer to the “TECHNICAL ASSISTANCE”

section of this manual, and contact us before removing any of your existing

thermostat wiring.

• All of the dashed wires shown in the wiring diagrams are either optional, or

their usage depends upon your specific system type or brand. For example:

Diagram #1 shows the fan wire as optional. If your system does not have a

fan, than this terminal will not be used.

• Terminal letters shown in black represent typical wiring applications.

Depending upon the brand of your specific system or thermostat, your terminal

letters may not match exactly. Terminal letters shown in gray represent other

possible wiring designations that you might see on your existing thermostat

terminals.

• The optional “C” terminal is used for powering the thermostat by the 24-volt

system, using the System Common wire. This can be used alone, or in

addition to installing batteries as a backup. NOTE: connecting the System

Common wire to the thermostat is not necessary for heating and cooling to

function properly.

• If your old thermostat has both a “Y” and “C” wire present, then “C” is most

likely a System Common wire.

• For Heat Pump systems, you will use either the “O” terminal or the “B”

terminal on this thermostat, but not both. If your old thermostat has both an

“O” and a “B” wire present, then “B” is likely a System Common wire and may

be connected to the “C” terminal. Connecting a System Common wire to this

thermostat’s “B” terminal may damage the thermostat, and also your heating

and cooling system.

• Some Heat Pump systems have a wire for AUX electric heat (usually W2), and

also a separate wire for Emergency electric heat (usually E). This thermostat

uses the W2 terminal for both AUX and Emergency Heat. Tape off your “E”

wire, and confirm that all components function without it.

• If replacing an old thermostat that has a mechanical clock, there may be two

wires labeled as “C” for the clock power. Tape off these wires and do not

connect them to the “C” terminal of this thermostat.

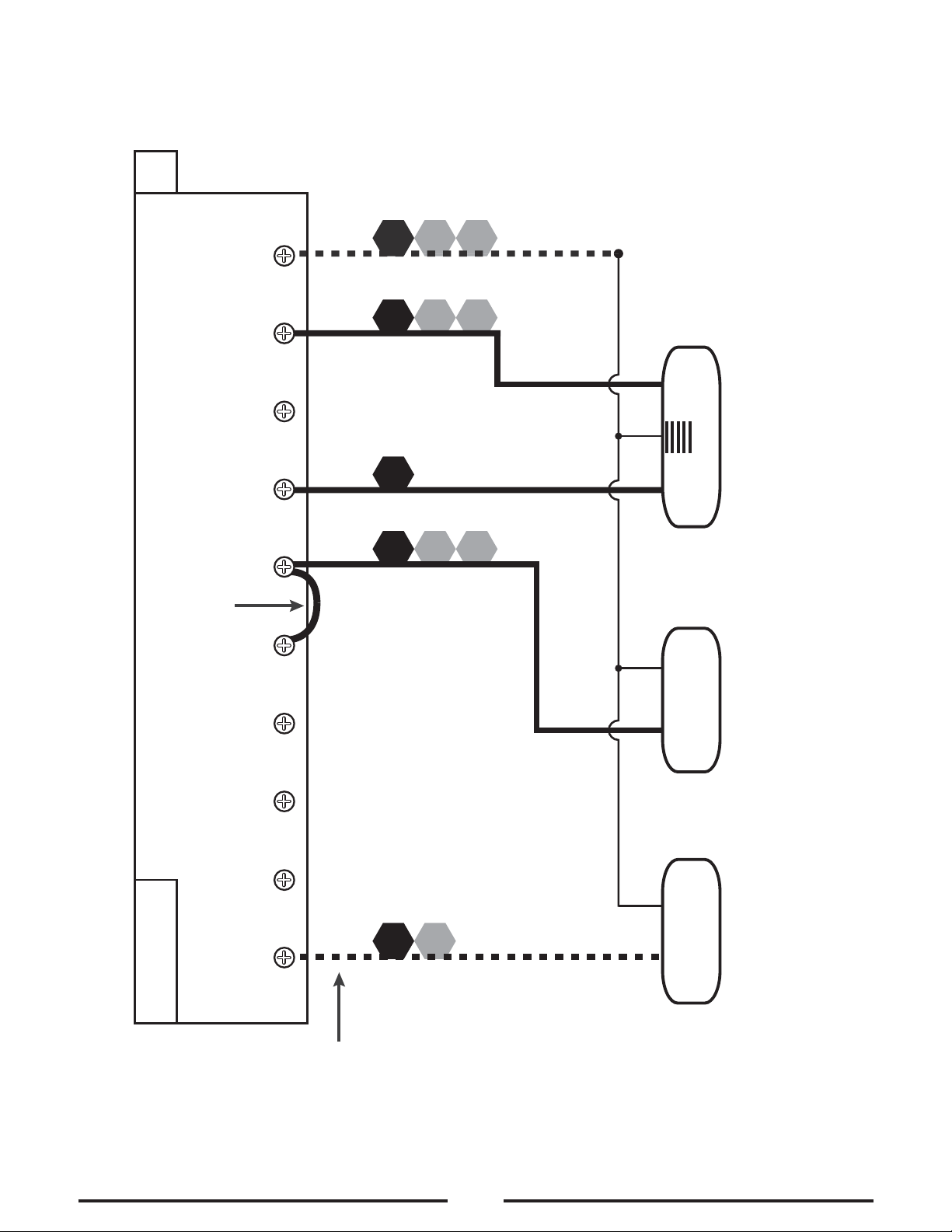

#1 CONVENTIONAL: HEATING ..........................................................10

1-STAGE OR 2-STAGE

2, 3, 4, 5 WIRES

#2 CONVENTIONAL: HEATING ..........................................................11

3-WIRE ZONE VALVE

3, 4 WIRES

#3 CONVENTIONAL: COOLING ..........................................................12

1-STAGE

3, 4 WIRES

#4 CONVENTIONAL: HEATING AND COOLING .....................................13

1-STAGE HEAT

4, 5 WIRES

#5 CONVENTIONAL: HEATING AND COOLING .....................................14

2-STAGE HEAT

5, 6 WIRES

#6 CONVENTIONAL: HEATING AND COOLING .....................................15

TWO-TRANSFORMERS

5, 6 WIRES

#7 HEAT PUMP: HEATING AND COOLING .....................................16

SINGLE-STAGE ONLY

4, 5 WIRES

#8 HEAT PUMP: HEATING AND COOLING .....................................17

WITH AUX / EMERGENCY HEAT

5, 6 WIRES

DIAGRAM SYSTEM TYPE / DESCRIPTION PAGE #

WIRING DIAGRAMS:

NOTE: THE BLACK TERMINAL LETTERS ARE TYPICAL, GRAY TERMINAL LETTERS ARE BRAND SPECIFIC

W2 A W1G B CO Y RC RH

1-STAGE OR 2-STAGE, HEATING ONLY

(INCLUDING MILLIVOLT) (2-WIRE HEAT USE “RH” & “W1”)

Factory RH-RC Jumper Wire Installed

#12, 3, 4, 5 WIRES

HEATER

STAGE

FAN SYSTEM 24V

TRANSFORMER

SYSTEM COMMON

FAN WIRE

MAY NOT BE

PRESENT IN

ALL SYSTEMS

Andere Handbücher für TX9600TS

Inhaltsverzeichnis

Andere LUX Thermostat Handbücher

LUX

LUX ELV4 Betriebsanleitung

LUX

LUX CS1 Bedienungsanleitung

LUX

LUX SMART TEMP TX500b Series Bedienungsanleitung

LUX

LUX SMART TEMP TX9100U Bedienungsanleitung

LUX

LUX TX500E Bedienungsanleitung

LUX

LUX T20-1141SA Bedienungsanleitung

LUX

LUX SMART TEMP WIN100 Series Bedienungsanleitung

LUX

LUX EcoStat TH10 Bedienungsanleitung

LUX

LUX DMH110b Bedienungsanleitung

LUX

LUX DMH110b Bedienungsanleitung

LUX

LUX TX9600TS Bedienungsanleitung

LUX

LUX TX9100Ua SMART TEMP Bedienungsanleitung

LUX

LUX TX100Ea Bedienungsanleitung

LUX

LUX KONOz Bedienungsanleitung

LUX

LUX CAG1500 Series Bedienungsanleitung

LUX

LUX GEO Bedienungsanleitung

LUX

LUX TX1500B SERIES Bedienungsanleitung

LUX

LUX T10-1143SA Bedienungsanleitung

LUX

LUX TX100E Bedienungsanleitung

LUX

LUX KONOz Gebrauchsanweisung

LUX

LUX TX1500E Bedienungsanleitung

LUX

LUX DMH110b Bedienungsanleitung

LUX

LUX 105/2110 Series Bedienungsanleitung

LUX

LUX DMH105 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
