LuxCam VCALL Bedienungsanleitung
LUXCAM
USER MANUAL
This manual contains proprietary information, protected by copyright. All rights reserved.
© Copyright 2015 Luxcam S.A.
EN
IT
Congratulations on your purchase of this product.
Read this manual carefully and keep it in a safe place for future reference.
VCALL
123
456
789
*/ 0
#/
TECHNICAL SPECIFICATIONS
11
Device layout
Package contents
System requirements
Product features
Hardware
Software
Technical specications
3
4
6
5
8
11
9
TABLE OF CONTENTS
DEVICE LAYOUT
3
10
USB port VCALL card
123
456
789
*/ 0
#/
Network Protection AlarmRecording
OK
USER INTERFACE
USB Micro SD
Motion detection Vcall card
WIFI Ethernet
Network Issues
OK
Press button the system main menu is shown as below.
You can operate and set each function in this menu.
General Set the basic parameters of the system
System
Update and maintain system and show related information
about the system.
Play Search and play video les.
Network Set the basic parameters of the network.
Alarm Set the basic parameters of the alarm.
Record Set dierent record modes.
PACKAGE CONTENTS
Unpack carefully. Electronic components can be damaged if improperly
handled or dropped.
The package should contain the following items. If anything is missing or
appears damaged, contact your dealer immediately.
1.1. Packing list
· Vcall camera
· Ethernet cable
· Power adapter (5V)
· Quick install guide
· Wireless antenna
4
Note: Please use only the power adapter supplied with the Luxcam otherwise
the product may be damaged.
SOFTWARE
To access Vcall in monitor state use your smartphone or tablet to download the LUXCAM app.
9
LUXCAM VCALL APP
For app manual please visit www.luxcam.eu/support

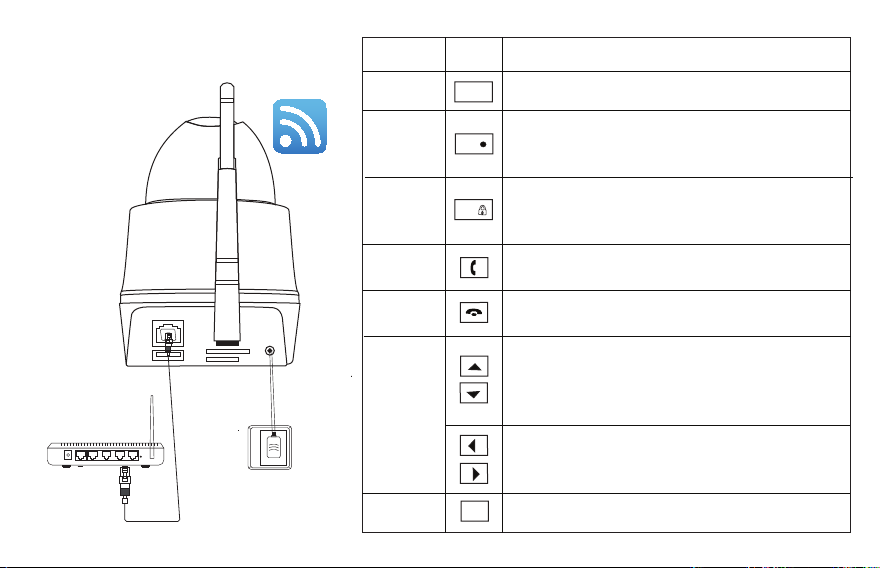

HARDWARE INSTALLATION
8
SYSTEM REQUIREMENTS
Smartphone/Tablet:
· IOS 5.0 and later;
· Android 2.1 and later.
Browser support:
-Internet Explorer 7 and later;
-Firefox 3.5 and later;
-Safari 4 and Chrome 8.0 and later.
10/100 mbps ethernet or WiFi network connected to internet (for remote internet access) 5
N e t w o r k c a b l e
4 2 13
C o n n e c t e d L A N
5V
R o u t e r
Number
*/.button
- Short press to decrease the volume during video call or monitor state.
Ctrl shift
Defense
Dial/preview
Hang up/Exit
Direction
button
Main
menu/conrm
key
0-9
*/
#/
OK
Button name Mark Function
Input number keyboard
- Short press to delete text during edit state.
- Long press to record/stop during manual record mode.
- Short press to increase the volume during video call or monitor state.
- Short press to switch input method during edit state.
- Long press to cancel operation.
- Short press to dial video call during standby state.
- Long press to enter real time preview.
- Hang up during video call.
- Go back / exit current state.
- Up and down menu navigation.
- Add or decrease numbers during edit state.
- Play last or next video in playback state.
- Left and right menu navigation.
- Play slow/fast video in playback state
-Enter main menu / conrmation.
PRODUCT FEATURES
- Built-in ir led, 60 meters.
- Auto day/night. Ir cut lter.
- Built-in WiFi module for local wireless access.
- Max. support 32 gb microsd card storage.
- Motion detection.
- Push notications.
- Same encryption protection used by nancial industry, (using rsa/dh/des/md5/sha/crc/base64 encryption algorithm).
- Qr code, each machine has a unique id and password for easy setup.
- Multi-user access.
- 2way voice intercom, telecommunication level of signal processing (echo cancellation,noise suppression, voice balance).
- Intelligent transmission technology (adaptive bandwidth, dynamic code rate adjustment, voice priority, jitter buer).
- P2p technology / plug and play / scan to go. No conguration needed (port mapping, dns, ip address settings).
- Realtime video monitoring / framerate. (25 f/s - 720p).
- Display resolution – HD real-time 1280 x 720 px , normal 640 x 360 , half 320 x 180, small 160 x 90.
- H. 264 video stream, suitable for local and cross-platform internet access.
- Alarm input/output port (normally open relay (max 24v-1ah).
6
CONTENTS INCLUDED:
- Main bracket body
- Adjustable swivel head
- Screws
A) Choose the suitable spot (wall or ceiling).
B) Attach the bracket to the wall or ceiling and secure appropriately using the screws provided.
BRACKET INSTALLATION
7
CMOS
2 MP
AUDIO
INPUT & OUTPUT
INFRARED
NIGHT VISION
60 METERS
0 LUX
ALARM
MOTION
DETECTION
ALARM
I/O 1A RELAY
I/O
PUSH UP
NOTIFICATION
PRODUCT FEATURES
- Built-in ir led, 60 meters.
- Auto day/night. Ir cut lter.
- Built-in WiFi module for local wireless access.
- Max. support 32 gb microsd card storage.
- Motion detection.
- Push notications.
- Same encryption protection used by nancial industry, (using rsa/dh/des/md5/sha/crc/base64 encryption algorithm).
- Qr code, each machine has a unique id and password for easy setup.
- Multi-user access.
- 2way voice intercom, telecommunication level of signal processing (echo cancellation,noise suppression, voice balance).
- Intelligent transmission technology (adaptive bandwidth, dynamic code rate adjustment, voice priority, jitter buer).
- P2p technology / plug and play / scan to go. No conguration needed (port mapping, dns, ip address settings).
- Realtime video monitoring / framerate. (25 f/s - 720p).
- Display resolution – HD real-time 1280 x 720 px , normal 640 x 360 , half 320 x 180, small 160 x 90.
- H. 264 video stream, suitable for local and cross-platform internet access.
- Alarm input/output port (normally open relay (max 24v-1ah).
6
CONTENTS INCLUDED:
- Main bracket body
- Adjustable swivel head
- Screws
A) Choose the suitable spot (wall or ceiling).
B) Attach the bracket to the wall or ceiling and secure appropriately using the screws provided.
BRACKET INSTALLATION
7
CMOS
2 MP
AUDIO
INPUT & OUTPUT
INFRARED
NIGHT VISION
60 METERS
0 LUX
ALARM
MOTION
DETECTION
ALARM
I/O 1A RELAY
I/O
PUSH UP
NOTIFICATION
HARDWARE INSTALLATION
8
SYSTEM REQUIREMENTS
Smartphone/Tablet:
· IOS 5.0 and later;
· Android 2.1 and later.
Browser support:
-Internet Explorer 7 and later;
-Firefox 3.5 and later;
-Safari 4 and Chrome 8.0 and later.
10/100 mbps ethernet or WiFi network connected to internet (for remote internet access) 5
N e t w o r k c a b l e
4 2 13
C o n n e c t e d L A N
5V
R o u t e r
Number
*/.button
- Short press to decrease the volume during video call or monitor state.
Ctrl shift
Defense
Dial/preview
Hang up/Exit
Direction
button
Main
menu/conrm
key
0-9
*/
#/
OK
Button name Mark Function
Input number keyboard
- Short press to delete text during edit state.
- Long press to record/stop during manual record mode.
- Short press to increase the volume during video call or monitor state.
- Short press to switch input method during edit state.
- Long press to cancel operation.
- Short press to dial video call during standby state.
- Long press to enter real time preview.
- Hang up during video call.
- Go back / exit current state.
- Up and down menu navigation.
- Add or decrease numbers during edit state.
- Play last or next video in playback state.
- Left and right menu navigation.
- Play slow/fast video in playback state
-Enter main menu / conrmation.
PACKAGE CONTENTS
Unpack carefully. Electronic components can be damaged if improperly
handled or dropped.
The package should contain the following items. If anything is missing or
appears damaged, contact your dealer immediately.
1.1. Packing list
· Vcall camera
· Ethernet cable
· Power adapter (5V)
· Quick install guide
· Wireless antenna
4
Note: Please use only the power adapter supplied with the Luxcam otherwise
the product may be damaged.
SOFTWARE
To access Vcall in monitor state use your smartphone or tablet to download the LUXCAM app.
9
LUXCAM VCALL APP
For app manual please visit www.luxcam.eu/support
DEVICE LAYOUT
3
10
USB port VCALL card
123
456
789
*/ 0
#/
Network Protection AlarmRecording
OK
USER INTERFACE
USB Micro SD
Motion detection Vcall card
WIFI Ethernet
Network Issues
OK
Press button the system main menu is shown as below.
You can operate and set each function in this menu.
General Set the basic parameters of the system
System
Update and maintain system and show related information
about the system.
Play Search and play video les.
Network Set the basic parameters of the network.
Alarm Set the basic parameters of the alarm.
Record Set dierent record modes.
